Toyota Land Cruiser 100

1998-01 → 2007-08 · chassis UZJ100 · catalogue 791450 · Europe

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

22 part groups · 3 illustrations

Illustrations

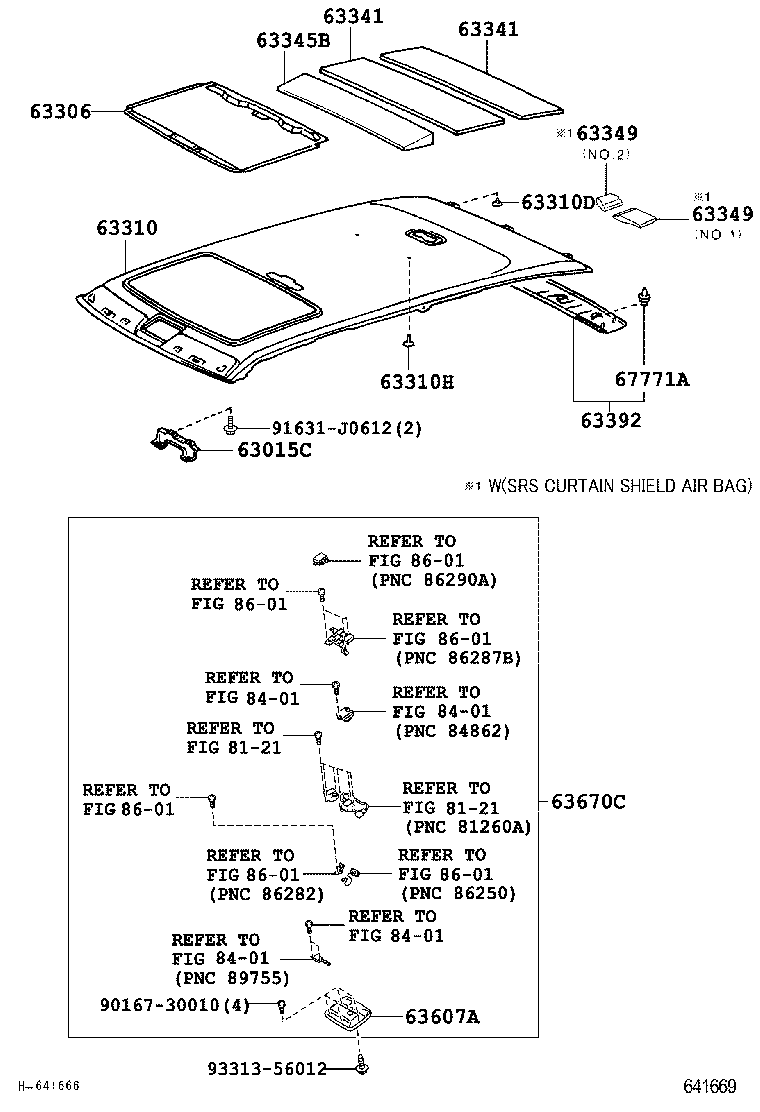

Figure 640643A 640643A 1998-01 → 2002-08 Figure 640644B 640644B 1998-01 → 2002-08 Figure 641669 641669 2002-08 → —

Part groups

PNCDescription
63015C Bracket Sub-assy, Roof Console
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63310H Clip(FOR ROOF HEADLINING)
63318C Moulding, Sun Roof Opening Trim
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63343 Pad, Roof Silencer, NO.3
63345B Pad, Roof Silencer, Center
63346 Pad, Roof Silencer, NO.6
63347A Pad, Roof Silencer, NO.7
63348 Pad, Roof Silencer, NO.8
63349 Pad, Roof Silencer, NO.9
63353C Pad, Roof Headlining, Center
63354B Pad, Roof Silencer, NO.13
63392 Trim, Roof Headlining, Rear
63605B Box Sub-assy, Roof Console
63607A Plate Sub-assy, Map Lamp
63652C Cover, Roof Console Box
63670C Plate Assy, Map Lamp
67771A Retainer, Roof Headlining
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
