Toyota Land Cruiser 100

1998-01 → 2007-08 · chassis UZJ100 · catalogue 791450 · Europe

Discontinued model Data version 2008-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

228 part groups · 15 illustrations

Illustrations

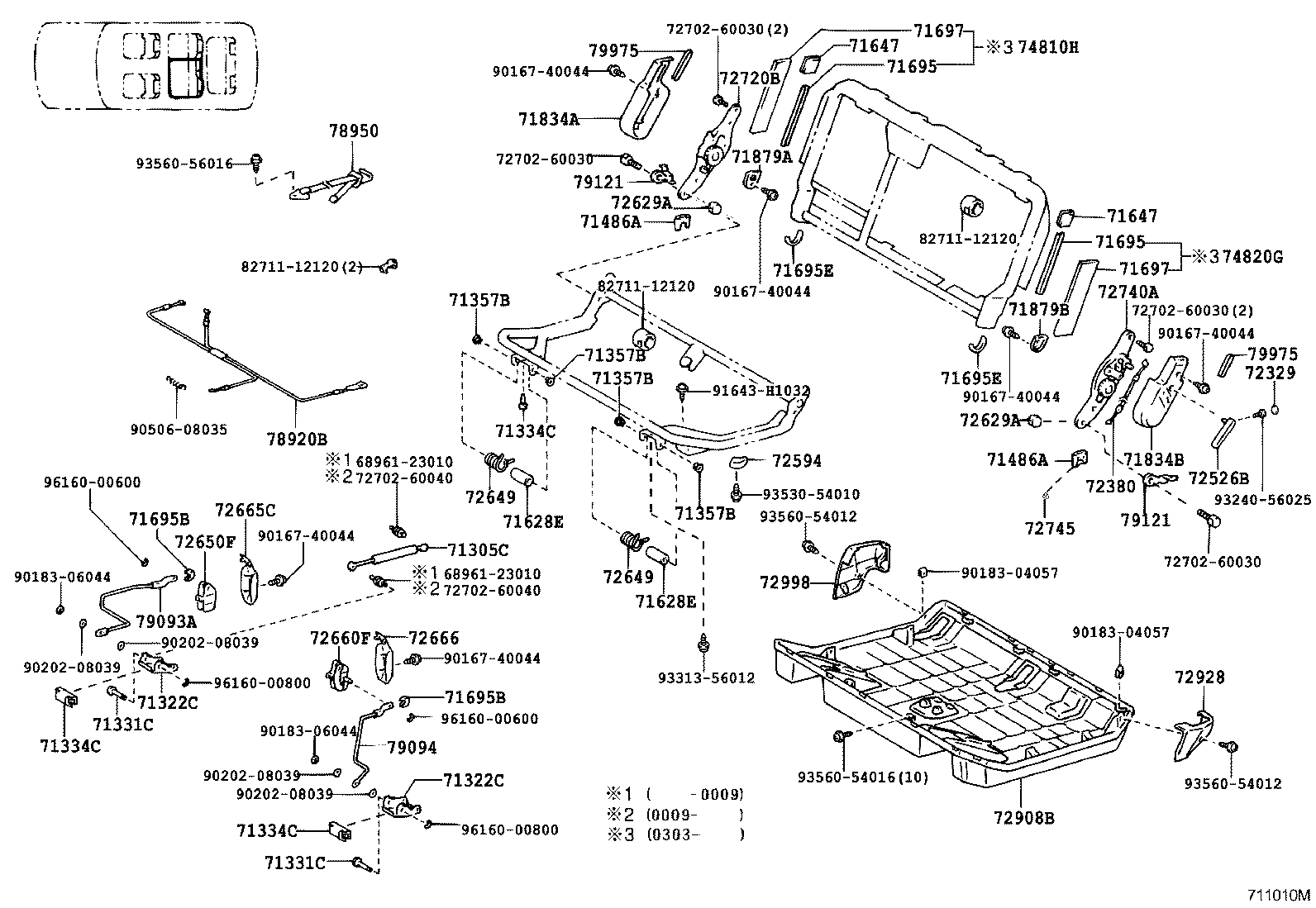

711030D 1998-01 → 2002-08

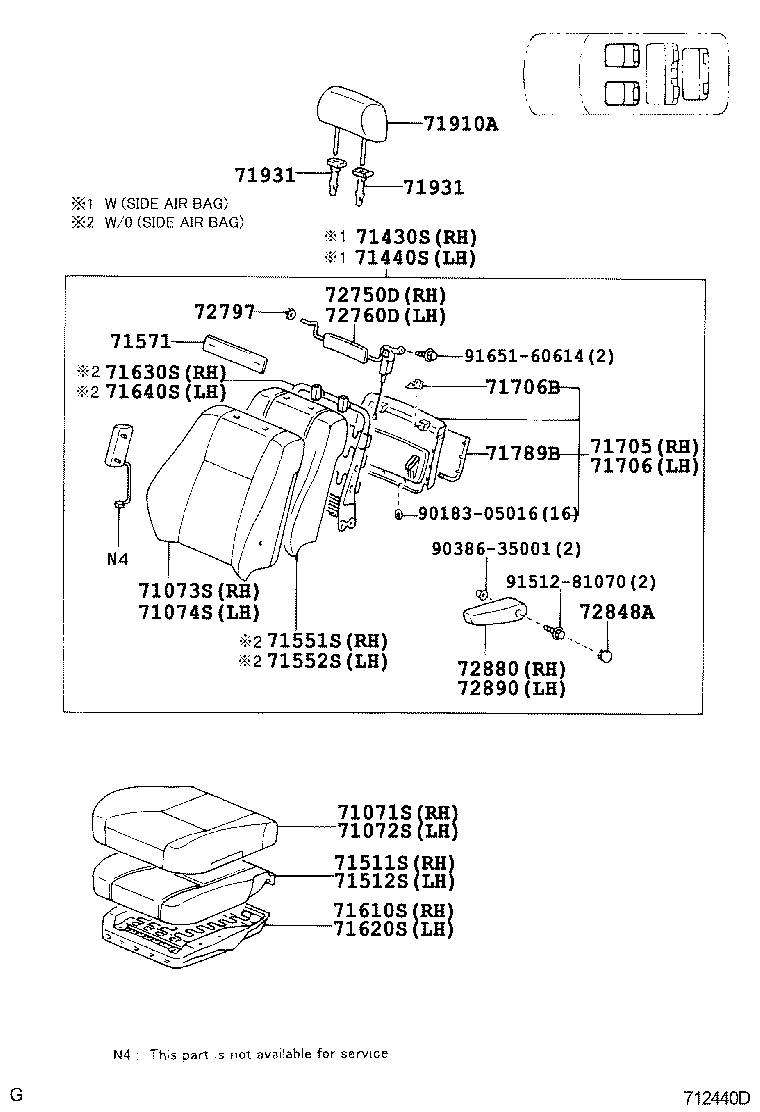

712440D 2002-08 → 2006-01

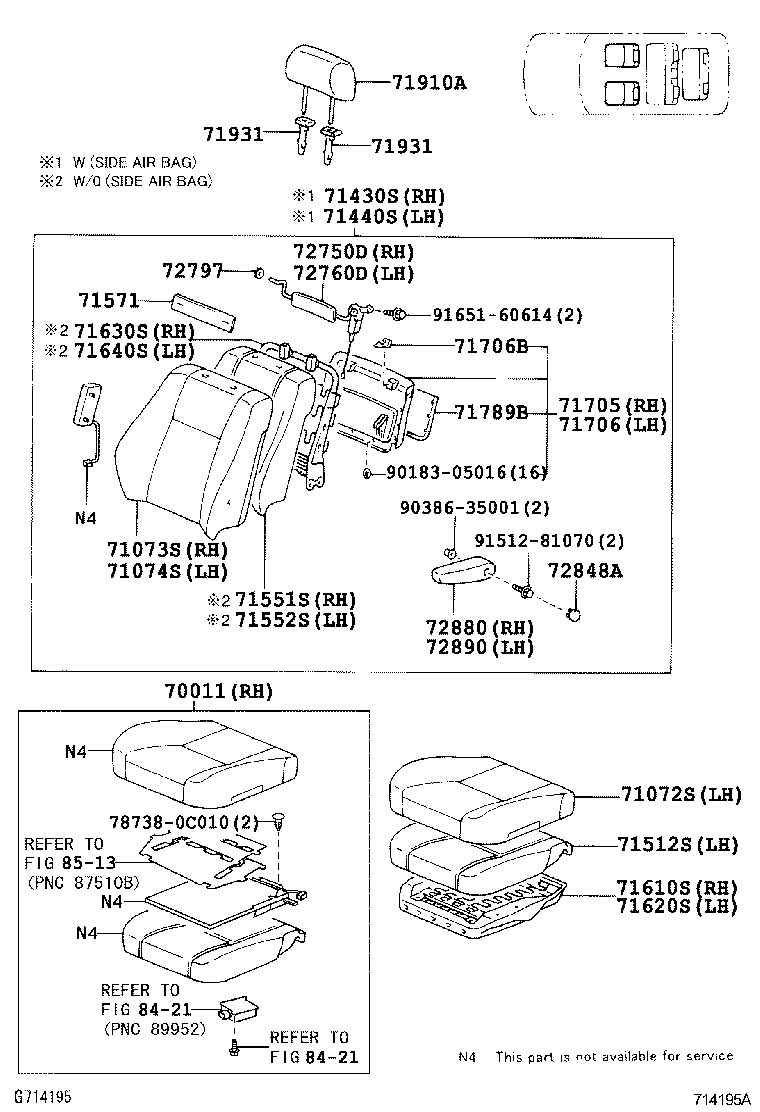

714195A 2006-01 → —

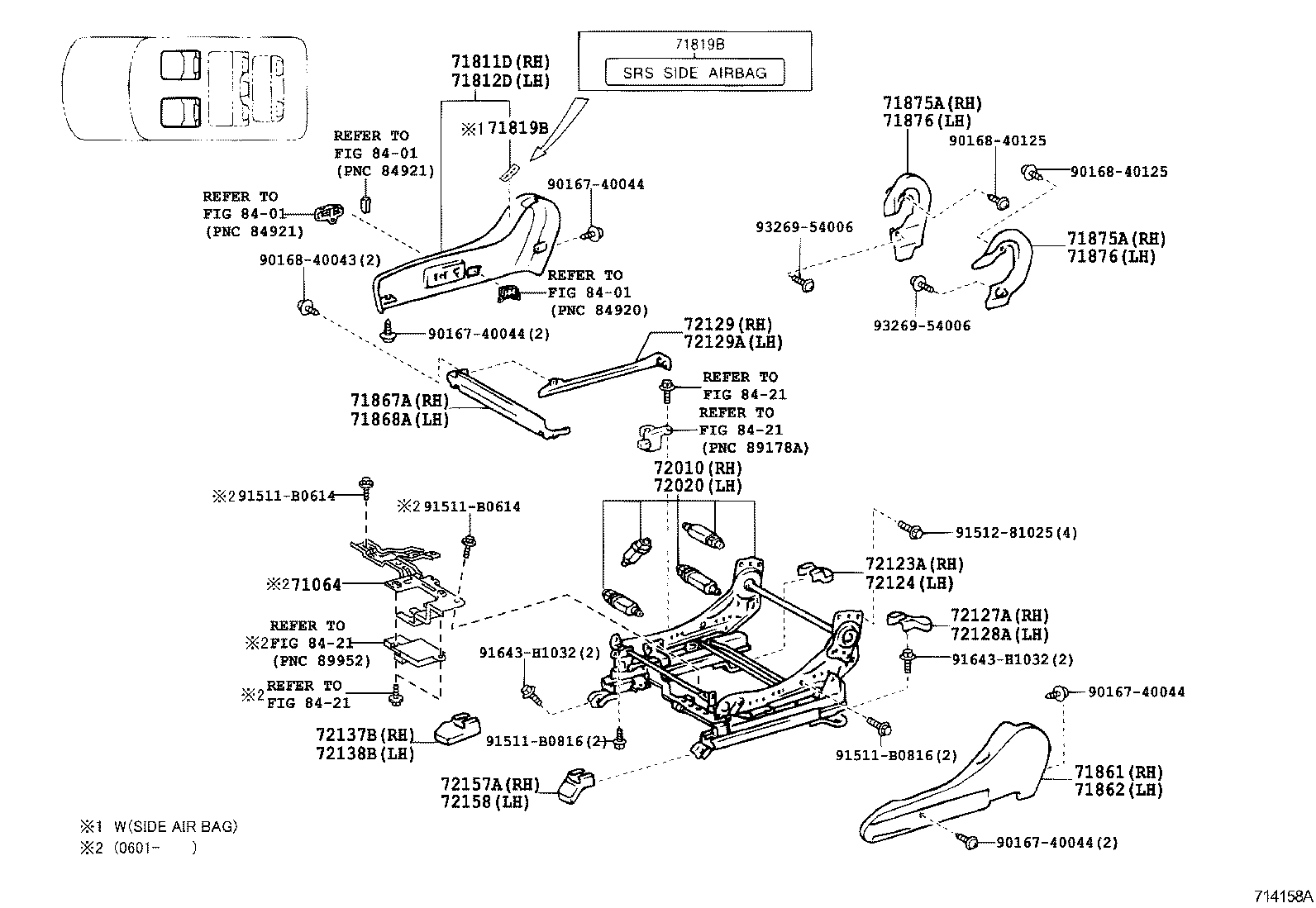

714158A 1998-01 → —

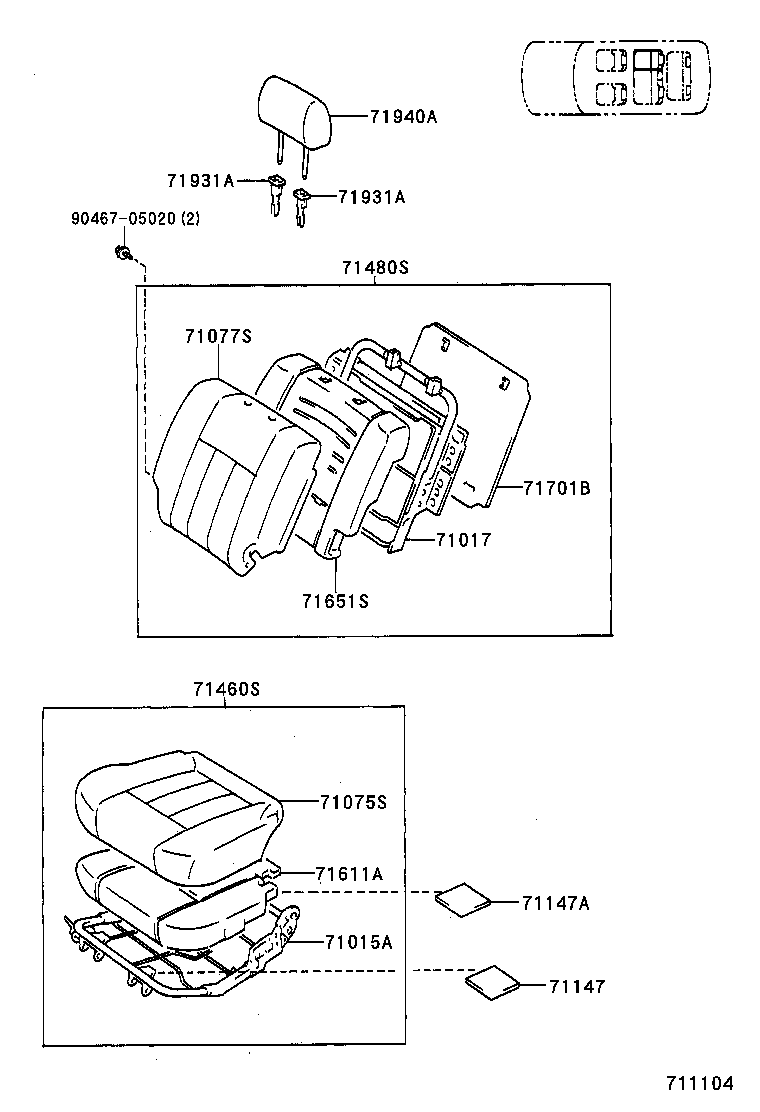

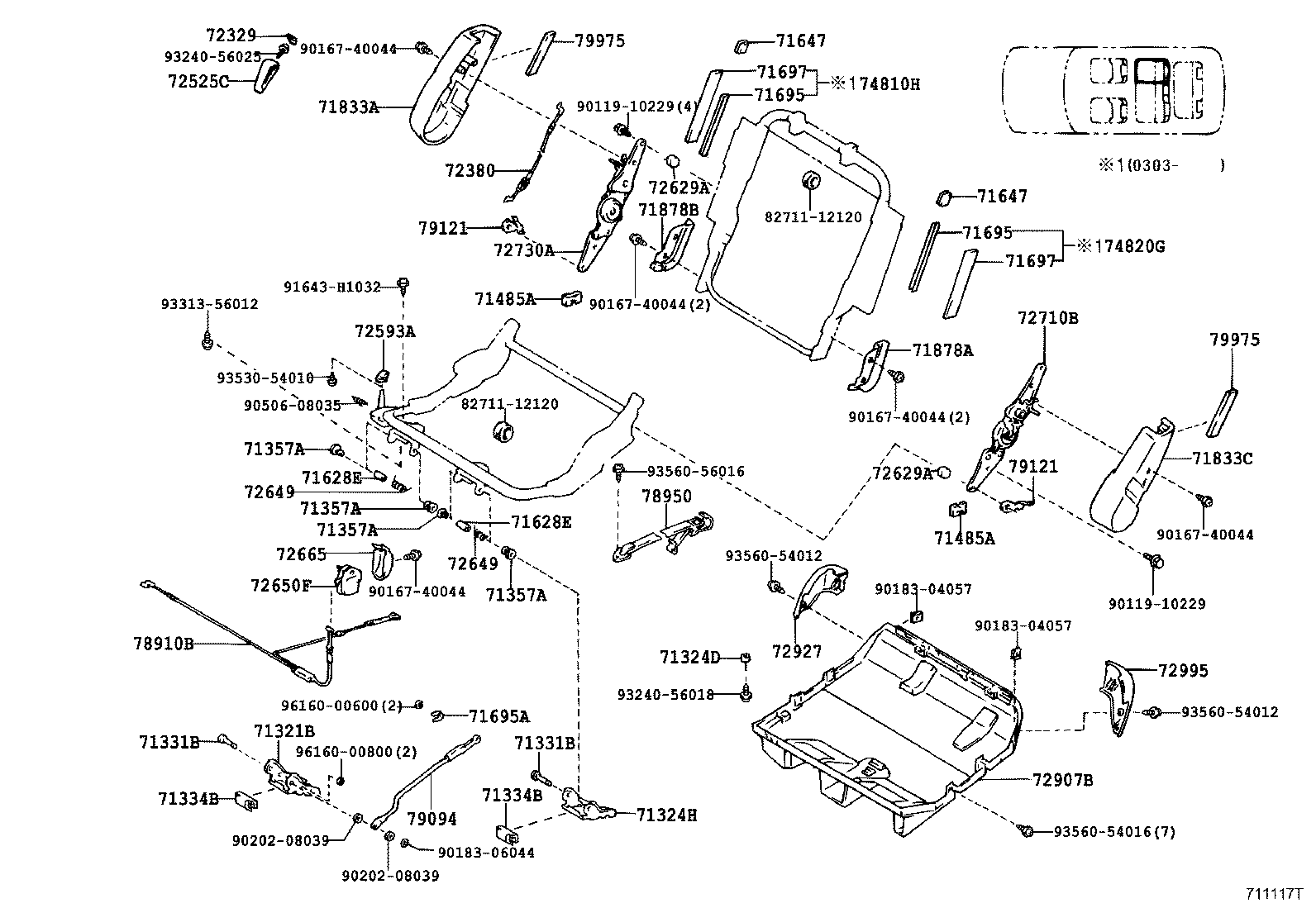

711104 1998-01 → 2002-08

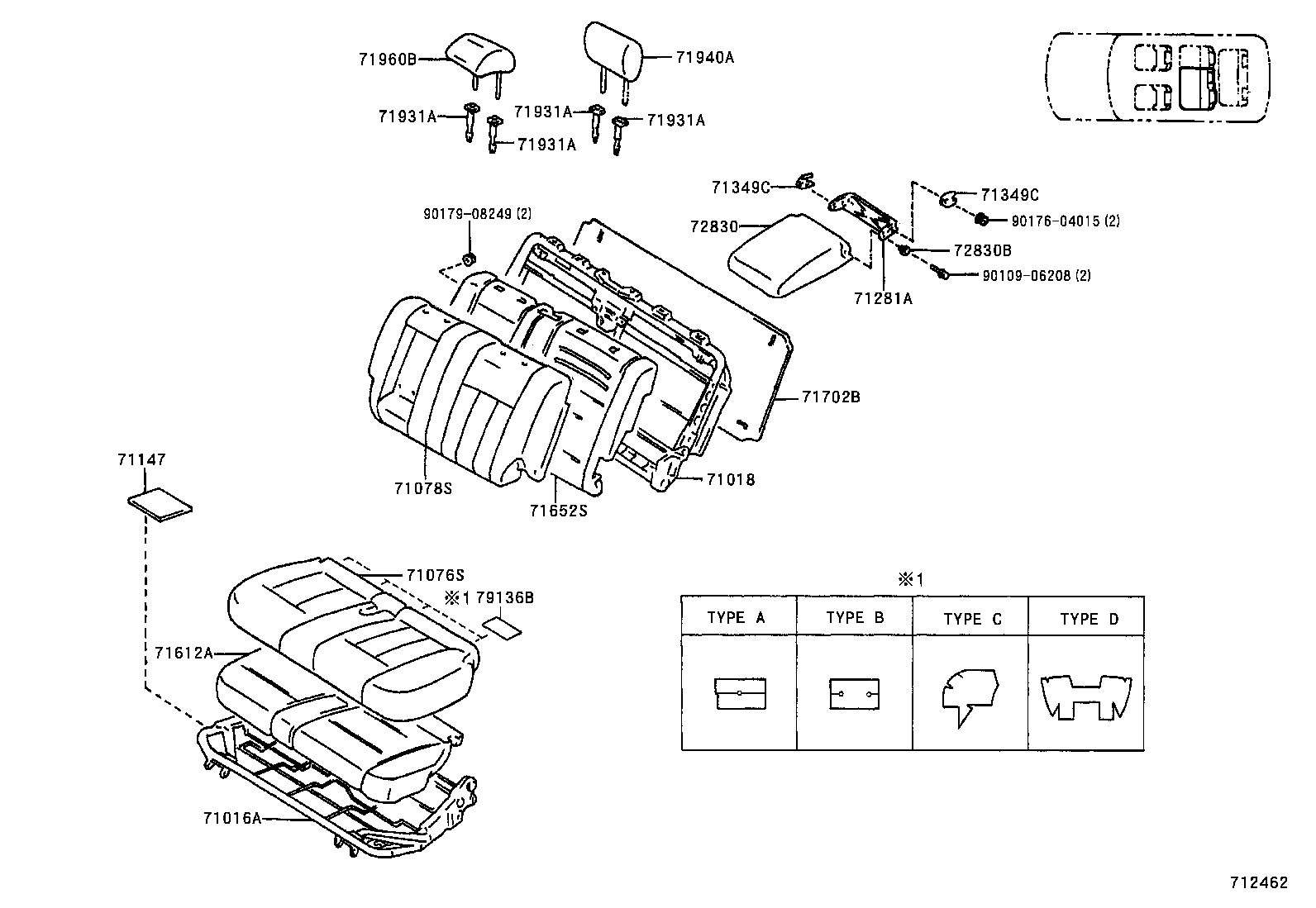

712461 2002-08 → —

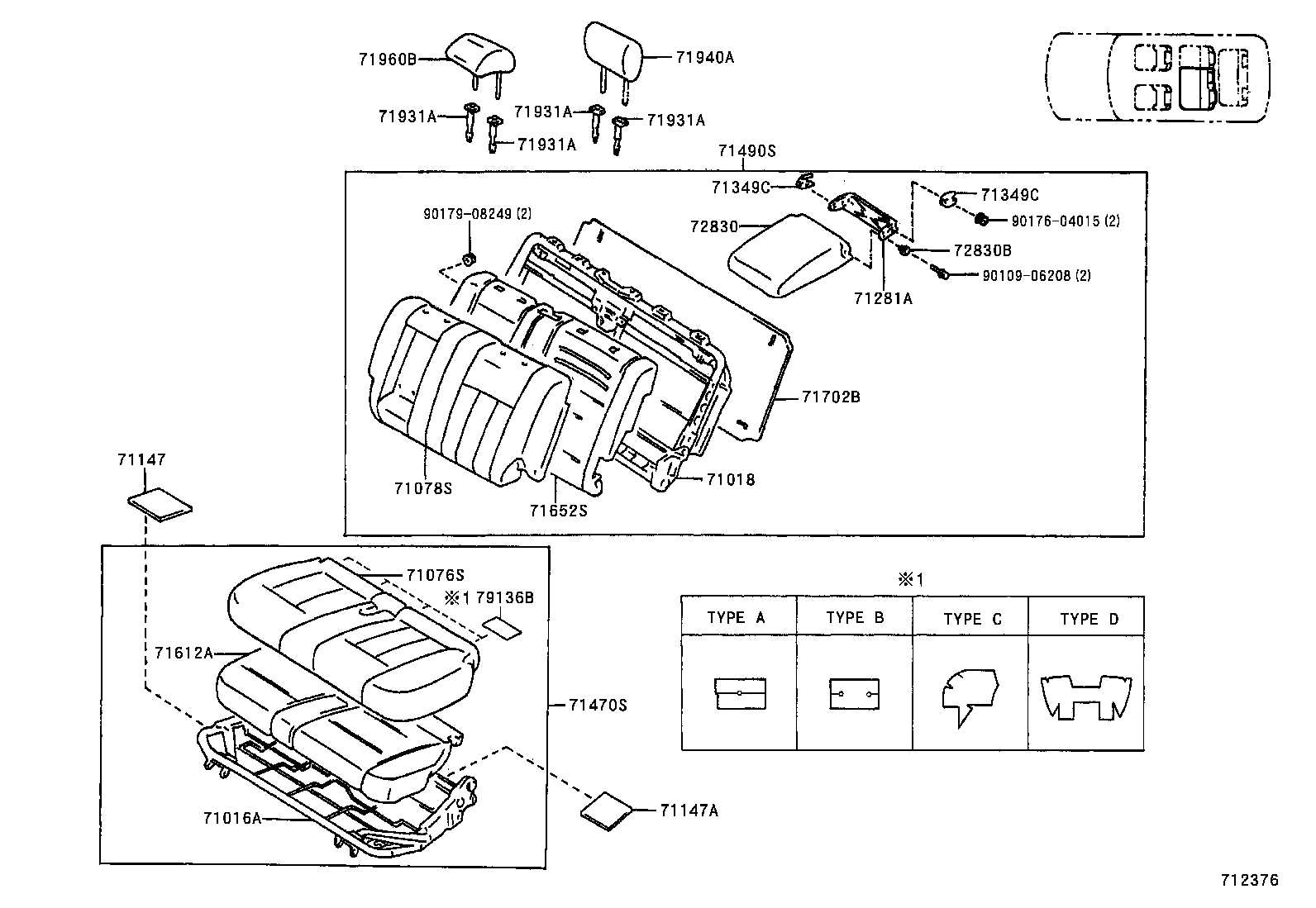

712376 1998-01 → 2002-08

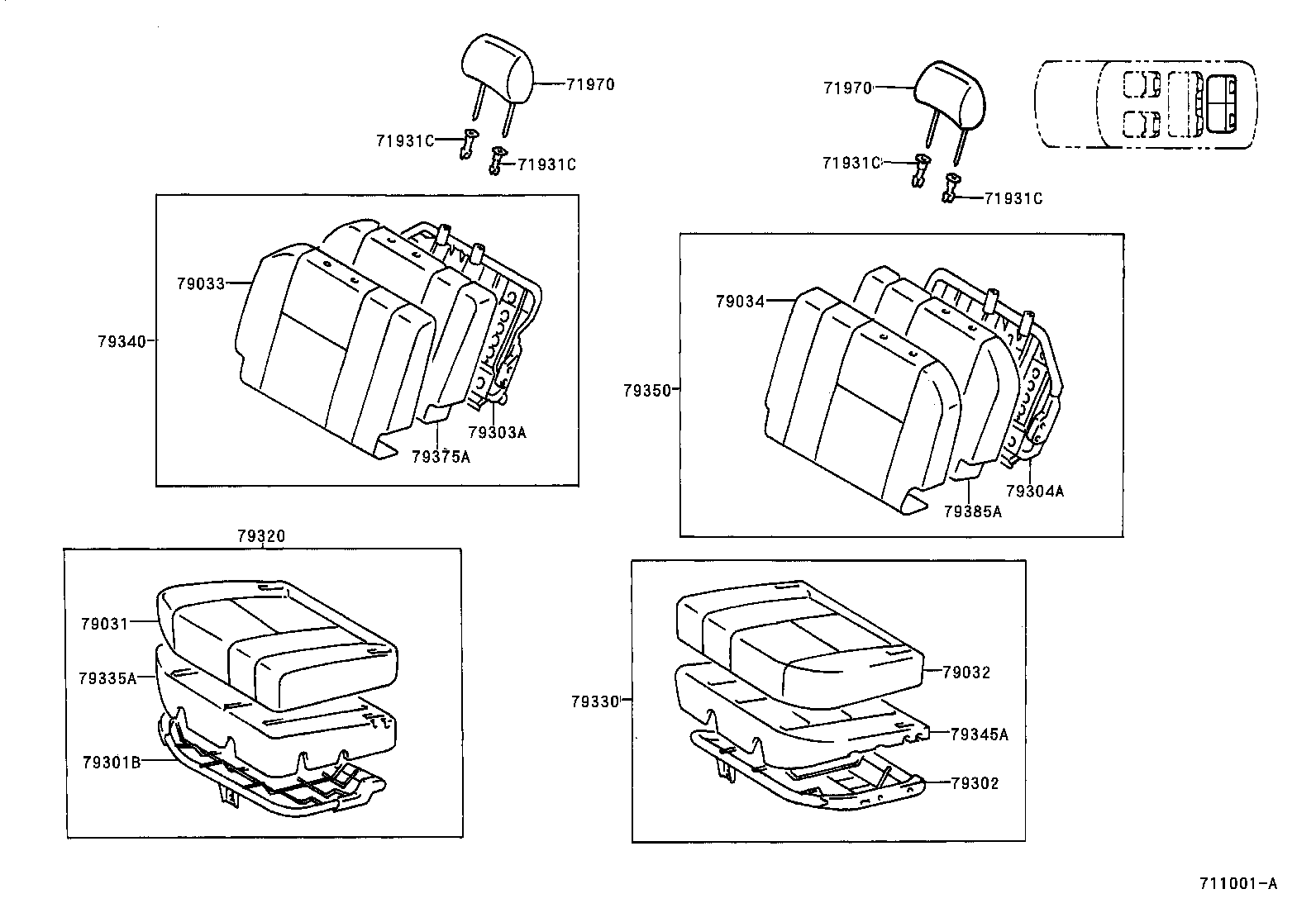

711001A 1998-01 → 2002-08

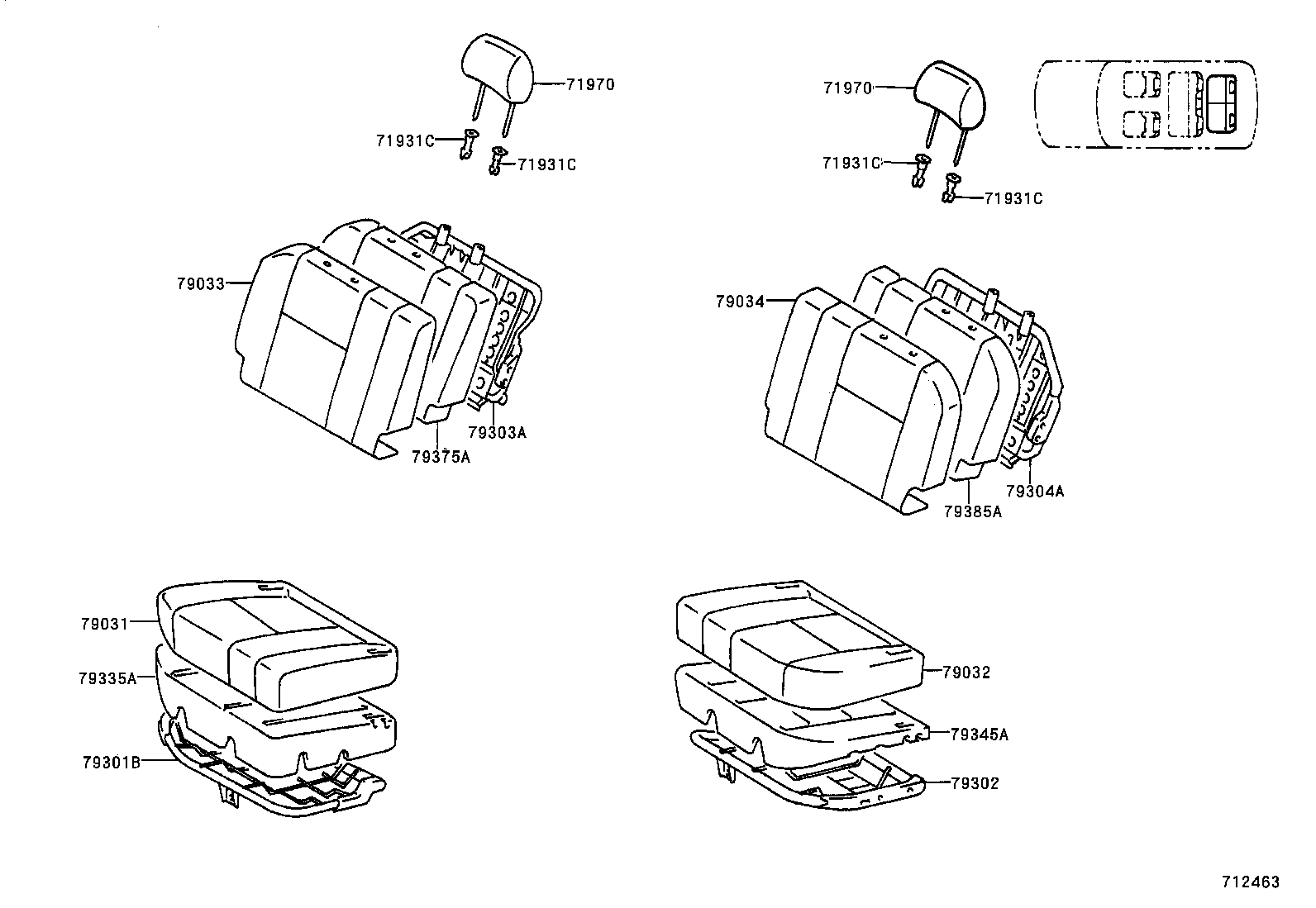

712463 2002-08 → —

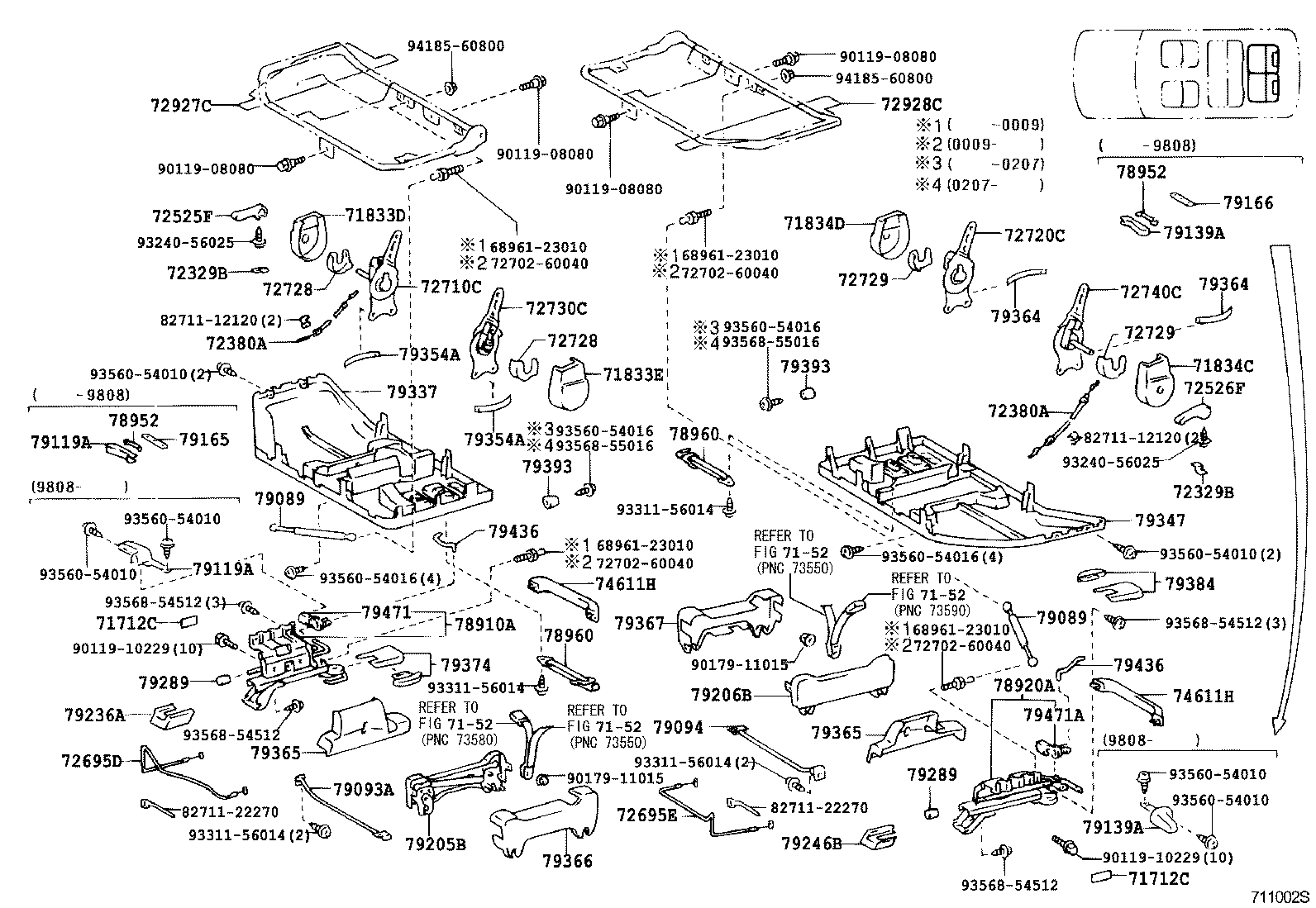

711002S 1998-01 → —

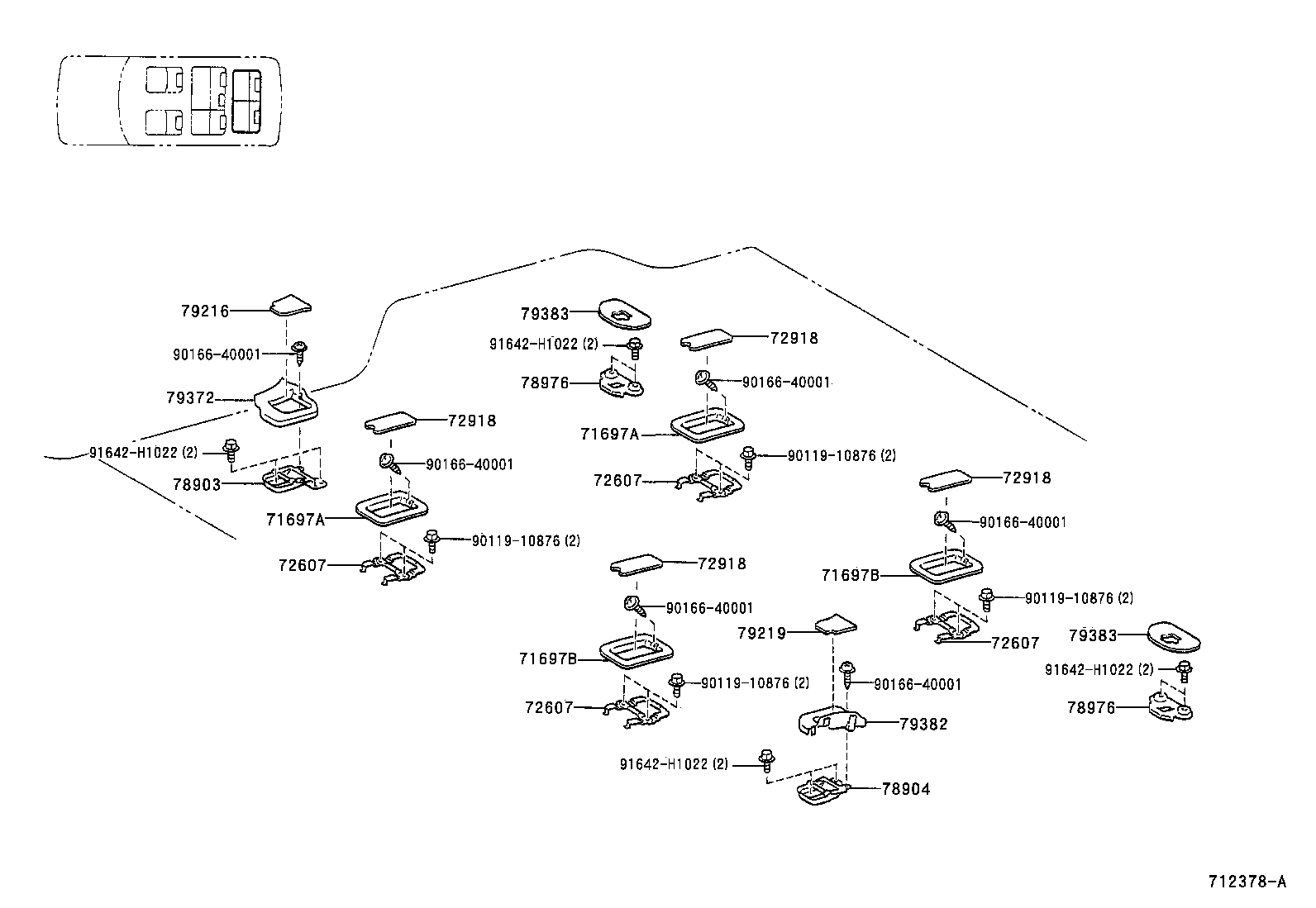

712378A 1998-01 → —

Part groups

PNC	Description
70011	Cushion Assy, NO.1 Seat
71015A	Frame Sub-assy, Rear Seat Cushion, RH
71016A	Frame Sub-assy, Rear Seat Cushion, LH
71017	Frame Sub-assy, Rear Seatback, RH
71018	Frame Sub-assy, Rear Seatback, LH
71064	Bracket Sub-assy, Side Seat, Front
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71075S	Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71076S	Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71077S	Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S	Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71147	Silencer, Seat Spring
71147A	Silencer, Rear Seat Spring
71281A	Hinge, Rear Seat Center Armrest
71301B	Hinge Sub-assy, Rear NO.1 Seat, RH
71302B	Hinge Sub-assy, Rear NO.1 Seat, LH
71305C	Stay Sub-assy, Rear Seat
71321B	Hinge, Rear Seat Cushion, RH
71322C	Hinge, Rear Seat Cushion, LH
71324D	Cushion, Rear Seat, RH
71324H	Hinge, Rear Seat Cushion Leg, Front Lower
71331B	Pin, Rear Seat Hinge, RH
71331C	Pin, Rear Seat Hinge, LH
71334B	Stopper, Rear Seat Leg, RH
71334C	Stopper, Rear Seat Leg, LH
71349C	Cover, Rear Seatback Hinge
71357A	Plate, Rear Seat Hinge Set, RH
71357B	Plate, Rear Seat Hinge Set, LH
71410S	Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S	Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S	Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S	Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71460S	Cushion Assy, Rear Seat, RH(FOR SEPARATE TYPE)
71470S	Cushion Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71480S	Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
71485A	Cover, Rear Seat Hinge, NO.2 RH
71486A	Cover, Rear Seat Hinge, NO.2 LH
71490S	Back Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71517	Cloth, Front Seat Cushion Under
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71571	Pad, Front Seatback Silencer, A
71610S	Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71611A	Pad, Rear Seat Cushion, RH
71612A	Pad, Rear Seat Cushion, LH
71620S	Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71628E	Spacer, Rear Seat Cushion
71630S	Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S	Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71647	Protector, Rear Seat Cushion Edge
71651S	Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S	Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71691D	Cover, Rear Seat Cushion Hinge, Upper RH
71692D	Cover, Rear Seat Cushion Hinge, Upper LH
71695	Protector, Rear Seatback
71695A	Protector, Rear Seat, NO.1 RH
71695B	Protector, Rear Seat, NO.1 LH
71695C	Protector, Rear Seat, NO.1
71695E	Protector, Rear Seat, NO.2
71696	Protector, Rear Seat, NO.2
71697	Protector, Rear Seatback Edge
71697A	Protector, Rear Seat, NO.3 RH
71697B	Protector, Rear Seat, NO.3 LH
71701B	Board Sub-assy, Rear Seatback, RH
71702B	Board Sub-assy, Rear Seatback, LH
71705	Board Sub-assy, Front Seatback, RH
71706	Board Sub-assy, Front Seatback, LH
71706B	Clip, Front Seatback Board
71712C	Cover, Rear NO.2 Side Seat Cushion, Rear
71789B	Pocket, Front Seatback Board
71811D	Shield, Front Seat Cushion, RH
71812D	Shield, Front Seat Cushion, LH
71819B	Label, Side Airbag Name
71833A	Cover, Rear Seat Reclining, NO.1 RH
71833C	Cover, Rear Seat Reclining, NO.2 RH
71833D	Cover Rear Seat Reclining, RH
71833E	Cover, Rear Seat Reclining, NO.3 RH
71834A	Cover, Rear Seat Reclining, NO.1 LH
71834B	Cover, Rear Seat Reclining, NO.2 LH
71834C	Cover, Rear Seat Reclining, NO.3 LH
71834D	Cover, Rear Seat Reclining, LH
71861	Shield, Front Seat Cushion, Inner RH
71862	Shield, Front Seat Cushion, Inner LH
71867A	Shield, Front Seat Cushion, Inner NO.1 RH
71868A	Shield, Front Seat Cushion, Inner NO.1 LH
71875A	Cover, Reclining Adjuster Inside, RH
71876	Cover, Reclining Adjuster Inside, LH
71878A	Cover, Rear Seat Reclining, Inner RH
71878B	Cover, Rear Seat Reclining, Inner RH
71879A	Cover, Rear Seat Reclining, Inner LH
71879B	Cover, Rear Seat Reclining, Inner LH
71910A	Headrest Assy, Front Seat
71931	Support, Front Seat Headrest
71931A	Support, Rear Seat Headrest
71931C	Support Assy, Rear NO.2 Seat Headrest
71940A	Headrest Assy, Rear Seat
71960B	Headrest Assy, Rear Seat, Center
71970	Headrest Assy, Rear Seat
72010	Adjuster Assy, Front Seat, RH
72020	Adjuster Assy, Front Seat, LH
72123A	Cover, Seat Track Bracket, Outer Front RH
72124	Cover, Seat Track Bracket, Outer Front LH
72127A	Cover, Seat Track Bracket, Inner Front RH
72128A	Cover, Seat Track Bracket, Inner Front LH
72129	Protector, Seat Track Lower Rail, NO.1
72129A	Protector, Seat Track Lower Rail, NO.2
72137B	Cover, Seat Track, RH
72138B	Cover, Seat Track, LH
72157A	Cover, Seat Track Bracket, Inner RH
72158	Cover, Seat Track Bracket, Inner LH
72329	Cover, Seat Adjuster Bolt
72329B	Cover, Seat Adjuster Bolt, NO.1
72380	Cable Assy, Seat Adjuster Control, NO.2
72380A	Cable Assy, Seat Adjuster Control, NO.2
72525C	Handle, Reclining Adjuster Release, NO.1 RH
72525F	Handle, Reclining Adjuster Release, NO.4 RH
72526B	Handle, Reclining Adjuster Release, NO.1 LH
72526F	Handle, Reclining Adjuster Release, NO.4 LH
72593A	Knob, Remote Control Lever, RH
72594	Knob, Remote Control Lever, LH
72607	Striker Sub-assy, Rear Seat Cushion Lock
72607B	Striker Sub-assy, Rear Seat Cushion Lock, RH
72608A	Striker Sub-assy, Rear Seat Cushion Lock, LH
72615C	Cover, Rear Seatback Lock Striker
72629A	Silencer, Rear Seatback Lock
72649	Spring, Rear Seat Cushion Support
72650F	Lock Assy, Rear Seat, RH
72660F	Lock Assy, Rear Seat, LH
72665	Cover, Rear Seatback Lock, RH
72665C	Cover, Rear Seat Lock, RH
72666	Cover, Rear Seatback Lock, LH
72695D	Cable, Rear NO.2 Seat Lock Control, RH
72695E	Cable, Rear NO.2 Seat Lock Control, LH
72710B	Adjuster Assy, Rear Seatback, Inner RH
72710C	Adjuster Assy, NO.1 Seat Reclining, RH
72720B	Adjuster Assy, Rear Seatback, Inner LH
72720C	Adjuster Assy, NO.1 Seat Reclining, LH
72728	Protector, Rear Seat Reclining, Inner RH
72729	Protector, Rear Seat Reclining, Inner LH
72730A	Adjuster Assy, Rear Seat Reclining, RH
72730C	Adjuster Assy, NO.2 Seat Reclining, RH
72740A	Adjuster Assy, Rear Seat Reclining, LH
72740C	Adjuster Assy, NO.2 Seat Reclining, LH
72745	Pin, Rear Seat Reclining Hinge
72750D	Adjuster Assy, Lumbar Support, RH
72760D	Adjuster Assy, Lumbar Support, LH
72797	Spacer, Lumbar Support
72830	Armrest Assy, Rear Seat, Center
72830B	Bush(FOR REAR SEAT CENTER ARMREST)
72848A	Cap, Seat Armrest, NO.1
72880	Armrest Assy, Seat, C RH
72890	Armrest Assy, Seat, C LH
72907B	Cover Sub-assy, Rear Seat Cushion Under, RH
72908B	Cover Sub-assy, Rear Seat Cush Under, LH
72918	Cover, 3RD Seat Cushion Lock
72927	Cover, Rear Seat Cushion Under, RH
72927C	Cover, Rear Seat Cushion Under RH
72928	Cover, Rear Seat Cushion Under, LH
72928C	Cover, Rear Seat Cushion Under, LH
72995	Cover, Rear Seat Cushion, RH
72998	Cover, Rear Seat Cushion, LH
74611H	Grip, Assist
74810H	Protector Assy, FR RH
74820G	Protector Assy, Front LH
78903	Striker Sub-assy, Fold Seat Leg Lock
78904	Striker Sub-assy, Fold Seat Lock, NO.2
78910A	Lock Assy, Fold Seat, RH
78910B	Cable Assy, Fold Seat Lock Control, NO.1 RH
78920A	Lock Assy, Fold Seat, LH
78920B	Cable Assy, Fold Seat Lock Control, NO.1 LH
78950	Band Assy, Fold Seat Stopper, NO.1
78952	Hook, Fold Seat Stopper
78960	Band Assy, Fold Seat Stopper, NO.2
78976	Bracket, Fold Seat Striker
79031	Cover Sub-assy, NO.3 Seat Cushion, RH
79032	Cover Sub-assy, NO.3 Seat Cushion, LH
79033	Cover Sub-assy, NO.3 Seatback, RH
79034	Cover Sub-assy, NO.3 Seatback, LH
79089	Stay Sub-assy, Seat Leg, NO.1
79093A	Stay Sub-assy, Seat Leg, NO.1
79094	Stay Sub-assy, Seat Leg, NO.2
79119A	Bracket, Rear NO.2 Seat Leg, Rear RH
79121	Bracket, NO.1 Seat Cushion
79136B	Pad, NO.1 Seat Cushion, LH
79139A	Bracket, Rear NO.2 Seat Leg, Rear LH
79165	Bracket, NO.3 Seat Leg, Rear RH
79166	Bracket, NO.3 Seat Leg, Rear LH
79205B	Leg Sub-assy, NO.2 Seat, RH
79206B	Leg Sub-assy, NO.2 Seat, LH
79216	Plate, NO.2 Seat Leg
79219	Plate, NO.2 Seat Leg, LH
79236A	Cover, NO.2 Seat Leg
79246B	Cover, NO.2 Seat Leg, B
79289	Protector, NO.2 Seatback
79301B	Frame Sub-assy, NO.3 Seat Cushion, RH
79302	Frame Sub-assy, NO.3 Seat Cushion, LH
79303A	Frame Sub-assy, NO.3 Seatback, RH
79304A	Frame Sub-assy, NO.3 Seatback, LH
79320	Cushion Assy, NO.3 Seat, RH
79330	Cushion Assy, NO.3 Seat, LH
79335A	Pad, NO.3 Seat Cushion, RH
79337	Carpet, NO.2 Seat Cushion Under, RH
79340	Back Assy, NO.3 Seat, RH
79345A	Pad, NO.3 Seat Cushion, LH
79347	Carpet, NO.2 Seat Cushion Under, LH
79350	Back Assy, NO.3 Seat, LH
79354A	Cover, NO.3 Seatback Hinge, RH
79364	Cover, NO.3 Seatback Hinge, LH
79365	Cover, NO.3 Seat Leg Bracket
79366	Cover, NO.3 Seat Leg, NO.1
79367	Cover, NO.3 Seat Leg, NO.2
79372	Cover, NO.3 Seat Front Bracket, RH
79374	Cover, NO.3 Seat Leg, Rear RH
79375A	Pad, NO.3 Seatback, RH
79382	Cover, NO.3 Seat Front Bracket, LH
79383	Cover, NO.3 Seat Bracket Support
79384	Cover, NO.3 Seat Leg, Rear LH
79385A	Pad, NO.3 Seatback, LH
79393	Cushion, Rear NO.2 Seatback
79436	Link, NO.4 Seat Leg
79471	Plate, Rear Seat Cushion Turn Striker, Front RH
79471A	Plate, Rear Seat Cushion Turn Striker, Front LH
79975	Pad, Seatback Corner

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
