Toyota Land Cruiser 100

1998-01 → 2007-08 · chassis UZJ100 · catalogue 791450 · Europe

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

29 part groups · 3 illustrations

Illustrations

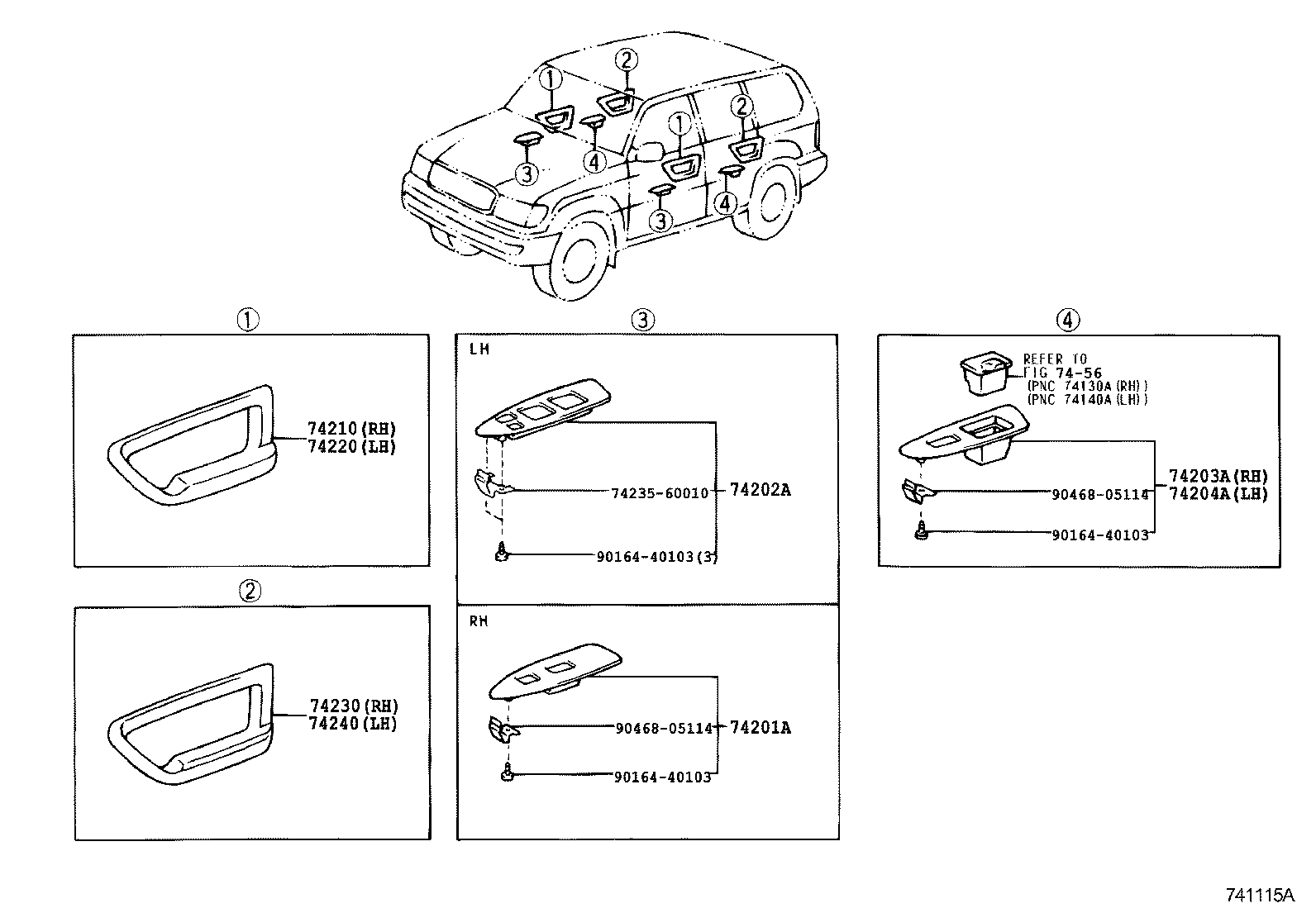

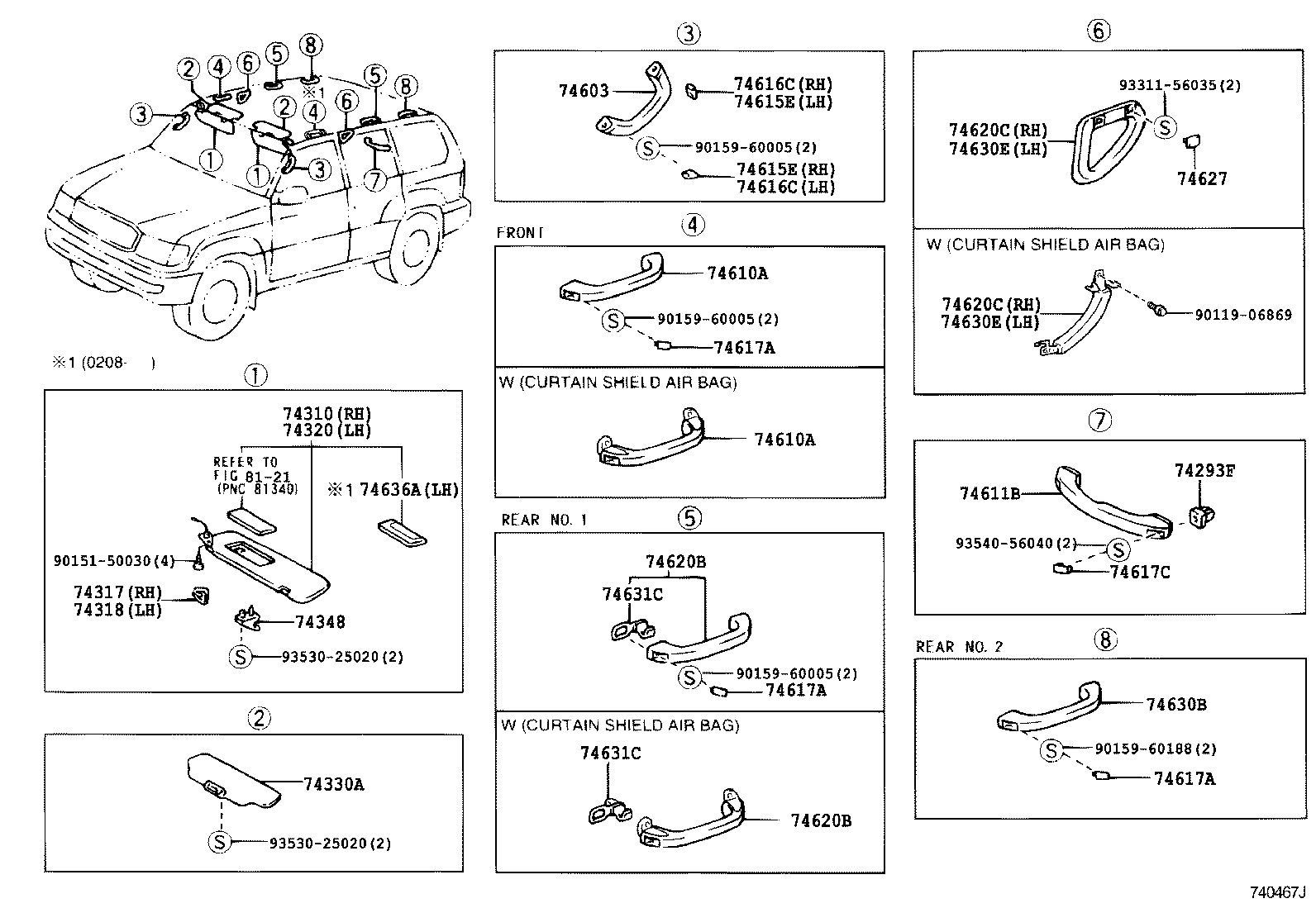

Figure 740470A 740470A 1998-01 → 2002-08 Figure 741115A 741115A 2002-08 → — Figure 740467J 740467J 1998-01 → —

Part groups

PNCDescription
74201A Panel Sub-assy, Front Armrest Base, Upper RH
74202A Panel Sub-assy, Front Armrest Base, Upper LH
74203A Panel Sub-assy, Rear Armrest Base, Upper RH
74204A Panel Sub-assy, Rear Armrest Base, Upper LH
74210 Armrest Assy, Front, RH
74220 Armrest Assy, Front, LH
74230 Armrest Assy, Rear, RH
74240 Armrest Assy, Rear, LH
74293F Plate, Assist Grip
74310 Visor Assy, RH
74317 Cover, Visor Bracket, RH
74318 Cover, Visor Bracket, LH
74320 Visor Assy, LH
74330A Visor Assy, Center
74348 Holder, Visor
74603 Grip Sub-assy, Assist, Front
74610A Grip Sub-assy, Assist
74611B Grip, Assist
74615E Plug, Front Assist Grip, NO.1 RH
74616C Plug, Front Assist Grip, NO.1 LH
74617A Plug, Assist Grip
74617C Plug, Assist Grip
74620B Grip Assy, Assist, Rear
74620C Grip Assy, Assist, Rear RH
74627 Plug, Rear Assist Grip
74630B Grip Assy, Assist (FOR 3RD SEAT)
74630E Grip Assy, Assist, Rear LH
74631C Hook, Coat
74636A Bezel, Card Holder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
