Toyota Land Cruiser 100

1998-01 → 2007-08 · chassis UZJ100 · catalogue 791450 · Europe

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

69 part groups · 6 illustrations

Illustrations

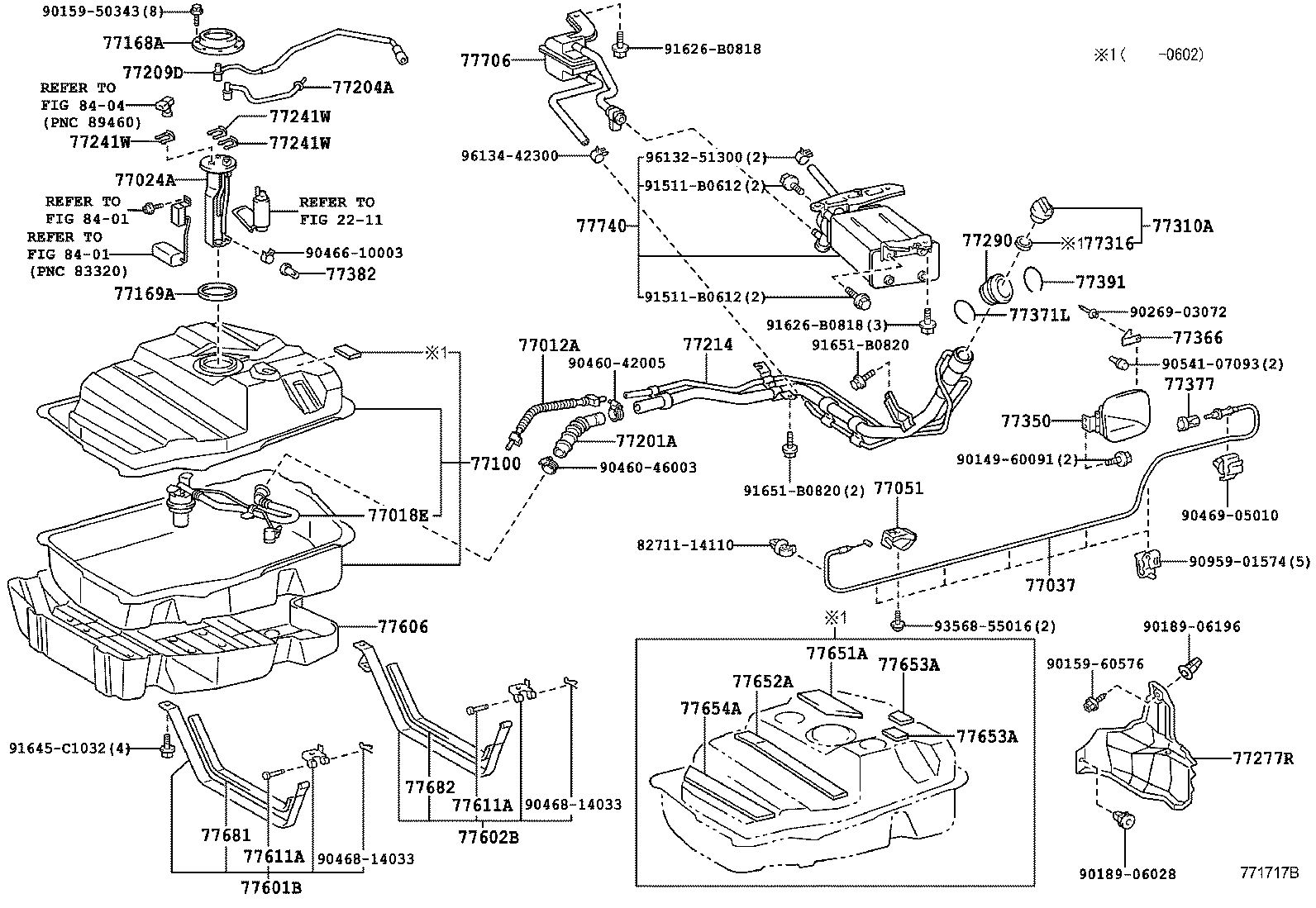

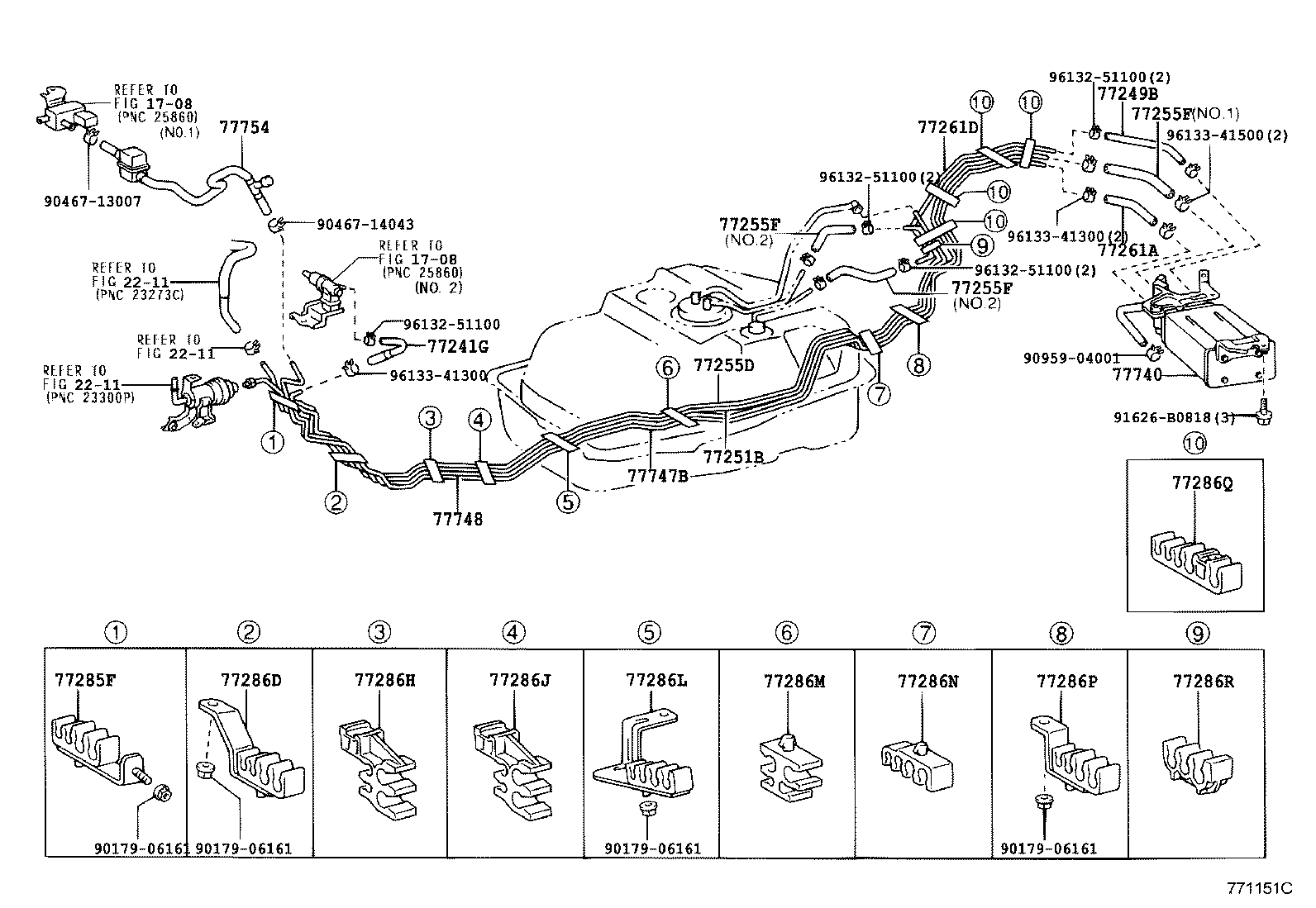

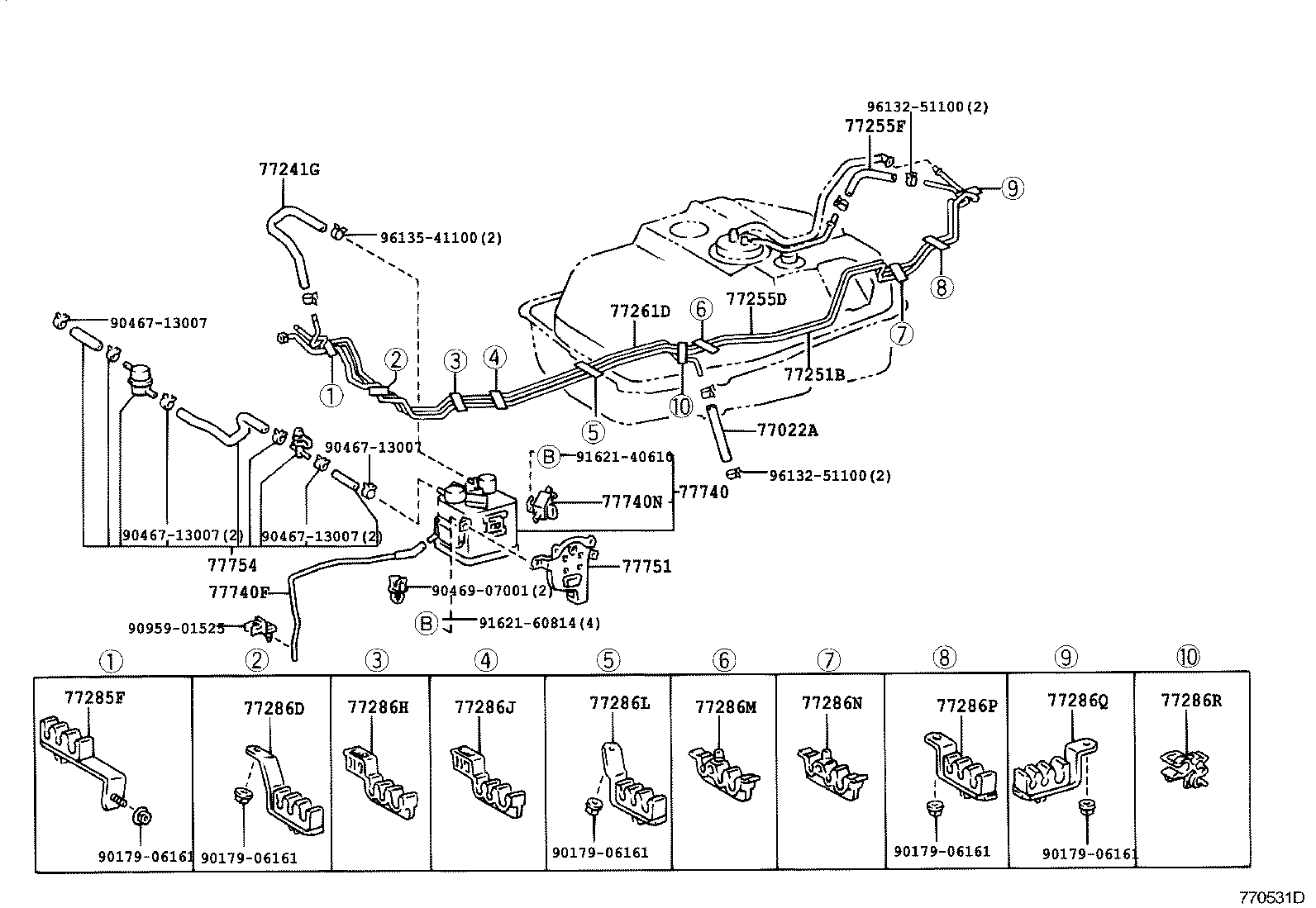

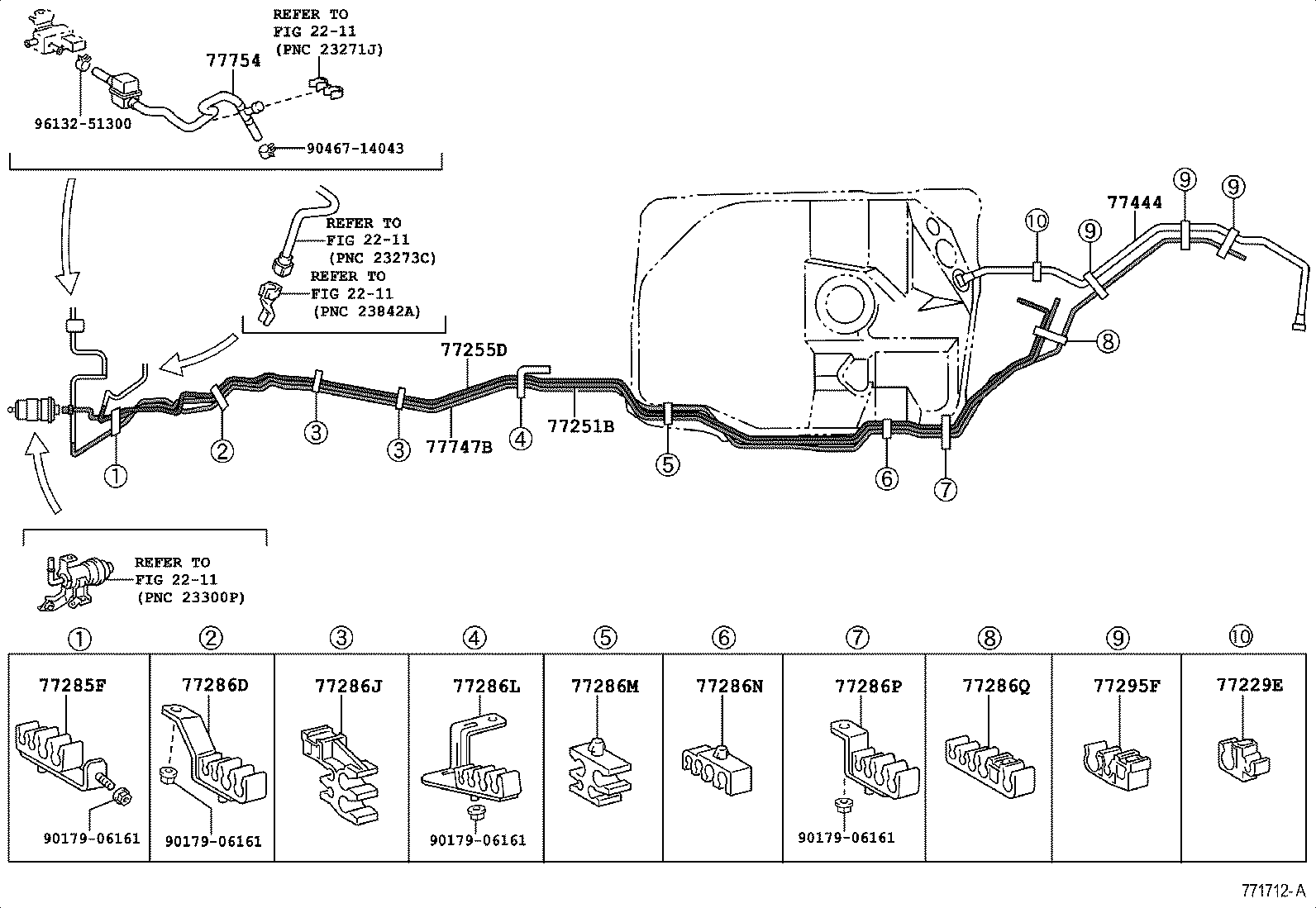

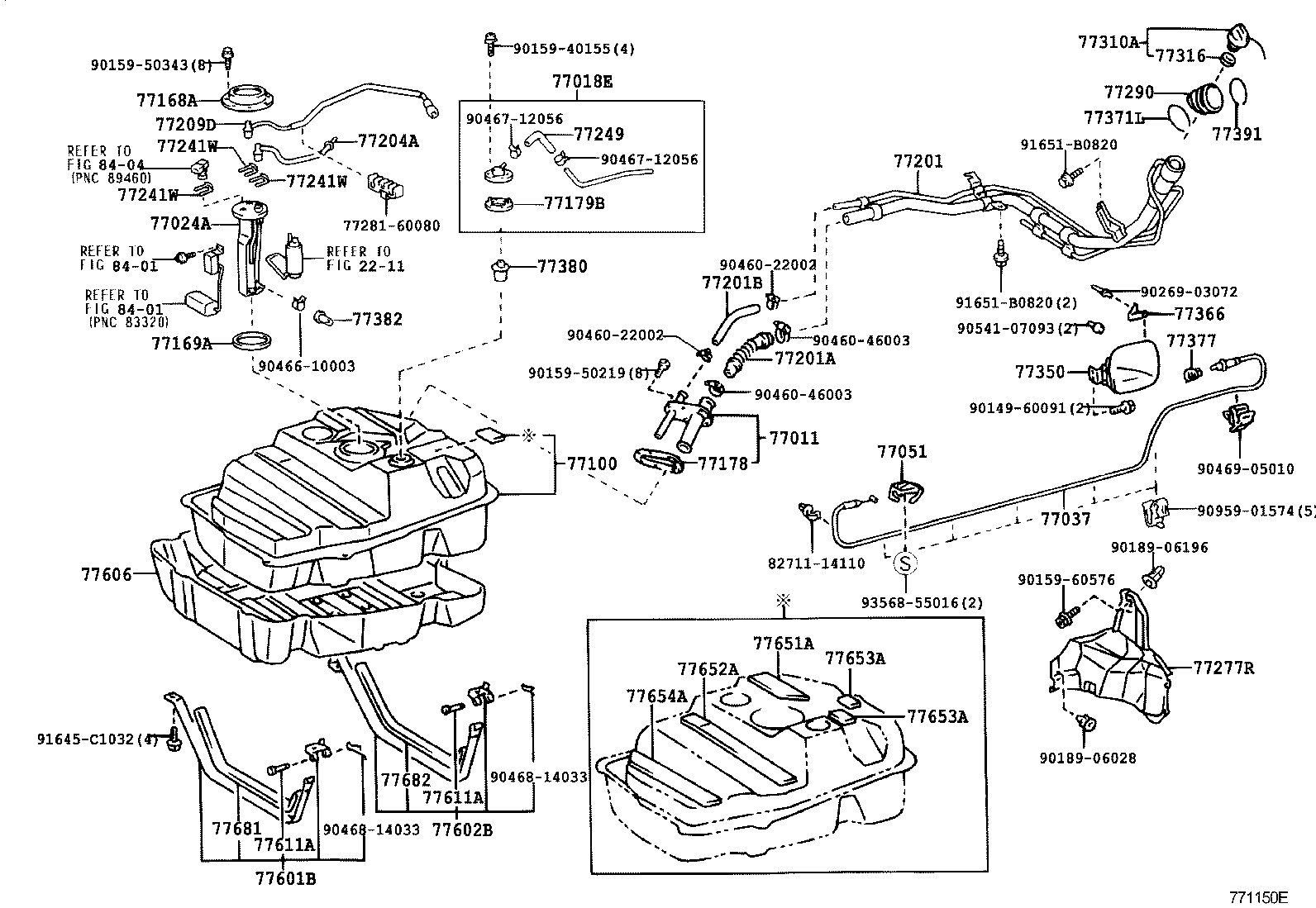

Figure 770530H 770530H 1998-01 → 2002-08 Figure 770531D 770531D 1998-01 → 2002-08 Figure 771150F 771150F 2002-08 → 2005-05 Figure 771151C 771151C 2002-08 → 2005-05 Figure 771717B 771717B 2005-05 → — Figure 771712A 771712A 2005-05 → —

Part groups

PNCDescription
77011 Pipe Sub-assy, Fuel Tank Filler, Lower
77012A Tube Sub-assy, Fuel Tank Breather, NO.1
77018E Tube Sub-assy, Fuel Tank Evaporation Vent
77022A Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR)
77024A Plate Sub-assy, Fuel Suction
77037 Lock Sub-assy, Fuel Filler Opening Lid
77051 Lever Sub-assy, Fuel Lid Open
77100 Tank Assy, Fuel
77168A Plate, Fuel Tank Vent Tube Set
77169A Gasket, Fuel Suction Tube Set
77178 Gasket, Fuel Tank Filler Pipe, Lower
77179B Gasket, Fuel Tank Evaporation Vent Tube
77201 Pipe Sub-assy, Fuel Tank Inlet
77201A Hose, Fuel, NO.1(FOR FUEL TANK INLET PIPE)
77201B Hose, Fuel, NO.2(FOR FUEL TANK INLET PIPE)
77204A Tube, Fuel Tank Return
77209D Tube Sub-assy, Fuel Tank Main
77214 Pipe, Fuel Tank Filler
77229E Clamp, Breather Tube
77241G Hose, Fuel, NO.6
77241W Clip, Tube Joint
77249 Hose, Fuel Emission
77249B Hose, Fuel
77251B Tube, Fuel Main
77255D Tube, Fuel Return
77255F Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE)
77261A Hose, Fuel, NO.1 (FOR FUEL EMISSION TUBE)
77261D Tube, Fuel Tank TO Canister
77277R Protector, Fuel Tank Filler Pipe
77285F Clamp, Fuel Tube, NO.1
77286D Clamp, Fuel Tube, NO.2
77286H Clamp, Fuel Tube, NO.3
77286J Clamp, Fuel Tube, NO.4
77286L Clamp, Fuel Tube, NO.5
77286M Clamp, Fuel Tube, NO.6
77286N Clamp, Fuel Tube, NO.7
77286P Clamp, Fuel Tube, NO.8
77286Q Clamp, Fuel Tube, NO.9
77286R Clamp, Fuel Tube, NO.10
77290 Shield Assy, Fuel Tank Filler Pipe
77295F Grommet, Fuel Hose
77310A Cap Assy, Fuel Tank
77316 Gasket, Fuel Tank Cap
77350 Lid Assy, Fuel Filler Opening
77366 Spring, Fuel Filler Opening Lid Hinge
77371L Ring, Fuel Tank Filler Pipe Shield
77377 Retainer, Fuel Filler Opening Lid Lock
77380 Valve Assy, Fuel Cut Off
77382 Valve, Fuel Cut Off
77391 Ring, Fuel Inlet Box
77444 Hose, Fuel Tank Vent
77601B Band Sub-assy, Fuel Tank, NO.1 RH
77602B Band Sub-assy, Fuel Tank, NO.1 LH
77606 Protector Sub-assy, Fuel Tank, NO.1
77611A Pin (FOR FUEL TANK BAND)
77651A Cushion, Fuel Tank, NO.1
77652A Cushion, Fuel Tank, NO.2
77653A Cushion, Fuel Tank, NO.3
77654A Cushion, Fuel Tank, NO.4
77681 Seat, Fuel Tank Band, RH
77682 Seat, Fuel Tank Band, LH
77706 Filter Sub-assy, Charcoal Canister
77740 Canister Assy, Charcoal
77740F Tube, Fuel, NO.1(FOR CHARCOAL CANISTER)
77740N Valve, Vacuum Switching(FOR CHARCOAL CANISTER)
77747B Tube, Charcoal Canister, NO.1
77748 Pipe, Charcoal Canister, NO.2
77751 Bracket, Charcoal Canister Base
77754 Hose, Charcoal Canister Outlet, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
