Toyota Land Cruiser 100

1998-01 → 2007-08 · chassis UZJ100 · catalogue 791450 · Europe

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

64 part groups · 20 illustrations

Illustrations

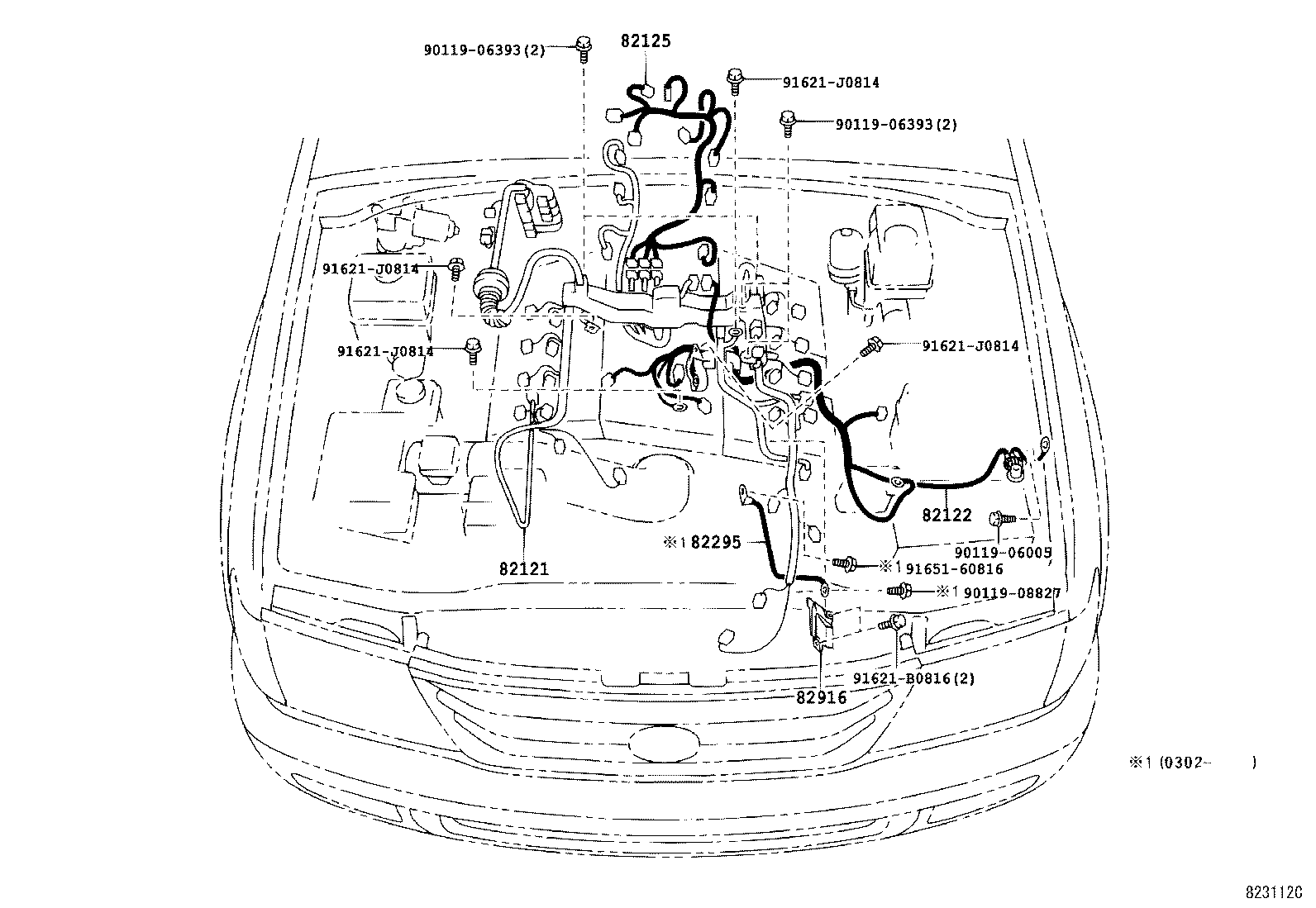

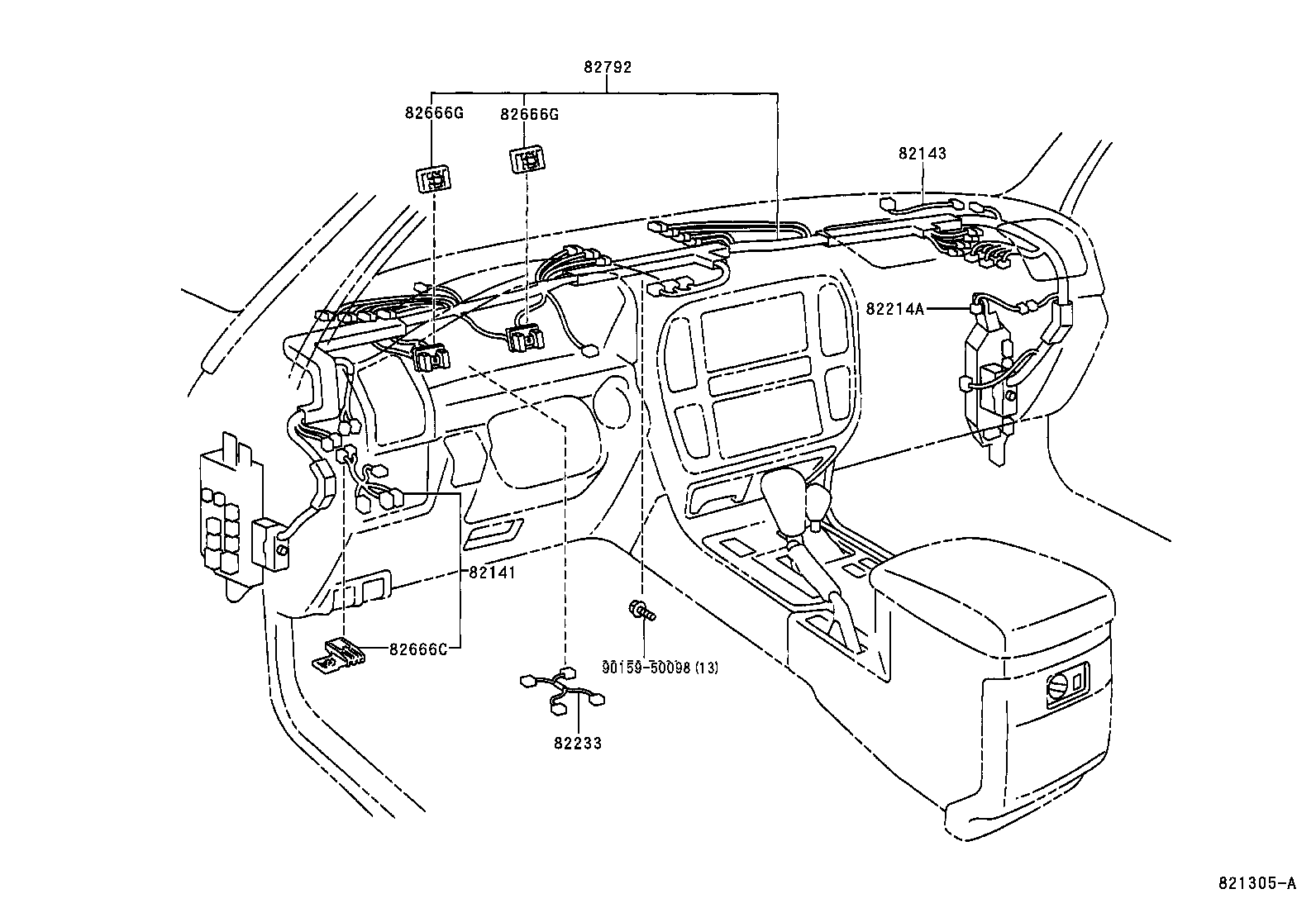

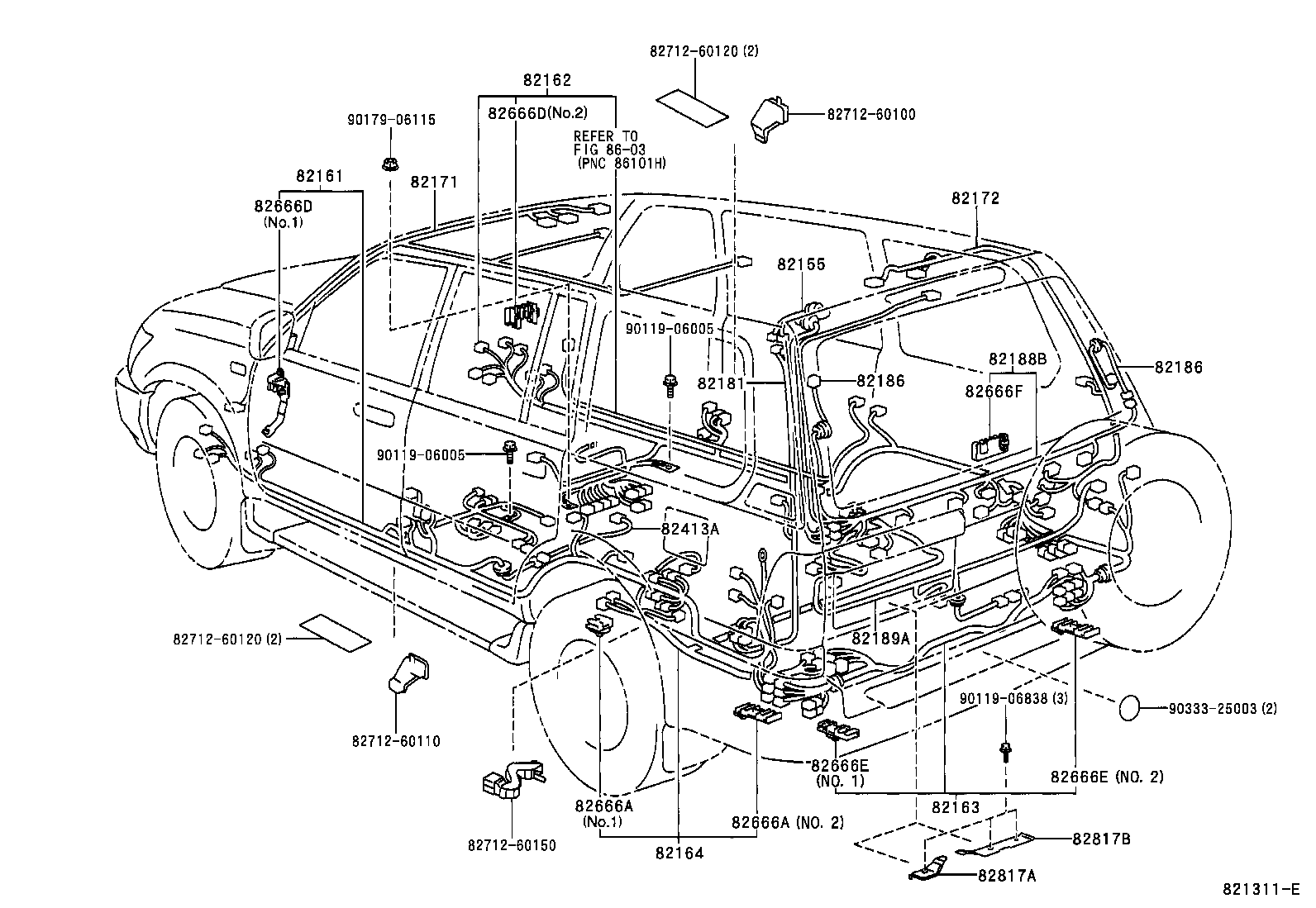

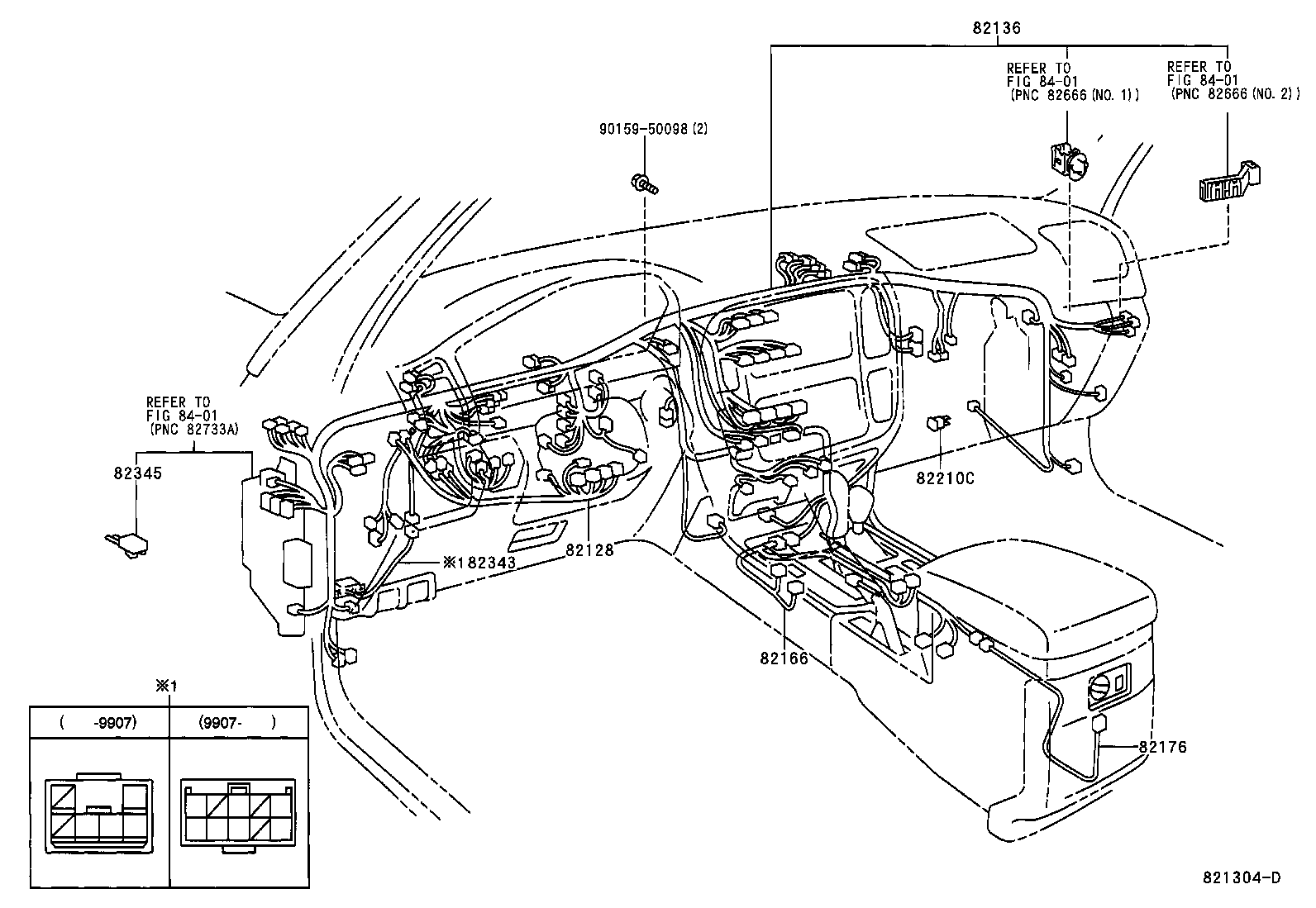

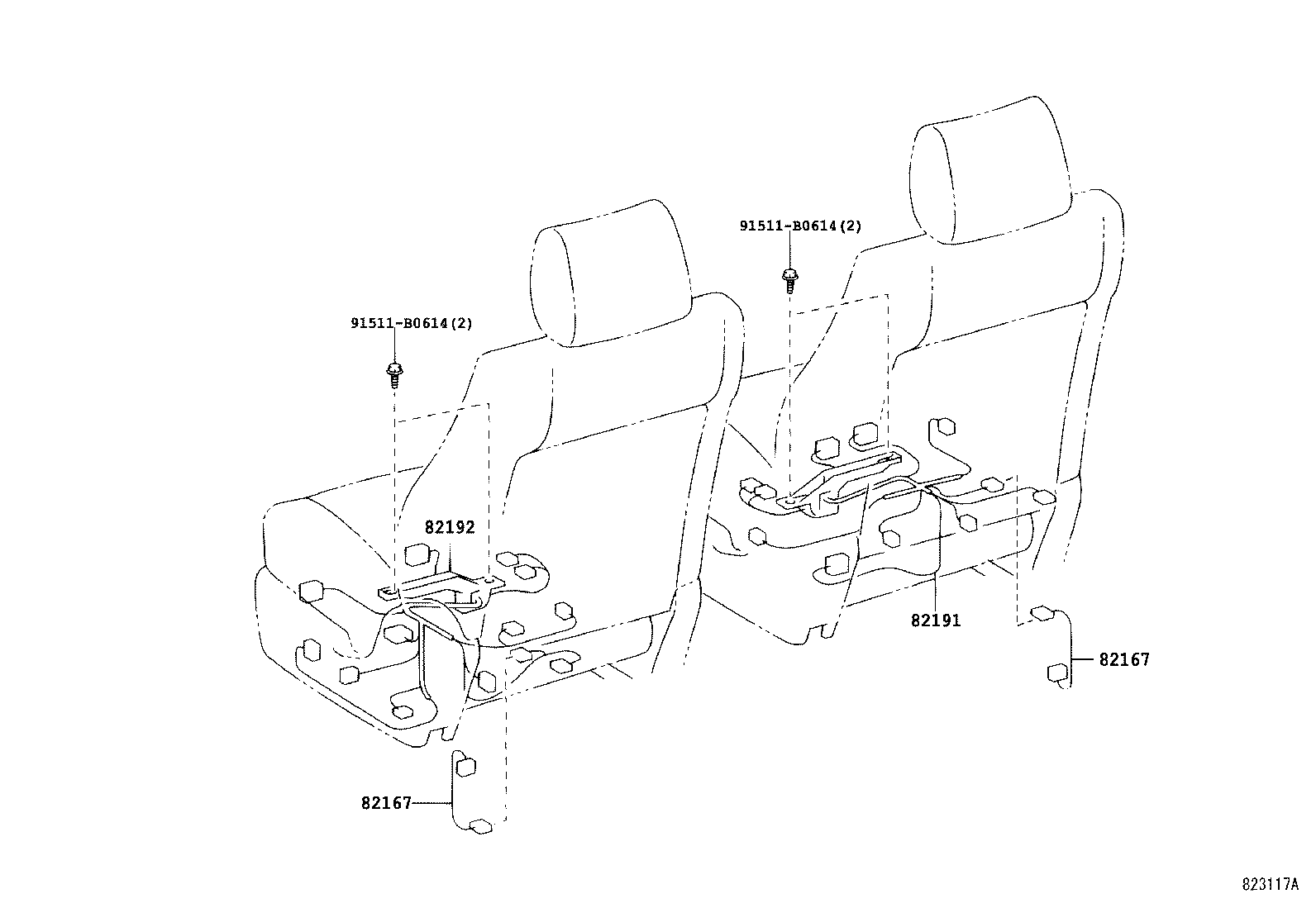

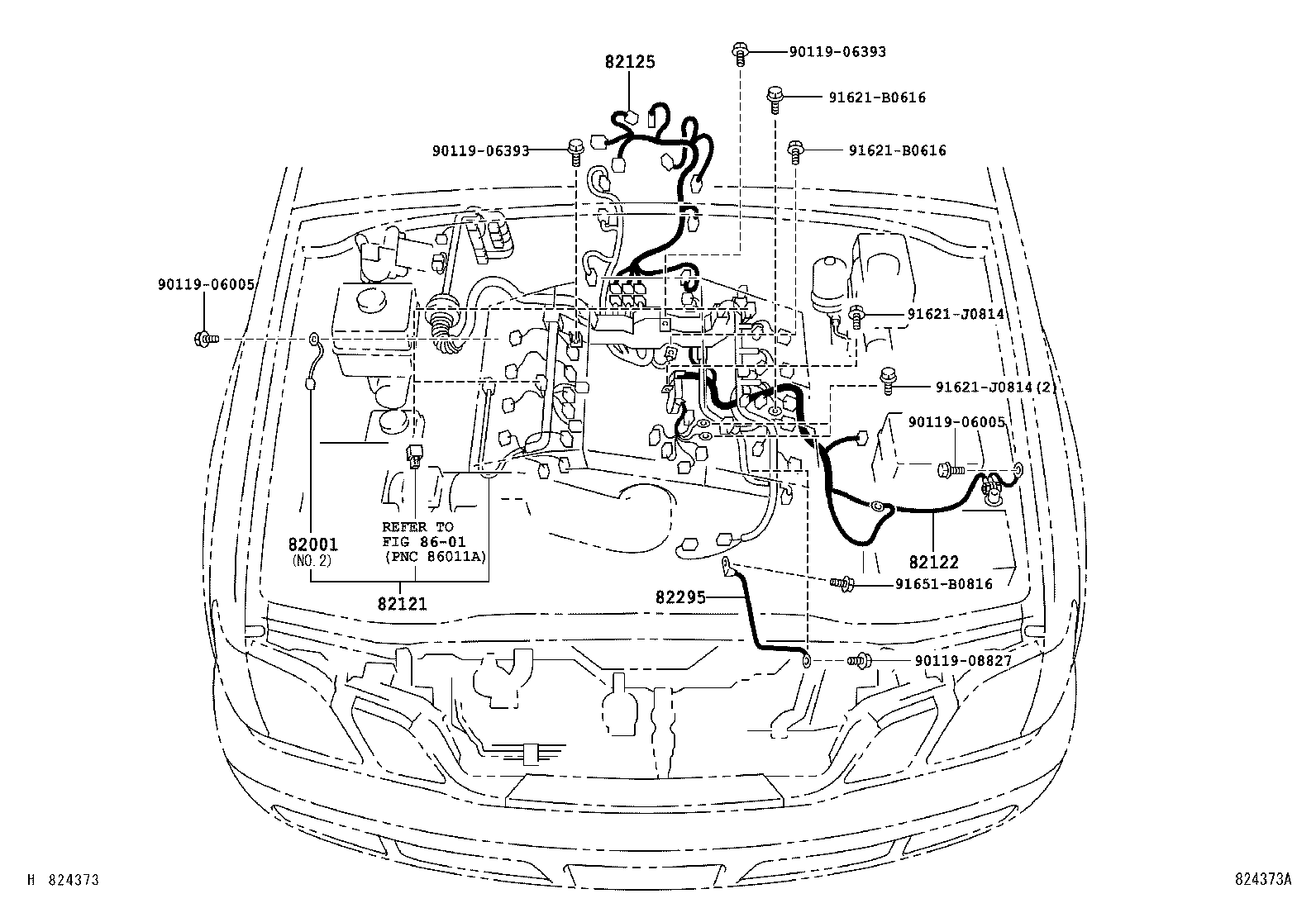

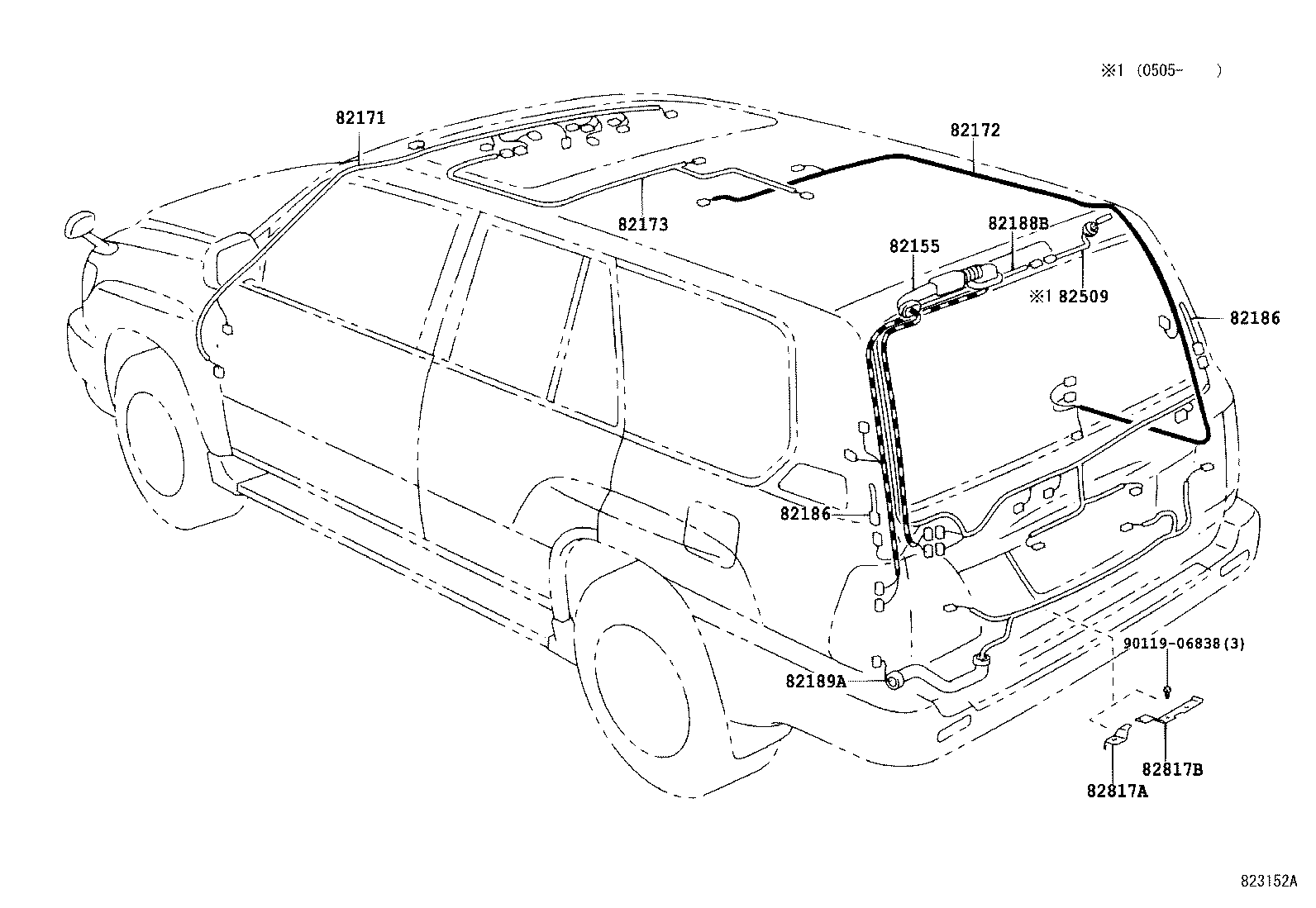

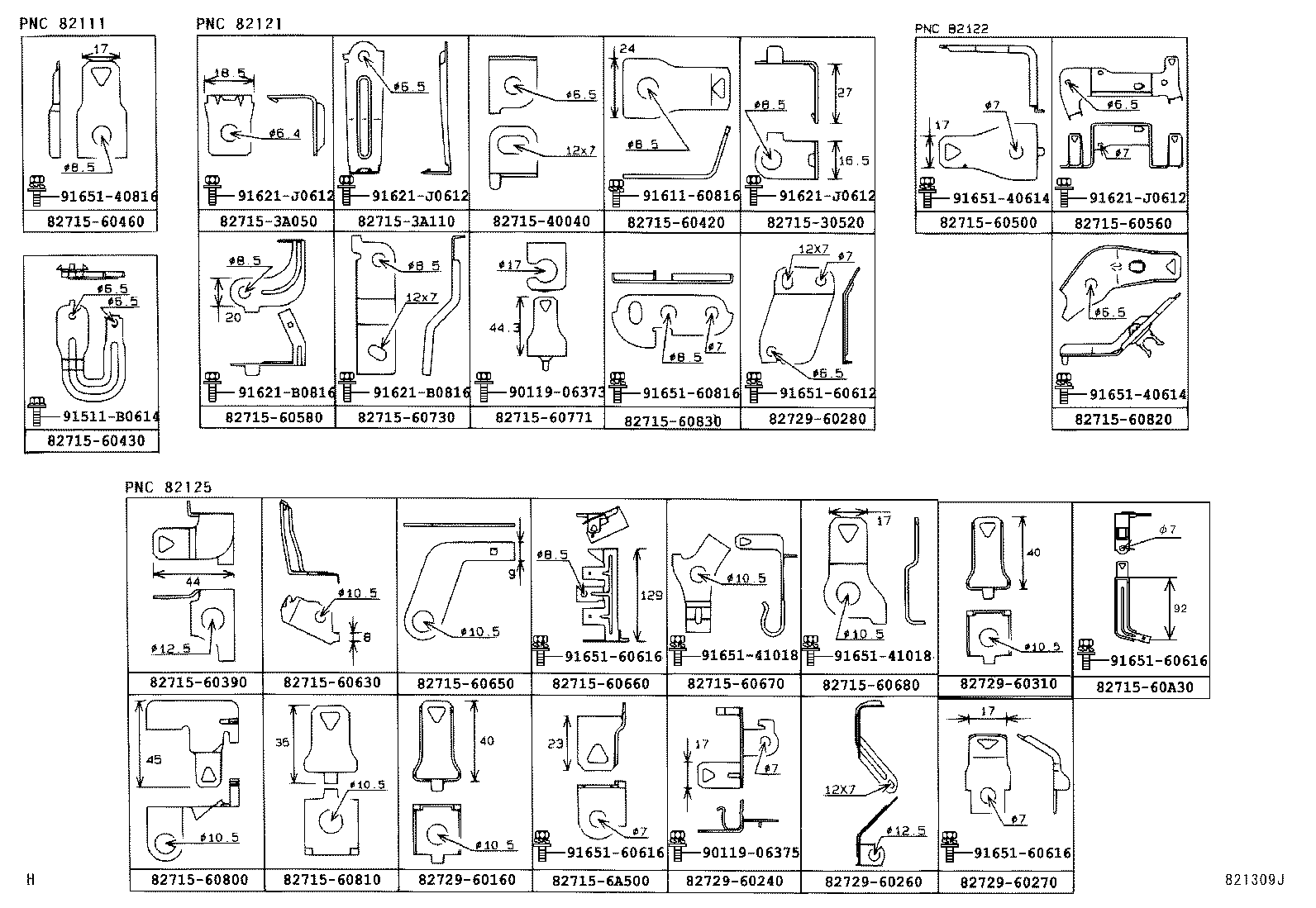

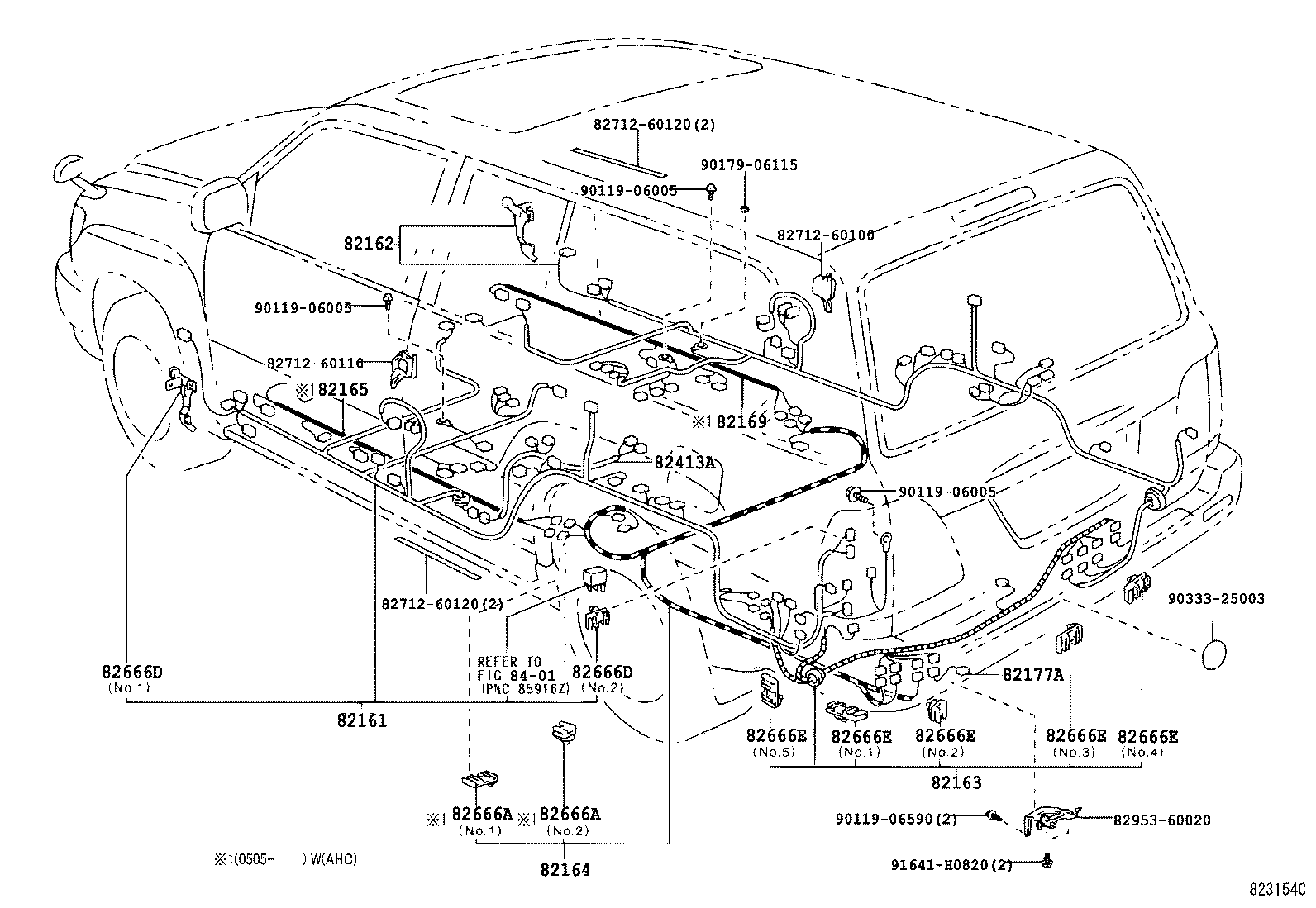

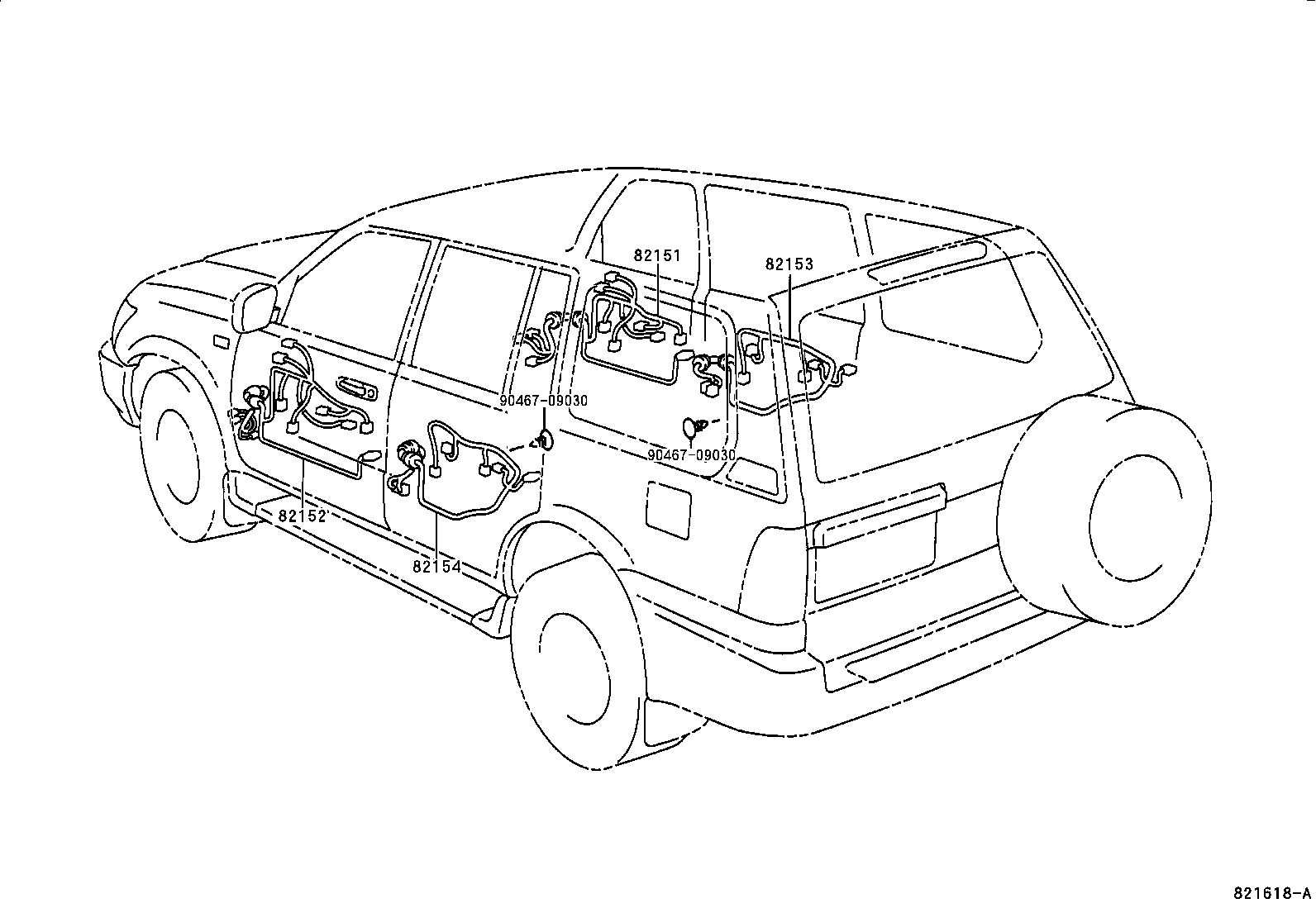

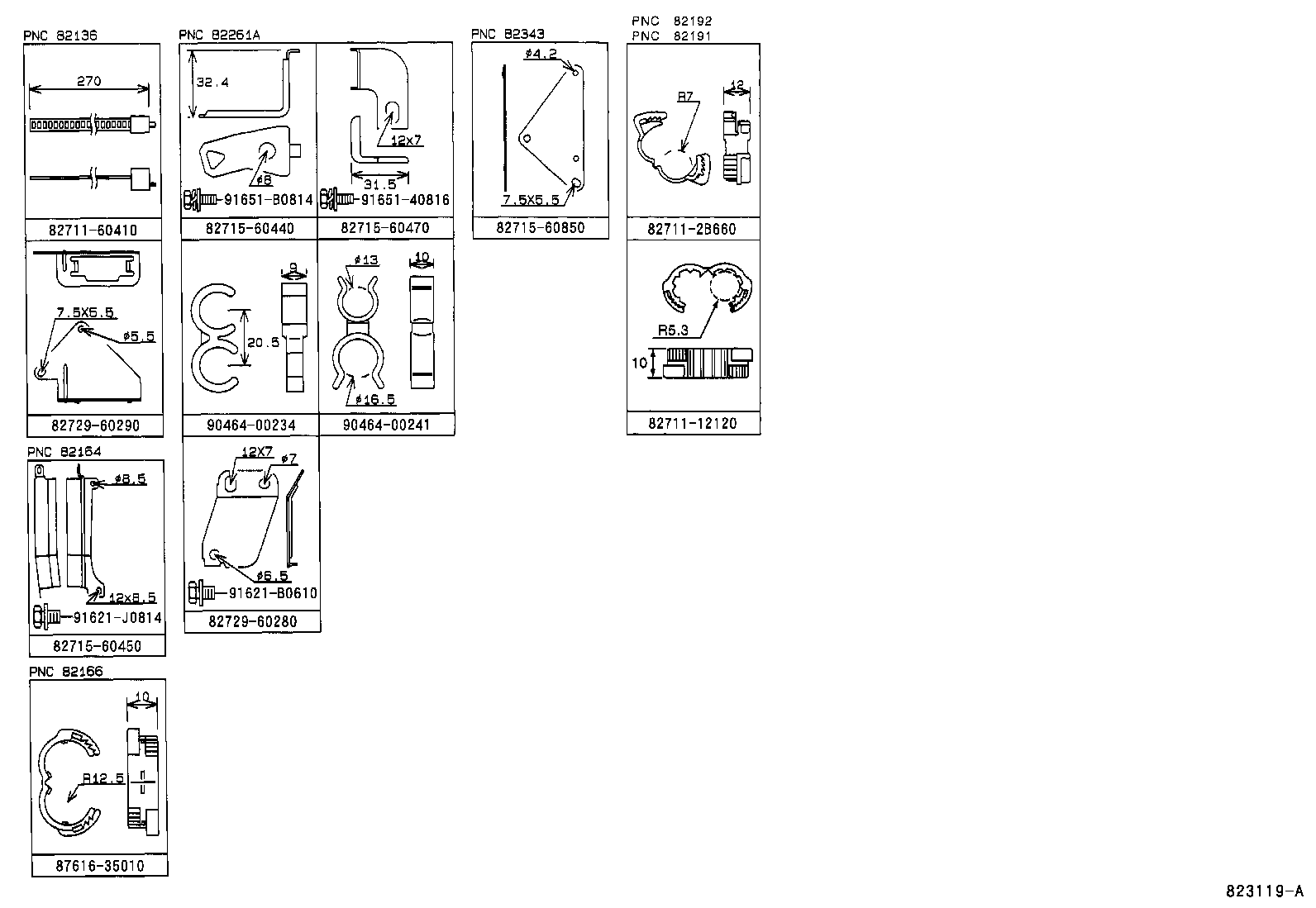

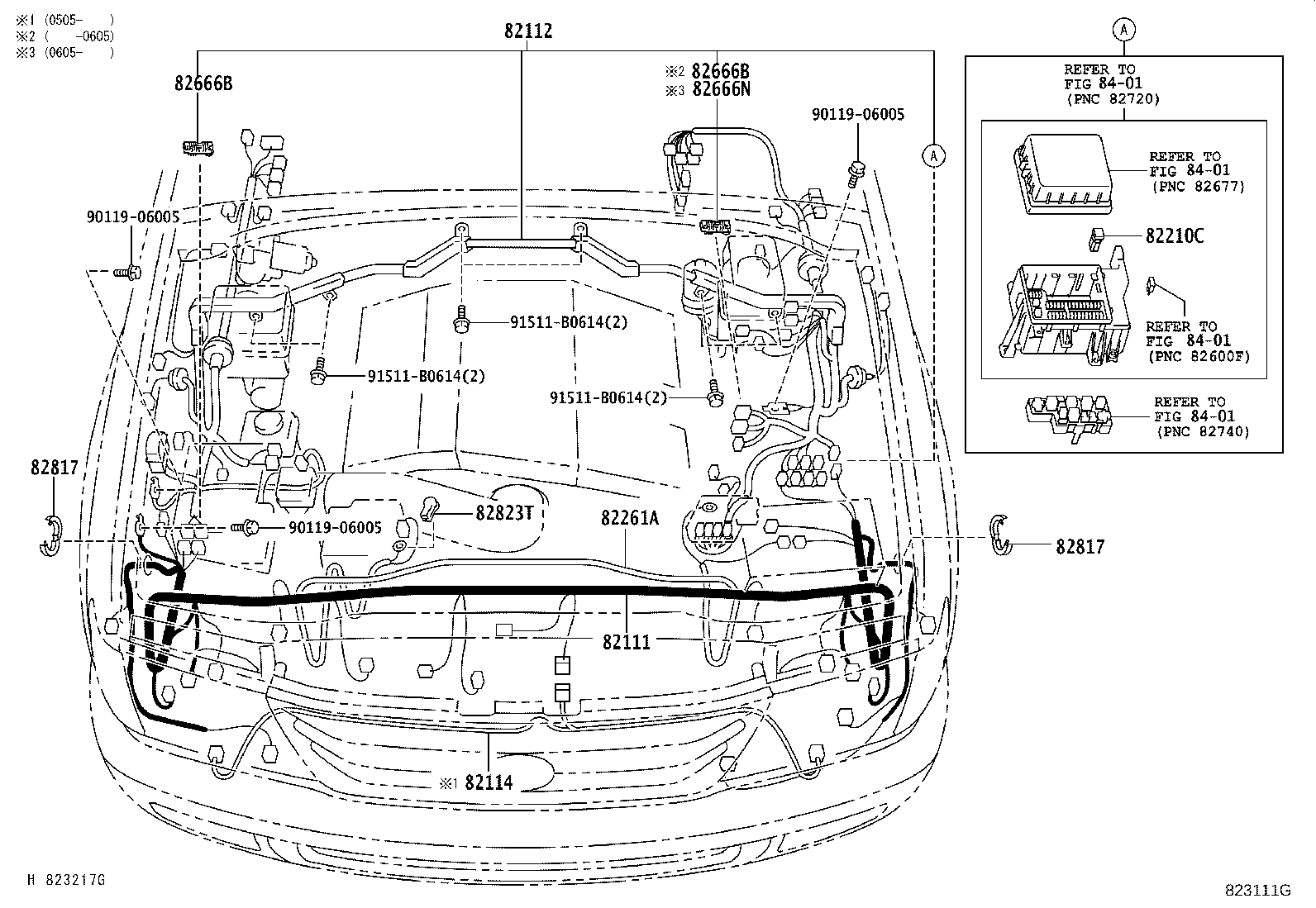

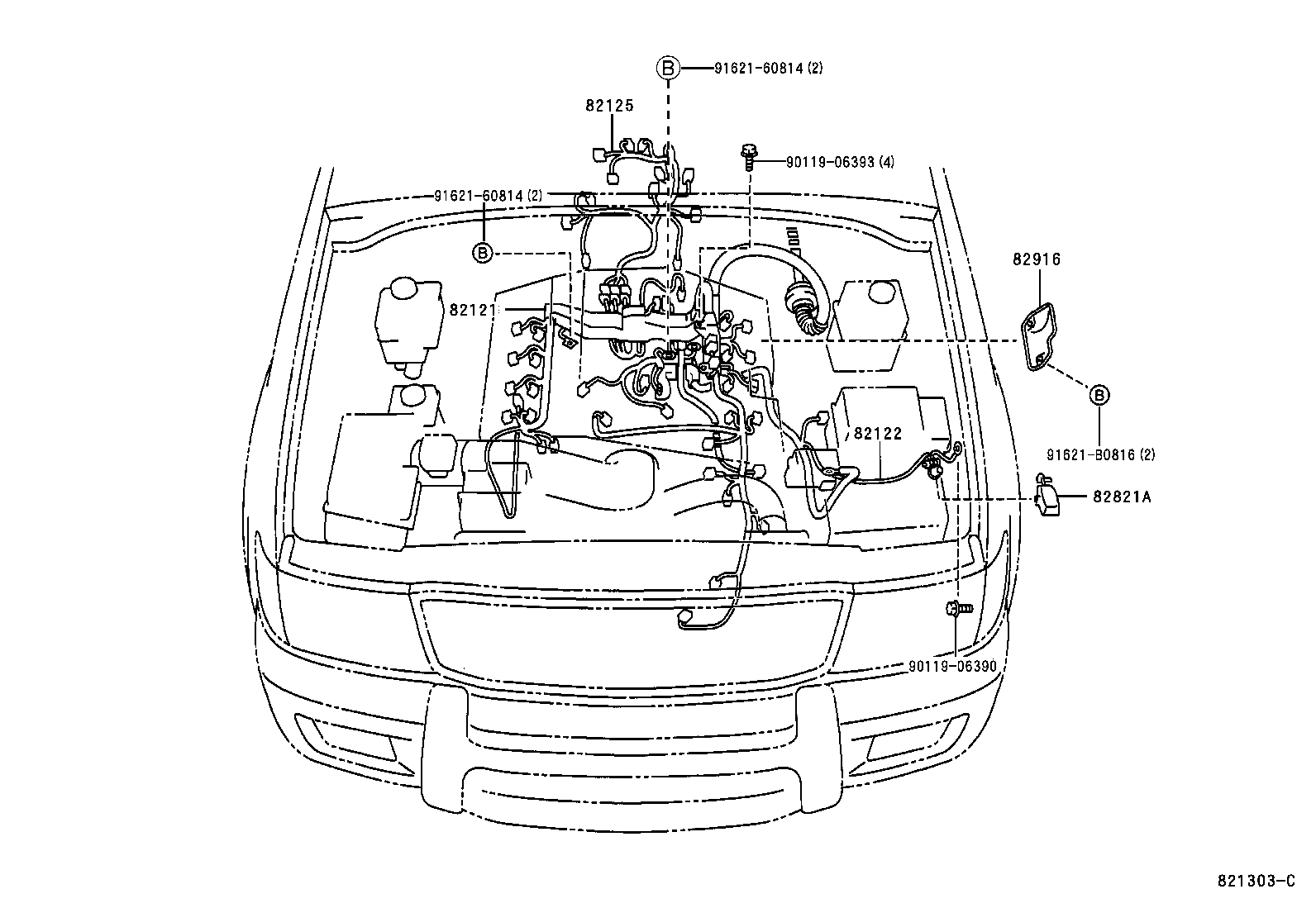

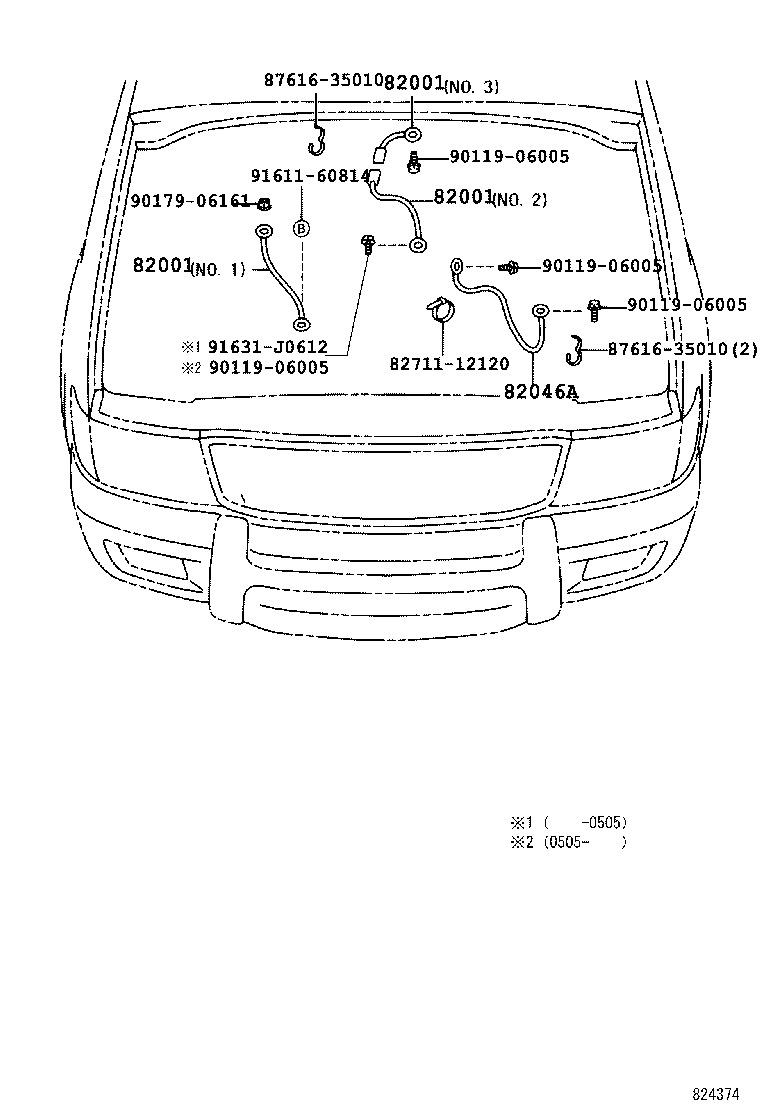

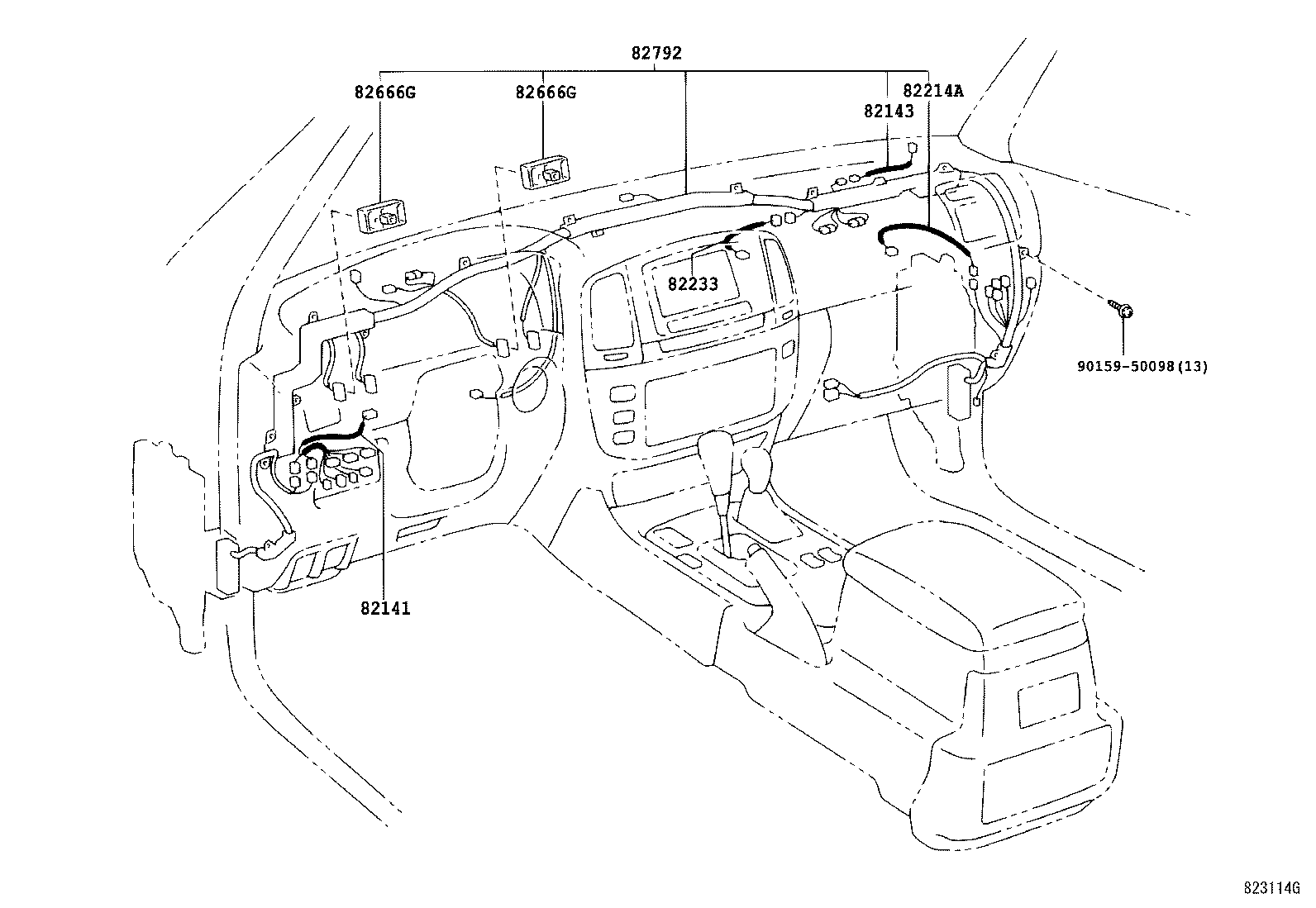

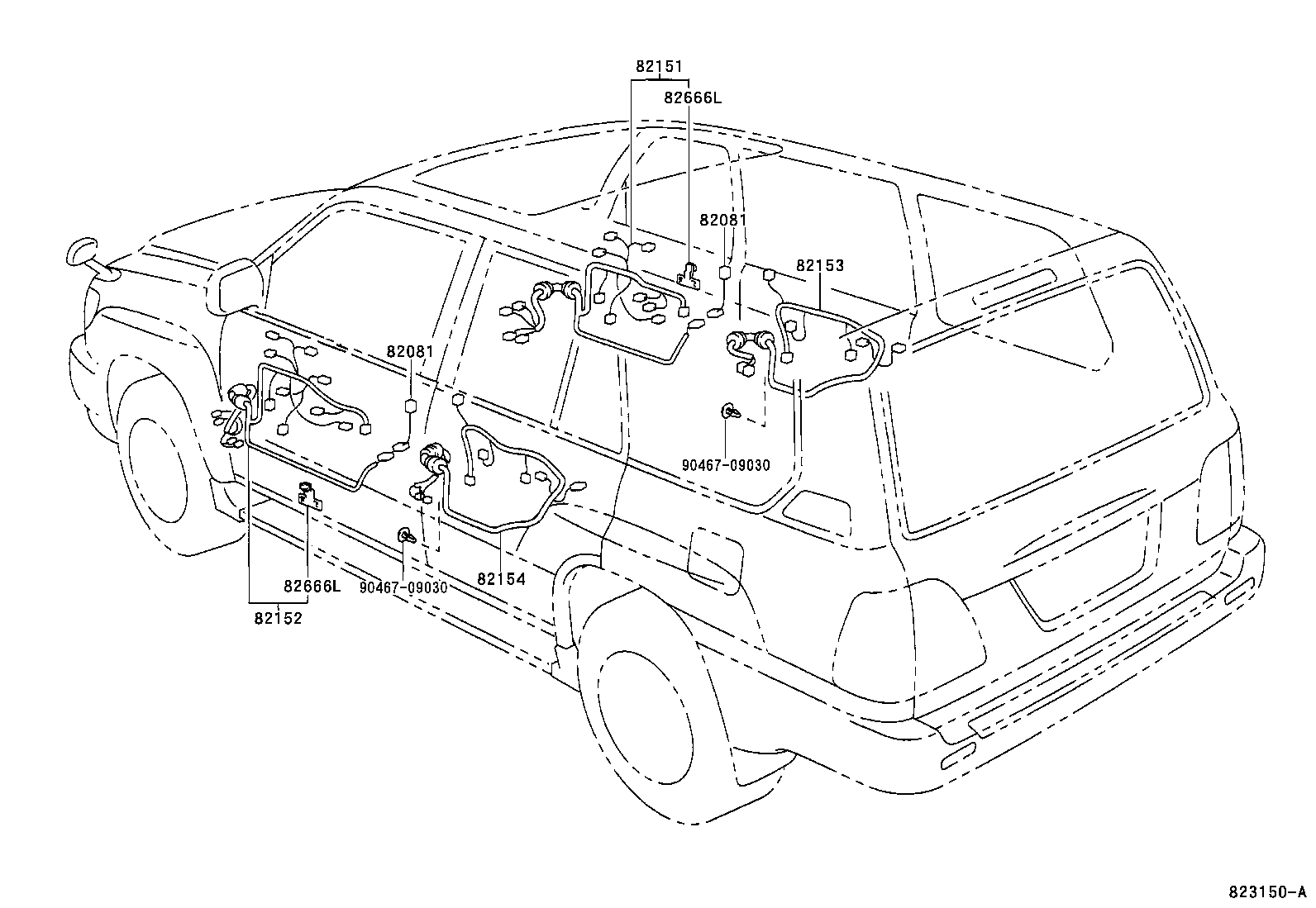

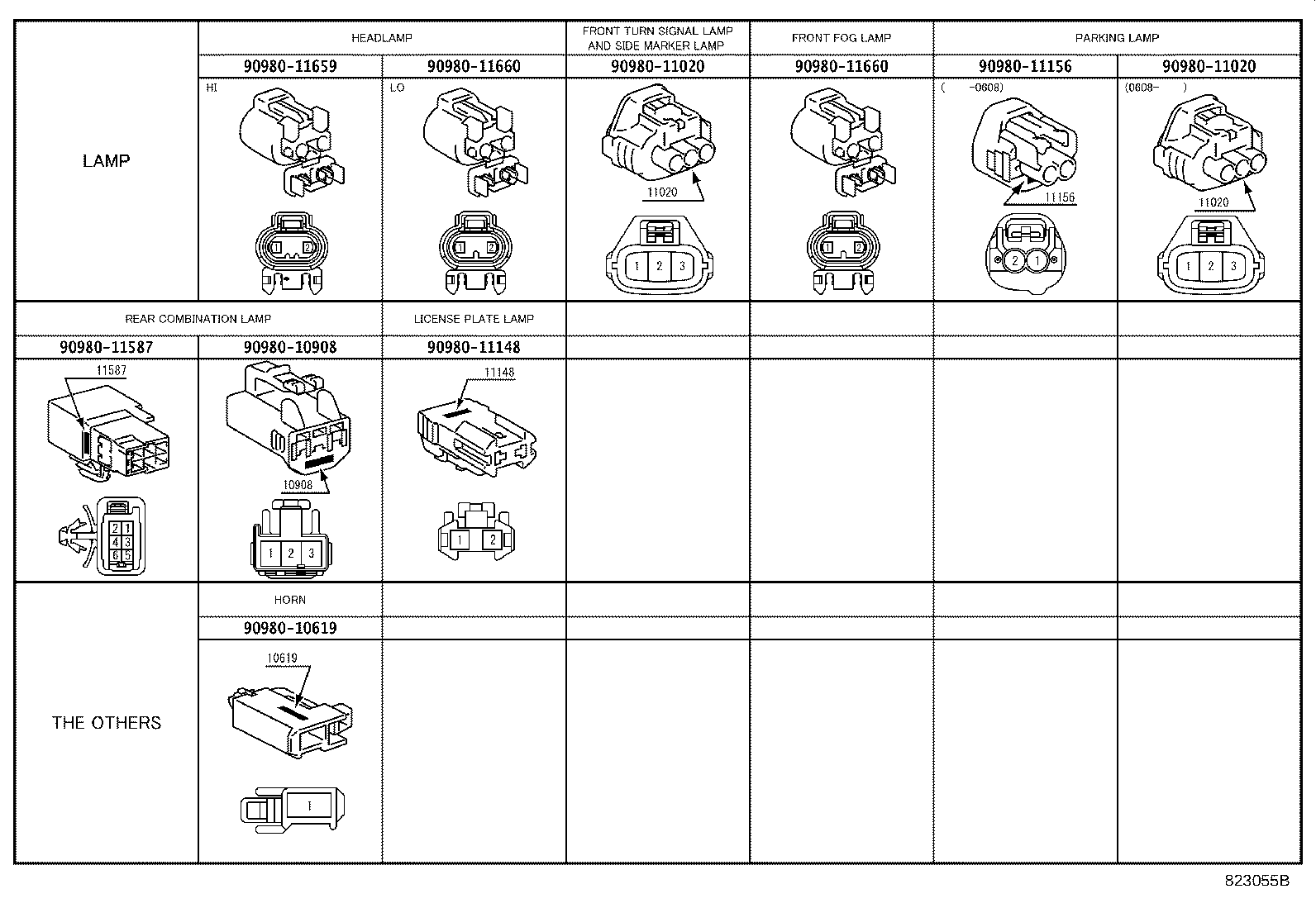

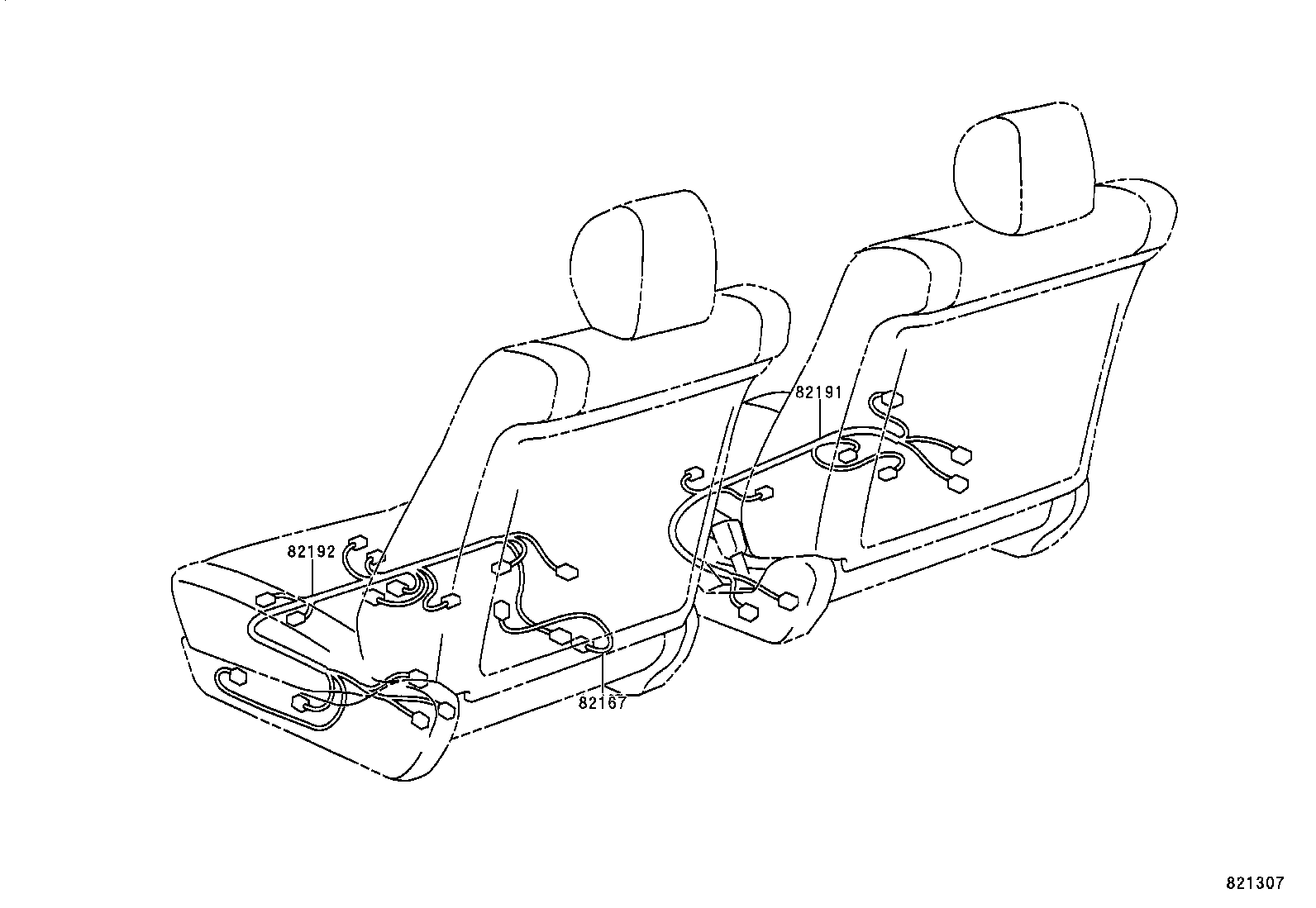

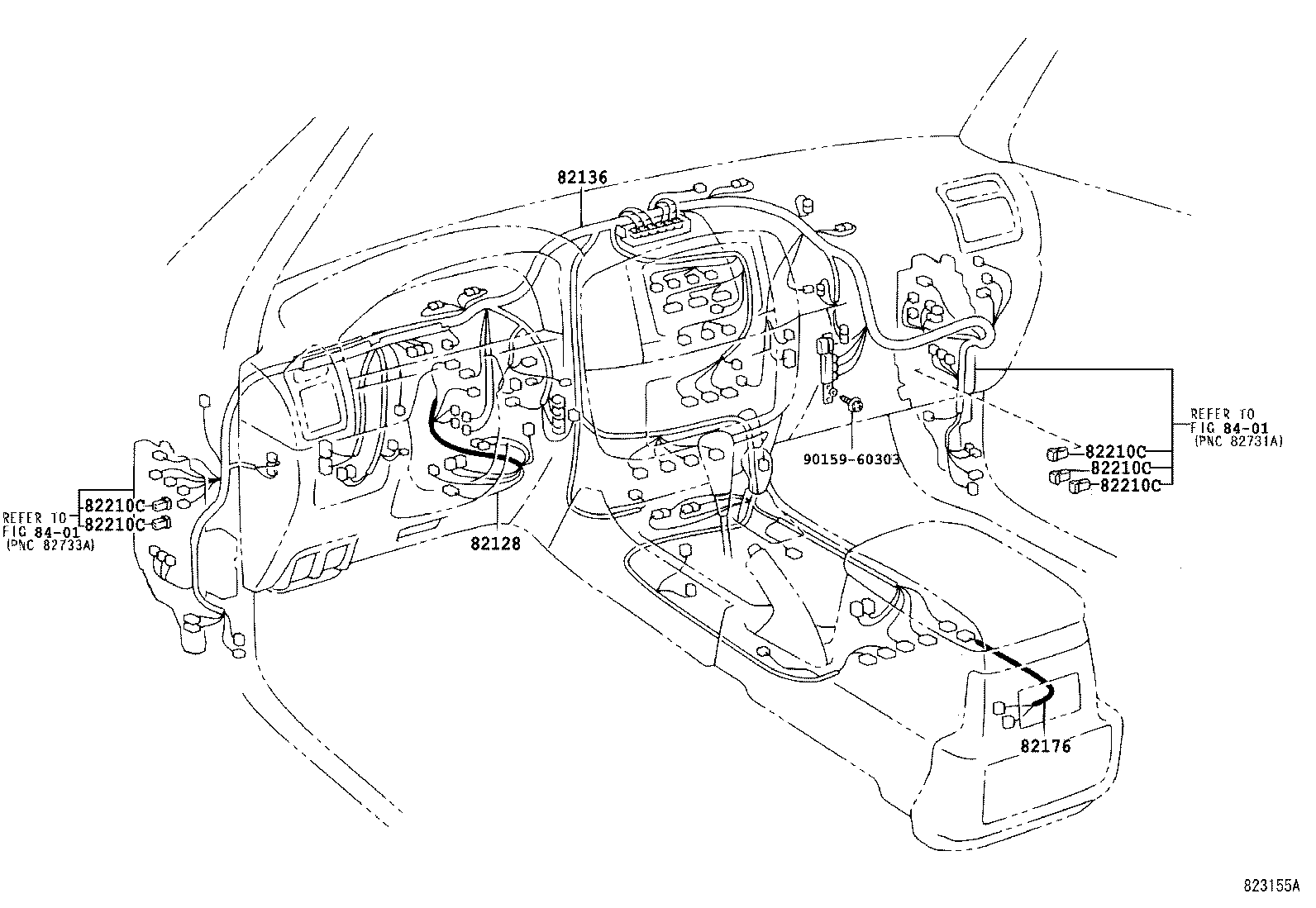

Figure 821302I 821302I 1998-01 → 2002-08 Figure 823111G 823111G 2002-08 → — Figure 821303C 821303C 1998-01 → 2002-08 Figure 823112C 823112C 2002-08 → 2005-05 Figure 824373A 824373A 2005-05 → — Figure 821304D 821304D 1998-01 → 2002-08 Figure 823155A 823155A 2002-08 → — Figure 821305A 821305A 1998-01 → 2002-08 Figure 823114G 823114G 2002-08 → — Figure 821618A 821618A 1998-01 → 2002-08 Figure 823150A 823150A 2002-08 → — Figure 821307 821307 1998-01 → 2002-08 Figure 823117A 823117A 2002-08 → — Figure 821311E 821311E 1998-01 → 2002-08 Figure 823154C 823154C 2002-08 → — Figure 823152A 823152A 2002-08 → — Figure 821309J 821309J 1998-01 → — Figure 823119A 823119A 1998-01 → — Figure 824374 824374 1998-01 → — Figure 823055B 823055B 1998-01 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82046A Wire Sub-assy, Body Ground, NO.1
82081 Wiring Assy, Door Lock
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82113 Wire, Engine Room, NO.3
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82122 Wire, Engine, NO.2
82125 Wire, Transmission
82128 Wire, Column
82136 Wire, Dash
82141 Wire, Instrument Panel
82143 Wire, Instrument Panel, NO.3
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82155 Wire, Center Piller, NO.1
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82164 Wire, Frame
82165 Wire, Frame, NO.2
82166 Wire, Console Box
82167 Wire, Seat, NO.1
82169 Wire Frame, NO.3
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82173 Wire, Roof, NO.3
82176 Wire, Rear Console Box
82177A Wire, Frame, NO.4
82181 Wire, Luggage Room, NO.1
82186 Wire, Rear Window, NO.1
82188B Wire, Back Door, Upper
82189A Wire, Back Door, Lower
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82210C Fusible Link
82214A Wire, Lamp
82233 Wire, Computer
82261A Wire, Alternator
82295 Wire, Winch Earth
82343 Wire, Detector
82345 Diode
82413A Wire, Fuel Tank
82509 Wiring Sub-assy, Back Door
82621 Cover, Fusible Link
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82666N Holder, Connector NO.10
82792 Wire, Instrument Panel Integration
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82821A Cover, Connector
82823T Cap, Alternator Terminal
82916 Insulator, Wiring Harness Heat, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
