Toyota Land Cruiser 100

1998-01 → 2007-08 · chassis UZJ100 · catalogue 791450 · Europe

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

14 part groups · 2 illustrations

Illustrations

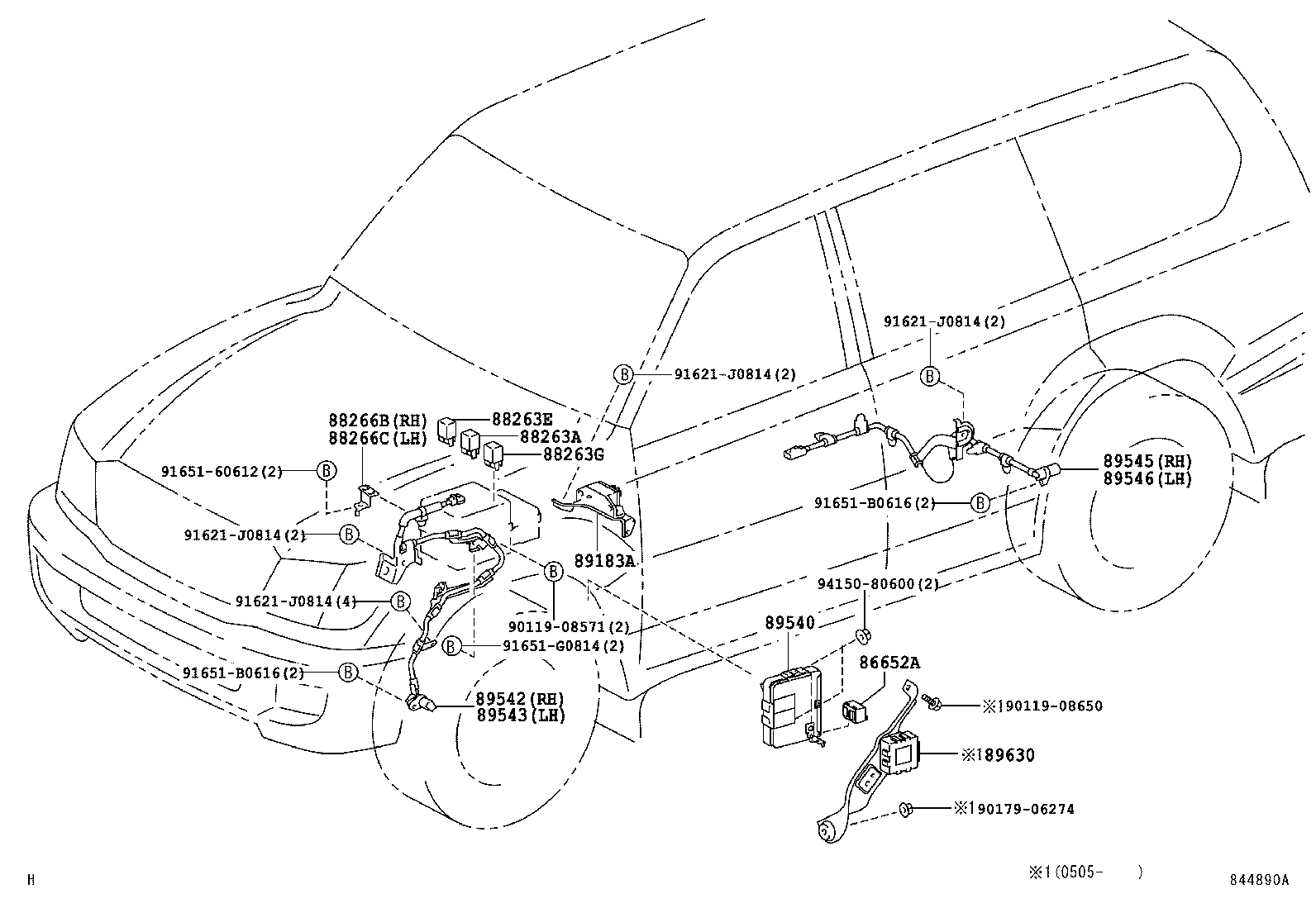

Figure 841795F 841795F 1998-01 → 2002-08 Figure 844890A 844890A 2002-08 → —

Part groups

PNCDescription
86652A Buzzer Assy, Skid Control
88263A Relay, Skid Control
88263E Relay, Skid Control NO.2
88263G Relay, Skid Control
88266B Clamp, Skid Control Sensor, NO.1
88266C Clamp, Skid Control Sensor, NO.2
89183A Sensor, Yawrate
89441A Sensor, Deceleration
89540 Computer Assy, Skid Control
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89545 Sensor, Speed, Rear RH
89546 Sensor, Speed, Rear LH
89630 Computer Assy, Translate
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
