Toyota Land Cruiser 100

1998-01 → 2007-08 · chassis UZJ100 · catalogue 791450 · Europe

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Bag

8 part groups · 2 illustrations

Illustrations

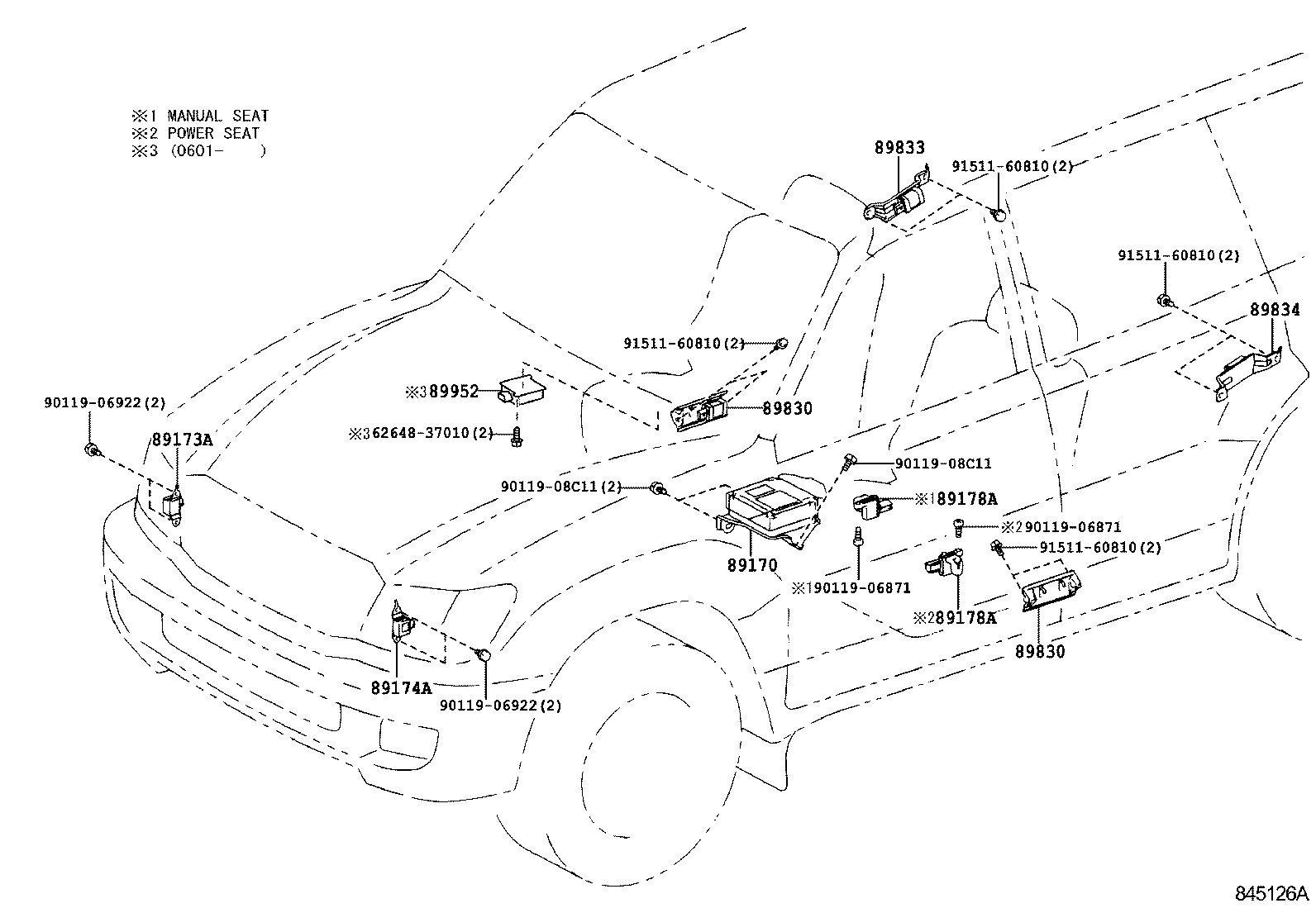

Figure 841799A 841799A 1998-01 → 2002-08 Figure 845126A 845126A 2002-08 → —

Part groups

PNCDescription
89170 Sensor Assy, Airbag
89173A Sensor, Airbag, Front RH
89174A Sensor, Airbag, Front LH
89178A Sensor, Seat Position Airbag
89830 Sensor Assy, Side Airbag
89833 Sensor, Airbag, Rear RH
89834 Sensor, Airbag, Rear LH
89952 Computer, Occupant Detection
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
