Toyota Land Cruiser 100
1998-01 → 2007-08 · chassis UZJ100 · catalogue 791450 · Europe
Discontinued model
Data version 2008-01
Navigation & Front Monitor Display
10 part groups · 2 illustrations
Part groups

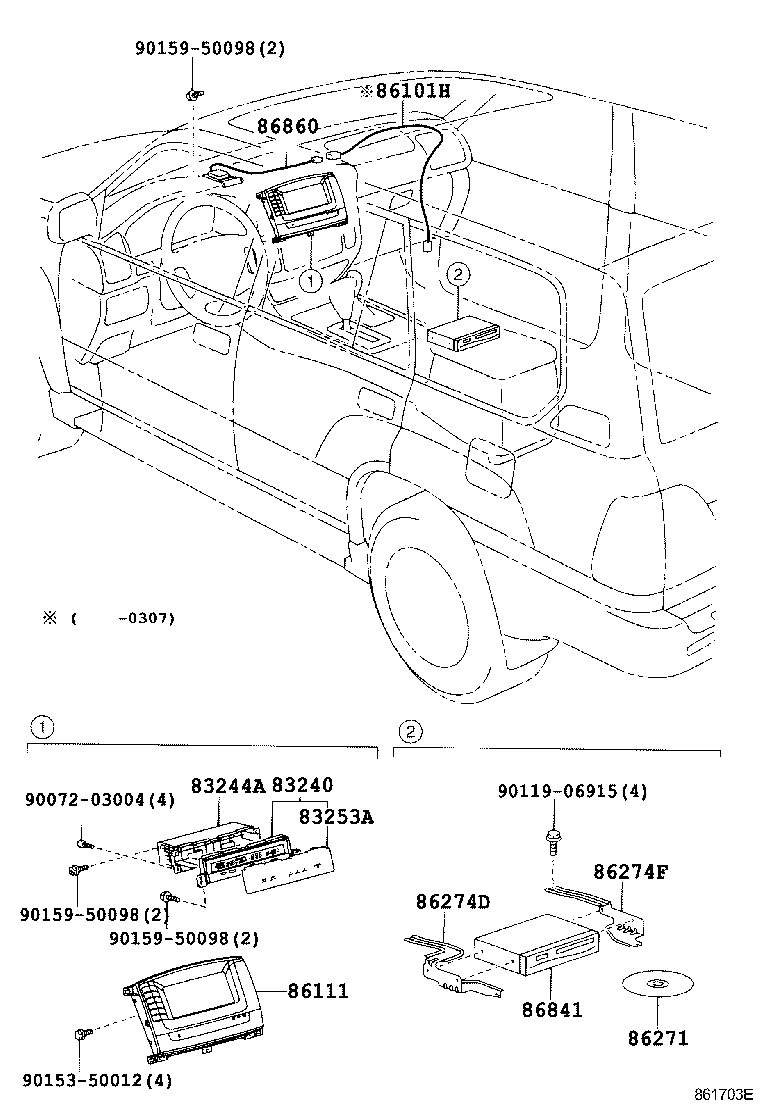

| PNC | Description |
|---|---|
| 83240 | Case Assy, Multi Information Display |
| 83244A | Computer, Multi Information Display |
| 83253A | Glass, Accessory Meter |
| 86101H | Cord Sub-assy, Antenna |
| 86111 | Multi-display |
| 86271 | Disc, Disc Player |
| 86274D | Bracket, Disc Player |
| 86274F | Bracket, Disc Player, NO.2 |
| 86841 | Computer, Navigation |
| 86860 | Antenna Assy, Navigation |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
