Toyota Land Cruiser 100

1998-01 → 2007-08 · chassis UZJ100 · catalogue 791450 · Europe

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mirror

8 part groups · 2 illustrations

Illustrations

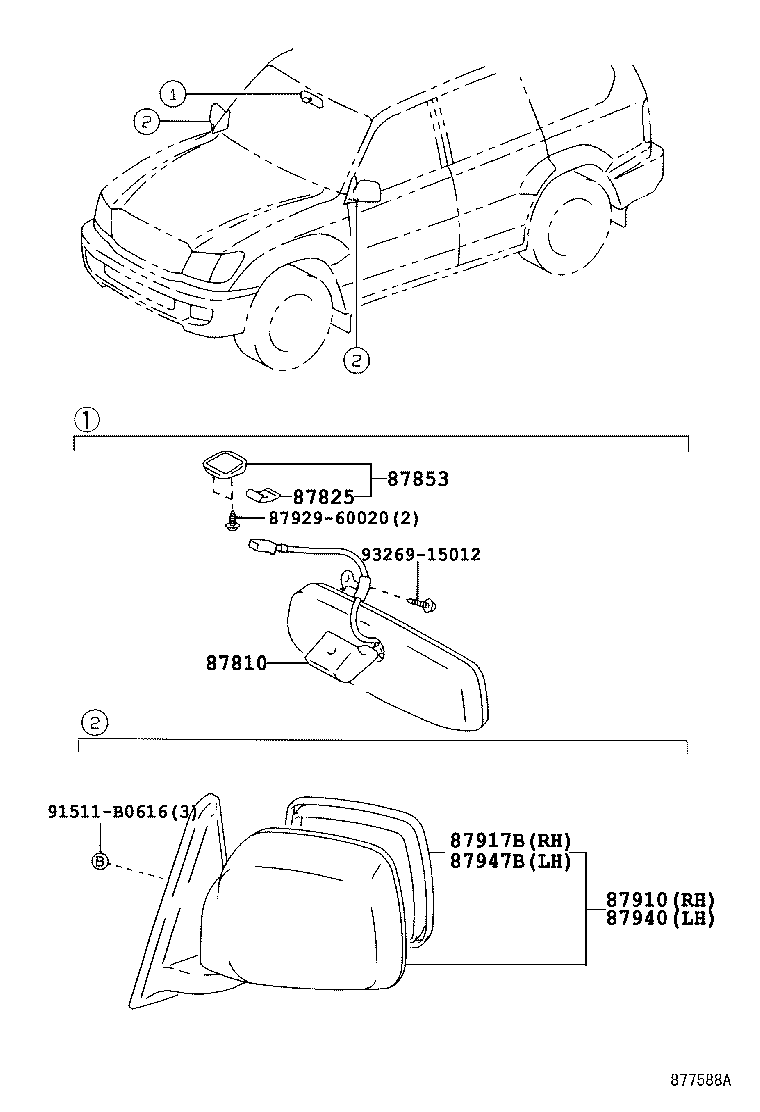

Figure 872409I 872409I 1998-01 → 2005-05 Figure 877588A 877588A 2005-05 → —

Part groups

PNCDescription
87805 Base Sub-assy, Inner Rear View Mirror
87810 Mirror Assy, Inner Rear View
87825 Spring, Inner Rear View Mirror Setting
87853 Base, Inner Rear View Mirror
87910 Mirror Assy, Outer Rear View, RH
87917B Mirror, Outer Rear View, RH
87940 Mirror Assy, Outer Rear View, LH
87947B Mirror, Outer Rear View, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
