Toyota Land Cruiser 100

1998-01 → 2007-08 · chassis UZJ100 · catalogue 791450 · Europe

Discontinued model Data version 2008-01

Heating & Air Conditioning - Control & Air Duct

42 part groups · 8 illustrations

PNC	Description

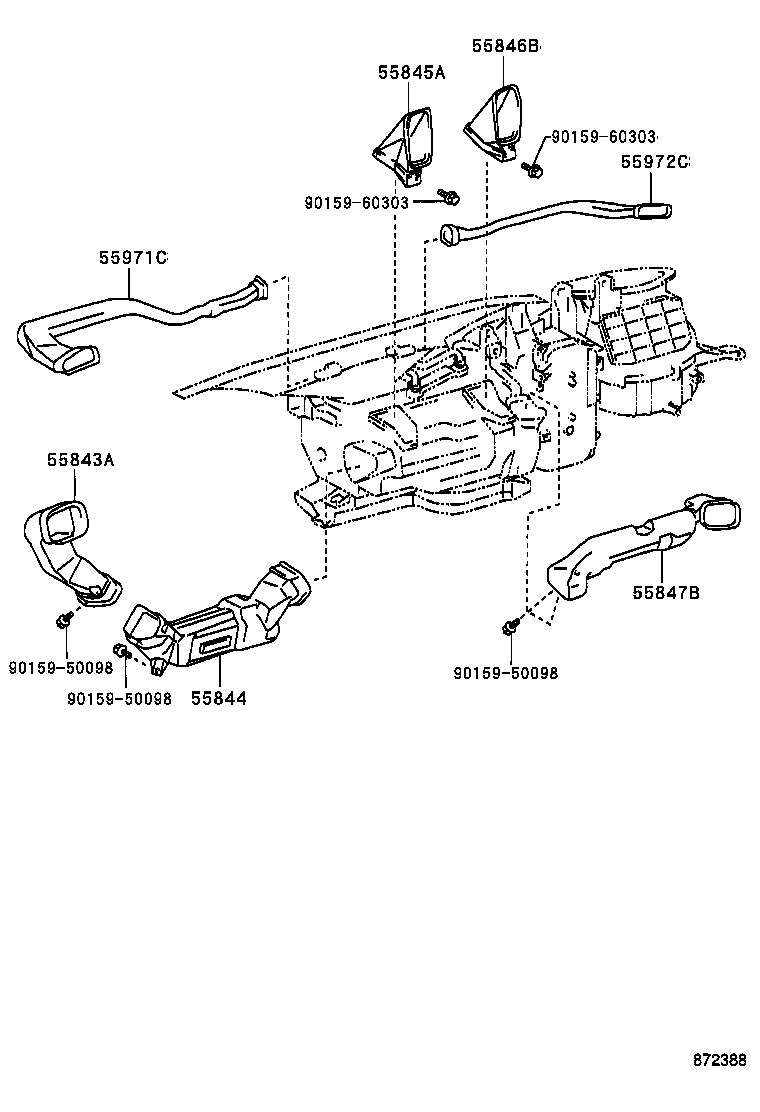

55843A	Duct, Heater TO Register, NO.1
55844	Duct, Heater TO Register, NO.2
55845A	Duct, Heater TO Register, NO.3
55846B	Duct, Heater TO Register, NO.4
55847B	Duct, Heater TO Register, NO.5
55897A	Knob, Air Damper Control Lever

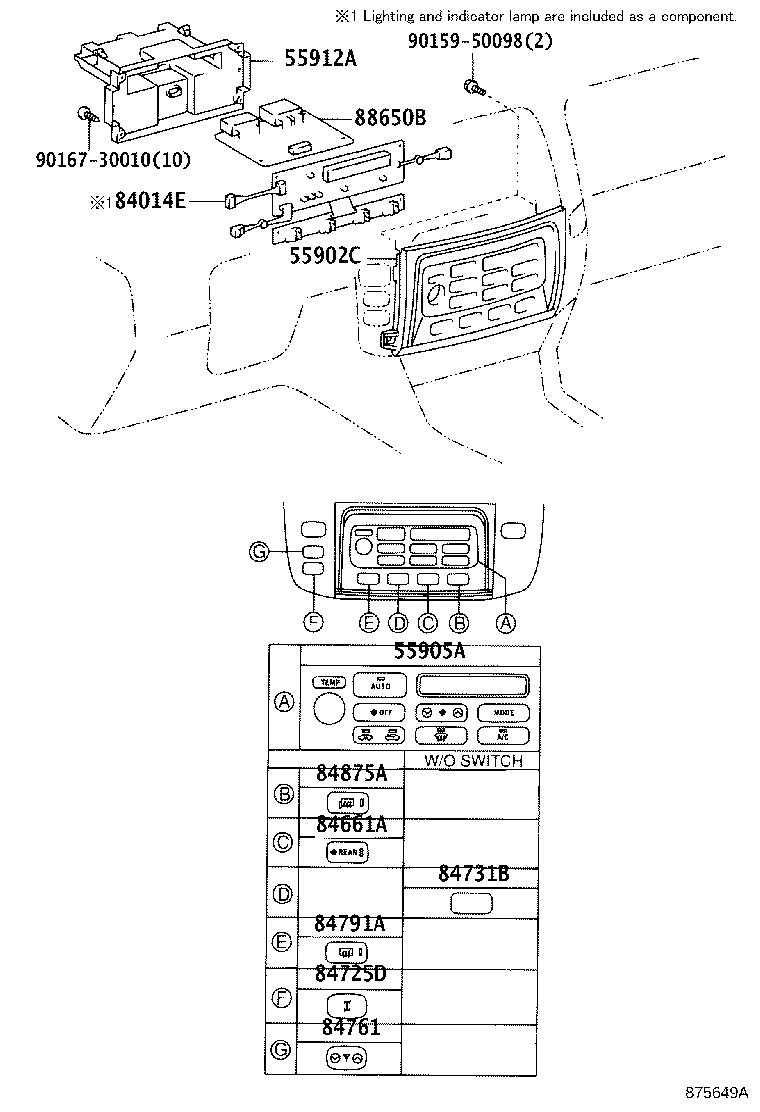

55902C	Panel Sub-assy, Air Conditioner
55905A	Knob, Heater Control
55905K	Knob, Heater Control, NO.4
55905L	Knob, Heater Control, NO.5

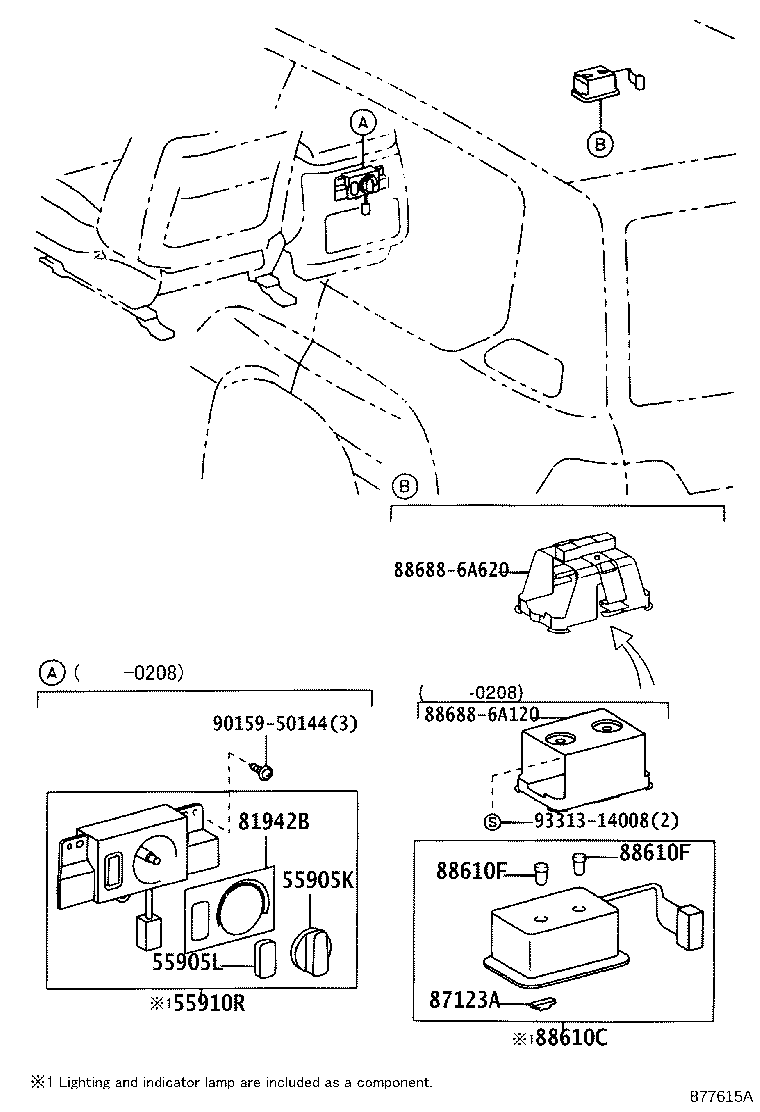

55910R	Control Assy, Heater
55912A	Housing, Heater Control
55971C	Duct, Side Defroster Nozzle, NO.1
55972C	Duct, Side Defroster Nozzle, NO.2
81942B	Sheet, Heater Control Name, NO.2
84014E	Board Sub-assy, Printed Wire Integration
84661A	Knob, Cooler Control Switch
84661B	Bezel, Switch
84691	Knob, Condition Indicator
84725D	Knob, Differential Lock Switch
84731A	Knob, Heater Blower Switch
84731B	Bezel, Switch
84761	Knob, Antenna Switch
84791A	Knob, Defogger Time Switch
84875A	Knob, Outer Mirror Switch
87123A	Knob, Heater Control

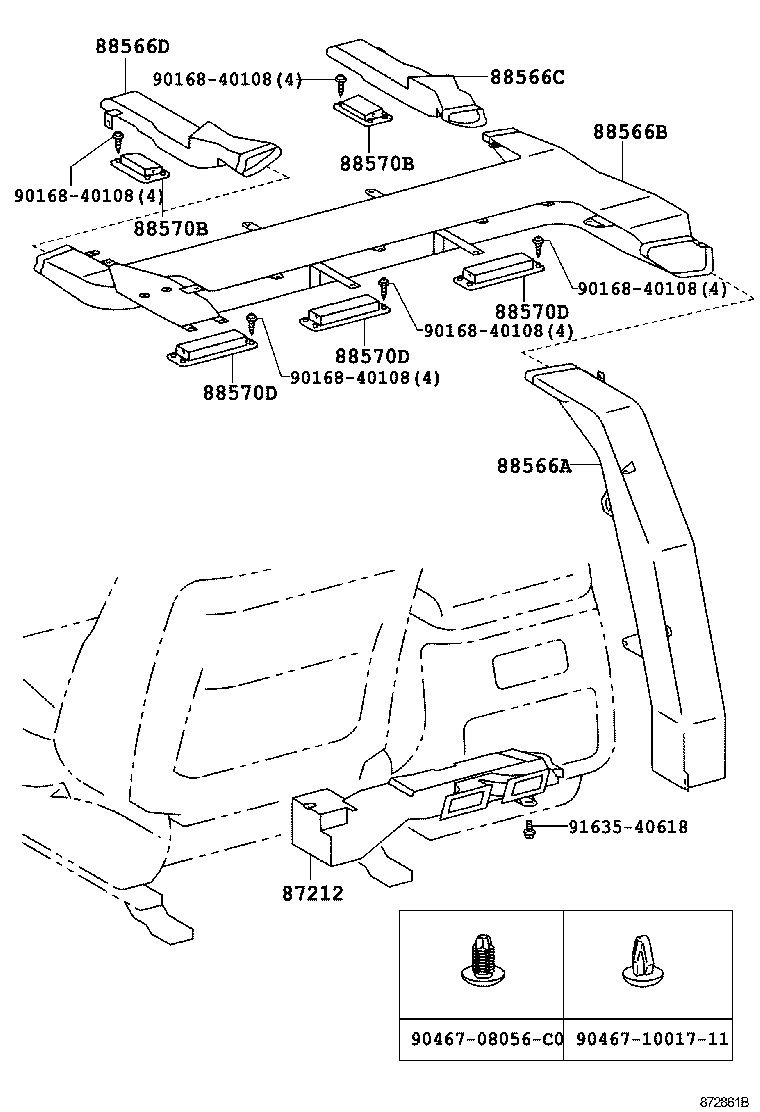

87212	Duct, Air, Rear NO.1

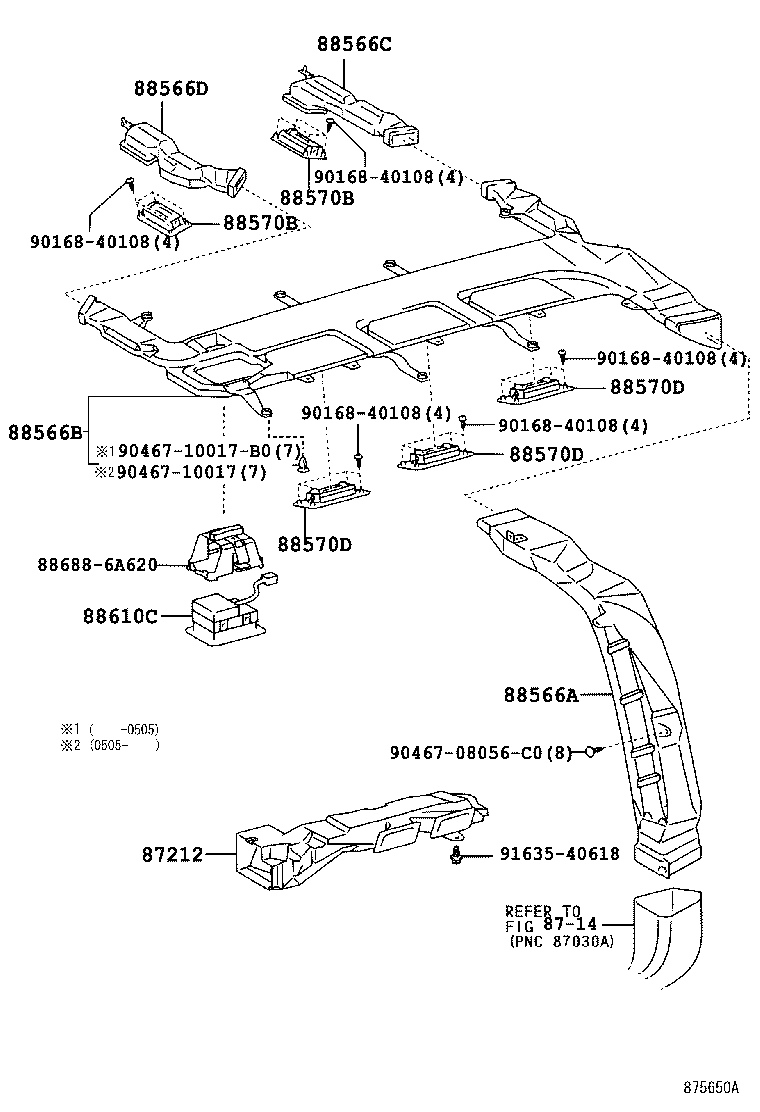

88566A	Duct, Cooler Air, NO.1
88566B	Duct, Cooler Air, NO.2
88566C	Duct, Cooler Air, NO.3
88566D	Duct, Cooler Air, NO.4
88570B	Grille Assy, Air Outlet, NO.1
88570D	Grille Assy, Air Outlet, NO.2
88610C	Switch Assy, Cooler Control
88610F	Bulb, Cooler Control Switch

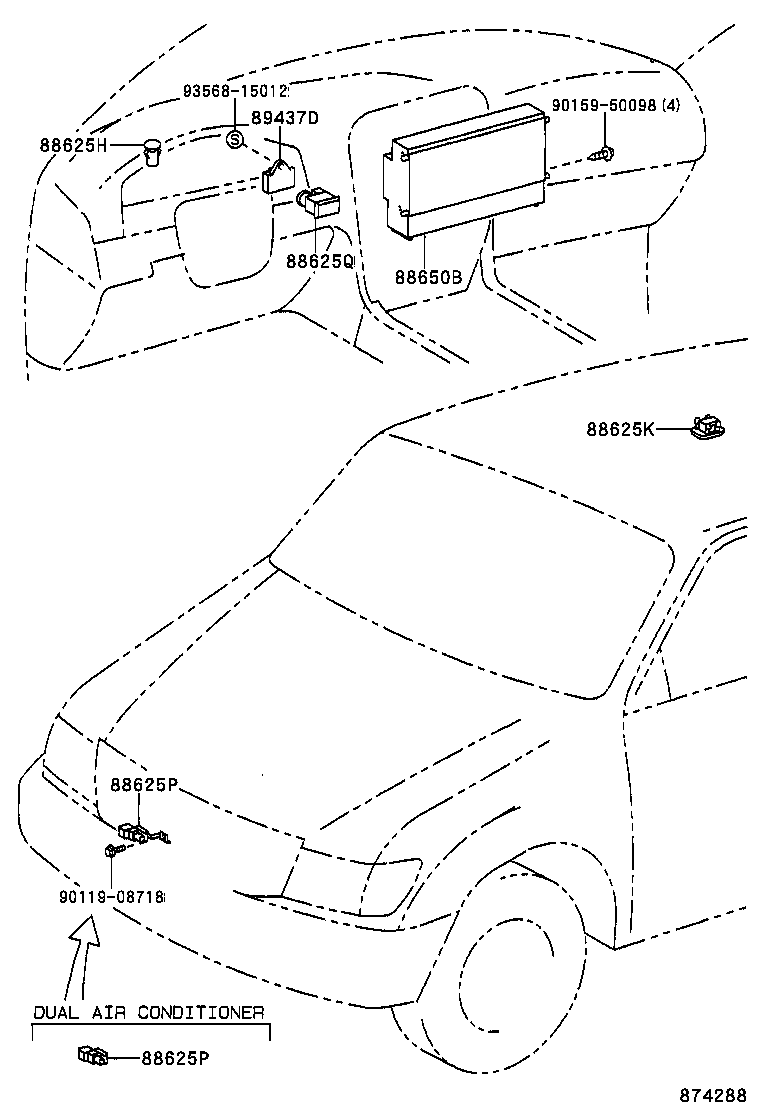

88625H	Thermistor, Cooler (SOLAR SENSOR)
88625K	Thermistor, Cooler
88625P	Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88625Q	Thermistor, Cooler (ROOM TEMP. SENSOR)
88650B	Amplifier Assy, Airconditioner

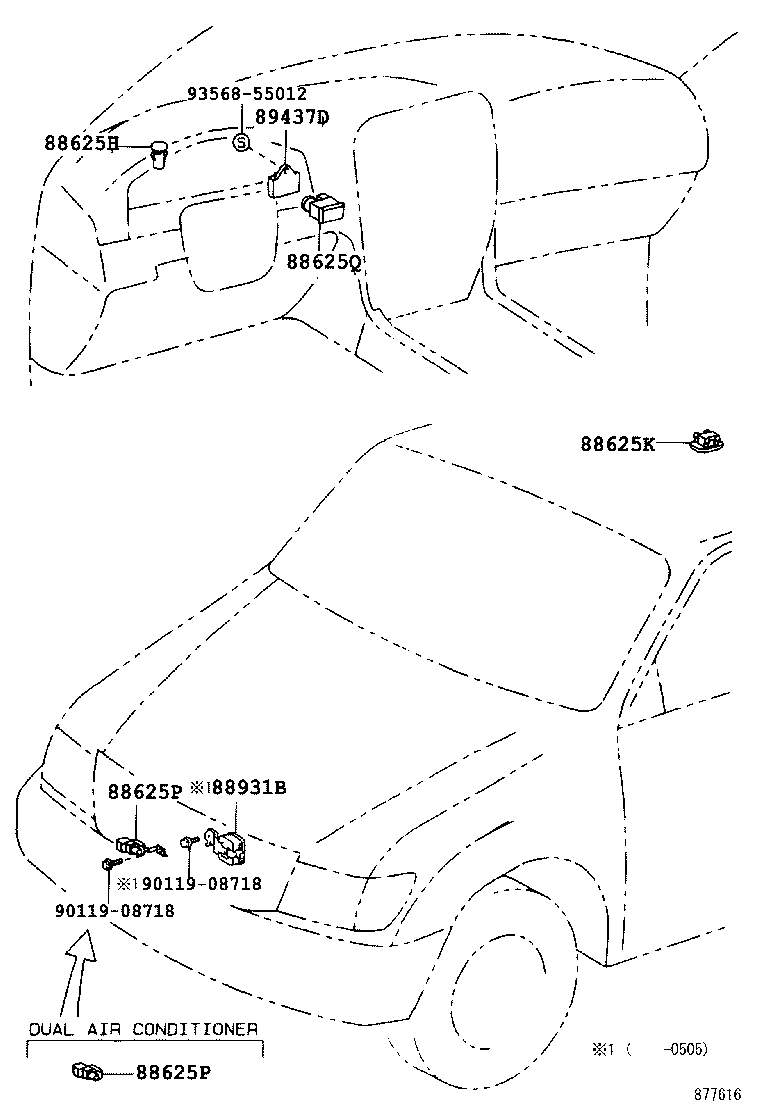

88931B	Sensor, Smoke
89437D	Cover, Sensor

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
