Toyota Land Cruiser 100

1998-01 → 2007-08 · chassis UZJ100 · catalogue 791450 · Europe

Discontinued model Data version 2008-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

36 part groups · 11 illustrations

Illustrations

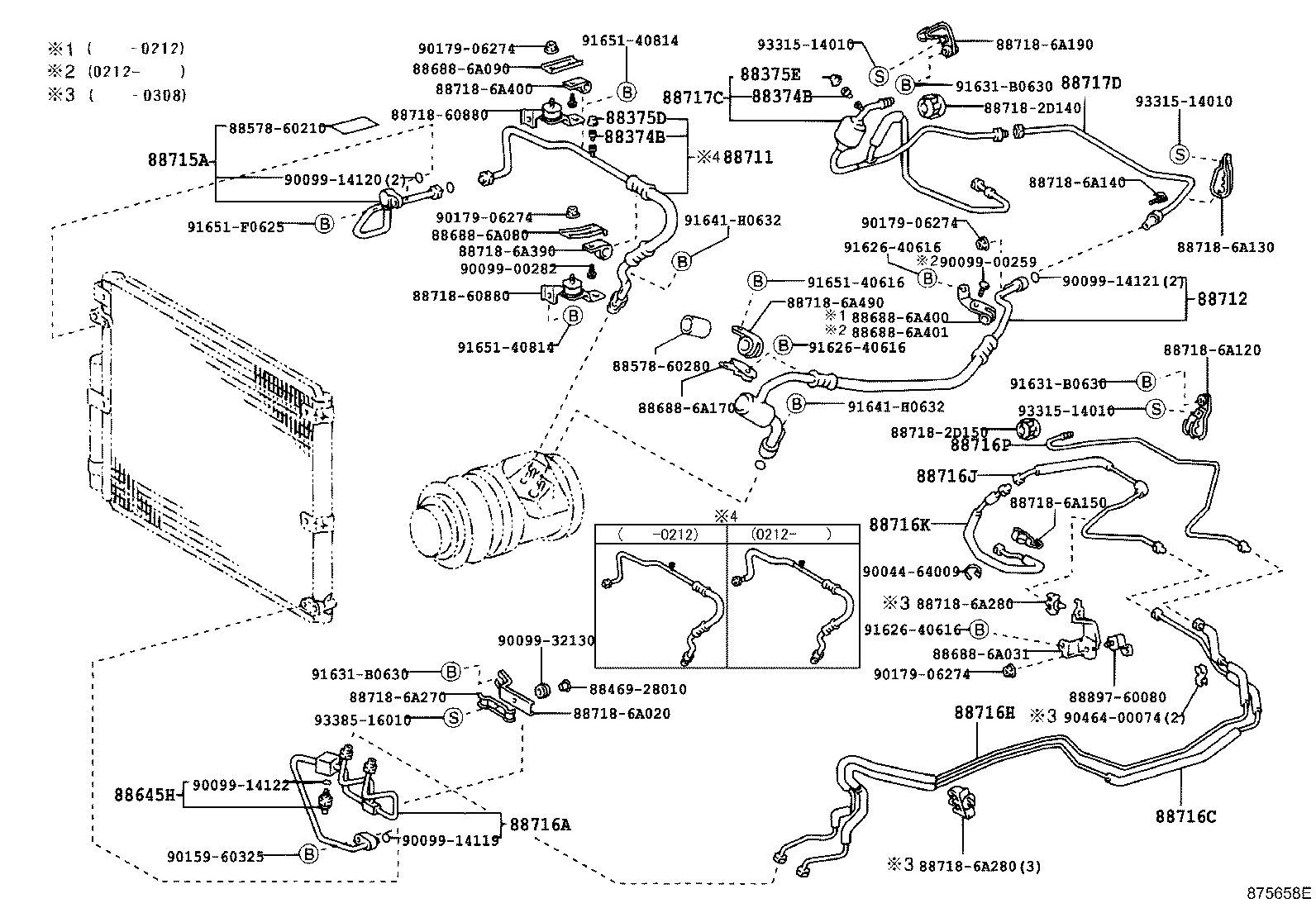

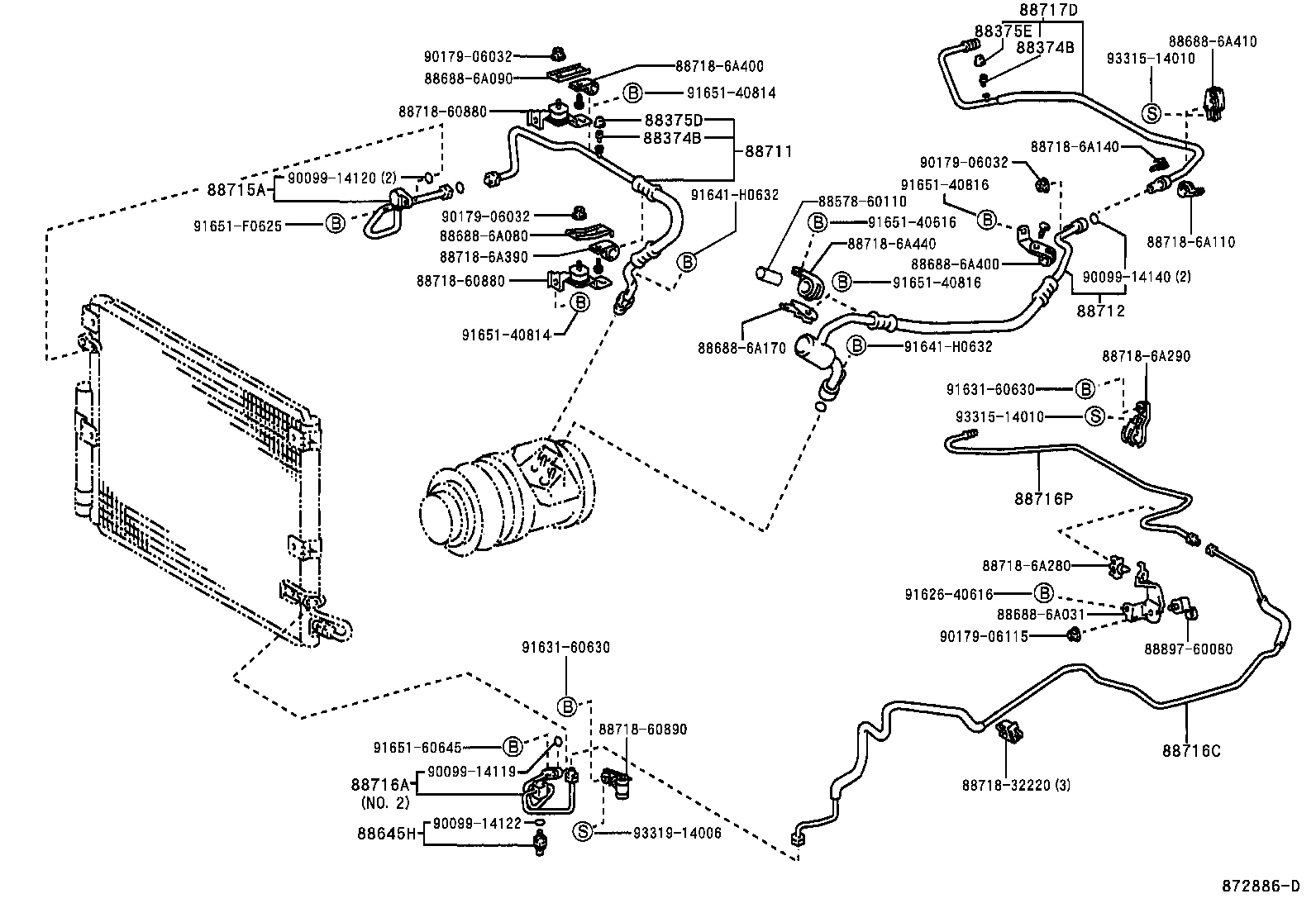

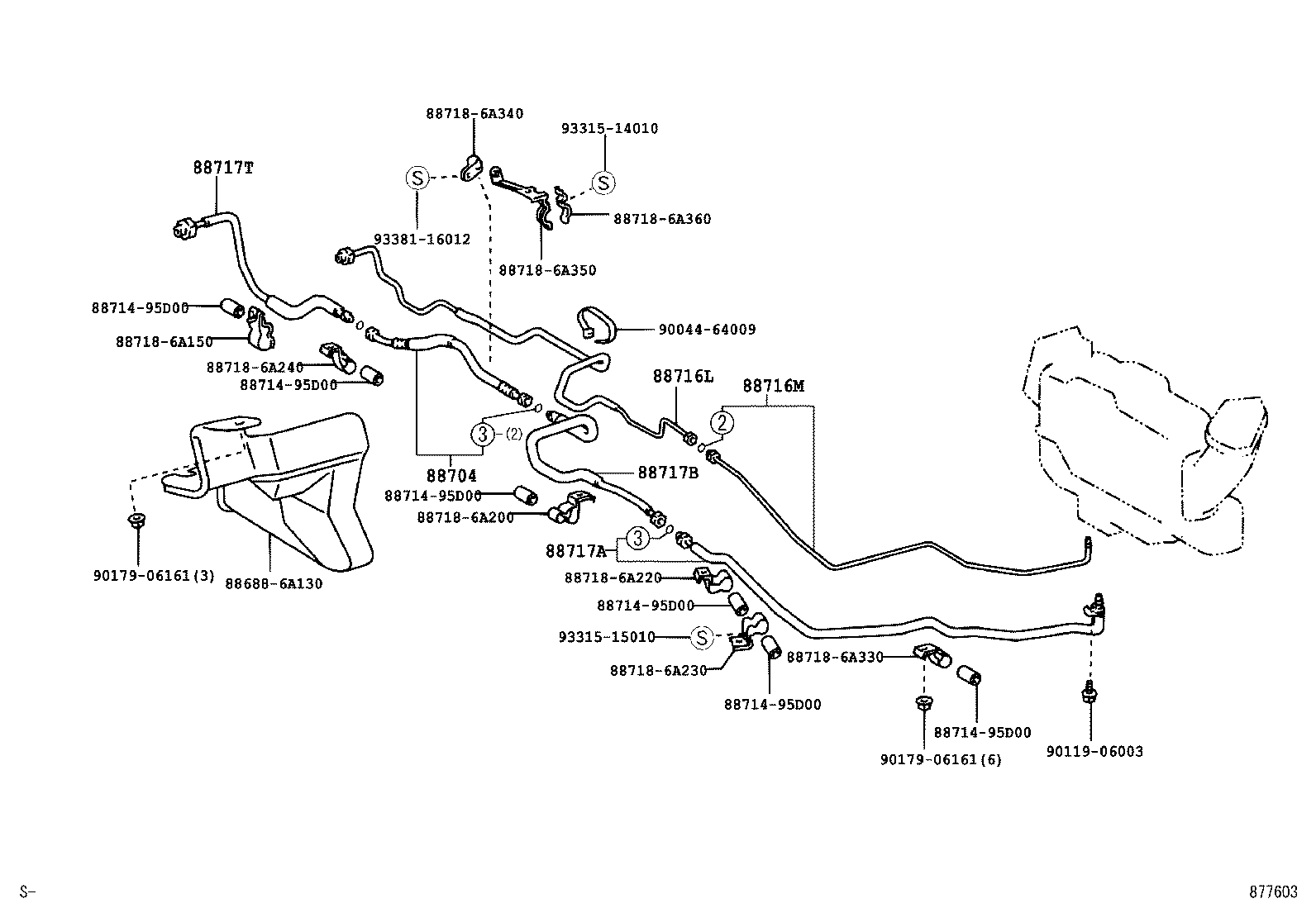

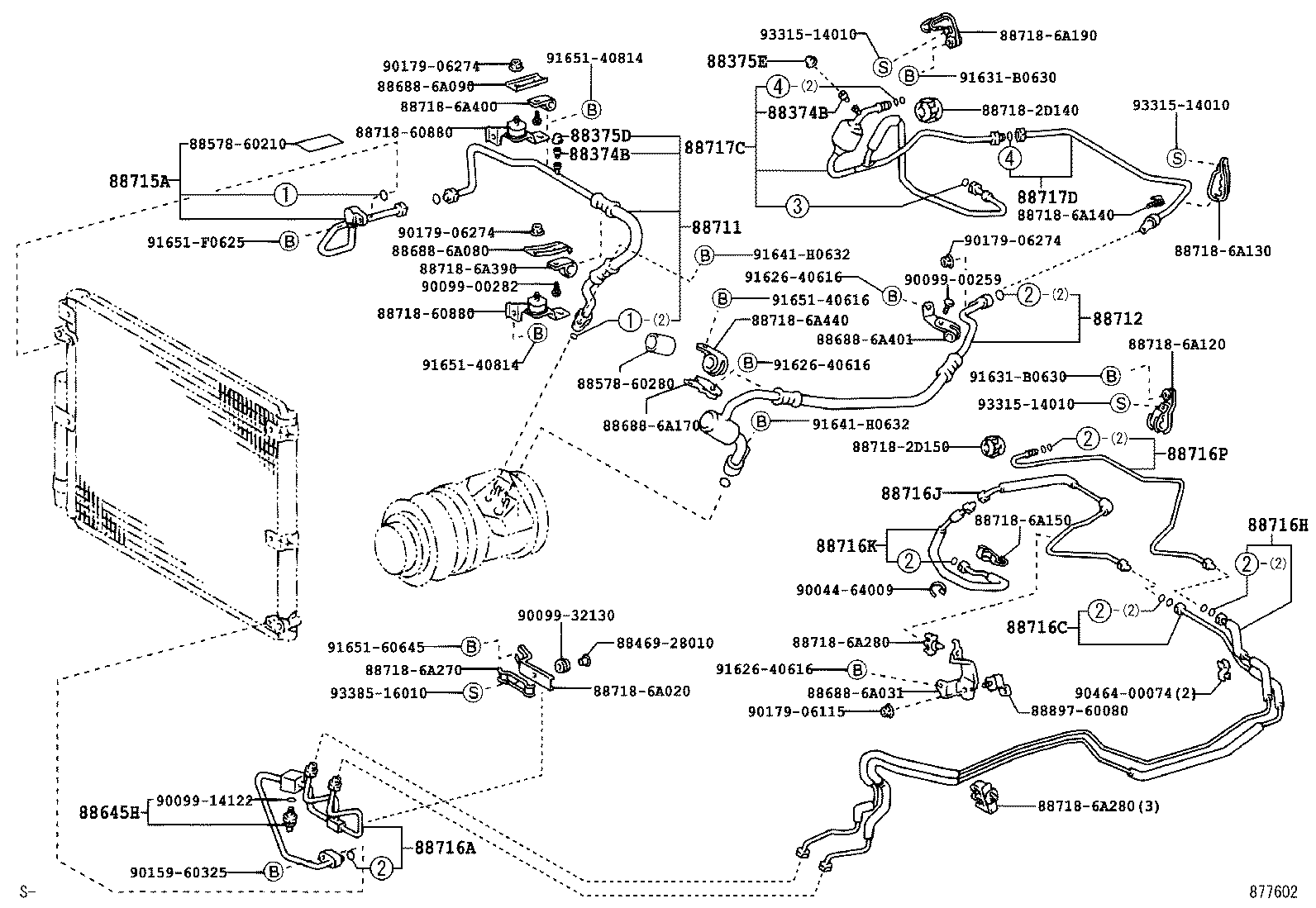

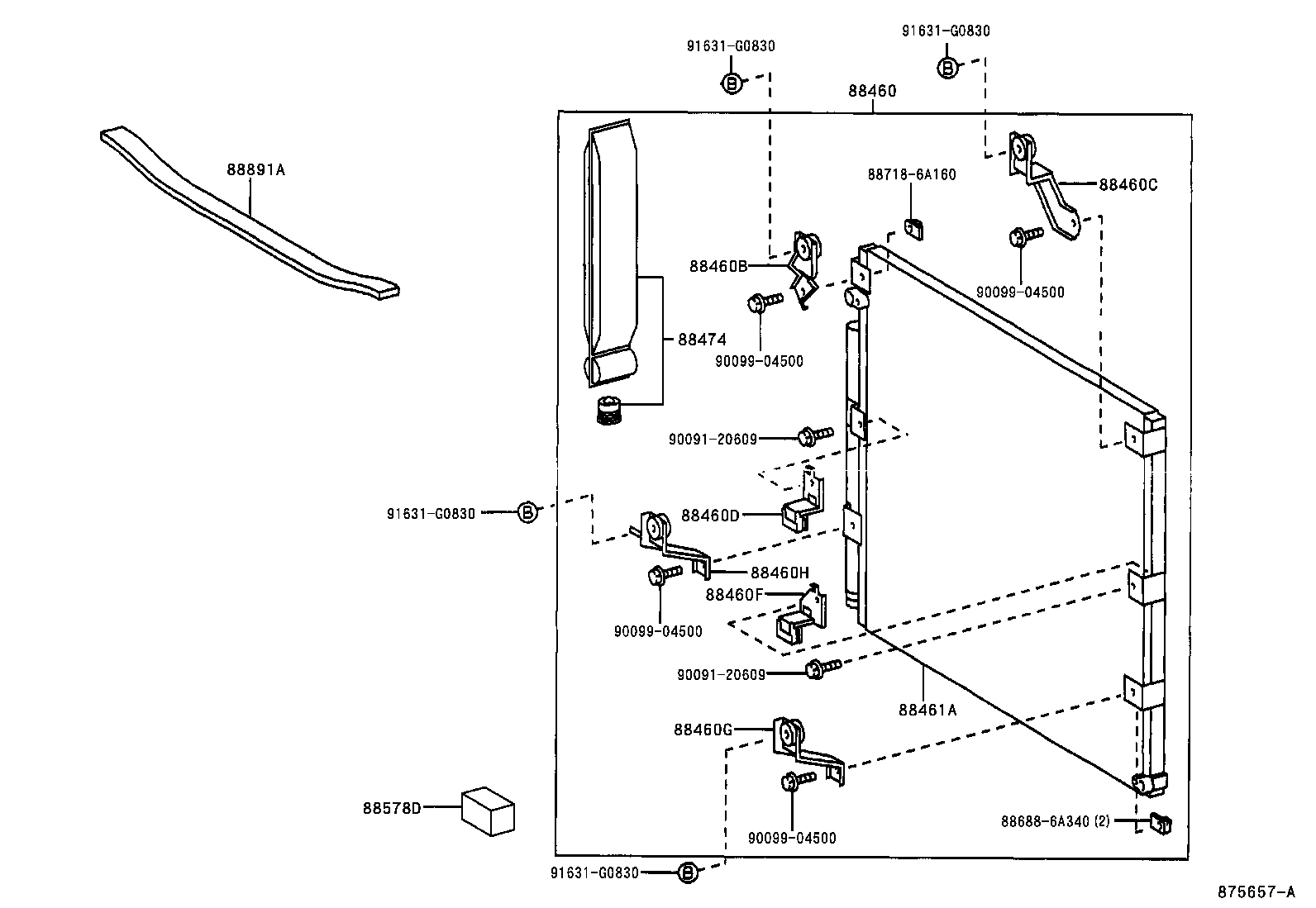

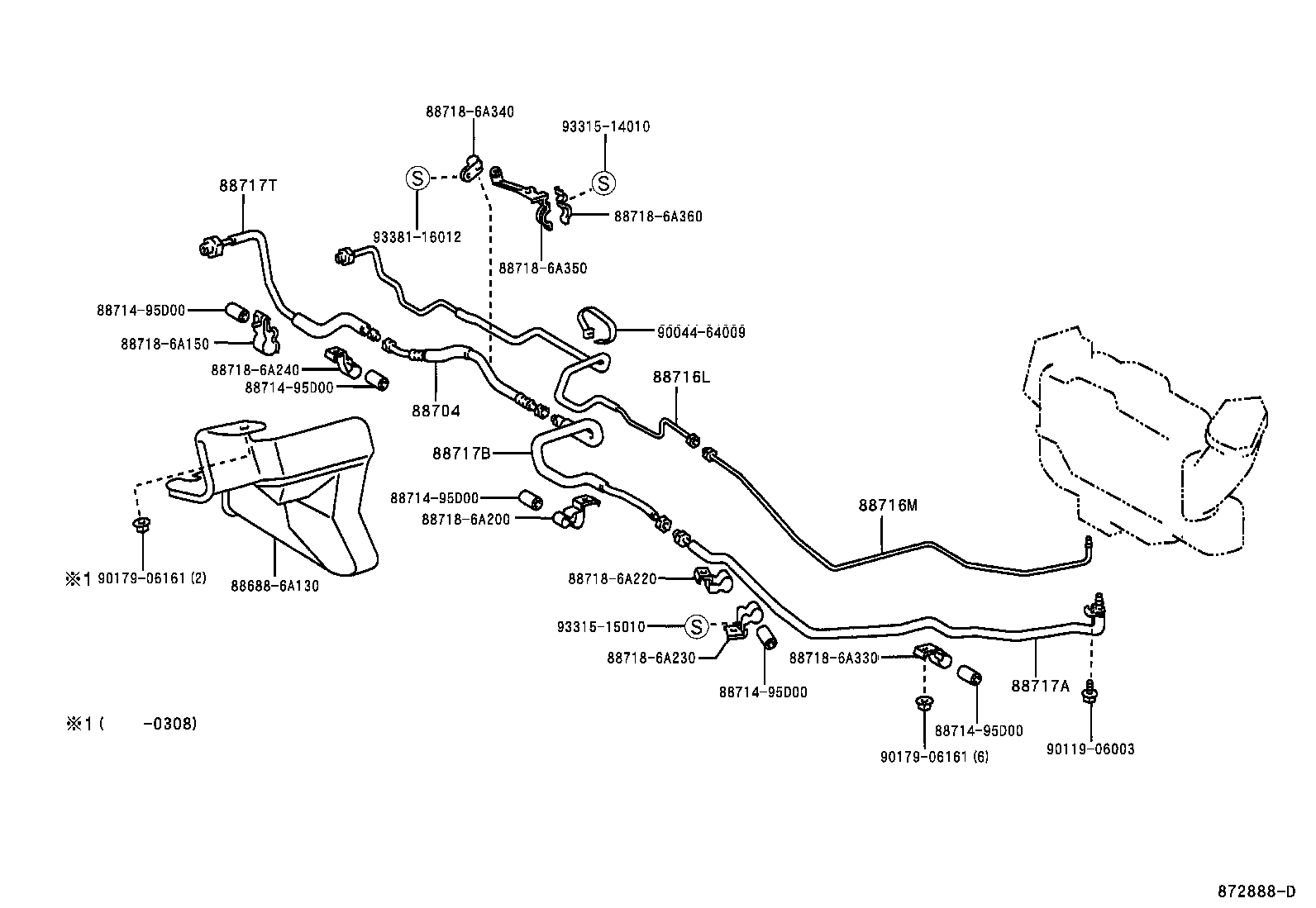

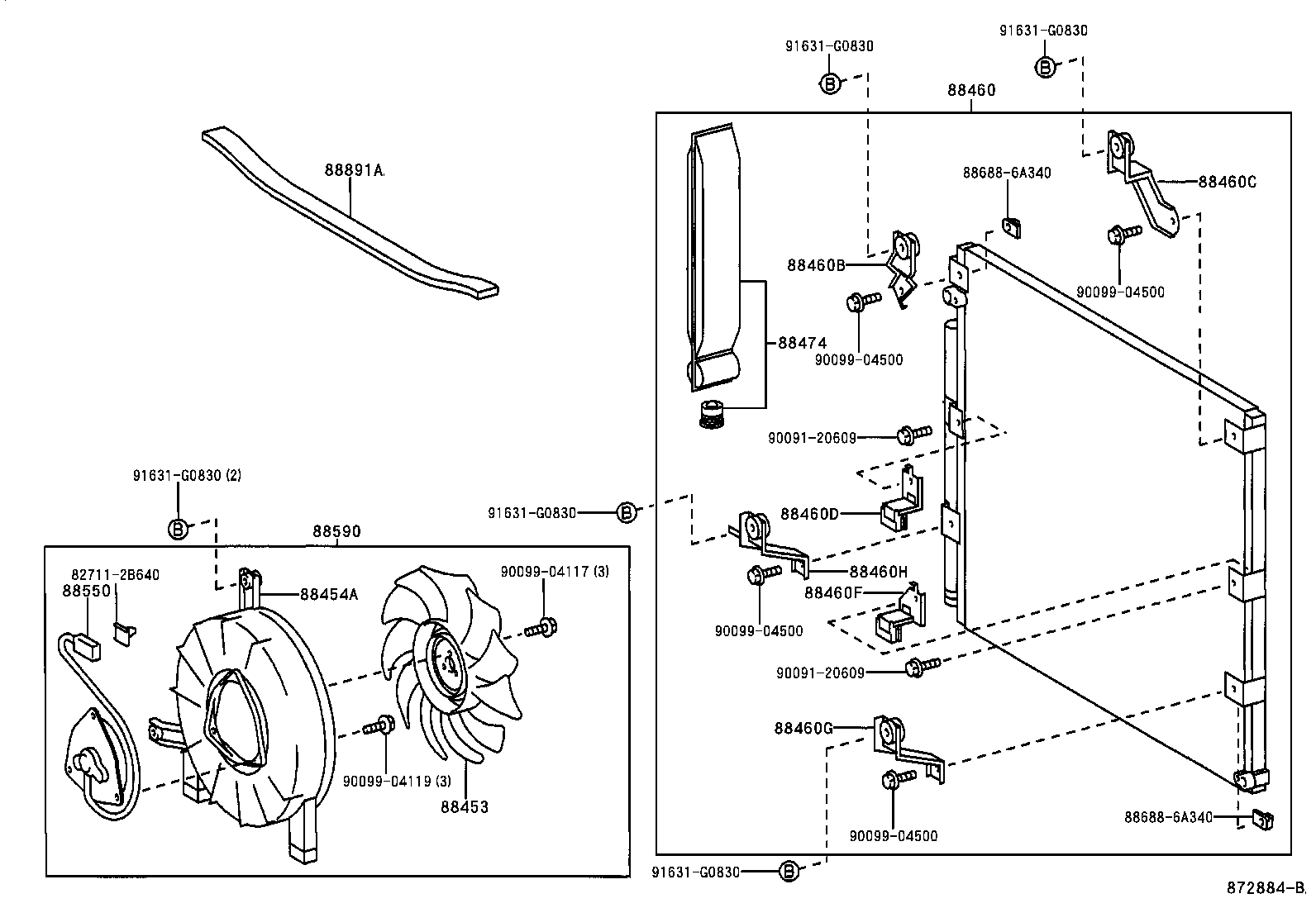

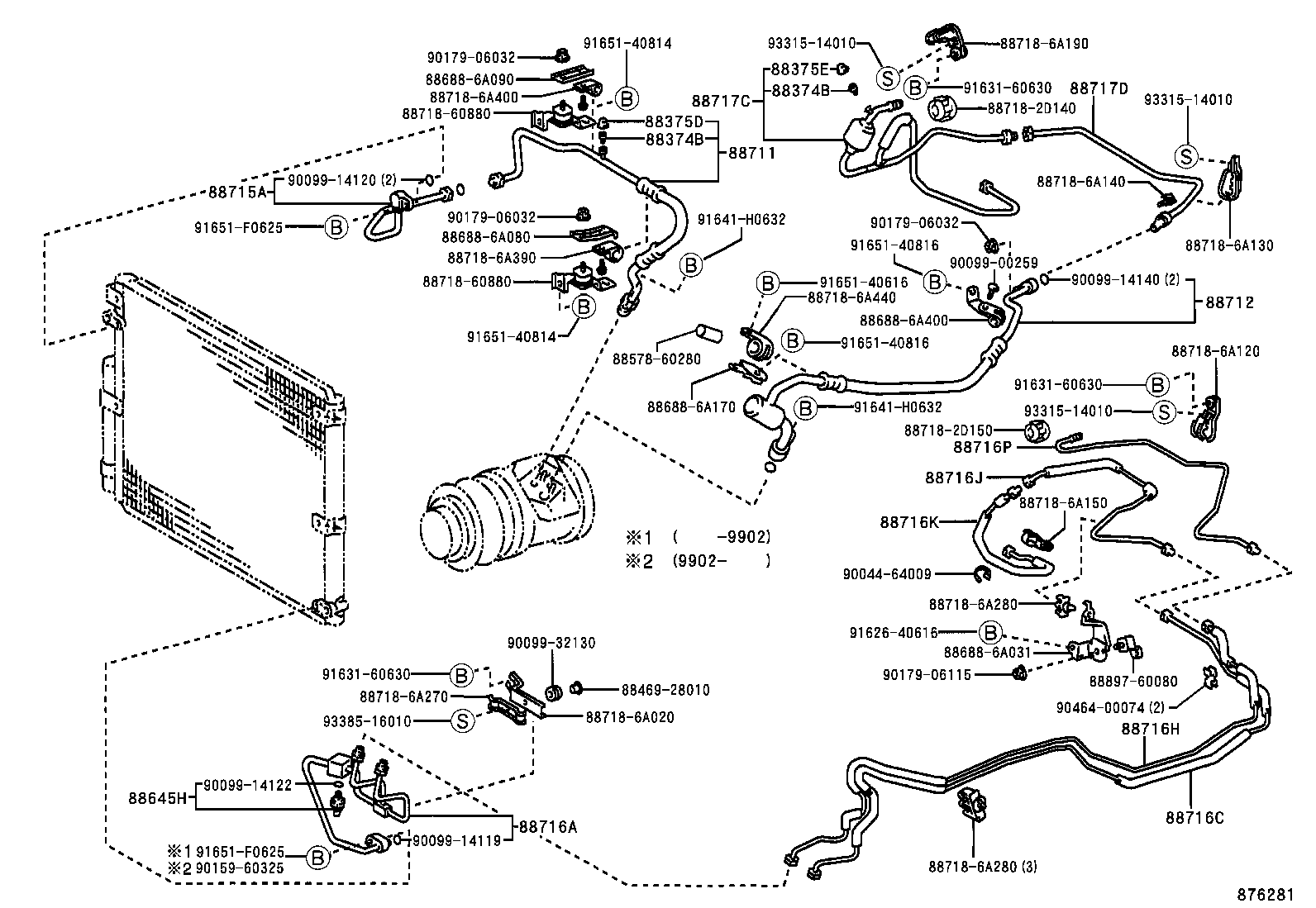

Figure 872883C 872883C 1998-01 → 2002-08 Figure 872884B 872884B 1998-01 → 2002-08 Figure 875657A 875657A 2002-08 → — Figure 872886D 872886D 1998-01 → 2002-08 Figure 876281 876281 1998-01 → 2002-08 Figure 875658E 875658E 2002-08 → 2005-08 Figure 877602A 877602A 2005-08 → — Figure 872888D 872888D 1998-01 → 2005-08 Figure 877603 877603 2005-08 → — Figure 872922A 872922A 1998-01 → 2005-08 Figure 877604 877604 2005-08 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88375D Cap, Service Valve, NO.2
88375E Plug
88453 Fan, Cooling (FOR CONDENSER)
88454A Shroud, Fan
88460 Condenser Assy, Cooler
88460B Bracket, Cooler Condenser, NO.1
88460C Bracket, Cooler Condenser, NO.2
88460D Bracket, Cooler Condenser, NO.3
88460F Bracket, Cooler Condenser, NO.4
88460G Bracket, Cooler Condenser, NO.5
88460H Bracket, Cooler Condenser, NO.6
88461A Core, Cooler Condenser
88474 Dryer, Cooler
88550 Motor Assy, Blower (FOR CONDENSER)
88578D Packing, Cooler Pipe, NO.1
88590 Blower Assy, W/Shroud
88645H Switch, Pressure NO.1
88704 Hose Sub-assy, Suction
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88715A Pipe, Cooler Refrigerant Discharge, A
88716A Pipe, Cooler Refrigerant Liquid, A
88716C Pipe, Cooler Refrigerant Liquid, C
88716H Pipe, Cooler Refrigerant Liquid, H
88716J Pipe, Cooler Refrigerant Liquid, J
88716K Pipe, Cooler Refrigerant Liquid, K
88716L Pipe, Cooler Refrigerant Liquid, L
88716M Pipe, Cooler Refrigerant Liquid, M
88716P Pipe, Cooler Refrigerant Liquid, P
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88717C Pipe, Cooler Refrigerant Suction, C
88717D Pipe, Cooler Refrigerant Suction, D
88717T Pipe, Cooler Refrigerant Suction, T
88891A Packing A (FOR COOLER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
