Exploded illustration MA9961 11201A — NUT, CAP(FOR CYLINDER HEAD COVER) (2 parts) 11213 — GASKET, CYLINDER HEAD COVER (3 parts) 12108 — CAP SUB-ASSY, OIL FILLER (2 parts) 11201B — WASHER, SEAL(FOR CYLINDER HEAD COVER) (2 parts) 11201 — COVER SUB-ASSY, CYLINDER HEAD (3 parts) 12108A — GASKET(FOR OIL FILLER CAP) (4 parts) 11101A — BOLT(FOR CYLINDER HEAD SET) (3 parts) 11126 — BUSH, EXHAUST VALVE GUIDE (3 parts) 11116A — PLUG, TIGHT, NO.1 (2 parts) 11116C — PLUG, TIGHT, NO.3 (2 parts) 11117A — PLUG, W/HEAD TAPER SCREW, NO.1 (1 parts) 11117A — PLUG, W/HEAD TAPER SCREW, NO.1 (1 parts) 11116D — PLUG, TIGHT, NO.4 (1 parts) 11122 — BUSH, INTAKE VALVE GUIDE (3 parts) 1701 — not listed in this catalogue 11116B — PLUG, TIGHT, NO.2 (2 parts) 11135 — SEAT, EXHAUST VALVE (3 parts) 1701 — not listed in this catalogue 11101C — TUBE(FOR CYLINDER HEAD) (1 parts) 11131 — SEAT, INTAKE VALVE (4 parts) 11101 — HEAD SUB-ASSY, CYLINDER (4 parts) 11115 — GASKET, CYLINDER HEAD (4 parts)

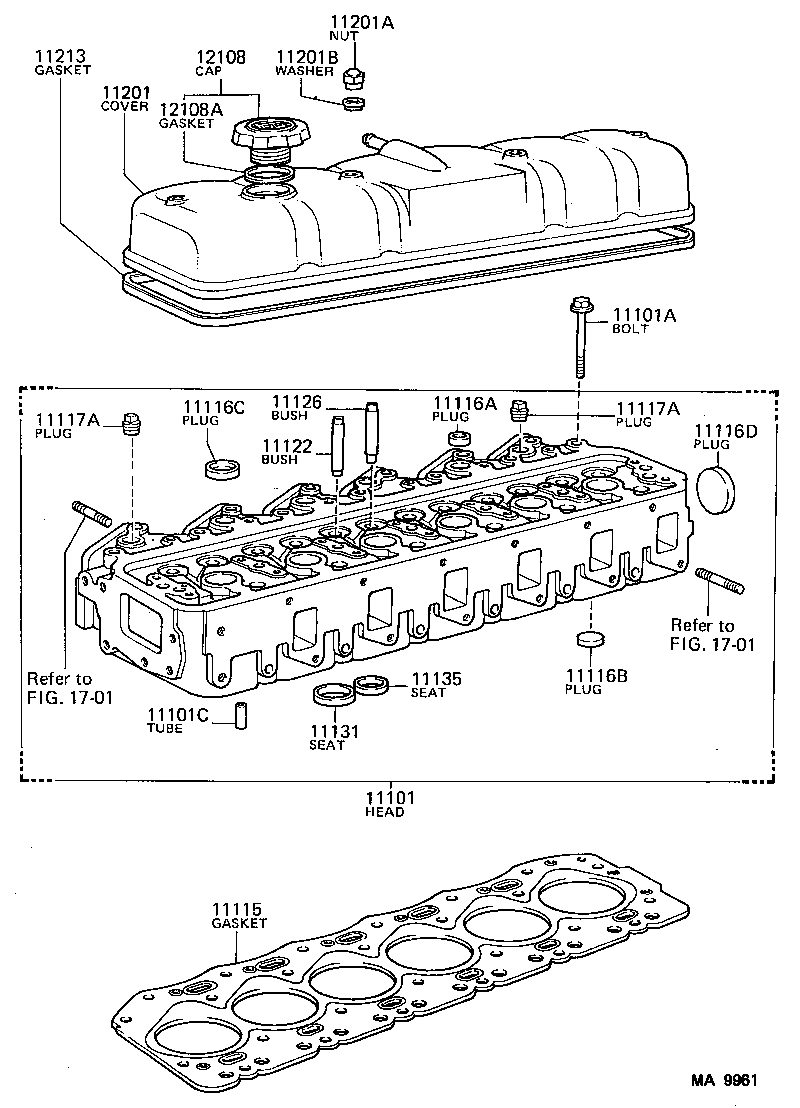

MA9961 · 20 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
49 parts on this figure
Part number Description Fitment Price
11101 — Head Sub-assy, Cylinder
11101-61080 Head Sub-assy, Cylinder
1988-08 → 1990-01 ended
3FE FJ62 —
11101-68011 Head Sub-assy, Cylinder
1987-08 → 1988-08 ended
2H HJ60 —
11101-68012 Head Sub-assy, Cylinder
1988-08 → 1990-01 ended
2H HJ60 —
11101-68020 Head Sub-assy, Cylinder
1987-08 → 1990-01 ended
12HT HJ61 —
11101A — Bolt(FOR CYLINDER HEAD SET)
90105-13005 note Bolt(FOR CYLINDER HEAD SET)
1988-08 → 1990-01 ended
3FE FJ62 —
90910-02050 note Bolt(FOR CYLINDER HEAD SET)
1988-08 → 1990-01 ended
3FE FJ62 —
90910-02070 Bolt(FOR CYLINDER HEAD SET)
1987-08 → 1990-01 ended
12HT,2H HJ6# —
11101C — Tube(FOR CYLINDER HEAD)
90440-15141 Tube(FOR CYLINDER HEAD)
1987-08 → 1990-01 ended
12HT,2H HJ6# —
11115 — Gasket, Cylinder Head
11115-61020 note Gasket, Cylinder Head
1988-08 → 1990-01 ended
3FE FJ62 —
11115-68020 Gasket, Cylinder Head
1987-08 → 1989-08 ended
2H HJ60 —
11115-68030 Gasket, Cylinder Head
1987-08 → 1990-01 ended
12HT HJ61 —
11115-68040 Gasket, Cylinder Head
1989-08 → 1990-01 ended
2H HJ60 —
11116A — Plug, Tight, NO.1
96411-42000 Plug, Tight, NO.1
1987-08 → 1990-01 ended
2H HJ60 —
96411-45000 Plug, Tight, NO.1
1988-08 → 1990-01 ended
3FE FJ62 —
11116B — Plug, Tight, NO.2
96411-42500 Plug, Tight, NO.2
1987-08 → 1990-01 ended
12HT,2H HJ6# —
96411-42500 Plug, Tight, NO.2
1988-08 → 1990-01 ended
3FE FJ62 —
11116C — Plug, Tight, NO.3
90340-14001 Plug, Tight, NO.3
1988-08 → 1990-01 ended
3FE FJ62 —
96411-43000 Plug, Tight, NO.3
1987-08 → 1990-01 ended
12HT,2H HJ6# —
11116D — Plug, Tight, NO.4
96411-45000 Plug, Tight, NO.4
1987-08 → 1990-01 ended
12HT,2H HJ6# —
11117A — Plug, W/Head Taper Screw, NO.1
90345-54005 Plug, W/Head Taper Screw, NO.1
1987-08 → 1990-01 ended
12HT,2H HJ6# —
11122 — Bush, Intake Valve Guide
11122-61011 note Bush, Intake Valve Guide
1988-08 → 1990-01 ended
3FE FJ62 —
11122-68010 note Bush, Intake Valve Guide
1987-08 → 1990-01 ended
12HT,2H HJ6# —
11123-61011 note Bush, Intake Valve Guide
1988-08 → 1990-01 ended
3FE FJ62 —
11126 — Bush, Exhaust Valve Guide
11122-68010 note Bush, Exhaust Valve Guide
1987-08 → 1990-01 ended
12HT,2H HJ6# —
11126-61011 note Bush, Exhaust Valve Guide
1988-08 → 1990-01 ended
3FE FJ62 —
11127-61011 note Bush, Exhaust Valve Guide
1988-08 → 1990-01 ended
3FE FJ62 —
11131 — Seat, Intake Valve
11131-61010 note Seat, Intake Valve
1988-08 → 1990-01 ended
3FE FJ62 —
11131-68010 note Seat, Intake Valve
1987-08 → 1990-01 ended
2H HJ60 —
11131-68020 note Seat, Intake Valve
1987-08 → 1990-01 ended
12HT HJ61 —
11132-61010 note Seat, Intake Valve
1988-08 → 1990-01 ended
3FE FJ62 —
11135 — Seat, Exhaust Valve
11135-60010 note Seat, Exhaust Valve
1988-08 → 1990-01 ended
3FE FJ62 —
11135-68010 note Seat, Exhaust Valve
1987-08 → 1990-01 ended
12HT,2H HJ6# —
11136-60030 note Seat, Exhaust Valve
1988-08 → 1990-01 ended
3FE FJ62 —
11201 — Cover Sub-assy, Cylinder Head
11201-61041 Cover Sub-assy, Cylinder Head
1988-08 → 1990-01 ended
3FE FJ62 —
11201-68011 Cover Sub-assy, Cylinder Head
1987-08 → 1990-01 ended
2H HJ60 —
11201-68020 Cover Sub-assy, Cylinder Head
1987-08 → 1990-01 ended
12HT HJ61 —
11201A — Nut, Cap(FOR CYLINDER HEAD COVER)
90176-08014 Nut, Cap(FOR CYLINDER HEAD COVER)
1987-08 → 1990-01 ended
12HT,2H HJ6# —
90176-08014 Nut, Cap(FOR CYLINDER HEAD COVER)
1987-08 → 1990-01 ended
3FE FJ62 —
11201B — Washer, Seal(FOR CYLINDER HEAD COVER)
90210-13001 Washer, Seal(FOR CYLINDER HEAD COVER)
1987-08 → 1990-01 ended
3FE FJ62 —
90210-13001 Washer, Seal(FOR CYLINDER HEAD COVER)
1987-08 → 1990-01 ended
12HT,2H HJ6# —
11213 — Gasket, Cylinder Head Cover
11213-61020 Gasket, Cylinder Head Cover
1988-08 → 1990-01 ended
3FE FJ62 —
11213-68010 Gasket, Cylinder Head Cover
1987-08 → 1990-01 ended
2H HJ60 —
11213-68020 Gasket, Cylinder Head Cover
1987-08 → 1990-01 ended
12HT HJ61 —
12108 — Cap Sub-assy, Oil Filler
12180-13030 Cap Sub-assy, Oil Filler
1987-08 → 1990-01 ended
12HT,2H HJ6# —
12180-61010 Cap Sub-assy, Oil Filler
1988-08 → 1990-01 ended
3FE FJ62 —
12108A — Gasket(FOR OIL FILLER CAP)
12195-71020 Gasket(FOR OIL FILLER CAP)
1988-08 → 1990-01 ended
3FE FJ62 —
90430-18017 Gasket(FOR OIL FILLER CAP)
1989-08 → 1990-01 ended
2H HJ60 —
90430-37140 Gasket(FOR OIL FILLER CAP)
1987-08 → 1989-08 ended
12HT,2H HJ6# —
90430-37140 Gasket(FOR OIL FILLER CAP)
1989-08 → 1990-01 ended
12HT HJ61 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
