Toyota Land Cruiser
1987-08 → 1990-01 · chassis FJ62,HJ6# · catalogue 791530 · Europe
Discontinued model
Data version 1990-06

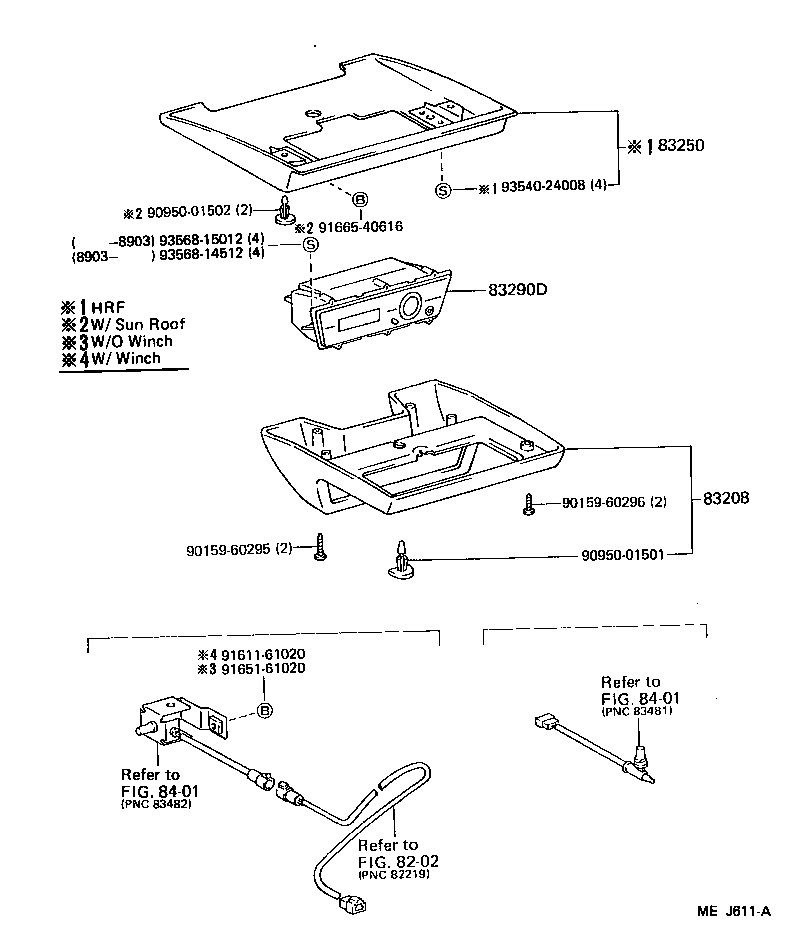

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83208 — Panel Sub-assy, Roof Console Meter | ||||
| 83208-90A00-08 note |
Panel Sub-assy, Roof Console Meter
1987-08 → 1990-01
ended
|
HJ60 HRF | — | |
| 83208-90A00-08 note |
Panel Sub-assy, Roof Console Meter
1987-08 → 1990-01
ended
|
FJ62,HJ6# LHD SRF (GX,VX) | — | |
| 83250 — Bracket Assy, Roof Console Meter | ||||
| 83250-90A00 note |
Bracket Assy, Roof Console Meter
1987-08 → 1990-01
ended
|
HJ60 HRF | — | |
| 83250-90A01 note |
Bracket Assy, Roof Console Meter
1987-08 → 1990-01
ended
|
HJ60 HRF | — | |
| 83290D — Meter Assy, Accessory | ||||
| 83290-90A02 |
Meter Assy, Accessory
1988-08 → 1990-01
ended
|
FJ62 | — | |
| 83290-90A03 |
Meter Assy, Accessory
1987-08 → 1990-01
ended
|
HJ60 HRF | — | |
| 83290-90A03 |
Meter Assy, Accessory
1987-08 → 1990-01
ended
|
HJ6# LHD SRF (GX,VX) | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
