Toyota Land Cruiser
1987-08 → 1990-01 · chassis FJ62,HJ6# · catalogue 791530 · Europe
Discontinued model
Data version 1990-06

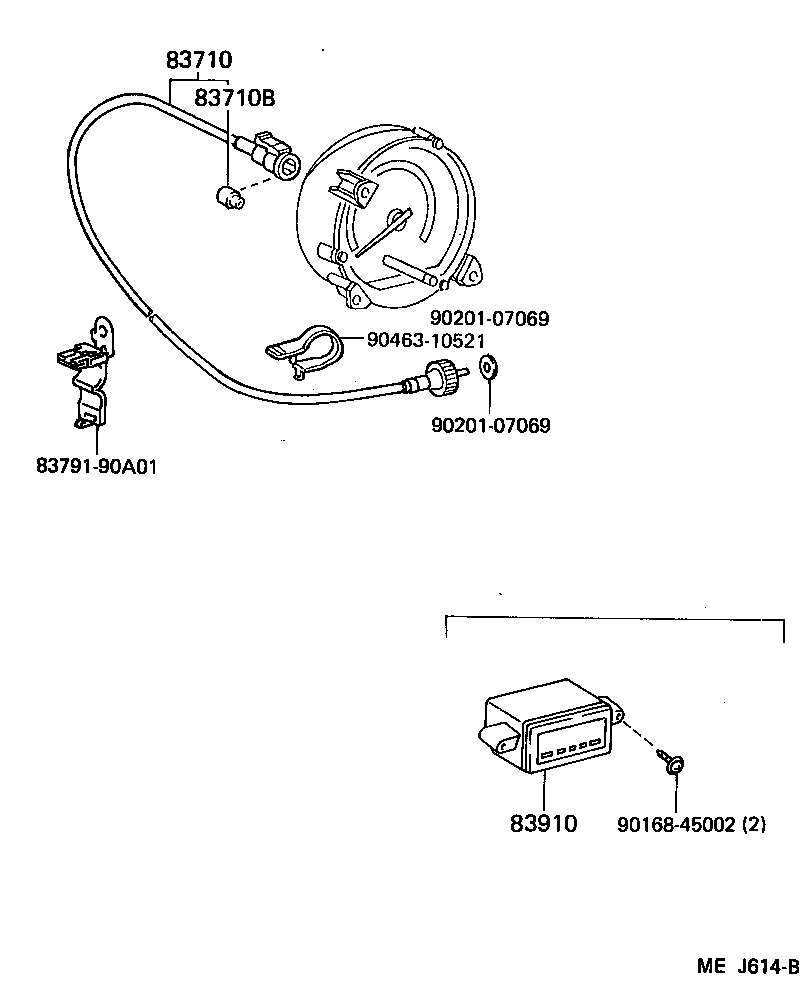

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83710 — Cable Assy, Speedometer Drive, NO.1 | ||||
| 83710-69115 |
Cable Assy, Speedometer Drive, NO.1
1987-08 → 1988-02
ended
|
HJ60 RHD | — | |
| 83710-69125 |
Cable Assy, Speedometer Drive, NO.1
1988-02 → 1988-07
ended
|
HJ60 RHD | — | |
| 83710-69135 |
Cable Assy, Speedometer Drive, NO.1
1988-07 → 1990-01
ended
|
HJ60 RHD | — | |
| 83710-90A01 |
Cable Assy, Speedometer Drive, NO.1
1987-08 → 1988-02
ended
|
HJ6# LHD MTM | — | |
| 83710-90A04 |
Cable Assy, Speedometer Drive, NO.1
1987-08 → 1988-02
ended
|
HJ60 ATM | — | |
| 83710-90A08 |
Cable Assy, Speedometer Drive, NO.1
1988-02 → 1988-07
ended
|
HJ6# LHD MTM | — | |
| 83710-90A11 |
Cable Assy, Speedometer Drive, NO.1
1988-02 → 1988-07
ended
|
HJ60 ATM | — | |
| 83710-90A15 |
Cable Assy, Speedometer Drive, NO.1
1988-07 → 1990-01
ended
|
HJ6# LHD MTM | — | |
| 83710-90A18 |
Cable Assy, Speedometer Drive, NO.1
1988-07 → 1990-01
ended
|
HJ60 ATM | — | |
| 83710-90A20 |
Cable Assy, Speedometer Drive, NO.1
1988-08 → 1990-01
ended
|
FJ62 | — | |
| 83710B — Bush, Speedometer Drive Cable | ||||
| 90389-02001 |
Bush, Speedometer Drive Cable
1987-08 → 1990-01
ended
|
FJ62,HJ6# | — | |
| 83910 — Clock Assy | ||||
| 83910-90A10 |
Clock Assy
1987-08 → 1990-01
ended
|
HJ60 STD | — | |
| 83910-90A11 |
Clock Assy
1988-08 → 1990-01
ended
|
FJ62 | — | |
| 83910-90A12 |
Clock Assy
1987-08 → 1990-01
ended
|
HJ61 VX | — | |
| 83910-90A12 |
Clock Assy
1987-08 → 1990-01
ended
|
HJ6# GX | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
