Toyota Land Cruiser

1987-08 → 1990-01 · chassis FJ62,HJ6# · catalogue 791530 · Europe

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

29 part groups · 3 illustrations

Illustrations

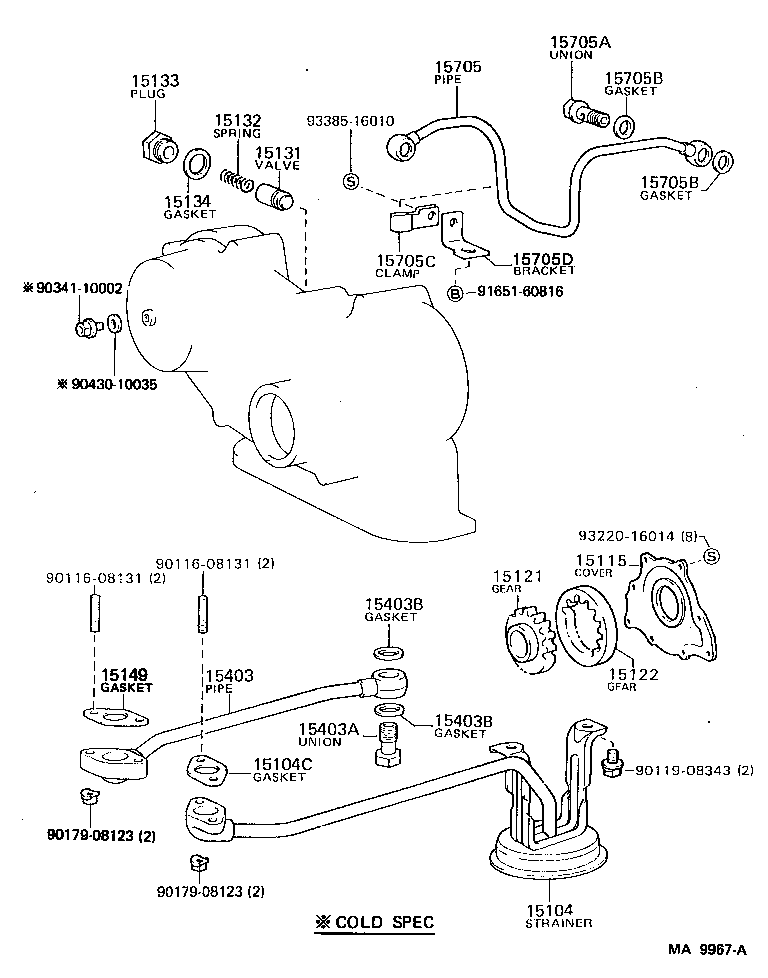

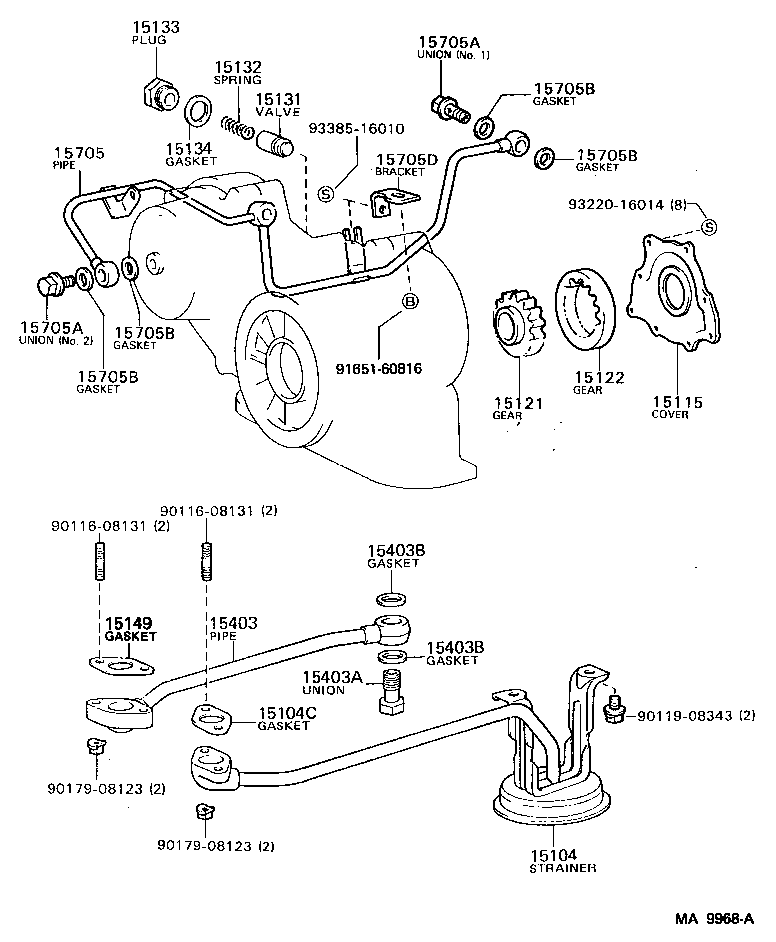

Figure MA2324B MA2324B 1988-08 → — Figure MA9967A MA9967A 1987-08 → — Figure MA9968A MA9968A 1987-08 → —

Part groups

PNCDescription
15012 Cover Sub-assy, Oil Pump
15100 Pump Assy, Oil
15104 Strainer Sub-assy, Oil
15104C Gasket(FOR OIL STRAINER)
15115 Cover, Oil Pump
15121 Gear, Oil Pump Drive
15121A Key, Oil Pump Drive Shaft
15122 Gear, Oil Pump Driven
15125 Shaft, Oil Pump
15126 Shaft, Oil Pump Driven
15131 Valve, Oil Pump Relief
15132 Spring, Oil Pump Relief Valve
15133 Plug, Oil Pump Relief Valve
15134 Gasket, Oil Pump Relief Valve
15149 Gasket, Oil Strainer Flange
15403 Pipe Sub-assy, Oil Pump Outlet
15403A Union(FOR OIL PUMP OUTLET PIPE)
15403B Gasket(FOR OIL PUMP OUTLET PIPE)
15413 Pipe, Oil Pump Outlet
15413A Union(FOR OIL PUMP OUTLET PIPE)
15413B Sleeve, Ball(FOR OIL PUMP OUTLET PIPE)
15413C Nut, Union(FOR OIL PUMP OUTLET PIPE)
15413D Gasket(FOR OIL PUMP OUTLET PIPE)
15413F Bolt, Union(FOR OIL PUMP OUTLET PIPE)
15705 Pipe Sub-assy, Oil, Injection Pump Inlet
15705A Union(FOR INJECTION PUMP INLET PIPE)
15705B Gasket(FOR INJECTION PUMP INLET PIPE)
15705C Clamp(FOR INJECTION PUMP INLET PIPE)
15705D Bracket(FOR INJECTION PUMP INLET PIPE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
