Toyota Land Cruiser
1987-08 → 1990-01 · chassis FJ62,HJ6# · catalogue 791530 · Europe
Discontinued model
Data version 1990-06

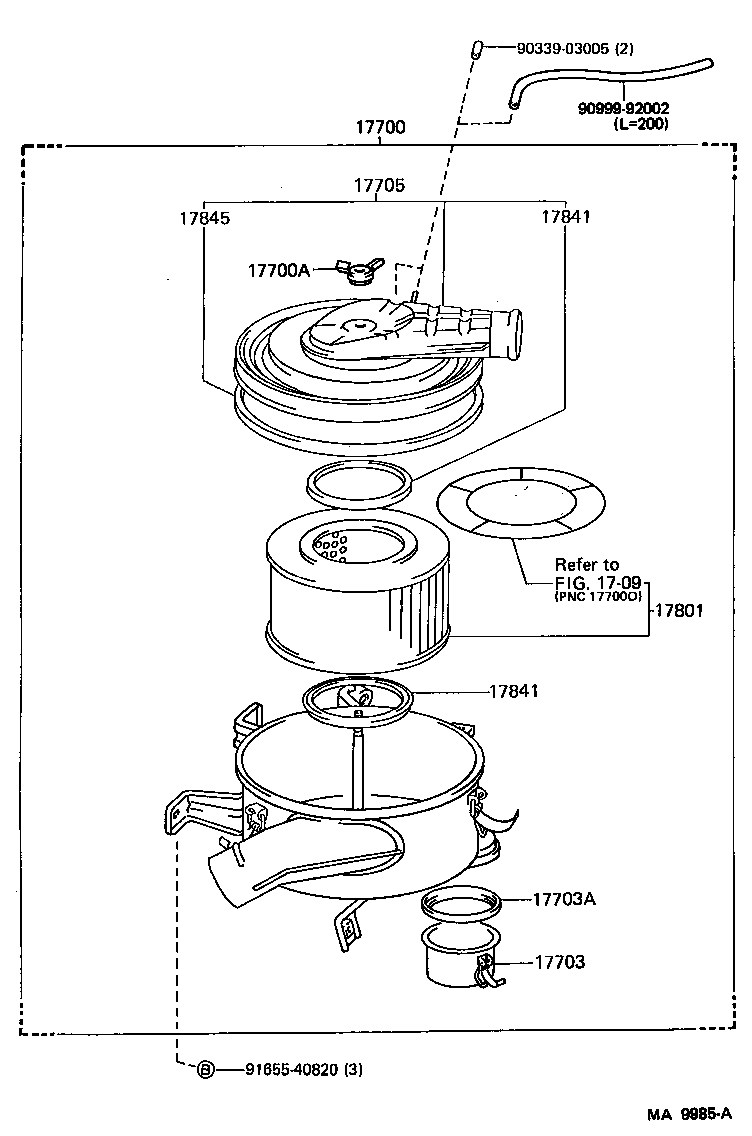

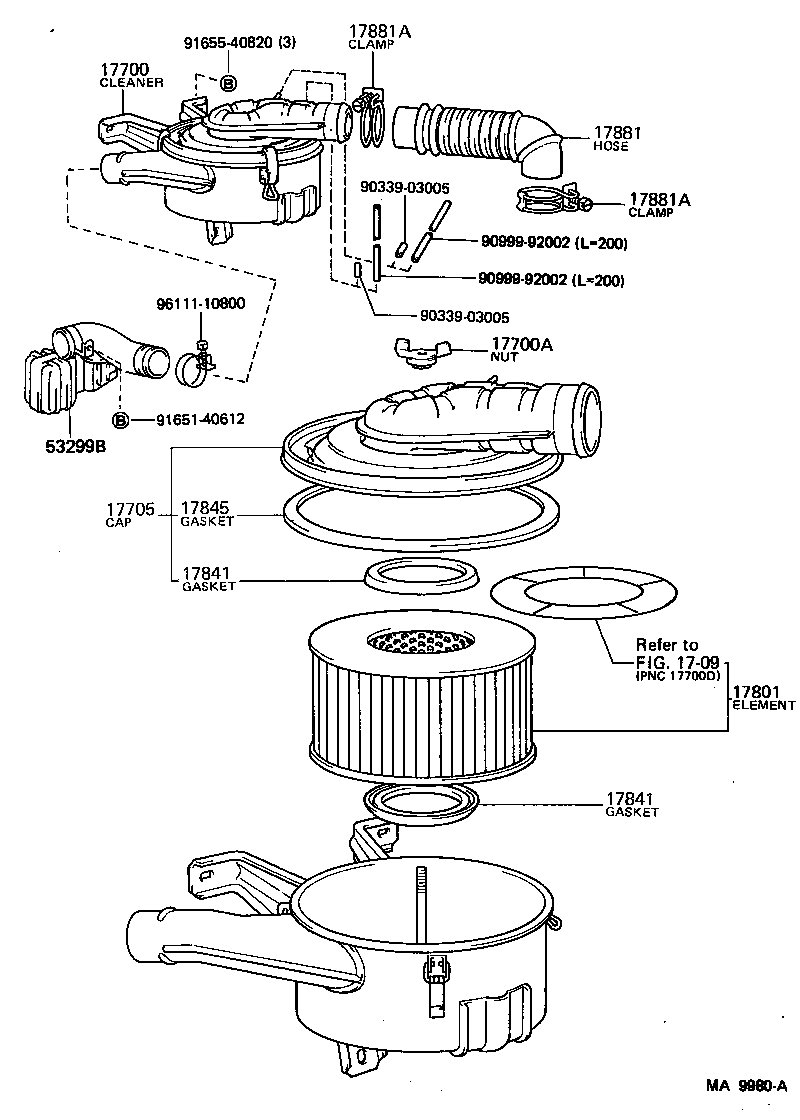

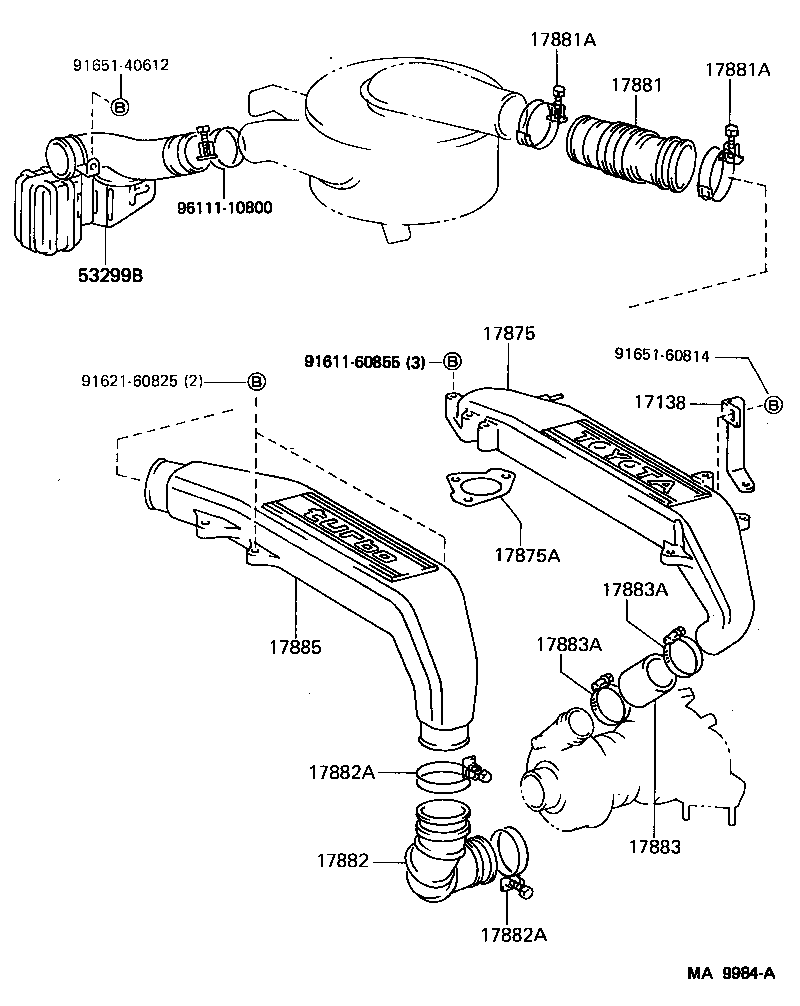

Air Cleaner
23 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 17138 | Stay, Intake Pipe OR Hose |
| 17700 | Cleaner Assy, Air |
| 17700A | Nut, Wing(FOR AIR CLEANER) |
| 17700W | Spacer(FOR AIR CLEANER) |
| 17703 | Case Sub-assy, Bottom Air Cleaner Filter |
| 17703A | Gasket(FOR BOTTOM AIR CLEANER FILTER CASE) |
| 17705 | Cap Sub-assy, Air Cleaner |
| 17801 | Element Sub-assy, Air Cleaner Filter |
| 17841 | Gasket, Filter Element |
| 17845 | Gasket, Air Cleaner Cap |
| 17875 | Pipe, Intake Air Connector |
| 17875A | Gasket, Intake Pipe |
| 17881 | Hose, Air Cleaner, NO.1 |
| 17881A | Clamp(FOR AIR CLEANER HOSE, NO.1) |
| 17882 | Hose, Air Cleaner, NO.2 |
| 17882A | Clamp(FOR AIR CLEANER HOSE, NO.2) |
| 17883 | Hose, Air Cleaner, NO.3 |
| 17883A | Clamp(FOR AIR CLEANER HOSE, NO.3) |
| 17885 | Pipe, Air Cleaner |
| 22250 | Meter Assy, Intake Air Flow |
| 22275 | Gasket, Air Flow Meter |
| 53199B | Duct Sub-assy, Cool Air Intake |
| 53299B | Duct, Cool Air Intake |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
