Toyota Land Cruiser

1987-08 → 1990-01 · chassis FJ62,HJ6# · catalogue 791530 · Europe

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

12 part groups · 5 illustrations

Illustrations

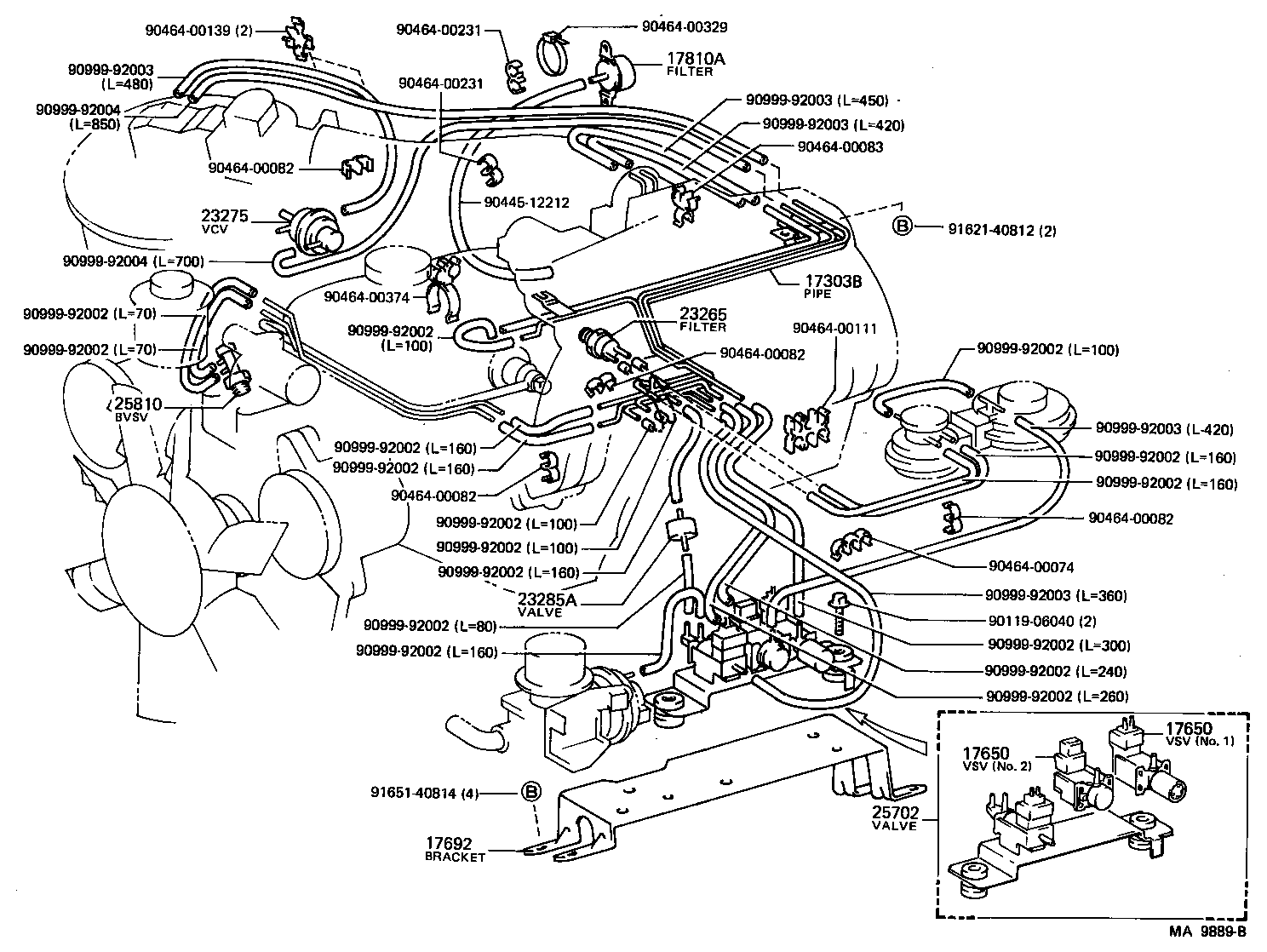

Figure MA9504B MA9504B 1987-08 → — Figure MA9889B MA9889B 1988-08 → — Figure MA9504B MA9504B 1987-08 → — Figure MA9986A MA9986A 1987-08 → — Figure MA9808A MA9808A 1987-08 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17650 Valve Assy, Vacuum Switching
17692 Bracket, Vacuum Control Valve, NO.2
17810A Filter Assy, Air
23262 Valve, Bimetal Vacuum Switching, NO.1
23265 Filter, Gas, NO.1
23265C Filter, Gas
23275 Valve, Vacuum Control, NO.1
23285A Valve, Check, NO.1
25702 Valve Set, Emission Control, NO.2
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25810 Valve Assy, Bimetal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
