Toyota Land Cruiser
1987-08 → 1990-01 · chassis FJ62,HJ6# · catalogue 791530 · Europe
Discontinued model
Data version 1990-06

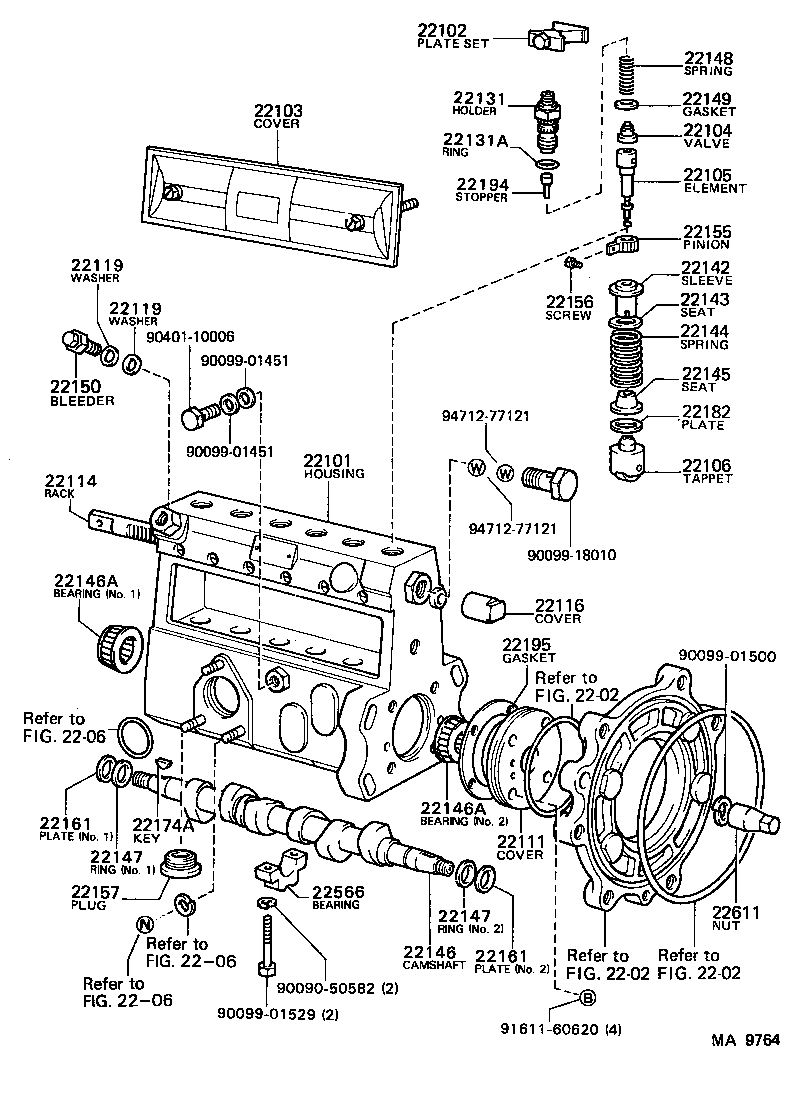

Injection Pump Body
34 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 22101 | Housing Sub-assy, Injection Pump |
| 22102 | Plate Set, Valve Holder Lock |
| 22103 | Cover Sub-assy, Injection Pump |
| 22104 | Valve Sub-assy, Injection Pump Delivery |
| 22105 | Element Sub-assy, Injection Pump |
| 22106 | Tappet Sub-assy, Injection Pump |
| 22111 | Cover, Injection Pump Camshaft Bearing |
| 22114 | Rack, Control |
| 22115 | Screw, Rack Guide |
| 22116 | Cover, Control Rack |
| 22119 | Washer, Air Bleeder Nipple |
| 22131 | Holder, Delivery Valve |
| 22131A | Ring, O(FOR DELIVERY VALVE HOLDER) |
| 22142 | Sleeve, Plunger Control |
| 22143 | Seat, Spring Upper |
| 22144 | Spring, Pump Plunger |
| 22145 | Seat, Spring, Lower |
| 22146 | Camshaft, Injection Pump |
| 22146A | Bearing(FOR INJECTION CAMSHAFT) |
| 22147 | Ring, Camshaft Adjust |
| 22148 | Spring, Delivery Valve |
| 22149 | Gasket, Delivery Valve |
| 22150 | Bleeder Sub-assy, Air |
| 22155 | Pinion, Plunger Control |
| 22156 | Screw, Plunger Control Pinion Clamp |
| 22157 | Plug, Injection Pump Felt Plate |
| 22161 | Plate, Camshaft Shim |
| 22174A | Key(FOR SPLINE SHAFT) |
| 22177 | Stay, Injection Pump Body |
| 22182 | Plate, Tappet Adjusting Shim |
| 22194 | Stopper, Delivery Valve |
| 22195 | Gasket, Bearing Cover |
| 22566 | Bearing(FOR INJECTION PUMP CAMSHAFT CENTOR) |
| 22611 | Nut, Timer Round |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
