Toyota Land Cruiser
1987-08 → 1990-01 · chassis FJ62,HJ6# · catalogue 791530 · Europe
Discontinued model
Data version 1990-06

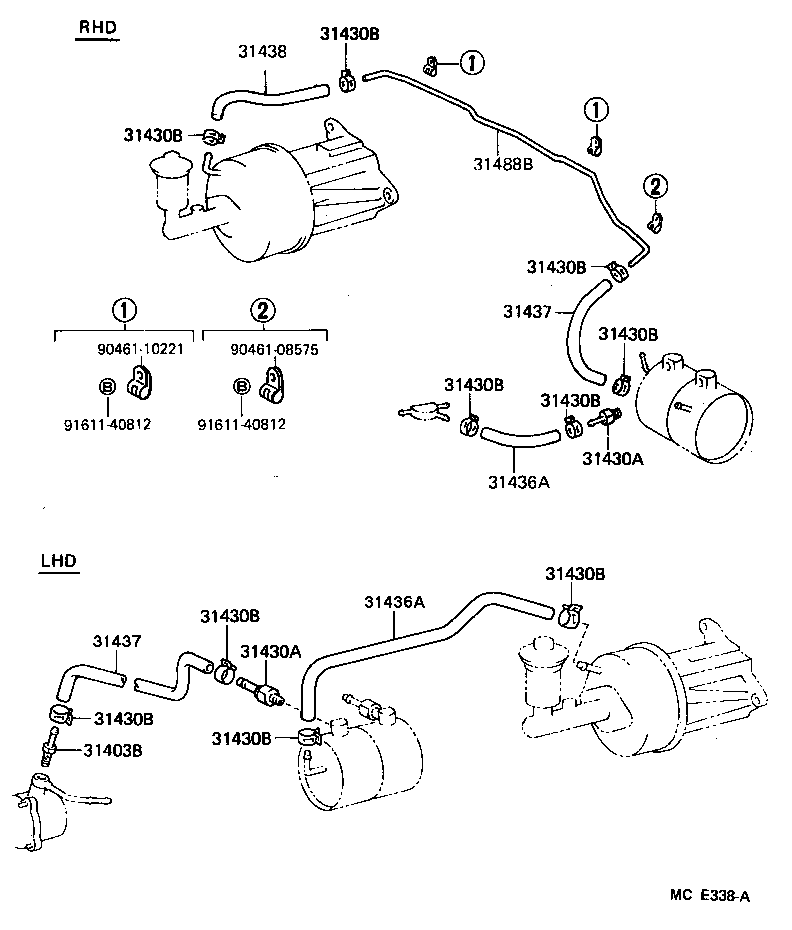

Clutch Booster
19 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04318 | Booster Kit, Clutch |
| 31403B | Union(FOR VACUUM PUMP) |
| 31430A | Valve Assy, Vacuum Check(FOR CLUTCH VACUUM) |
| 31430B | Clip(FOR CLUTCH BOOSTER VACUUM HOSE) |
| 31436A | Hose, NO.1(FOR CLUTCH BOOSTER VACUUM) |
| 31437 | Hose, NO.2(FOR CLUTCH BOOSTER VACUUM) |
| 31438 | Hose, NO.3(FOR CLUTCH BOOSTER VACUUM) |
| 31440 | Booster Assy, Clutch W/Air Cleaner |
| 31440E | Seal, Booster Body NO.1(FOR CLUTCH BOOSTER) |
| 31440G | Ring, E(FOR CLUTCH BOOSTER AIR VALVE) |
| 31440M | Rod Sub-assy, Clutch Booster Piston |
| 31440Q | Gasket, Brake Booster Bracket |
| 31440R | Ring, Circular Intern(FOR CLUTCH BOOSTER AIR VALVE) |
| 31440S | Key, Valve Stopper(FOR CLUTCH BOOSTER) |
| 31440T | Piston, Booster(FOR CLUTCH BOOSTER) |
| 31440U | Rod, Valve Operating(FOR CLUTCH BOOSTER) |
| 31449 | Cover, Clutch Booster Piston |
| 31458 | Boot, Clutch Booster Piston Cover |
| 31488B | Tube, Vacuum Hose TO Vacuum Hose |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
