Toyota Land Cruiser

1987-08 → 1990-01 · chassis FJ62,HJ6# · catalogue 791530 · Europe

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transfer Vacuum Piping

10 part groups · 3 illustrations

Illustrations

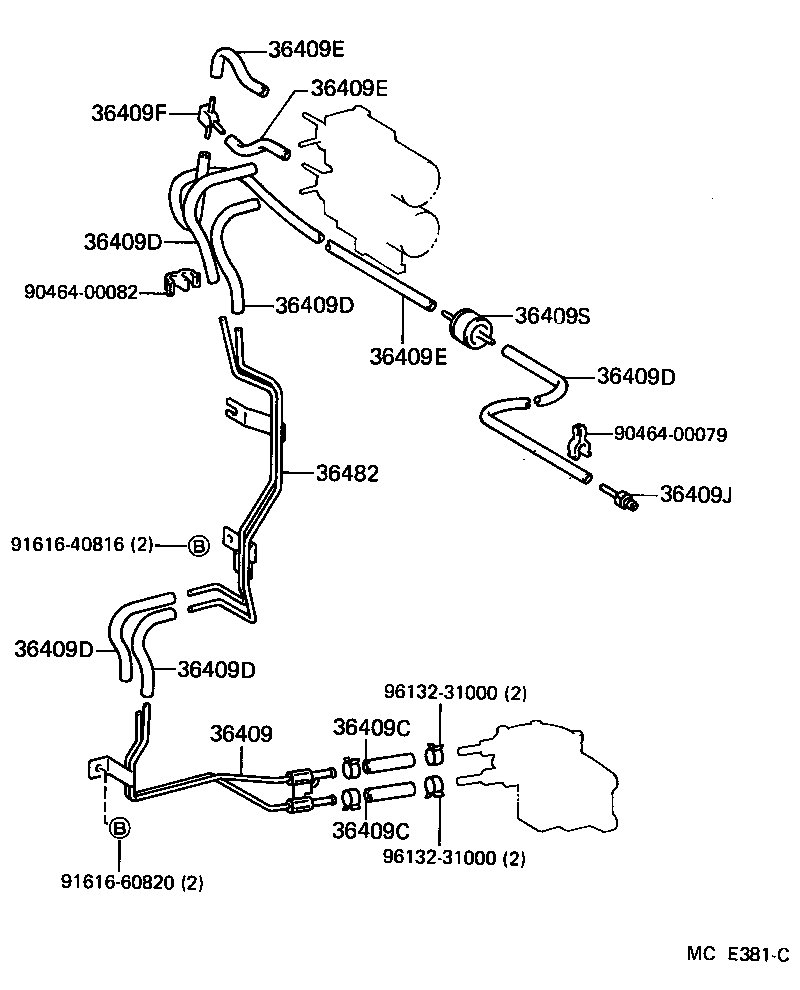

Figure MCE400B MCE400B 1987-08 → — Figure MCC985A MCC985A 1987-08 → — Figure MCE381C MCE381C 1988-08 → —

Part groups

PNCDescription
36409 Support Sub-assy, Vacuum Tube Union
36409A Hose (FOR VACUUM TUBE)
36409C Hose, Vacuum, NO.1 (FOR FRONT DRIVE SHIFT)
36409D Hose, Vacuum, NO.2 (FOR FRONT DRIVE SHIFT)
36409E Hose, Vacuum, NO.3 (FOR FRONT DRIVE SHIFT)
36409F Way, 3, NO.1 (FOR FRONT DRIVE SHIFT)
36409J Union (FOR FRONT DRIVE SHIFT)
36409S Valve, Check (FOR FRONT DRIVE SHIFT)
36482 Tube, Front Drive Vacuum, NO.2
36483 Tube, Front Drive Vacuum, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
