Toyota Land Cruiser

1987-08 → 1990-01 · chassis FJ62,HJ6# · catalogue 791530 · Europe

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

16 part groups · 2 illustrations

Illustrations

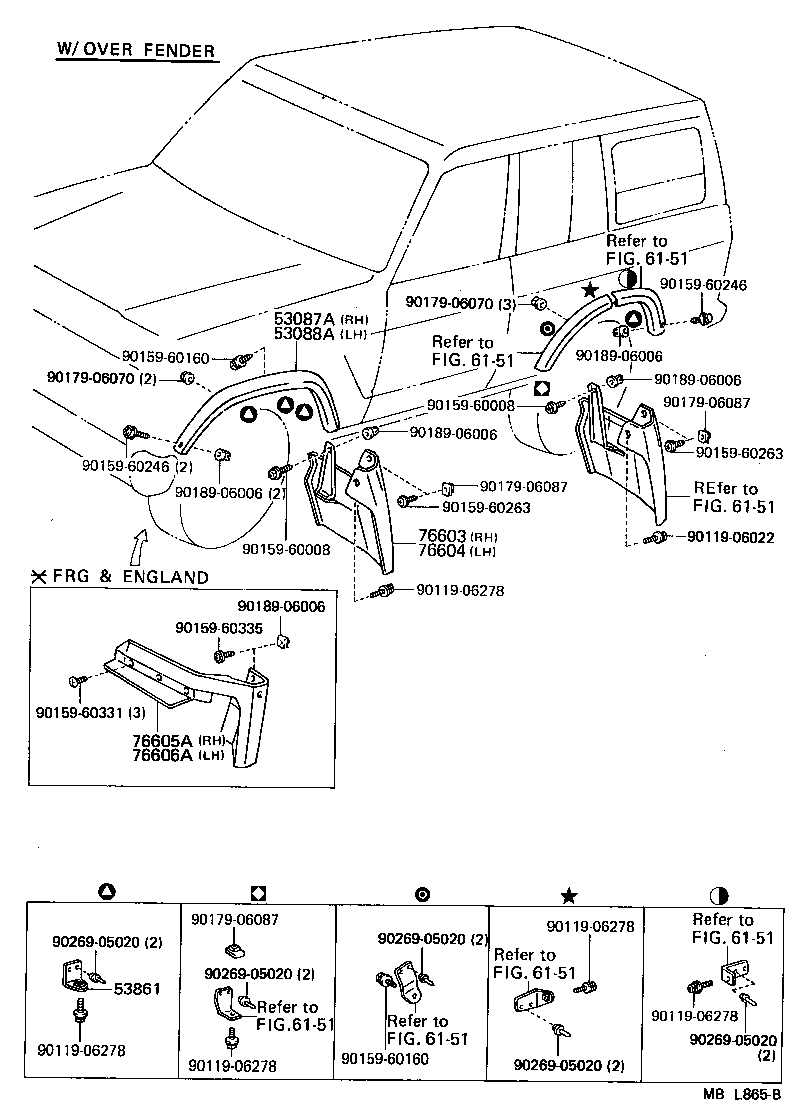

Figure MBL877A MBL877A 1987-08 → — Figure MBL865B MBL865B 1987-08 → —

Part groups

PNCDescription
53087A Extension Sub-assy, Front Wheel Opening, RH
53088A Extension Sub-assy, Front Wheel Opening, LH
53301 Hood Sub-assy
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53381 Seal, Hood TO Radiator Support
53381A Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
53386 Bumper, Hood, Rear
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53861 Bracket, Front Wheel Opening, NO.1
53931C Panel, Front End
76603 Mudguard Sub-assy, Front Fender, RH
76604 Mudguard Sub-assy, Front Fender, LH
76605A Mudguard Sub-assy, Front Forward, RH
76606A Mudguard Sub-assy, Front Forward, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
