Toyota Land Cruiser

1987-08 → 1990-01 · chassis FJ62,HJ6# · catalogue 791530 · Europe

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood Lock & Hinge

12 part groups · 2 illustrations

Illustrations

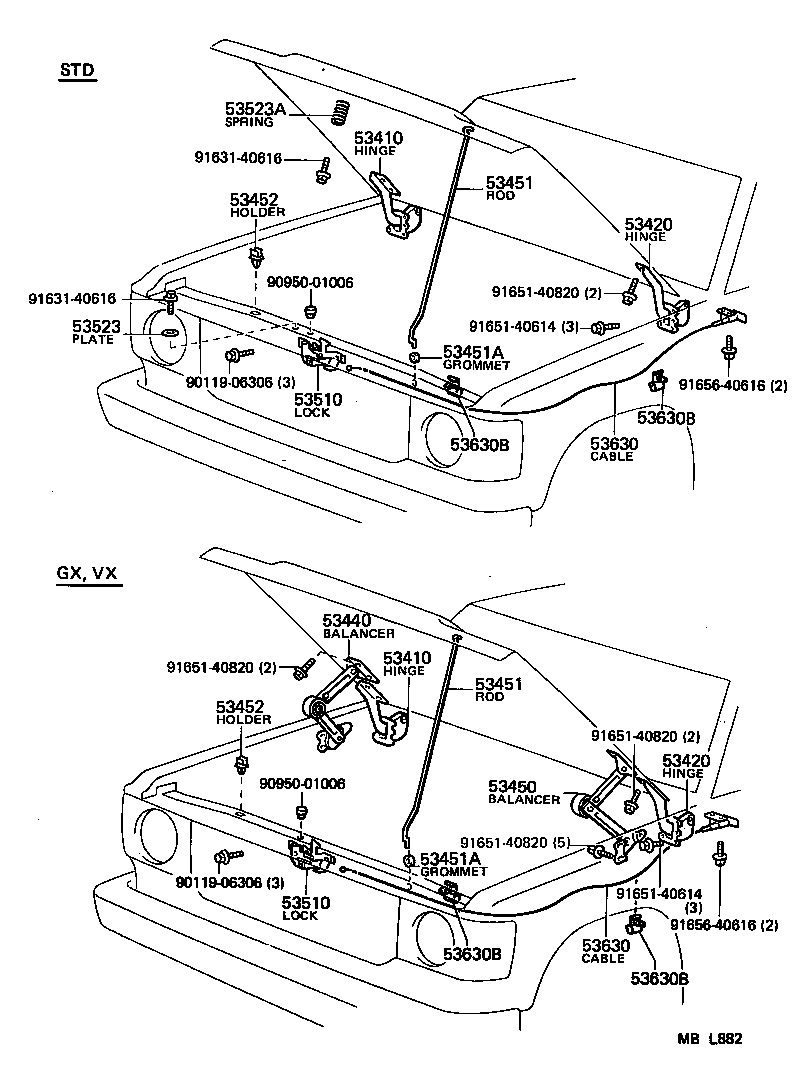

Figure MBL908 MBL908 1987-08 → — Figure MBL882 MBL882 1987-08 → —

Part groups

PNCDescription
53410 Hinge Assy, Hood, RH
53420 Hinge Assy, Hood, LH
53440 Balancer Assy, Hood, RH
53450 Balancer Assy, Hood, LH
53451 Rod, Hood Support
53451A Grommet(FOR HOOD SUPPORT ROD)
53452 Holder, Hood Stay
53510 Lock Assy, Hood
53523 Plate, Hood Lock Auxiliary Spring
53523A Spring, Hood Lock Auxiliary
53630 Cable Assy, Hood Lock Control
53630B Clamp(FOR HOOD LOCK CONTROL CABLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
