Toyota Land Cruiser

1987-08 → 1990-01 · chassis FJ62,HJ6# · catalogue 791530 · Europe

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Fender Apron & Dash Panel

22 part groups · 3 illustrations

Illustrations

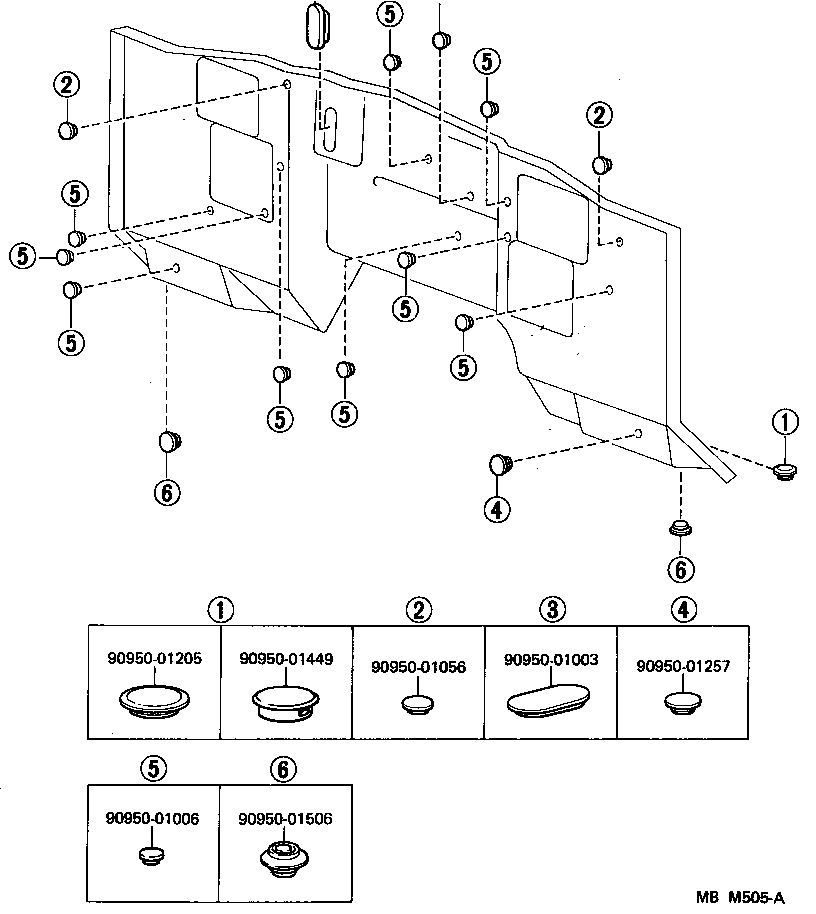

Figure MBL886B MBL886B 1987-08 → — Figure MBK232 MBK232 1987-08 → — Figure MBM505A MBM505A 1987-08 → —

Part groups

PNCDescription
53162 Hook, Radiator Shutter
53180C Shutter Assy, Radiator
53188A Bracket, Radiator Shutter Support, RH
53189A Bracket, Radiator Shutter Support, LH
53191A Base, Radiator Shutter Control Wire Clamp
53202 Support Sub-assy, Radiator, RH
53203 Support Sub-assy, Radiator, LH
53205 Support Sub-assy, Radiator, Upper
53217A Brace, Hood Lock Support
53292A Seal, Radiator Support, Upper
53382 Bumper, Hood, Front
53701 Apron Sub-assy, Front Fender, RH
53702 Apron Sub-assy, Front Fender, LH
53738D Seal, Front Fender Apron TO Frame, Front
53739C Seal, Front Fender Apron TO Frame, Rear
53783A Insulator, Apron Front Fender, RH
53784A Insulator, Apron Front Fender, LH
55101 Panel Sub-assy, Dash
55210 Insulator Assy, Dash Panel
55223A Insulator, Dash Panel, Outer
55223B Insulator, Dash Panel Heat, NO.1
57104A Member Sub-assy, Front Cross
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
