Toyota Land Cruiser
1987-08 → 1990-01 · chassis FJ62,HJ6# · catalogue 791530 · Europe
Discontinued model
Data version 1990-06
Instrument Panel & Glove Compartment

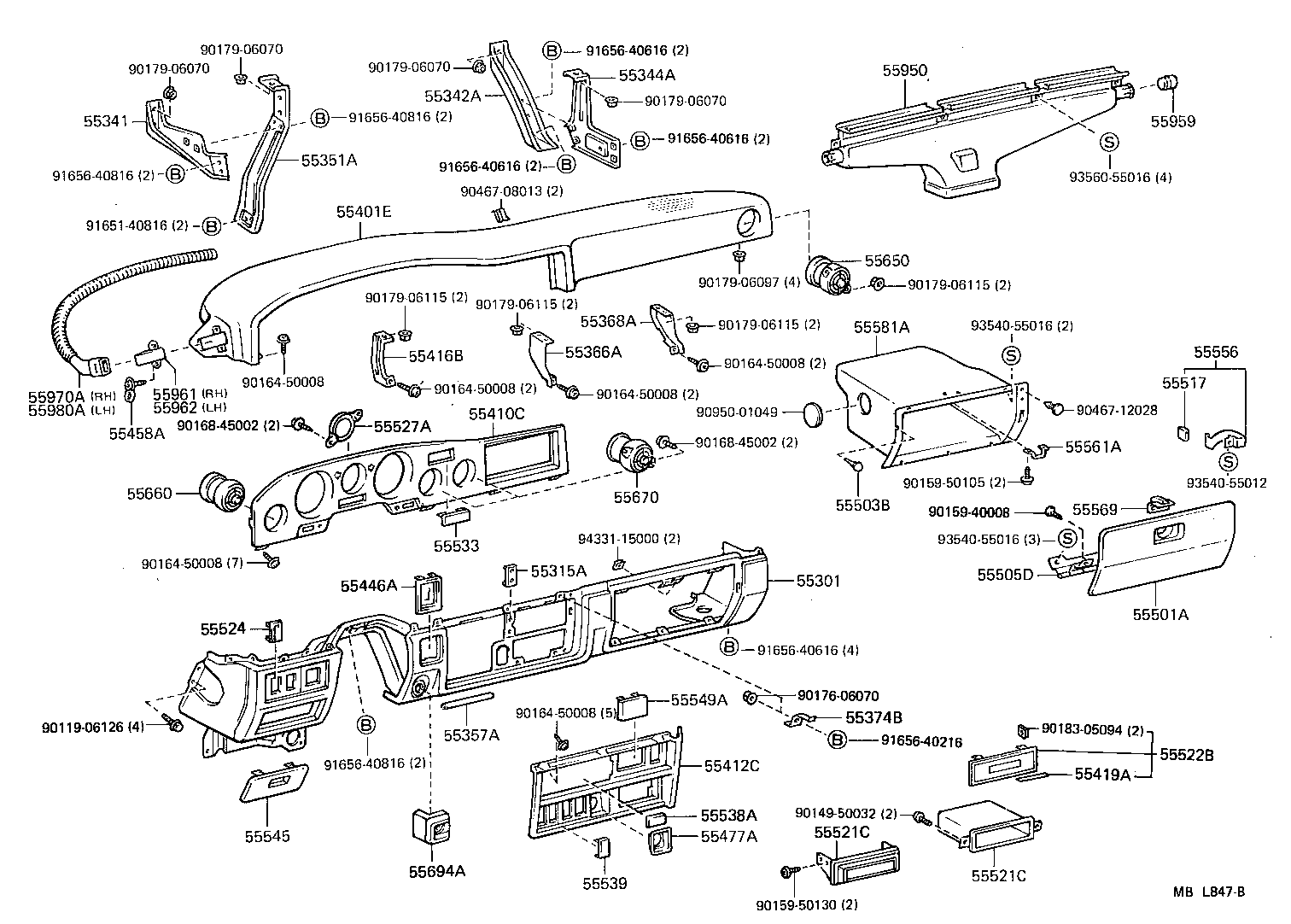

49 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55301 | Panel Sub-assy, Instrument |
| 55315A | Spacer, Instrument Panel, NO.1 |
| 55341 | Brace, Instrument Panel, NO.1 |
| 55342A | Brace, Instrument Panel TO Cowl, NO.2 |
| 55344A | Brace, Instrument Panel TO Cowl, NO.3 |
| 55351A | Brace, Instrument Panel TO Floor |
| 55357A | Protector, Edge, NO.1 |
| 55358A | Protector, Edge, NO.2 |
| 55366A | Bracket, Radio Mounting, NO.1 |
| 55368A | Bracket, Radio Mounting, NO.2 |
| 55374B | Bracket, Instrument Panel |
| 55401E | Pad Sub-assy, Instrument Panel Safety |
| 55410C | Panel Assy, Instrument Cluster Finish |
| 55412C | Panel, Instrument Cluster Finish, Center NO.1 |
| 55416B | Bracket, Instrument Pad, NO.2 |
| 55419A | Cushion, Instrument Cluster Finish Panel |
| 55446A | Base, Switch Hole, NO.1 |
| 55458A | Cap, Instrument Panel Safety Pad |
| 55477A | Bezel, Cigarette Lighter Hole |
| 55477D | Cover, Cigarette Lighter Hole |
| 55501A | Door Sub-assy, Glove Compartment |
| 55503B | Cushion(FOR GLOVE COMPARTMENT) |
| 55505D | Hinge Sub-assy, Glove Compartment Door |
| 55517 | Stopper, Glove Compartment Door Arm |
| 55521C | Cover, Stereo Opening |
| 55522B | Cover, Radio Tuner Opening |
| 55524 | Cover, Switch Bace Hole |
| 55527A | Cover, Meter Opening |
| 55533 | Cover, Auto Clock Hole |
| 55538A | Cover, Cooler Switch Hole |
| 55539 | Cover, Spare Switch Hole |
| 55545 | Cover, Fuse Box Opening |
| 55549A | Cover, Rear Cooler Switch Hole |
| 55556 | Arm, Glove Compartment Door Check |
| 55561A | Striker, Glove Compartment Door Lock |
| 55569 | Cover, Glove Compartment Door Lock |
| 55581A | Compartment, Glove |
| 55606 | Cover Sub-assy, Instrument Panel Under, NO.1 |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 55693 | Protector, Control Knob, NO.1 |
| 55694A | Protector, Control Knob, NO.2 |
| 55950 | Nozzle Assy, Defroster |
| 55959 | Cover, Defroster Nozzle Opening, NO.1 |
| 55961 | Nozzle, Side Defroster, NO.1 |
| 55962 | Nozzle, Side Defroster, NO.2 |
| 55970A | Duct Assy, Side Defroster, RH |
| 55980A | Duct Assy, Side Defroster, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
