Toyota Land Cruiser

1987-08 → 1990-01 · chassis FJ62,HJ6# · catalogue 791530 · Europe

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

17 part groups · 3 illustrations

Illustrations

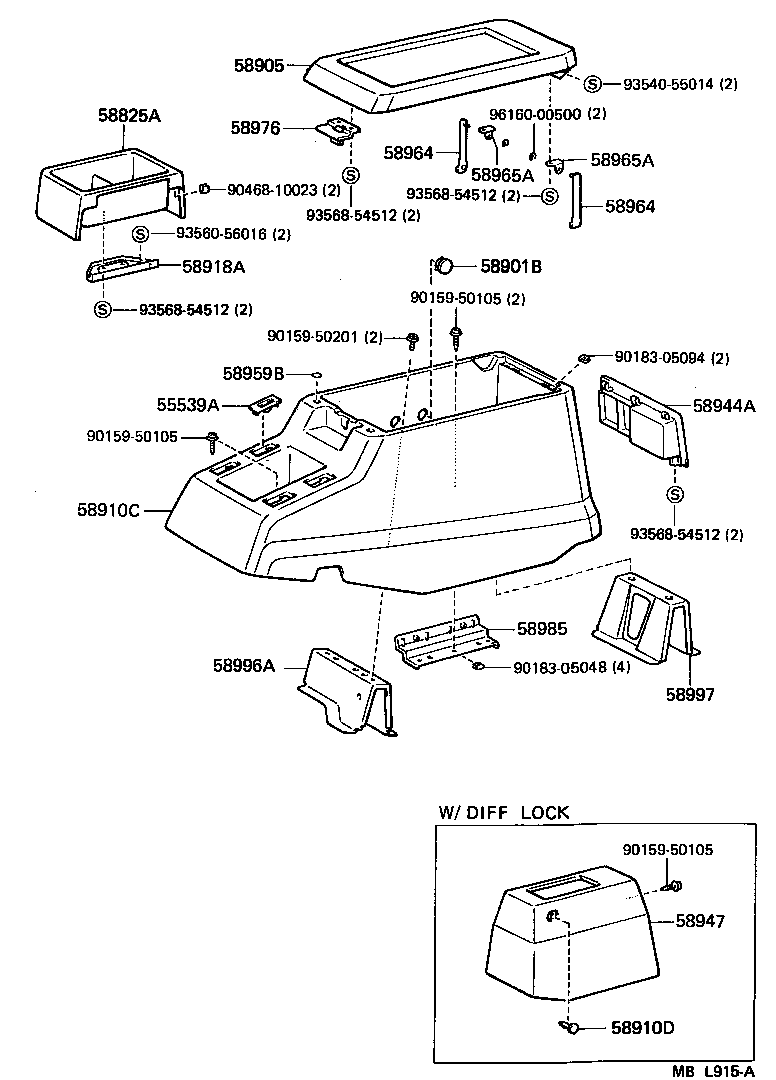

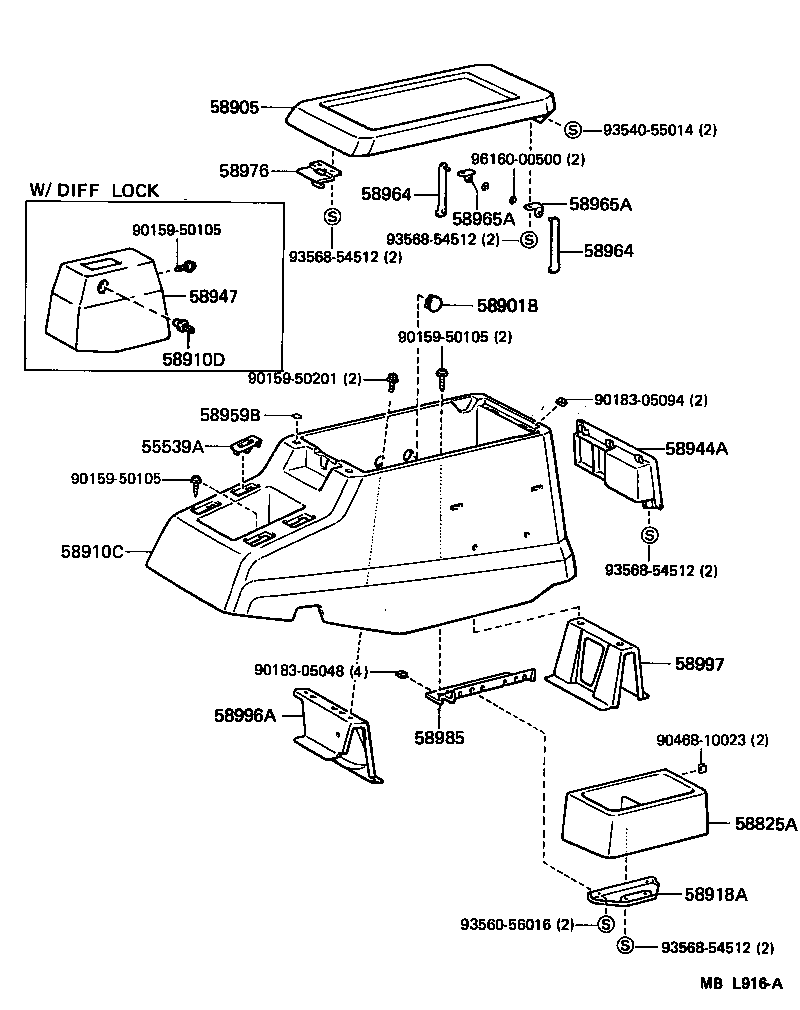

Figure MBH749 MBH749 1987-08 → — Figure MBL915A MBL915A 1987-08 → — Figure MBL916A MBL916A 1987-08 → —

Part groups

PNCDescription
55539A Cover, Spare Switch Hole
58825A Pocket, Console Box
58841A Cover, Shifting Hole
58901B Plug, Hole(FOR REAR CONSOLE BOX)
58905 Door Sub-assy, Console Compartment
58910C Box Assy, Console, Rear
58910D Clip(FOR CONSOLE BOX)
58918A Bracket, Box Support
58944A Cover, Console, Rear
58947 Cover, Differential Lock Lever
58959B Cushion, Console Compartment Door
58964 Stopper, Console Compartment Door, NO.1
58965A Stopper, Console Compartment Door, NO.2
58976 Striker, Console Compartment Door Lock
58985 Retainer, Console Box
58996A Bracket, Console Box Mounting, NO.2
58997 Bracket, Console Box Mounting, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
