Toyota Land Cruiser
1987-08 → 1990-01 · chassis FJ62,HJ6# · catalogue 791530 · Europe
Discontinued model
Data version 1990-06

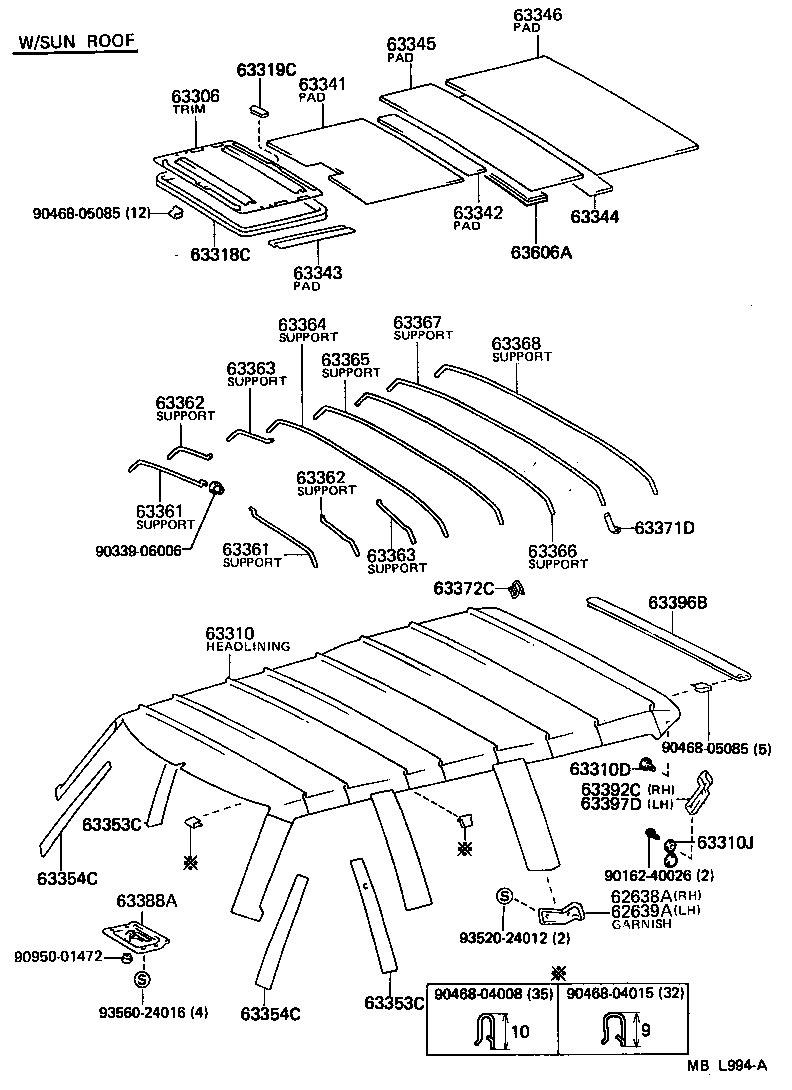

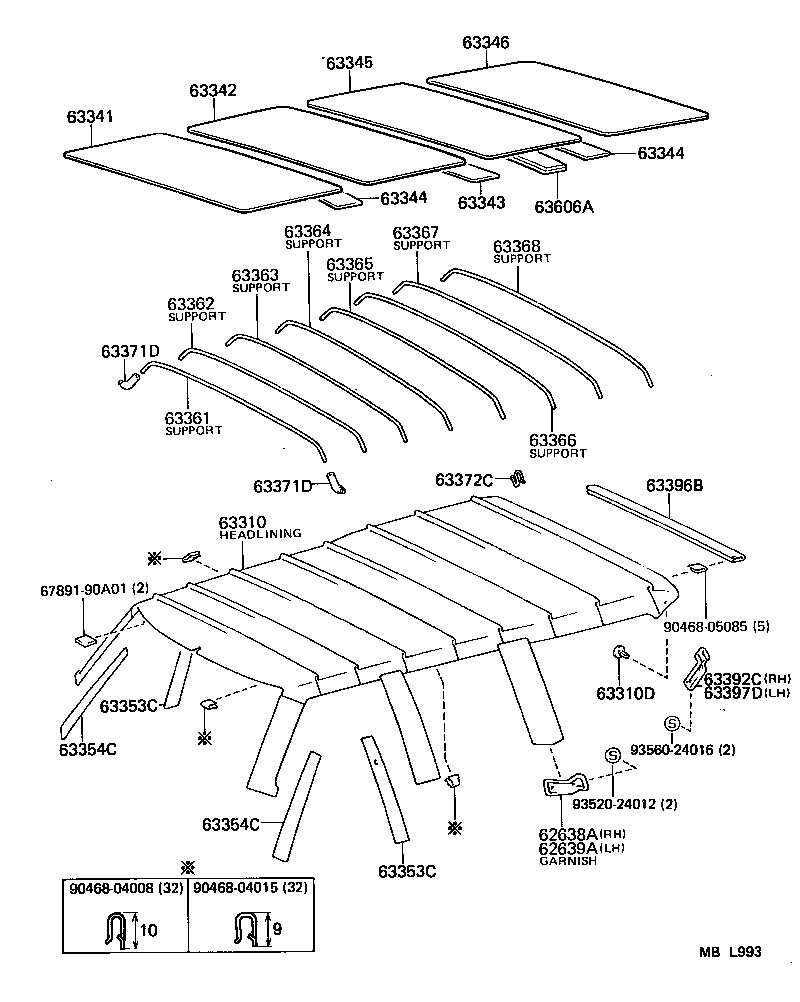

Roof Headlining & Silencer Pad
31 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 62638A | Garnish, Quarter Pillar, RH |
| 62639A | Garnish, Quarter Pillar, LH |
| 63306 | Trim Sub-assy, Sunshade |
| 63310 | Headlining Assy, Roof |
| 63310D | Clip, Roof Headlining |
| 63310J | Washer, Roof Headlining Setting |
| 63318C | Moulding, Sun Roof Opening Trim |
| 63319C | Joint, Sun Roof Opening Trim |
| 63341 | Pad, Roof Silencer, NO.1 |
| 63342 | Pad, Roof Silencer, NO.2 |
| 63343 | Pad, Roof Silencer, NO.3 |
| 63344 | Pad, Roof Silencer, NO.4 |
| 63345 | Pad, Roof Silencer, NO.5 |
| 63346 | Pad, Roof Silencer, NO.6 |
| 63353C | Pad, Roof Headlining, Center |
| 63354C | Pad, Roof Headlining Front Side |
| 63361 | Support, Roof Headlining, NO.1 |
| 63362 | Support, Roof Headlining, NO.2 |
| 63363 | Support, Roof Headlining, NO.3 |
| 63364 | Support, Roof Headlining, NO.4 |
| 63365 | Support, Roof Headlining, NO.5 |
| 63366 | Support, Roof Headlining, NO.6 |
| 63367 | Support, Roof Headlining, NO.7 |
| 63368 | Support, Roof Headlining, NO.8 |
| 63371D | Retainer, Roof Headlining Support |
| 63372C | Hook, Roof Headlining Support |
| 63388A | Cover, Roof Headlining Holder |
| 63392C | Trim, Roof Headlining, Rear RH |
| 63396B | Trim, Roof Headlining, Rear Center |
| 63397D | Trim, Roof Headlining, Rear LH |
| 63606A | Protector Sub-assy, Roof, Rear |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
