Toyota Land Cruiser
1987-08 → 1990-01 · chassis FJ62,HJ6# · catalogue 791530 · Europe
Discontinued model
Data version 1990-06

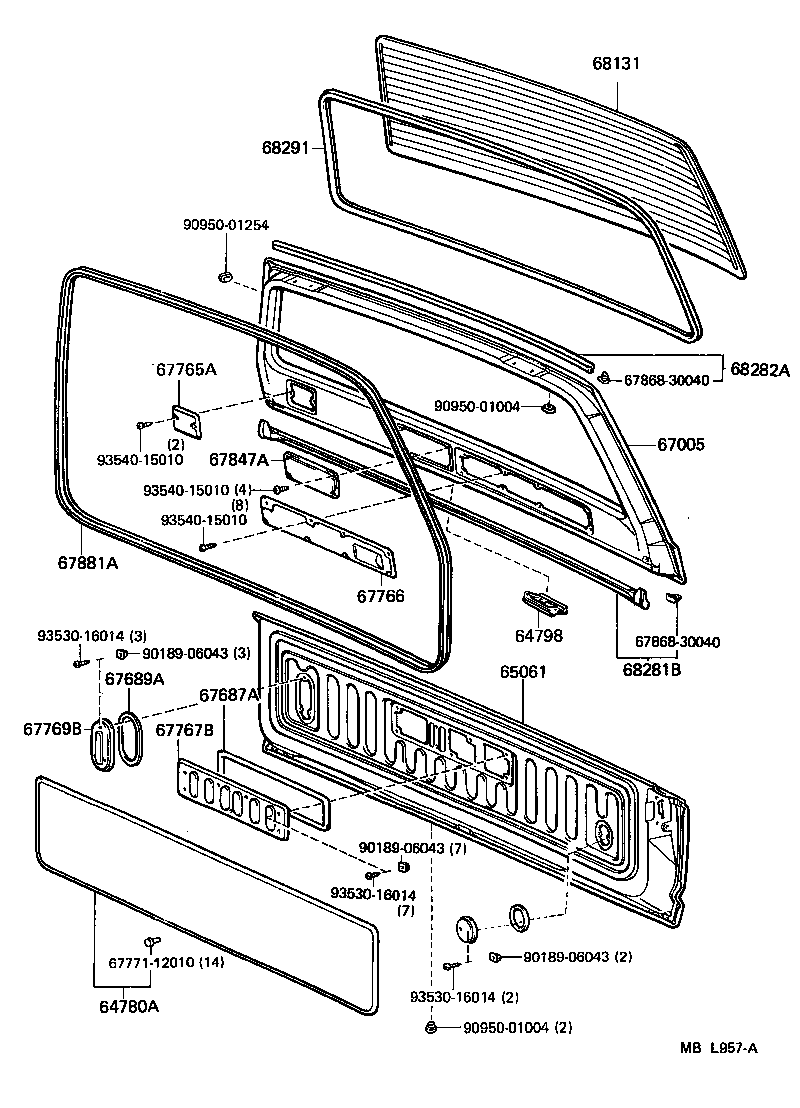

Back Door Panel & Glass
30 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 64780A | Panel Assy, Back Door Trim |
| 64780C | Panel Assy, Back Door Trim, RH |
| 64790C | Panel Assy, Back Door Trim, LH |
| 64798 | Cover, Back Door Lock |
| 65061 | Panel Sub-assy, Tail Gate |
| 67005 | Panel Sub-assy, Back Door |
| 67687A | Packing, Back Door Service Hole, NO.3 |
| 67689A | Packing, Back Door Service Hole, NO.5 |
| 67765A | Cover, Back Door Service Hole, NO.1 |
| 67766 | Cover, Back Door Service Hole, NO.2 |
| 67767B | Cover, Back Door Service Hole, NO.3 |
| 67769B | Cover, Back Door Service Hole, NO.5 |
| 67819 | Pad, Back Door Outside Panel |
| 67847 | Cover, Back Door Service Hole, RH |
| 67847A | Cover, Back Door Service Hole |
| 67848 | Cover, Back Door Service Hole, LH |
| 67881A | Weatherstrip, Back Door |
| 67881B | Weatherstrip, Back Door, Upper RH |
| 67882B | Weatherstrip, Back Door, Upper LH |
| 67884A | Weatherstrip, Back Door, Center |
| 67891A | Seal, Back Door |
| 68131 | Glass, Back Door |
| 68281B | Weatherstrip, Lift Gate |
| 68282A | Weatherstrip, Lift Gate, Upper |
| 68291 | Weatherstrip, Back Door Glass |
| 68611 | Base, Back Door Check, RH |
| 68612 | Base, Back Door Check, LH |
| 68617B | Pin, Back Door Check |
| 68650 | Check Assy, Back Door |
| 68660 | Check Assy, Back Door, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
