Toyota Land Cruiser
1987-08 → 1990-01 · chassis FJ62,HJ6# · catalogue 791530 · Europe
Discontinued model
Data version 1990-06

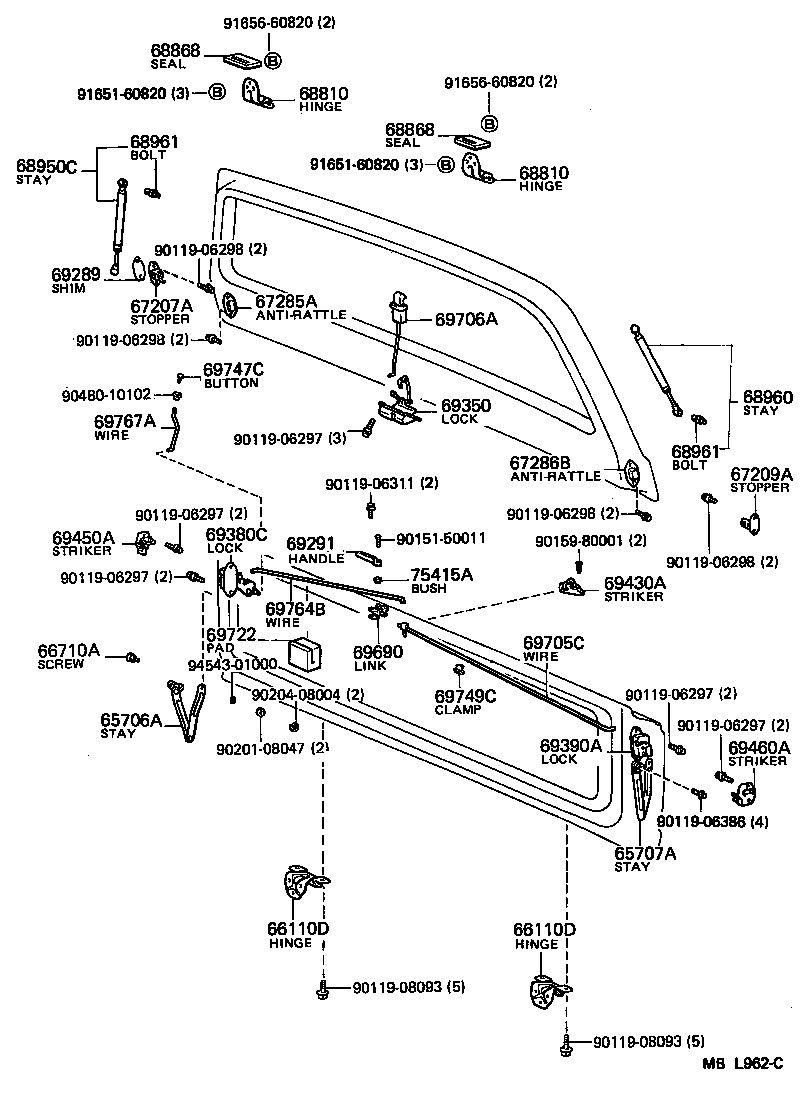

Back Door Lock & Hinge
52 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 65706A | Stay Sub-assy, Tail Gate, RH |
| 65707A | Stay Sub-assy, Tail Gate, LH |
| 66110D | Hinge Assy, Tail Gate |
| 66710A | Screw, Tail Gate Assy |
| 67207A | Stopper Sub-assy, Back Door, RH |
| 67207B | Stopper Sub-assy, Back Door, Upper |
| 67209A | Stopper Sub-assy, Back Door, LH |
| 67209B | Stopper Sub-assy, Back Door, Lower |
| 67285A | Anti-rattle, Back Door, RH |
| 67286B | Anti-rattle, Back Door, LH |
| 68801 | Hinge Sub-assy, Back Door, Upper RH |
| 68802 | Hinge Sub-assy, Back Door, Upper LH |
| 68803A | Hinge Sub-assy, Back Door, Lower RH |
| 68804A | Hinge Sub-assy, Back Door, Lower LH |
| 68810 | Hinge Assy, Back Door, Upper |
| 68851C | Cover, Back Door Hinge, RH |
| 68852A | Cover, Back Door Hinge, LH |
| 68868 | Seal, Back Door Hinge |
| 68950C | Stay Assy, Back Door, RH |
| 68960 | Stay Assy, Back Door, LH |
| 68961 | Bolt, Back Door Stay |
| 69211B | Cushion(FOR BACK DOOR OUTSIDE HANDLE) |
| 69211C | Handle, Back Door Outside |
| 69277A | Bezel, Back Door Inside Handle |
| 69289 | Shim, Back Door Stopper |
| 69291 | Handle Assy, Back Door Inside |
| 69350 | Lock Assy, Back Door |
| 69350Q | Lock Assy, Back Door, Upper |
| 69357A | Rod, Back Door Opening, Upper |
| 69377C | Snap, Door Lock Control Rod |
| 69380C | Lock Assy, Back Door, Lower |
| 69390A | Lock Assy, Tail Gate, Lower LH |
| 69410C | Plate Assy, Back Door Lock Striker |
| 69430A | Striker Assy, Back Door Lower Lock |
| 69450A | Striker Assy, Tail Gate, Lower RH |
| 69452A | Plate, Back Door Upper Lock Striker |
| 69460A | Striker Assy, Tail Gate, Lower LH |
| 69470C | Striker Assy, Back Door Upper Lock |
| 69690 | Control Assy, Back Door Remote |
| 69705C | Link Sub-assy, Back Door Lock Control |
| 69706A | Rod Sub-assy, Back Door Lock Remote Control |
| 69721 | Rod, Back Door Lower Lock Control, NO.1 |
| 69722 | Pad, Back Door Lock Control |
| 69741A | Knob, Back Door Lock Control |
| 69747C | Button, Door Locking(FOR BACK DOOR) |
| 69749C | Clamp, Tail Gate Lock Link |
| 69751D | Holder, Door Lock Control Knob(FOR BACK DOOR) |
| 69759 | Snap, Door Lock Control Link, NO.1 |
| 69764B | Link, Back Door Lock Control, RH |
| 69767A | Link, Back Door Lock Control, LH NO.3 |
| 69790 | Control Assy, Back Door Lock |
| 75415A | Bush, Back Door Lower Inside Handle |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
