Toyota Land Cruiser

1987-08 → 1990-01 · chassis FJ62,HJ6# · catalogue 791530 · Europe

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

14 part groups · 3 illustrations

Illustrations

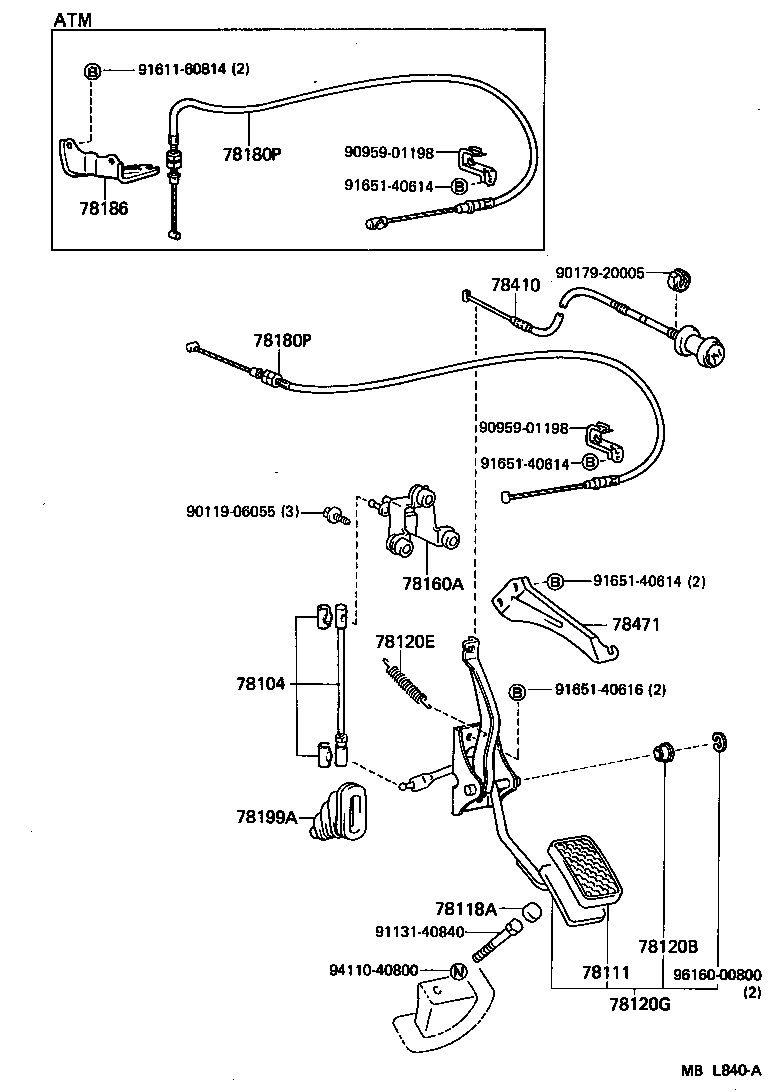

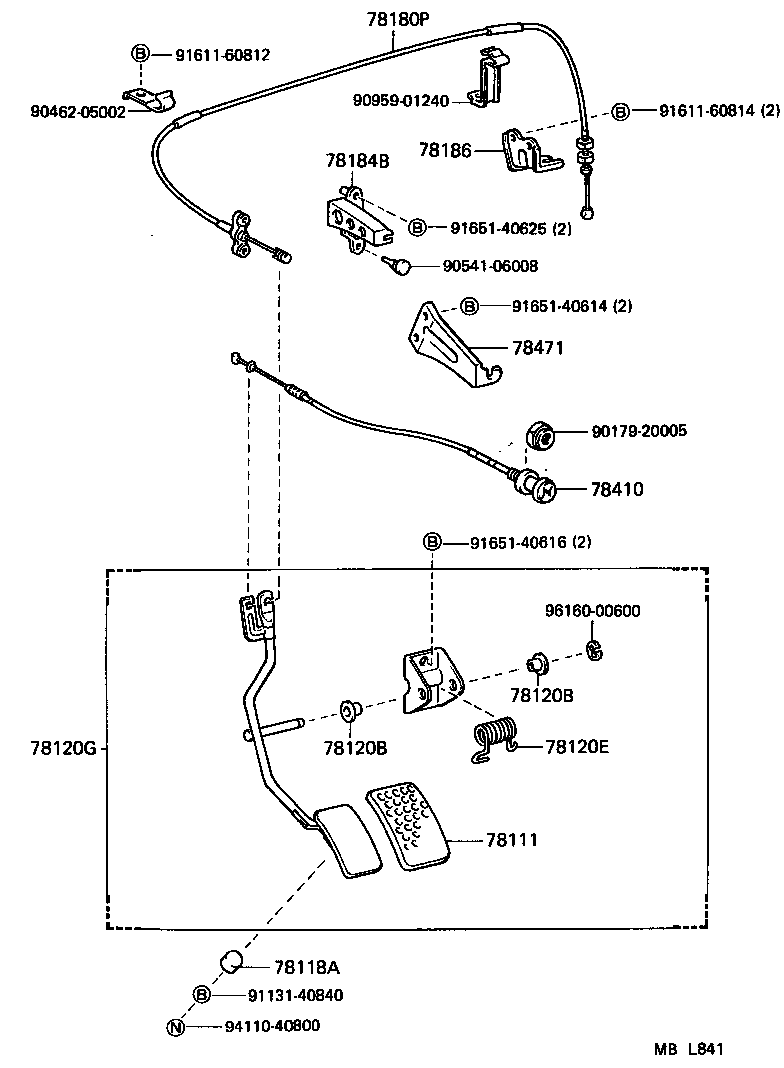

Figure MBL839A MBL839A 1987-08 → — Figure MBL840A MBL840A 1987-08 → — Figure MBL841 MBL841 1987-08 → —

Part groups

PNCDescription
78104 Rod Sub-assy, Accelerator Connecting, NO.2
78111 Pedal, Accelerator
78118A Stopper, Accelerator Pedal
78120B Bush (FOR ACCELERATOR LINK ROD)
78120E Spring, Tension (FOR ACCELERATOR LINK ROD)
78120G Rod Assy, Accelerator Pedal
78160A Bellcrank Assy, Accel Control W/Bracket
78180P Cable Assy, Accelerator Control
78184B Bracket, Accelerator Control Cable
78186 Support, Accelerator Control Cable, NO.1
78199A Boot, Accelerator Pedal Rod
78410 Cable Assy, Throttle Control
78411A Knob, Throttle Control Cable
78471 Bracket, Throttle Control Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
