Toyota Land Cruiser

1987-08 → 1990-01 · chassis FJ62,HJ6# · catalogue 791530 · Europe

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

14 part groups · 3 illustrations

Illustrations

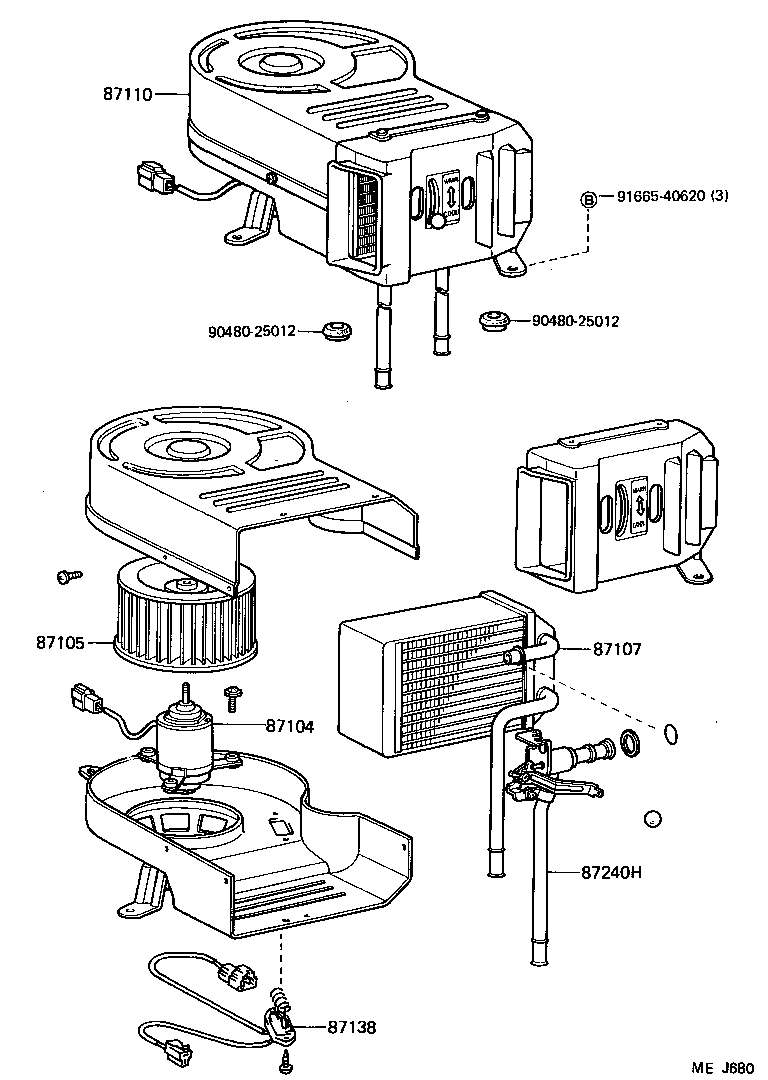

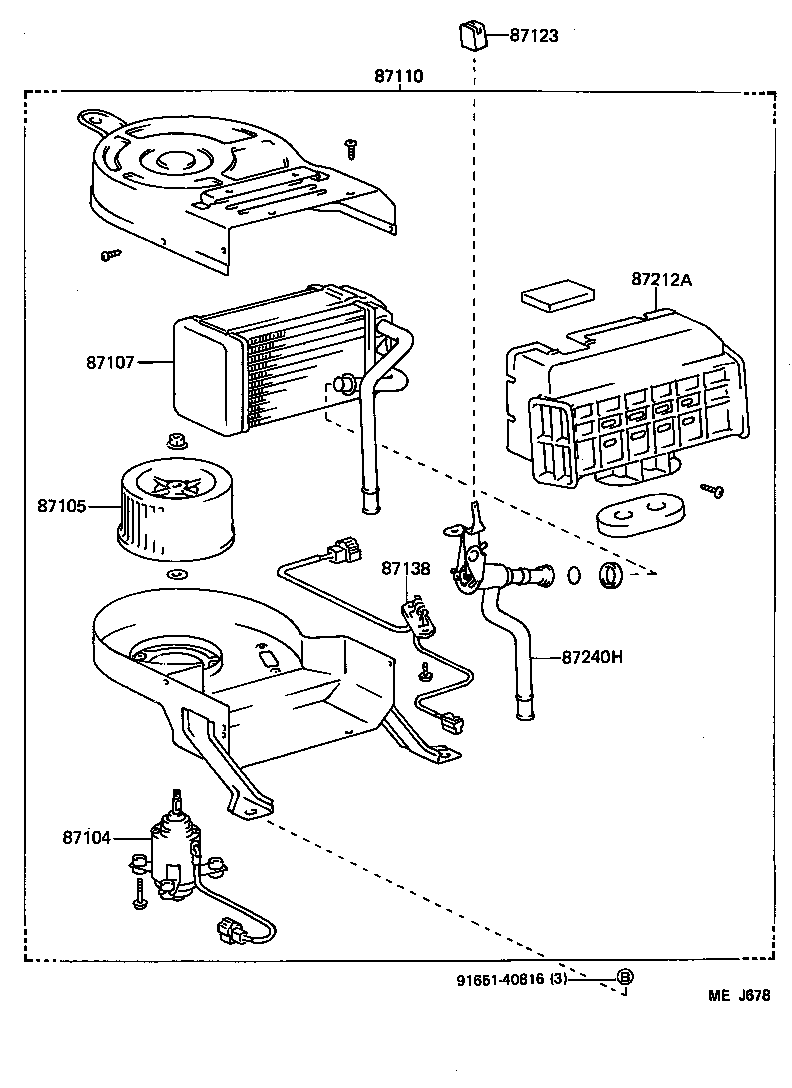

Figure MEJ681 MEJ681 1987-08 → — Figure MEJ680 MEJ680 1987-08 → — Figure MEJ678 MEJ678 1987-08 → —

Part groups

PNCDescription
87104 Motor Sub-assy, Heater Blower
87105 Fan Sub-assy, Heater Blower
87107 Unit Sub-assy, Heater Radiator
87110 Heater Assy
87114 Cover, Heater
87123 Knob, Heater
87126 Clamp, Heater Control
87130 Blower Assy, Heater, Front
87138 Resistor, Heater Blower
87150 Radiator Assy, Heater
87212A Duct, Air, Rear NO.1
87240H Valve Assy, Water Unit
87248H Pipe, Heater Water Inlet
87249 Pipe, Water
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
