Toyota Land Cruiser

1987-08 → 1990-01 · chassis FJ62,HJ6# · catalogue 791530 · Europe

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

16 part groups · 2 illustrations

Illustrations

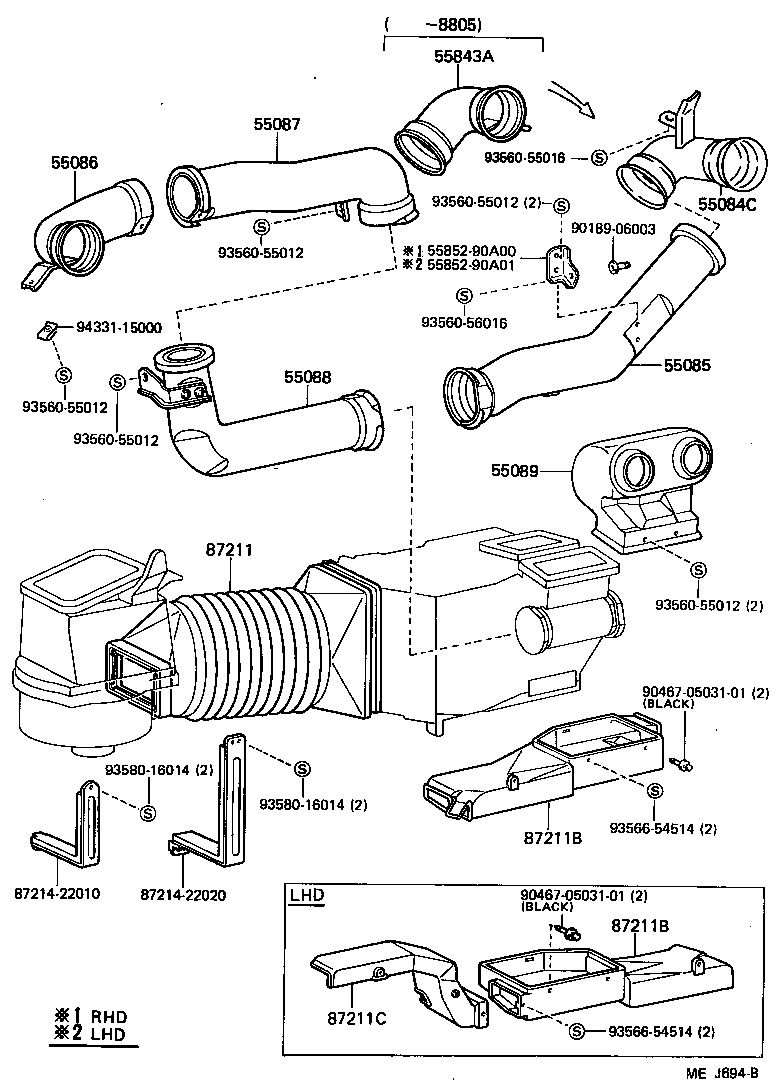

Figure 87H690 87H690 1987-08 → — Figure MEJ694B MEJ694B 1987-08 → —

Part groups

PNCDescription
55084C Duct Sub-assy, Heater TO Register, NO.1
55085 Duct Sub-assy, Heater TO Register, NO.2
55086 Duct Sub-assy, Heater TO Register, NO.3
55087 Duct Sub-assy, Heater TO Register, NO.4
55088 Duct Sub-assy, Heater TO Register, NO.5
55089 Duct Sub-assy, Heater TO Register, NO.6
55843A Duct, Heater TO Register, NO.1
55906A Cable Sub-assy, Defroster Damper Control
55907A Cable Sub-assy, Water Valve Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55937 Knob, Heater Control Lever
87211 Duct, Air, NO.1
87211B Duct, Air, NO.3
87211C Duct, Air, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
