Toyota Land Cruiser

1987-08 → 1990-01 · chassis FJ62,HJ6# · catalogue 791530 · Europe

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

18 part groups · 4 illustrations

Illustrations

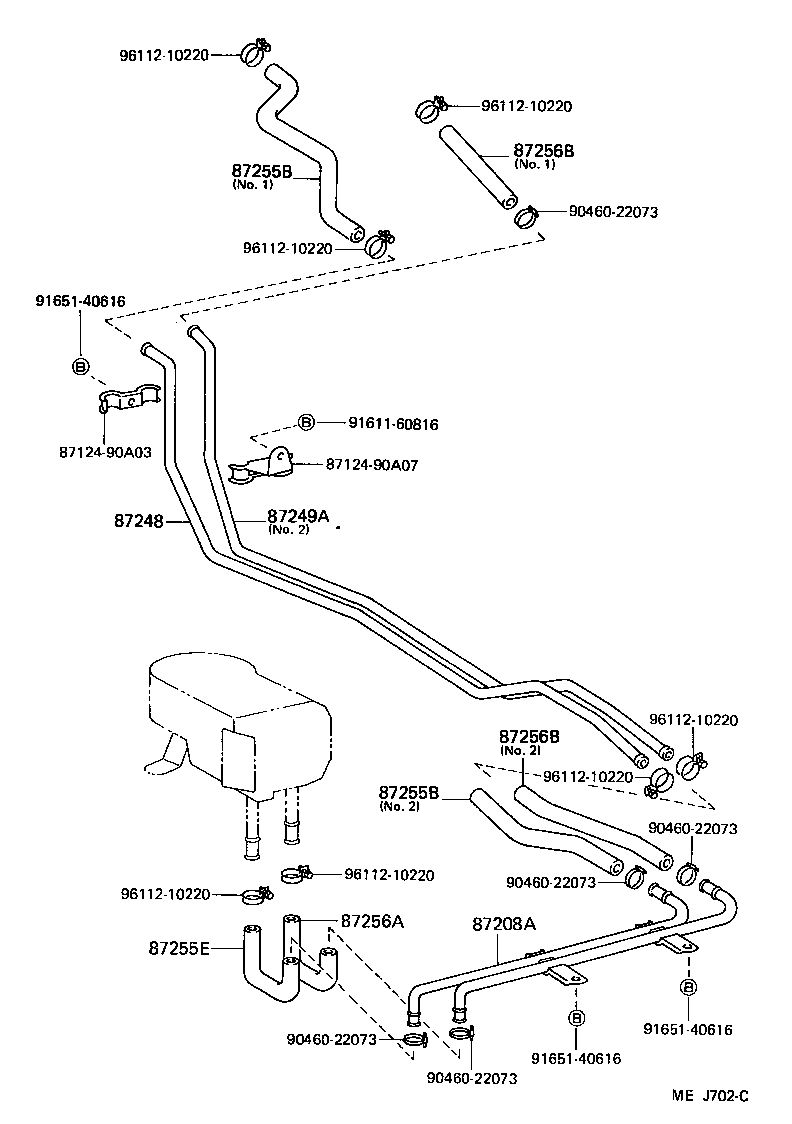

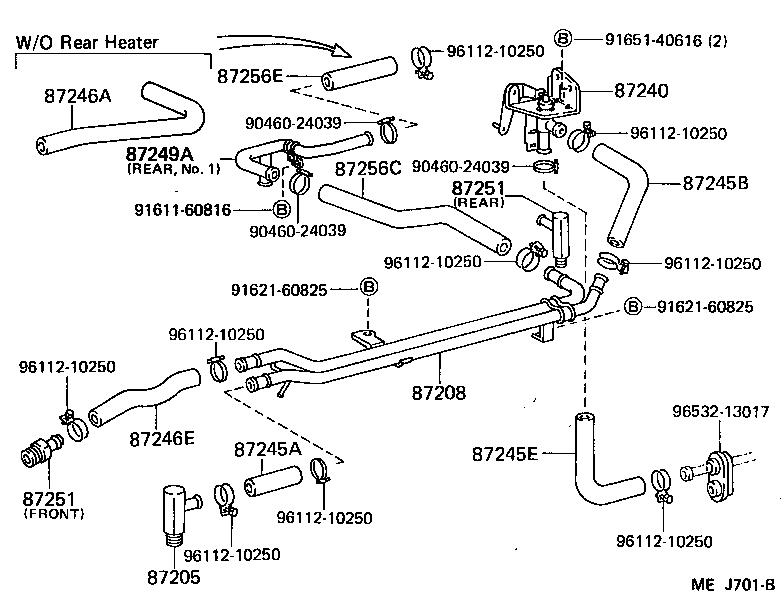

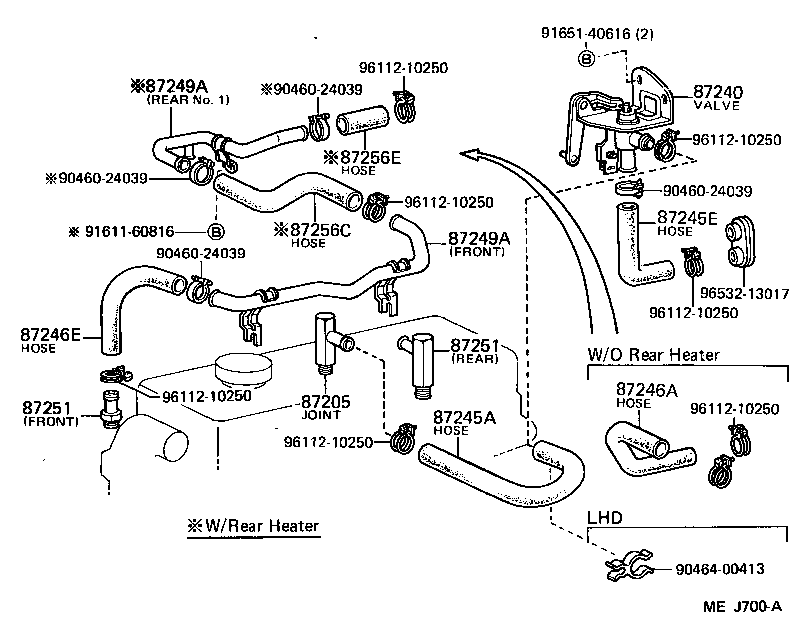

Figure 87G684 87G684 1988-08 → — Figure MEJ700A MEJ700A 1987-08 → — Figure MEJ701B MEJ701B 1987-08 → — Figure MEJ702C MEJ702C 1987-08 → —

Part groups

PNCDescription
87205 Joint OR Union, Front Heater Hose Through OR Inlet Valve
87208 Pipe Sub-assy, Heater Water
87208A Pipe Sub-assy, Heater Water, A
87240 Valve Assy, Heater Water
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245E Hose, Heater Water, Inlet E
87246A Hose, Heater Water, Outlet A
87246E Hose, Heater Water, Outlet E
87248 Pipe Sub-assy, Water
87249A Pipe, Heater Water Outlet, A
87251 Joint OR Union, Water Hose Through
87255B Hose, Rear Heater Water Inlet, B
87255E Hose, Rear Heater Water Inlet, E(TO HEATER UNIT)
87256A Hose, Rear Heater Water Outlet, A (FROM HEATER UNIT)
87256B Hose, Rear Heater Water Outlet, B
87256C Hose, Rear Heater Water Outlet, C
87256E Hose, Rear Heater Water Outlet, E (TO ENGINE)
