Toyota Land Cruiser

1990-01 → 1998-01 · chassis FJ80,FZJ80,HDJ80,HZJ80 · catalogue 791540 · Europe

Discontinued model Data version 1998-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

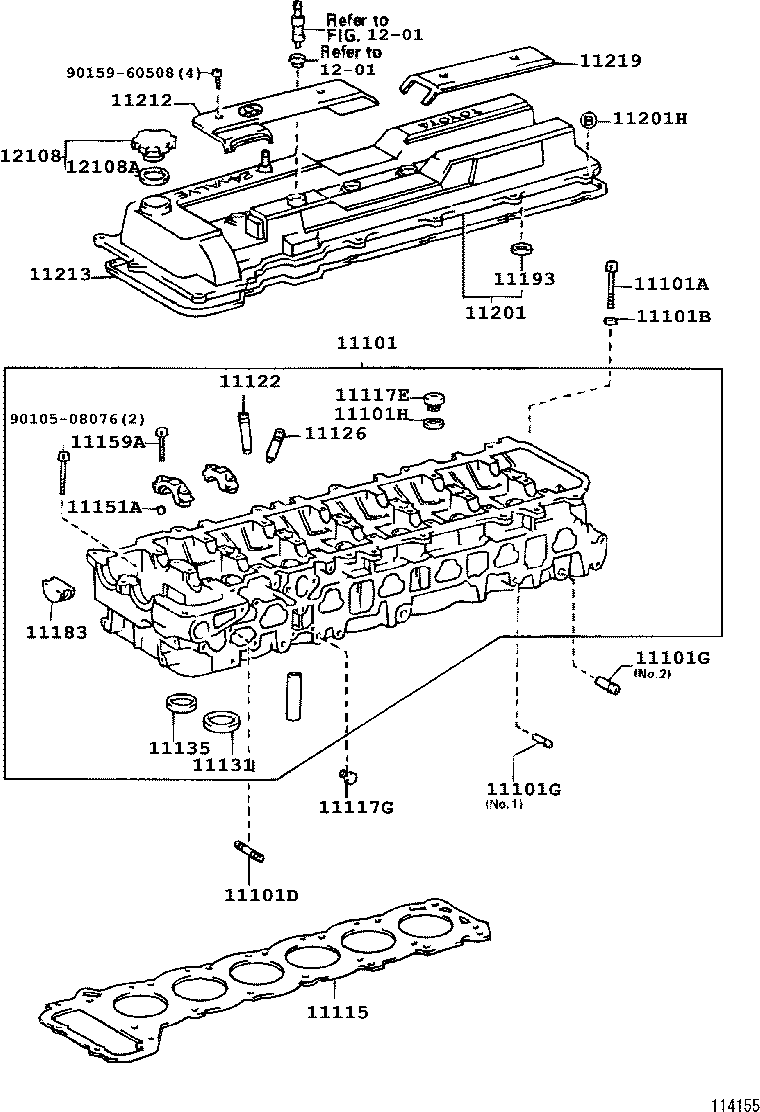

Exploded illustration 114155 1201 — not listed in this catalogue 11219 — COVER, CYLINDER HEAD, NO.3 (2 parts) 1201 — not listed in this catalogue 9015960508 — not listed in this catalogue 11212 — COVER, CYLINDER HEAD, NO.2 (2 parts) 11201H — BOLT(FOR CYLINDER HEAD COVER) (3 parts) 12108 — CAP SUB-ASSY, OIL FILLER (5 parts) 12108A — GASKET(FOR OIL FILLER CAP) (3 parts) 11213 — GASKET, CYLINDER HEAD COVER (4 parts) 11193 — GASKET, SPARK PLUG TUBE (1 parts) 11101A — BOLT(FOR CYLINDER HEAD SET) (6 parts) 11201 — COVER SUB-ASSY, CYLINDER HEAD (4 parts) 11101B — WASHER, PLATE(FOR CYLINDER HEAD SET) (3 parts) 11101 — HEAD SUB-ASSY, CYLINDER (12 parts) 11122 — BUSH, INTAKE VALVE GUIDE (10 parts) 11117E — PLUG, W/HEAD STRAIGHT SCREW, NO.1 (1 parts) 11101H — GASKET(FOR CYLINDER HEAD SCREW PLUG) (1 parts) 9010508076 — not listed in this catalogue 11126 — BUSH, EXHAUST VALVE GUIDE (10 parts) 11159A — BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) (2 parts) 11151A — PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) (2 parts) 11183 — PLUG, SEMICIRCULAR (2 parts) 11101G — UNION(FOR CYLINDER HEAD) (2 parts) 11135 — SEAT, EXHAUST VALVE (4 parts) 11131 — SEAT, INTAKE VALVE (4 parts) 11101G — UNION(FOR CYLINDER HEAD) (2 parts) 11117G — PLUG, W/HEAD STRAIGHT SCREW, NO.3 (1 parts) 11101D — BOLT, STUD(FOR WATER OUTLET) (1 parts) 11115 — GASKET, CYLINDER HEAD (8 parts)
114155 · 25 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
93 parts on this figure
Part number Description Fitment Price
11101 — Head Sub-assy, Cylinder
11101-17010 Head Sub-assy, Cylinder
1990-01 → 1993-10 ended
1HZ HZJ80 —
11101-17011 Head Sub-assy, Cylinder
1993-10 → 1997-12 ended
1HZ HZJ80 —
11101-17012 Head Sub-assy, Cylinder
1997-12 → 1998-01 ended
1HZ HZJ80 —
11101-17020 Head Sub-assy, Cylinder
1990-01 → 1995-01 ended
1HDT HDJ80 —
11101-17040 Head Sub-assy, Cylinder
1995-01 → 1996-05 ended
1HDFT HDJ80 —
11101-17041 Head Sub-assy, Cylinder
1996-05 → 1998-01 ended
1HDFT HDJ80 —
11101-61080 Head Sub-assy, Cylinder
1990-01 → 1992-08 ended
3FE FJ80 —
11101-69105 Head Sub-assy, Cylinder
1992-08 → 1995-06 ended
1FZFE FZJ80 —
11101-69106 Head Sub-assy, Cylinder
1995-06 → 1998-01 ended
1FZFE FZJ80 —
11101-69105 Head Sub-assy, Cylinder
1992-08 → 1995-06 ended
1FZFE FZJ80 —
11101-69106 Head Sub-assy, Cylinder
1995-06 → 1997-12 ended
1FZFE FZJ80 —
11101-69107 Head Sub-assy, Cylinder
1997-12 → 1998-01 ended
1FZFE FZJ80 —
11101A — Bolt(FOR CYLINDER HEAD SET)
90105-13005 note Bolt(FOR CYLINDER HEAD SET)
1990-01 → 1992-08 ended
3FE FJ80 —
90910-02050 note Bolt(FOR CYLINDER HEAD SET)
1990-01 → 1992-08 ended
3FE FJ80 —
90910-02096 Bolt(FOR CYLINDER HEAD SET)
1990-01 → 1998-01 ended
1HDT,1HZ HDJ80,HZJ80 —
90910-02111 Bolt(FOR CYLINDER HEAD SET)
1992-08 → 1998-01 ended
1FZFE FZJ80 —
90910-02096 note Bolt(FOR CYLINDER HEAD SET)
1995-01 → 1998-01 ended
1HDFT HDJ80 —
90910-02119 note Bolt(FOR CYLINDER HEAD SET)
1995-01 → 1998-01 ended
1HDFT HDJ80 —
11101B — Washer, Plate(FOR CYLINDER HEAD SET)
90201-11027 Washer, Plate(FOR CYLINDER HEAD SET)
1990-01 → 1995-01 ended
1H# HDJ80,HZJ80 —
90201-11032 Washer, Plate(FOR CYLINDER HEAD SET)
1995-01 → 1998-01 ended
1H# HDJ80,HZJ80 —
90201-12222 Washer, Plate(FOR CYLINDER HEAD SET)
1992-08 → 1998-01 ended
1FZFE FZJ80 —
11101D — Bolt, Stud(FOR WATER OUTLET)
90126-08008 Bolt, Stud(FOR WATER OUTLET)
1992-08 → 1998-01 ended
1FZFE FZJ80 —
11101G — Union(FOR CYLINDER HEAD)
90406-08011 note Union(FOR CYLINDER HEAD)
1992-08 → 1998-01 ended
1FZFE FZJ80 —
90406-17007 note Union(FOR CYLINDER HEAD)
1992-08 → 1998-01 ended
1FZFE FZJ80 —
11101H — Gasket(FOR CYLINDER HEAD SCREW PLUG)
90430-27005 Gasket(FOR CYLINDER HEAD SCREW PLUG)
1992-08 → 1998-01 ended
1FZFE FZJ80 —
11115 — Gasket, Cylinder Head
11115-17010-01 note Gasket, Cylinder Head
1990-01 → 1998-01 ended
1HDT,1HZ HDJ80,HZJ80 —
11115-17010-03 note Gasket, Cylinder Head
1990-01 → 1998-01 ended
1HDT,1HZ HDJ80,HZJ80 —
11115-17010-05 note Gasket, Cylinder Head
1990-01 → 1998-01 ended
1HDT,1HZ HDJ80,HZJ80 —
11115-61030 note Gasket, Cylinder Head
1990-01 → 1992-08 ended
3FE FJ80 —
11115-66020 Gasket, Cylinder Head
1992-08 → 1998-01 ended
1FZFE FZJ80 —
11115-17030-01 note Gasket, Cylinder Head
1995-01 → 1998-01 ended
1HDFT HDJ80 —
11115-17030-03 note Gasket, Cylinder Head
1995-01 → 1998-01 ended
1HDFT HDJ80 —
11115-17030-05 note Gasket, Cylinder Head
1995-01 → 1998-01 ended
1HDFT HDJ80 —
11117E — Plug, W/Head Straight Screw, NO.1
90341-27006 Plug, W/Head Straight Screw, NO.1
1992-08 → 1998-01 ended
1FZFE FZJ80 —
11117G — Plug, W/Head Straight Screw, NO.3
90341-16094 Plug, W/Head Straight Screw, NO.3
1992-08 → 1998-01 ended
1FZFE FZJ80 —
11122 — Bush, Intake Valve Guide
11122-17010 note Bush, Intake Valve Guide
1995-01 → 1998-01 ended
1HDFT HDJ80 —
11122-17020 note Bush, Intake Valve Guide
1997-05 → 1998-01 ended
1HZ HZJ80 —
11122-54020 note Bush, Intake Valve Guide
1990-01 → 1997-05 ended
1HDT,1HZ HDJ80,HZJ80 —
11122-61011 note Bush, Intake Valve Guide
1990-01 → 1992-08 ended
3FE FJ80 —
11122-66020 note Bush, Intake Valve Guide
1992-08 → 1998-01 ended
1FZFE FZJ80 —
11123-17010 note Bush, Intake Valve Guide
1995-01 → 1998-01 ended
1HDFT HDJ80 —
11123-17020 note Bush, Intake Valve Guide
1997-05 → 1998-01 ended
1HZ HZJ80 —
11123-54020 note Bush, Intake Valve Guide
1990-01 → 1997-05 ended
1HDT,1HZ HDJ80,HZJ80 —
11123-61011 note Bush, Intake Valve Guide
1990-01 → 1992-08 ended
3FE FJ80 —
11123-66020 note Bush, Intake Valve Guide
1992-08 → 1998-01 ended
1FZFE FZJ80 —
11126 — Bush, Exhaust Valve Guide
11122-17010 note Bush, Exhaust Valve Guide
1995-01 → 1998-01 ended
1HDFT HDJ80 —
11122-17020 note Bush, Exhaust Valve Guide
1997-05 → 1998-01 ended
1HZ HZJ80 —
11122-54020 note Bush, Exhaust Valve Guide
1990-01 → 1997-05 ended
1HDT,1HZ HDJ80,HZJ80 —
11122-66020 note Bush, Exhaust Valve Guide
1992-08 → 1998-01 ended
1FZFE FZJ80 —
11123-17010 note Bush, Exhaust Valve Guide
1995-01 → 1998-01 ended
1HDFT HDJ80 —
11123-17020 note Bush, Exhaust Valve Guide
1997-05 → 1998-01 ended
1HZ HZJ80 —
11123-54020 note Bush, Exhaust Valve Guide
1990-01 → 1997-05 ended
1HDT,1HZ HDJ80,HZJ80 —
11123-66020 note Bush, Exhaust Valve Guide
1992-08 → 1998-01 ended
1FZFE FZJ80 —
11126-61011 note Bush, Exhaust Valve Guide
1990-01 → 1992-08 ended
3FE FJ80 —
11127-61011 note Bush, Exhaust Valve Guide
1990-01 → 1992-08 ended
3FE FJ80 —
11131 — Seat, Intake Valve
11131-61010 note Seat, Intake Valve
1990-01 → 1992-08 ended
3FE FJ80 —
11131-66020 note Seat, Intake Valve
1992-08 → 1998-01 ended
1FZFE FZJ80 —
11132-61010 note Seat, Intake Valve
1990-01 → 1992-08 ended
3FE FJ80 —
11132-66020 note Seat, Intake Valve
1992-08 → 1998-01 ended
1FZFE FZJ80 —
11135 — Seat, Exhaust Valve
11135-60010 note Seat, Exhaust Valve
1990-01 → 1992-08 ended
3FE FJ80 —
11135-66010 note Seat, Exhaust Valve
1992-08 → 1998-01 ended
1FZFE FZJ80 —
11136-60030 note Seat, Exhaust Valve
1990-01 → 1992-08 ended
3FE FJ80 —
11136-66010 note Seat, Exhaust Valve
1992-08 → 1998-01 ended
1FZFE FZJ80 —
11151A — Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
90253-10006 note Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
1992-08 → 1998-01 ended
1FZFE FZJ80 —
90253-11021 note Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
1990-01 → 1998-01 ended
1HD#,1HZ HDJ80,HZJ80 —
11159A — Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
90119-07005 Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
1992-08 → 1998-01 ended
1FZFE FZJ80 —
90119-08789 Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
1990-01 → 1998-01 ended
1HDT,1HZ HDJ80,HZJ80 —
11183 — Plug, Semicircular
11183-50010 Plug, Semicircular
1992-08 → 1998-01 ended
1FZFE FZJ80 —
11183-54011 Plug, Semicircular
1990-01 → 1998-01 ended
1HD#,1HZ HDJ80,HZJ80 —
11193 — Gasket, Spark Plug Tube
11193-15010 Gasket, Spark Plug Tube
1992-08 → 1998-01 ended
1FZFE FZJ80 —
11201 — Cover Sub-assy, Cylinder Head
11201-17010 Cover Sub-assy, Cylinder Head
1990-01 → 1998-01 ended
1HDT,1HZ HDJ80,HZJ80 —
11201-17030 Cover Sub-assy, Cylinder Head
1995-01 → 1998-01 ended
1HDFT HDJ80 —
11201-61041 Cover Sub-assy, Cylinder Head
1990-01 → 1992-08 ended
3FE FJ80 —
11201-66020 Cover Sub-assy, Cylinder Head
1992-08 → 1998-01 ended
1FZFE FZJ80 —
11201H — Bolt(FOR CYLINDER HEAD COVER)
90105-06221 Bolt(FOR CYLINDER HEAD COVER)
1992-08 → 1998-01 ended
1FZFE FZJ80 —
90109-06274 Bolt(FOR CYLINDER HEAD COVER)
1995-01 → 1997-03 ended
1HDFT HDJ80 —
90901-19047 Bolt(FOR CYLINDER HEAD COVER)
1997-03 → 1998-01 ended
1HDFT HDJ80 —
11212 — Cover, Cylinder Head, NO.2
11212-66010 Cover, Cylinder Head, NO.2
1992-08 → 1995-01 ended
1FZFE FZJ80 —
11212-66011 Cover, Cylinder Head, NO.2
1995-01 → 1998-01 ended
1FZFE FZJ80 —
11213 — Gasket, Cylinder Head Cover
11213-17010 Gasket, Cylinder Head Cover
1990-01 → 1998-01 ended
1HDT,1HZ HDJ80,HZJ80 —
11213-17020 Gasket, Cylinder Head Cover
1995-01 → 1998-01 ended
1HDFT HDJ80 —
11213-61020 Gasket, Cylinder Head Cover
1990-01 → 1992-08 ended
3FE FJ80 —
11213-66020 Gasket, Cylinder Head Cover
1992-08 → 1998-01 ended
1FZFE FZJ80 —
11219 — Cover, Cylinder Head, NO.3
11219-66010 Cover, Cylinder Head, NO.3
1992-08 → 1995-01 ended
1FZFE FZJ80 —
11219-66011 Cover, Cylinder Head, NO.3
1995-01 → 1998-01 ended
1FZFE FZJ80 —
12108 — Cap Sub-assy, Oil Filler
12180-55010 Cap Sub-assy, Oil Filler
1990-01 → 1993-06 ended
1H# HDJ80,HZJ80 —
12180-55010 Cap Sub-assy, Oil Filler
1993-06 → 1998-01 ended
1FZFE FZJ80 —
12180-55010 Cap Sub-assy, Oil Filler
1993-06 → 1998-01 ended
1HD#,1HZ HDJ80,HZJ80 —
12180-61010 Cap Sub-assy, Oil Filler
1990-01 → 1992-08 ended
3FE FJ80 —
12180-65011 Cap Sub-assy, Oil Filler
1992-08 → 1993-06 ended
1FZFE FZJ80 —
12108A — Gasket(FOR OIL FILLER CAP)
12195-71020 Gasket(FOR OIL FILLER CAP)
1990-01 → 1992-08 ended
3FE FJ80 —
90430-37004 Gasket(FOR OIL FILLER CAP)
1990-01 → 1998-01 ended
1FZFE FZJ80 —
90430-37004 Gasket(FOR OIL FILLER CAP)
1990-01 → 1998-01 ended
1HD#,1HZ HDJ80,HZJ80 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
