Toyota Land Cruiser
1990-01 → 1998-01 · chassis FJ80,FZJ80,HDJ80,HZJ80 · catalogue 791540 · Europe
Discontinued model
Data version 1998-01

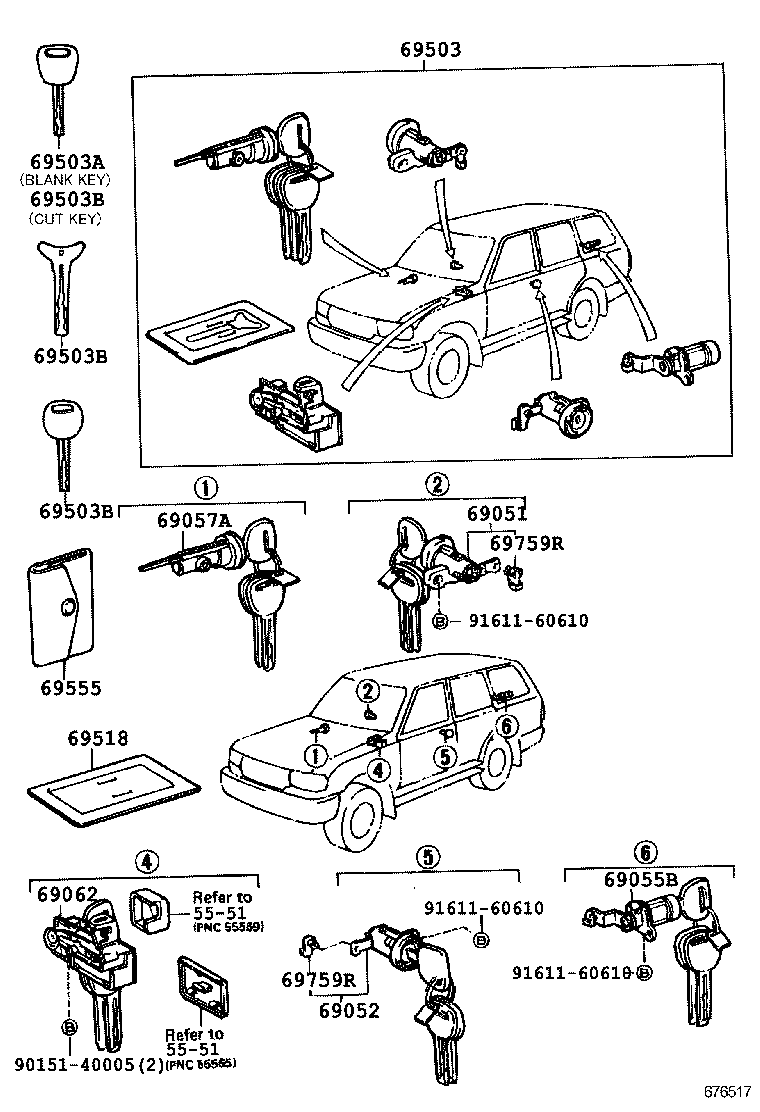

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 69051 — Cylinder & Key Set, Door Lock, RH | ||||
| 69051-60060 |
Cylinder & Key Set, Door Lock, RH
1990-01 → 1998-01
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 69052 — Cylinder & Key Set, Door Lock, LH | ||||
| 69052-60060 |
Cylinder & Key Set, Door Lock, LH
1990-01 → 1998-01
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 69055B — Cylinder & Key Set, Back Door Lock | ||||
| 69055-60070 |
Cylinder & Key Set, Back Door Lock
1990-01 → 1998-01
ended
|
FJ80,FZJ80,HDJ80,HZJ80 SOB | — | |
| 69055-60080 |
Cylinder & Key Set, Back Door Lock
1990-01 → 1998-01
ended
|
FJ80,FZJ80,HDJ80,HZJ80 LUB | — | |
| 69057A — Cylinder & Key Set, Ignition Switch Lock | ||||
| 69057-60040 |
Cylinder & Key Set, Ignition Switch Lock
1990-01 → 1996-05
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 69057-60040 |
Cylinder & Key Set, Ignition Switch Lock
1996-05 → 1998-01
ended
|
FZJ80,HZJ80 | — | |
| 69062 — Cylinder & Key Set, Glove Compartment Lock | ||||
| 69056-60030 |
Cylinder & Key Set, Glove Compartment Lock
1990-01 → 1998-01
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 69503 — Cylinder Set, Lock | ||||
| 69005-60190 |
Cylinder Set, Lock
1990-01 → 1996-05
ended
|
FJ80,FZJ80,HDJ80,HZJ80 SOB | — | |
| 69005-60190 |
Cylinder Set, Lock
1996-05 → 1998-01
ended
|
FZJ80,HZJ80 SOB | — | |
| 69005-60280 |
Cylinder Set, Lock
1990-01 → 1995-05
ended
|
FJ80,FZJ80,HDJ80,HZJ80 LUB | — | |
| 69005-60280 |
Cylinder Set, Lock
1995-05 → 1996-05
ended
|
HDJ80 LUB | — | |
| 69503A — Key, Blank | ||||
| 90999-00177 note |
Key, Blank
1990-01 → 1995-05
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 90999-00177 note |
Key, Blank
1995-05 → 1996-03
ended
|
HDJ80;FZJ80,HZJ80 SOB | — | |
| 90999-00177 note |
Key, Blank
1996-03 → 1998-01
ended
|
FZJ80,HZJ80 SOB | — | |
| 69503B — Key, Cut | ||||
| 69515-50080 note |
Key, Cut
1996-03 → 1998-01
ended
|
FZJ80,HZJ80 SOB | — | |
| 69515-50080 note |
Key, Cut
1995-05 → 1996-03
ended
|
HDJ80;FZJ80,HZJ80 SOB | — | |
| 69515-50080 note |
Key, Cut
1992-08 → 1995-05
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 69515-60020 note |
Key, Cut
1990-01 → 1995-05
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 69515-60020 note |
Key, Cut
1995-05 → 1996-03
ended
|
HDJ80;FZJ80,HZJ80 SOB | — | |
| 69515-60020 note |
Key, Cut
1996-03 → 1998-01
ended
|
FZJ80,HZJ80 SOB | — | |
| 69515-60030 note |
Key, Cut
1990-01 → 1992-08
ended
|
FJ80,HDJ80,HZJ80 | — | |
| 69516-60020 note |
Key, Cut
1995-05 → 1996-03
ended
|
HDJ80;FZJ80,HZJ80 SOB | — | |
| 69516-60020 note |
Key, Cut
1996-03 → 1998-01
ended
|
FZJ80,HZJ80 SOB | — | |
| 69516-60020 note |
Key, Cut
1990-01 → 1995-05
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 69518 — Card, Spare Key | ||||
| 69518-60010 |
Card, Spare Key
1996-03 → 1998-01
ended
|
FZJ80,HZJ80 SOB | — | |
| 69518-60010 |
Card, Spare Key
1995-05 → 1996-03
ended
|
HDJ80;FZJ80,HZJ80 SOB | — | |
| 69518-60010 |
Card, Spare Key
1990-01 → 1995-05
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 69555 — Cover, Key | ||||
| 69555-60010 |
Cover, Key
1990-01 → 1993-08
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 69759R — Snap, Front Door Lock Cylinder | ||||
| 69759-24080 note |
Snap, Front Door Lock Cylinder
1990-01 → 1995-05
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 69759-24080 note |
Snap, Front Door Lock Cylinder
1995-05 → 1996-03
ended
|
HDJ80;FZJ80,HZJ80 SOB | — | |
| 69759-24080 note |
Snap, Front Door Lock Cylinder
1996-03 → 1998-01
ended
|
FZJ80,HZJ80 SOB | — | |
| 69759-24090 note |
Snap, Front Door Lock Cylinder
1990-01 → 1992-08
ended
|
FJ80,HDJ80,HZJ80 | — | |
| 69759-24090 note |
Snap, Front Door Lock Cylinder
1992-08 → 1995-05
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 69759-24090 note |
Snap, Front Door Lock Cylinder
1995-05 → 1996-03
ended
|
HDJ80;FZJ80,HZJ80 SOB | — | |
| 69759-24090 note |
Snap, Front Door Lock Cylinder
1996-03 → 1998-01
ended
|
FZJ80,HZJ80 SOB | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
