Toyota Land Cruiser
1990-01 → 1998-01 · chassis FJ80,FZJ80,HDJ80,HZJ80 · catalogue 791540 · Europe
Discontinued model
Data version 1998-01

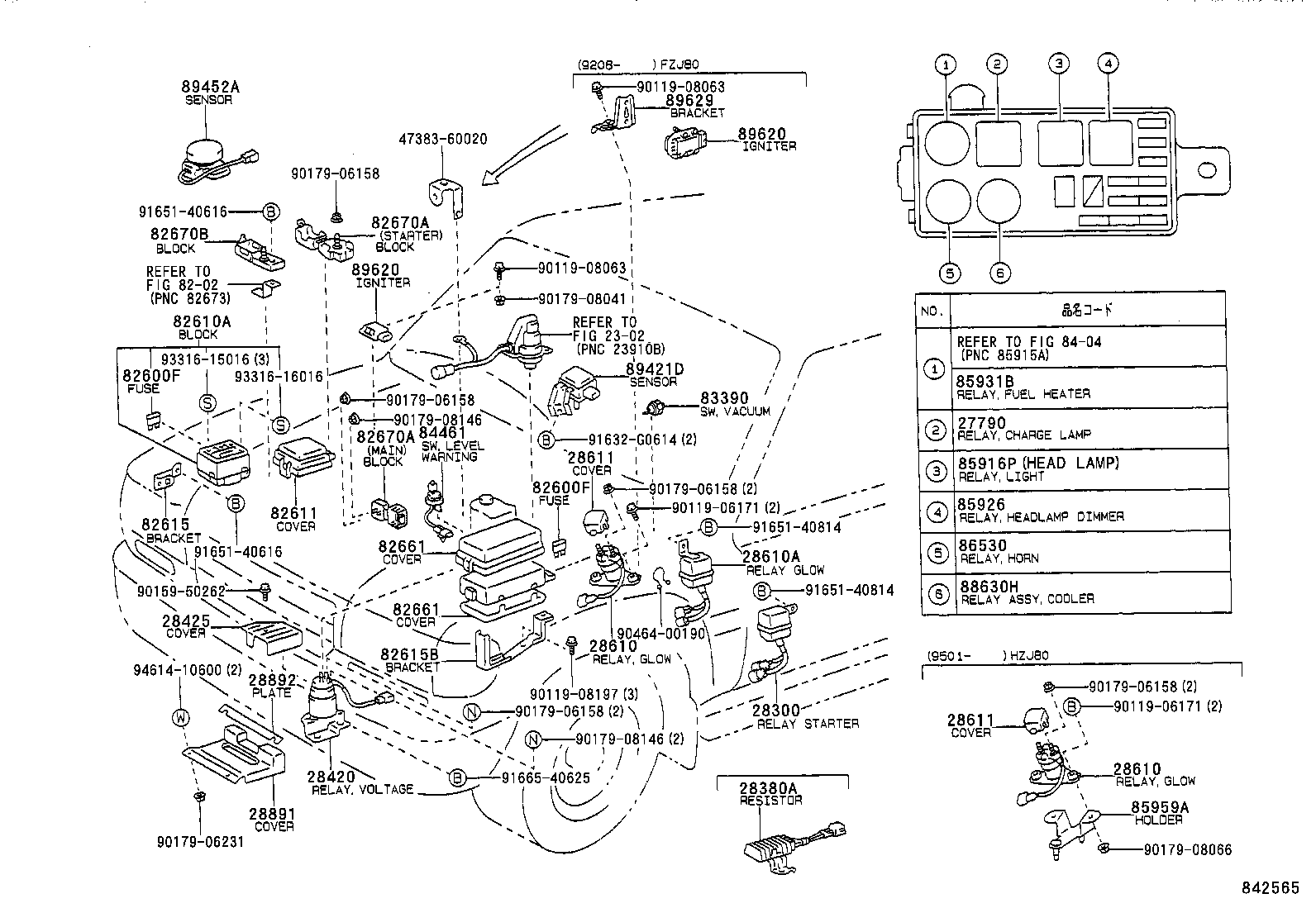

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 27790 — Relay Assy, Charge Lamp | ||||
| 27790-13010 |
Relay Assy, Charge Lamp
1990-01 → 1992-08
ended
|
3FE FJ80 | — | |
| 28300 — Relay Assy, Starter | ||||
| 28300-17020 |
Relay Assy, Starter
1990-01 → 1998-01
ended
|
1HD#,1HZ HDJ80,HZJ80 | — | |
| 28380A — Resister, Fuel Pump | ||||
| 23080-66010 |
Resister, Fuel Pump
1992-08 → 1995-01
ended
|
1FZFE FZJ80 | — | |
| 23080-66030 |
Resister, Fuel Pump
1995-01 → 1998-01
ended
|
1FZFE FZJ80 | — | |
| 28420 — Relay Assy, Voltage Converter | ||||
| 28420-17010 |
Relay Assy, Voltage Converter
1990-01 → 1990-05
ended
|
1H# HDJ80,HZJ80 | — | |
| 28420-17011 |
Relay Assy, Voltage Converter
1990-05 → 1998-01
ended
|
1HD#,1HZ HDJ80,HZJ80 | — | |
| 28425 — Cover, Voltage Converter Relay | ||||
| 28425-17010 |
Cover, Voltage Converter Relay
1990-01 → 1998-01
ended
|
1HD#,1HZ HDJ80,HZJ80 | — | |
| 28610 — Relay Assy, Intake Heater OR Glow Plug | ||||
| 28610-17010 |
Relay Assy, Intake Heater OR Glow Plug
1990-01 → 1990-11
ended
|
1H# HDJ80,HZJ80 | — | |
| 28610-17060 |
Relay Assy, Intake Heater OR Glow Plug
1990-11 → 1996-08
ended
|
1HDT,1HZ HDJ80,HZJ80 | — | |
| 28610-17060 |
Relay Assy, Intake Heater OR Glow Plug
1996-08 → 1998-01
ended
|
1HZ HZJ80 | — | |
| 28610-17080 |
Relay Assy, Intake Heater OR Glow Plug
1995-01 → 1998-01
ended
|
1HDFT HDJ80 | — | |
| 28610A — Relay Assy, Glow Plug(SUB) | ||||
| 28610-17020 |
Relay Assy, Glow Plug(SUB)
1996-08 → 1998-01
ended
|
1HZ HZJ80 | — | |
| 28610-17020 |
Relay Assy, Glow Plug(SUB)
1990-01 → 1996-08
ended
|
1HDT,1HZ HDJ80,HZJ80 | — | |
| 28611 — Cover, Glow Plug Relay | ||||
| 28611-55010 |
Cover, Glow Plug Relay
1990-01 → 1996-08
ended
|
1HD#,1HZ HDJ80,HZJ80 | — | |
| 28611-55010 |
Cover, Glow Plug Relay
1996-08 → 1998-01
ended
|
1H# HDJ80,HZJ80 | — | |
| 28891 — Cover, Battery Terminal | ||||
| 28891-17010 |
Cover, Battery Terminal
1990-01 → 1998-01
ended
|
1HD#,1HZ HDJ80,HZJ80 | — | |
| 28892 — Plate, Battery Terminal Cover | ||||
| 28892-17010 |
Plate, Battery Terminal Cover
1990-01 → 1998-01
ended
|
1HD#,1HZ HDJ80,HZJ80 | — | |
| 82600F — Fuse, Fuse Block | ||||
| 90982-07011 note |
Fuse, Fuse Block
1996-05 → 1996-08
ended
|
FZJ80 RHD;HDJ80,HZJ80;FZJ80 GX,STD | — | |
| 90982-07011 note |
Fuse, Fuse Block
1995-01 → 1996-05
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 90982-07011 note |
Fuse, Fuse Block
1996-08 → 1998-01
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 90982-07011 note |
Fuse, Fuse Block
1990-01 → 1995-01
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 90982-09002 note |
Fuse, Fuse Block
1990-01 → 1995-01
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 90982-09002 note |
Fuse, Fuse Block
1996-08 → 1998-01
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 90982-09002 note |
Fuse, Fuse Block
1996-05 → 1996-08
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 90982-09002 note |
Fuse, Fuse Block
1990-01 → 1991-08
ended
|
FJ80,HDJ80,HZJ80 | — | |
| 90982-09002 note |
Fuse, Fuse Block
1991-08 → 1995-01
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 90982-09002 note |
Fuse, Fuse Block
1990-01 → 1998-01
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 90982-09002 note |
Fuse, Fuse Block
1995-01 → 1996-05
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 90982-09003 note |
Fuse, Fuse Block
1990-01 → 1995-01
ended
|
HDJ80,HZJ80 | — | |
| 90982-09003 note |
Fuse, Fuse Block
1996-05 → 1996-08
ended
|
FZJ80 | — | |
| 90982-09003 note |
Fuse, Fuse Block
1995-01 → 1996-05
ended
|
FZJ80 | — | |
| 90982-09003 note |
Fuse, Fuse Block
1990-01 → 1991-08
ended
|
FJ80,HDJ80,HZJ80 | — | |
| 90982-09003 note |
Fuse, Fuse Block
1991-08 → 1995-01
ended
|
HDJ80 VX;FJ80,FZJ80 | — | |
| 90982-09003 note |
Fuse, Fuse Block
1991-08 → 1995-01
ended
|
HDJ80,HZJ80 GX,STD | — | |
| 90982-09003 note |
Fuse, Fuse Block
1995-01 → 1998-01
ended
|
HDJ80,HZJ80 | — | |
| 90982-09003 note |
Fuse, Fuse Block
1990-01 → 1995-01
ended
|
FJ80,FZJ80 | — | |
| 90982-09004 note |
Fuse, Fuse Block
1990-01 → 1998-01
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 90982-09004 note |
Fuse, Fuse Block
1996-05 → 1996-08
ended
|
FZJ80 RHD;HDJ80,HZJ80;FZJ80 GX,STD | — | |
| 90982-09004 note |
Fuse, Fuse Block
1996-08 → 1998-01
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 90982-09004 note |
Fuse, Fuse Block
1995-01 → 1996-05
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 90982-09004 note |
Fuse, Fuse Block
1991-08 → 1995-01
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 90982-09004 note |
Fuse, Fuse Block
1990-01 → 1995-01
ended
|
HDJ80,HZJ80 | — | |
| 90982-09004 note |
Fuse, Fuse Block
1990-01 → 1991-08
ended
|
FJ80,HDJ80,HZJ80 | — | |
| 90982-09005 note |
Fuse, Fuse Block
1996-05 → 1996-08
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 90982-09005 note |
Fuse, Fuse Block
1990-01 → 1995-01
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 90982-09005 note |
Fuse, Fuse Block
1990-01 → 1995-01
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 90982-09005 note |
Fuse, Fuse Block
1996-08 → 1998-01
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 90982-09005 note |
Fuse, Fuse Block
1995-01 → 1996-05
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 82610A — Block Assy, Fuse | ||||
| 82610-60060 |
Block Assy, Fuse
1990-01 → 1998-01
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 82611 — Cover, Fuse Block | ||||
| 82611-90K00 |
Cover, Fuse Block
1990-01 → 1998-01
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 82615 — Bracket, Fuse | ||||
| 82615-60020 |
Bracket, Fuse
1990-01 → 1998-01
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 82615B — Bracket, Fuse NO.2 | ||||
| 82605-60010 |
Bracket, Fuse NO.2
1992-08 → 1998-01
ended
|
FZJ80 | — | |
| 82615-60010 |
Bracket, Fuse NO.2
1990-01 → 1998-01
ended
|
FJ80,HDJ80,HZJ80 | — | |
| 82661 — Cover, Relay Block, NO.1 | ||||
| 82662-60020 note |
Cover, Relay Block, NO.1
1990-01 → 1992-08
ended
|
FJ80 | — | |
| 82662-60040 note |
Cover, Relay Block, NO.1
1990-01 → 1992-08
ended
|
HDJ80,HZJ80 | — | |
| 82662-60050 note |
Cover, Relay Block, NO.1
1995-01 → 1996-05
ended
|
FZJ80 RHD | — | |
| 82662-60050 note |
Cover, Relay Block, NO.1
1996-08 → 1998-01
ended
|
FZJ80 RHD | — | |
| 82662-60060 note |
Cover, Relay Block, NO.1
1992-08 → 1998-01
ended
|
FZJ80 LHD | — | |
| 82662-60080 note |
Cover, Relay Block, NO.1
1992-08 → 1996-05
ended
|
HDJ80,HZJ80 | — | |
| 82662-60080 note |
Cover, Relay Block, NO.1
1996-05 → 1996-08
ended
|
HDJ80,HZJ80 LHD | — | |
| 82662-60080 note |
Cover, Relay Block, NO.1
1996-08 → 1998-01
ended
|
HDJ80,HZJ80 | — | |
| 82663-60010 note |
Cover, Relay Block, NO.1
1990-01 → 1996-05
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 82663-60010 note |
Cover, Relay Block, NO.1
1996-05 → 1996-08
ended
|
FZJ80,HDJ80,HZJ80 LHD | — | |
| 82663-60010 note |
Cover, Relay Block, NO.1
1996-08 → 1998-01
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 82670A — Block Assy, Junction, NO.1 | ||||
| 82670-60020 note |
Block Assy, Junction, NO.1
1990-01 → 1995-01
ended
|
HDJ80,HZJ80 | — | |
| 82670-60040 |
Block Assy, Junction, NO.1
1990-01 → 1996-05
ended
|
FJ80,FZJ80 | — | |
| 82670-60040 |
Block Assy, Junction, NO.1
1996-08 → 1998-01
ended
|
FZJ80 | — | |
| 82670-60040 |
Block Assy, Junction, NO.1
1996-05 → 1996-08
ended
|
FZJ80 LHD | — | |
| 82670-60050 note |
Block Assy, Junction, NO.1
1996-05 → 1996-08
ended
|
HDJ80,HZJ80 LHD | — | |
| 82670-60050 note |
Block Assy, Junction, NO.1
1996-08 → 1998-01
ended
|
HDJ80,HZJ80 | — | |
| 82670-60050 note |
Block Assy, Junction, NO.1
1995-01 → 1996-05
ended
|
HDJ80,HZJ80 | — | |
| 82670-90800 note |
Block Assy, Junction, NO.1
1996-05 → 1996-08
ended
|
HDJ80,HZJ80 LHD | — | |
| 82670-90800 note |
Block Assy, Junction, NO.1
1990-01 → 1996-05
ended
|
HDJ80,HZJ80 | — | |
| 82670-90800 note |
Block Assy, Junction, NO.1
1996-08 → 1998-01
ended
|
HDJ80,HZJ80 | — | |
| 82670B — Block Assy, Junction, NO.2 | ||||
| 82670-60030 |
Block Assy, Junction, NO.2
1990-01 → 1996-05
ended
|
HDJ80,HZJ80 | — | |
| 82670-60030 |
Block Assy, Junction, NO.2
1996-08 → 1998-01
ended
|
HDJ80,HZJ80 | — | |
| 83390 — Switch Assy, Vacuum Warning | ||||
| 83390-12340 |
Switch Assy, Vacuum Warning
1992-08 → 1998-01
ended
|
HDJ80,HZJ80 | — | |
| 83390-30020 |
Switch Assy, Vacuum Warning
1990-01 → 1992-08
ended
|
HDJ80,HZJ80 | — | |
| 84461 — Switch, Level Warning | ||||
| 84461-60040 |
Switch, Level Warning
1990-01 → 1998-01
ended
|
HDJ80,HZJ80 | — | |
| 85916P — Relay, Headlamp | ||||
| 90987-02006 |
Relay, Headlamp
1990-01 → 1998-01
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 85926 — Relay, Headlamp Dimmer | ||||
| 85926-14020 |
Relay, Headlamp Dimmer
1990-02 → 1998-01
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 85926-30020 |
Relay, Headlamp Dimmer
1990-01 → 1990-02
ended
|
FJ80,HDJ80,HZJ80 | — | |
| 85931B — Relay, Fuel Heater | ||||
| 90987-02004 |
Relay, Fuel Heater
1990-01 → 1992-08
ended
|
HDJ80,HZJ80 | — | |
| 90987-02004 |
Relay, Fuel Heater
1992-08 → 1995-01
ended
|
HDJ80,HZJ80 | — | |
| 85959A — Holder, Relay | ||||
| 85959-60060 |
Holder, Relay
1995-01 → 1998-01
ended
|
HDJ80 | — | |
| 86530 — Relay Assy, Horn | ||||
| 90987-01003 |
Relay Assy, Horn
1990-01 → 1998-01
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 88630H — Relay Assy, Cooler | ||||
| 90987-02004 |
Relay Assy, Cooler
1990-01 → 1992-08
ended
|
HDJ80 LHD ATM VX | — | |
| 89421D — Sensor, Turbo Pressure | ||||
| 89421-60030 |
Sensor, Turbo Pressure
1995-01 → 1998-01
ended
|
HDJ80 | — | |
| 89452A — Sensor, Throttle Position | ||||
| 89452-36010 |
Sensor, Throttle Position
1992-08 → 1998-01
ended
|
HDJ80 TD4;HDJ80 ATM | — | |
| 89620 — Igniter Assy | ||||
| 89621-26010 |
Igniter Assy
1992-08 → 1998-01
ended
|
FZJ80 | — | |
| 89621-30010 |
Igniter Assy
1990-01 → 1992-08
ended
|
FJ80 | — | |
| 89629 — Bracket, Igniter Assy | ||||
| 89629-60010 |
Bracket, Igniter Assy
1992-08 → 1998-01
ended
|
FZJ80 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
