Toyota Land Cruiser
1990-01 → 1998-01 · chassis FJ80,FZJ80,HDJ80,HZJ80 · catalogue 791540 · Europe
Discontinued model
Data version 1998-01

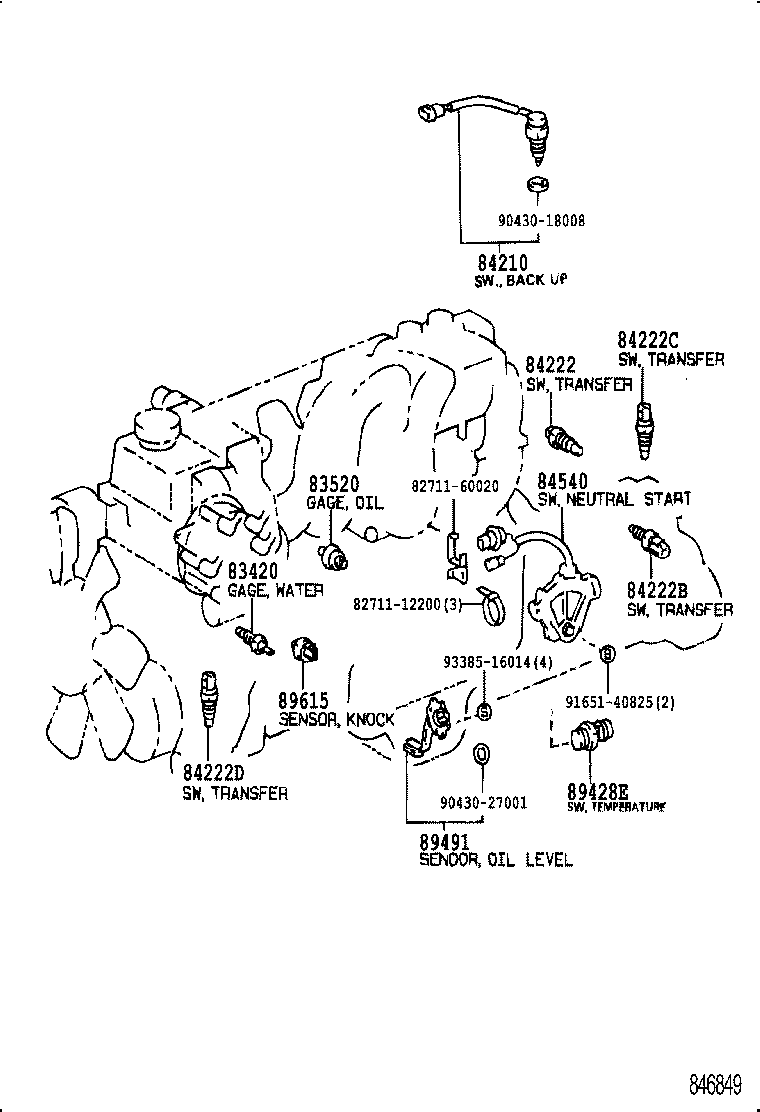

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83420 — Gage Assy, Water Temperature Sender | ||||
| 83420-16040 note |
Gage Assy, Water Temperature Sender
1992-08 → 1998-01
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 83420-16040 note |
Gage Assy, Water Temperature Sender
1995-06 → 1998-01
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 83420-20020 |
Gage Assy, Water Temperature Sender
1990-01 → 1992-08
ended
|
FJ80,HDJ80,HZJ80 | — | |
| 83420-20030 note |
Gage Assy, Water Temperature Sender
1992-08 → 1995-06
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 83520 — Gage Assy,Oil Pressure Sender | ||||
| 83520-60010 |
Gage Assy,Oil Pressure Sender
1990-01 → 1991-12
ended
|
FJ80,HDJ80,HZJ80 GX,VX | — | |
| 83520-60011 |
Gage Assy,Oil Pressure Sender
1991-12 → 1992-08
ended
|
FJ80,HDJ80,HZJ80 GX,VX | — | |
| 83520-60011 |
Gage Assy,Oil Pressure Sender
1992-08 → 1996-01
ended
|
HZJ80 GX;FZJ80,HDJ80 | — | |
| 83520-60011 |
Gage Assy,Oil Pressure Sender
1996-01 → 1998-01
ended
|
HDJ80;HZJ80 GX | — | |
| 83520-60040 |
Gage Assy,Oil Pressure Sender
1996-01 → 1998-01
ended
|
FZJ80 | — | |
| 84210 — Switch Assy, Back-up Lamp | ||||
| 84210-60030 |
Switch Assy, Back-up Lamp
1990-01 → 1992-08
ended
|
HDJ80,HZJ80 MTM | — | |
| 84210-60030 |
Switch Assy, Back-up Lamp
1992-08 → 1998-01
ended
|
FZJ80,HDJ80,HZJ80 MTM | — | |
| 84222 — Switch, Transfer Indicator, NO.1 | ||||
| 84222-12010 |
Switch, Transfer Indicator, NO.1
1990-01 → 1992-08
ended
|
FJ80,HDJ80,HZJ80 | — | |
| 84222-12010 |
Switch, Transfer Indicator, NO.1
1992-08 → 1998-01
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 84222B — Switch, Transfer Indicator, NO.2 | ||||
| 84222-60080 |
Switch, Transfer Indicator, NO.2
1990-01 → 1992-08
ended
|
FJ80,HDJ80,HZJ80 ATM | — | |
| 84222-60080 |
Switch, Transfer Indicator, NO.2
1992-08 → 1998-01
ended
|
FZJ80,HDJ80 ATM | — | |
| 84222C — Switch, Transfer Indicator, NO.3 | ||||
| 84222-12010 |
Switch, Transfer Indicator, NO.3
1990-01 → 1992-08
ended
|
FJ80,HDJ80,HZJ80 | — | |
| 84222-12010 |
Switch, Transfer Indicator, NO.3
1992-08 → 1998-01
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 84222D — Switch, Transfer Indicator, NO.4 | ||||
| 84222-12010 |
Switch, Transfer Indicator, NO.4
1990-01 → 1992-08
ended
|
FJ80,HDJ80,HZJ80 | — | |
| 84222-12010 |
Switch, Transfer Indicator, NO.4
1992-08 → 1995-01
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 84222-12010 |
Switch, Transfer Indicator, NO.4
1995-01 → 1995-03
ended
|
FZJ80,HDJ80 | — | |
| 84222-12010 |
Switch, Transfer Indicator, NO.4
1995-03 → 1998-01
ended
|
HZJ80 GX;FZJ80,HDJ80 | — | |
| 84540 — Switch Assy, Neutral Start | ||||
| 84540-60010 |
Switch Assy, Neutral Start
1990-01 → 1995-01
ended
|
FJ80,FZJ80,HDJ80,HZJ80 ATM | — | |
| 84540-60010 |
Switch Assy, Neutral Start
1992-08 → 1995-01
ended
|
FZJ80,HDJ80 ATM | — | |
| 84540-65010 |
Switch Assy, Neutral Start
1995-01 → 1998-01
ended
|
FZJ80 ATM | — | |
| 89428E — Switch, Temperature, NO.2 (FOR TRANSMISSION) | ||||
| 89428-26030 |
Switch, Temperature, NO.2 (FOR TRANSMISSION)
1990-01 → 1992-08
ended
|
FJ80,HDJ80,HZJ80 ATM | — | |
| 89428-26030 |
Switch, Temperature, NO.2 (FOR TRANSMISSION)
1992-08 → 1995-01
ended
|
FZJ80,HDJ80 ATM | — | |
| 89428-60090 |
Switch, Temperature, NO.2 (FOR TRANSMISSION)
1995-01 → 1998-01
ended
|
FZJ80 ATM | — | |
| 89491 — Sensor, Engine Oil Level | ||||
| 89491-36080 |
Sensor, Engine Oil Level
1992-08 → 1995-01
ended
|
HDJ80,HZJ80 | — | |
| 89491-36080 |
Sensor, Engine Oil Level
1995-01 → 1998-01
ended
|
HDJ80 | — | |
| 89491-60010 |
Sensor, Engine Oil Level
1992-08 → 1998-01
ended
|
FZJ80 | — | |
| 89615 — Sensor, Knock Control | ||||
| 89615-30050 |
Sensor, Knock Control
1992-08 → 1998-01
ended
|
FZJ80 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
