Toyota Land Cruiser
1990-01 → 1998-01 · chassis FJ80,FZJ80,HDJ80,HZJ80 · catalogue 791540 · Europe
Discontinued model
Data version 1998-01

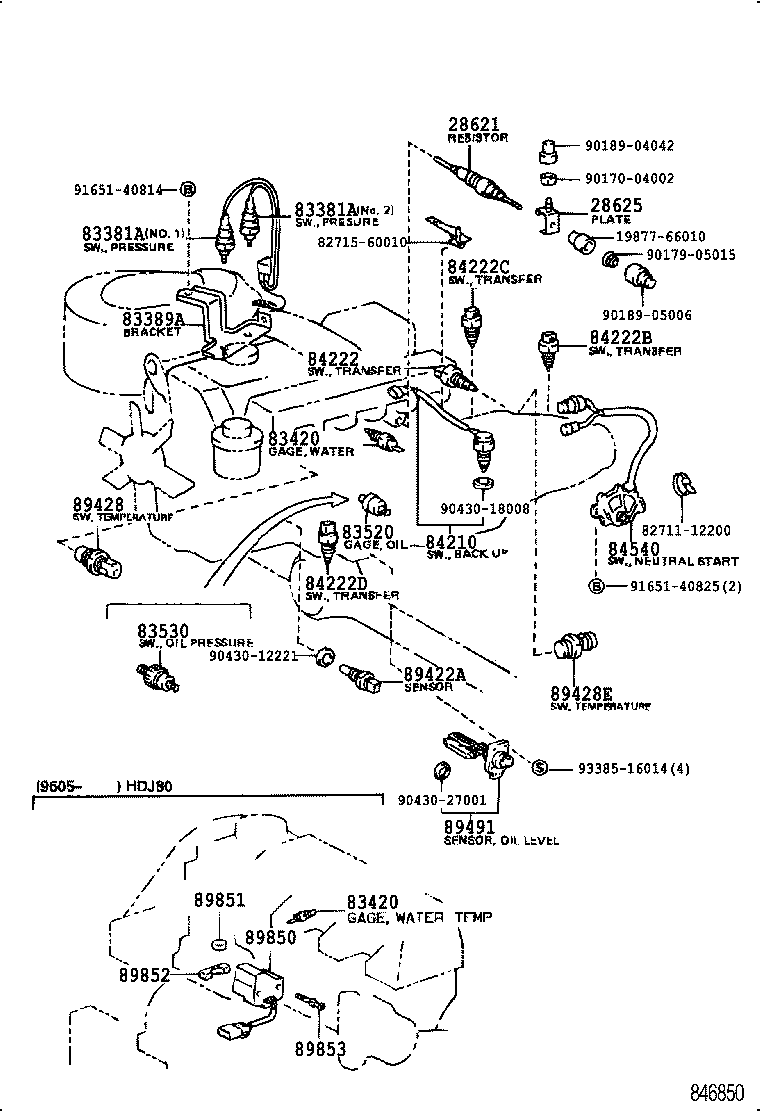

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28621 — Resistor, Glow Plug | ||||
| 28621-68010 |
Resistor, Glow Plug
1996-08 → 1998-01
ended
|
1HZ HZJ80 | — | |
| 28621-68010 |
Resistor, Glow Plug
1990-01 → 1996-08
ended
|
1HDT,1HZ HDJ80,HZJ80 | — | |
| 28625 — Plate, Glow Plug Resistor | ||||
| 28625-68040 |
Plate, Glow Plug Resistor
1990-01 → 1992-06
ended
|
1H# HDJ80,HZJ80 | — | |
| 83381A — Switch, Pressure | ||||
| 83381-16050 note |
Switch, Pressure
1990-01 → 1992-01
ended
|
HDJ80 | — | |
| 83381-16050 note |
Switch, Pressure
1992-01 → 1993-08
ended
|
HDJ80 | — | |
| 83381-60040 note |
Switch, Pressure
1990-01 → 1992-01
ended
|
HDJ80 | — | |
| 83381-60040 note |
Switch, Pressure
1992-01 → 1993-08
ended
|
HDJ80 | — | |
| 83381-60080 |
Switch, Pressure
1993-08 → 1995-01
ended
|
HDJ80 | — | |
| 83389A — Bracket, Pressure Switch | ||||
| 83389-60050 |
Bracket, Pressure Switch
1990-01 → 1992-01
ended
|
HDJ80 | — | |
| 83389-60050 |
Bracket, Pressure Switch
1992-01 → 1995-01
ended
|
HDJ80 | — | |
| 83420 — Gage Assy, Water Temperature Sender | ||||
| 83420-16040 note |
Gage Assy, Water Temperature Sender
1995-06 → 1998-01
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 83420-16040 note |
Gage Assy, Water Temperature Sender
1992-08 → 1998-01
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 83420-20020 |
Gage Assy, Water Temperature Sender
1990-01 → 1992-08
ended
|
FJ80,HDJ80,HZJ80 | — | |
| 83420-20030 note |
Gage Assy, Water Temperature Sender
1992-08 → 1995-06
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 83520 — Gage Assy,Oil Pressure Sender | ||||
| 83520-60010 |
Gage Assy,Oil Pressure Sender
1990-01 → 1991-12
ended
|
FJ80,HDJ80,HZJ80 GX,VX | — | |
| 83520-60011 |
Gage Assy,Oil Pressure Sender
1991-12 → 1992-08
ended
|
FJ80,HDJ80,HZJ80 GX,VX | — | |
| 83520-60011 |
Gage Assy,Oil Pressure Sender
1992-08 → 1996-01
ended
|
HZJ80 GX;FZJ80,HDJ80 | — | |
| 83520-60011 |
Gage Assy,Oil Pressure Sender
1996-01 → 1998-01
ended
|
HDJ80;HZJ80 GX | — | |
| 83520-60040 |
Gage Assy,Oil Pressure Sender
1996-01 → 1998-01
ended
|
FZJ80 | — | |
| 83530 — Switch Assy, Oil Pressure (FOR ENGINE) | ||||
| 83530-30060 |
Switch Assy, Oil Pressure (FOR ENGINE)
1990-01 → 1998-01
ended
|
HZJ80 STD | — | |
| 84210 — Switch Assy, Back-up Lamp | ||||
| 84210-60030 |
Switch Assy, Back-up Lamp
1990-01 → 1992-08
ended
|
HDJ80,HZJ80 MTM | — | |
| 84210-60030 |
Switch Assy, Back-up Lamp
1992-08 → 1998-01
ended
|
FZJ80,HDJ80,HZJ80 MTM | — | |
| 84222 — Switch, Transfer Indicator, NO.1 | ||||
| 84222-12010 |
Switch, Transfer Indicator, NO.1
1990-01 → 1992-08
ended
|
FJ80,HDJ80,HZJ80 | — | |
| 84222-12010 |
Switch, Transfer Indicator, NO.1
1992-08 → 1998-01
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 84222B — Switch, Transfer Indicator, NO.2 | ||||
| 84222-60080 |
Switch, Transfer Indicator, NO.2
1990-01 → 1992-08
ended
|
FJ80,HDJ80,HZJ80 ATM | — | |
| 84222-60080 |
Switch, Transfer Indicator, NO.2
1992-08 → 1998-01
ended
|
FZJ80,HDJ80 ATM | — | |
| 84222C — Switch, Transfer Indicator, NO.3 | ||||
| 84222-12010 |
Switch, Transfer Indicator, NO.3
1990-01 → 1992-08
ended
|
FJ80,HDJ80,HZJ80 | — | |
| 84222-12010 |
Switch, Transfer Indicator, NO.3
1992-08 → 1998-01
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 84222D — Switch, Transfer Indicator, NO.4 | ||||
| 84222-12010 |
Switch, Transfer Indicator, NO.4
1990-01 → 1992-08
ended
|
FJ80,HDJ80,HZJ80 | — | |
| 84222-12010 |
Switch, Transfer Indicator, NO.4
1992-08 → 1995-01
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 84222-12010 |
Switch, Transfer Indicator, NO.4
1995-01 → 1995-03
ended
|
FZJ80,HDJ80 | — | |
| 84222-12010 |
Switch, Transfer Indicator, NO.4
1995-03 → 1998-01
ended
|
HZJ80 GX;FZJ80,HDJ80 | — | |
| 84540 — Switch Assy, Neutral Start | ||||
| 84540-60010 |
Switch Assy, Neutral Start
1990-01 → 1995-01
ended
|
FJ80,FZJ80,HDJ80,HZJ80 ATM | — | |
| 84540-60010 |
Switch Assy, Neutral Start
1992-08 → 1995-01
ended
|
FZJ80,HDJ80 ATM | — | |
| 84540-65010 |
Switch Assy, Neutral Start
1995-01 → 1998-01
ended
|
FZJ80 ATM | — | |
| 89422A — Sensor, Water Temperature | ||||
| 89422-20010 |
Sensor, Water Temperature
1996-08 → 1998-01
ended
|
HDJ80,HZJ80 | — | |
| 89422-20010 |
Sensor, Water Temperature
1990-01 → 1996-08
ended
|
HDJ80,HZJ80 | — | |
| 89428 — Switch, Temperature Detect, NO.2 | ||||
| 89428-36030 |
Switch, Temperature Detect, NO.2
1992-08 → 1995-01
ended
|
HDJ80 ATM | — | |
| 89428E — Switch, Temperature, NO.2 (FOR TRANSMISSION) | ||||
| 89428-26030 |
Switch, Temperature, NO.2 (FOR TRANSMISSION)
1990-01 → 1992-08
ended
|
FJ80,HDJ80,HZJ80 ATM | — | |
| 89428-26030 |
Switch, Temperature, NO.2 (FOR TRANSMISSION)
1992-08 → 1995-01
ended
|
FZJ80,HDJ80 ATM | — | |
| 89428-60090 |
Switch, Temperature, NO.2 (FOR TRANSMISSION)
1995-01 → 1998-01
ended
|
FZJ80 ATM | — | |
| 89491 — Sensor, Engine Oil Level | ||||
| 89491-36080 |
Sensor, Engine Oil Level
1992-08 → 1995-01
ended
|
HDJ80,HZJ80 | — | |
| 89491-36080 |
Sensor, Engine Oil Level
1995-01 → 1998-01
ended
|
HDJ80 | — | |
| 89491-60010 |
Sensor, Engine Oil Level
1992-08 → 1998-01
ended
|
FZJ80 | — | |
| 89850 — Unit Assy, Fuel Cut Valve Control | ||||
| 89850-20011 |
Unit Assy, Fuel Cut Valve Control
1996-05 → 1998-01
ended
|
HDJ80 | — | |
| 89851 — Cap, Fuel Cut Valve Controller | ||||
| 89851-20010 |
Cap, Fuel Cut Valve Controller
1996-05 → 1998-01
ended
|
HDJ80 | — | |
| 89852 — Clamp, Fuel Cut Valve Controller | ||||
| 89852-20010 |
Clamp, Fuel Cut Valve Controller
1996-05 → 1998-01
ended
|
HDJ80 | — | |
| 89853 — Bolt, Fuel Cut Valve Controller | ||||
| 89853-20010 |
Bolt, Fuel Cut Valve Controller
1996-05 → 1998-01
ended
|
HDJ80 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
