Toyota Land Cruiser
1990-01 → 1998-01 · chassis FJ80,FZJ80,HDJ80,HZJ80 · catalogue 791540 · Europe
Discontinued model
Data version 1998-01

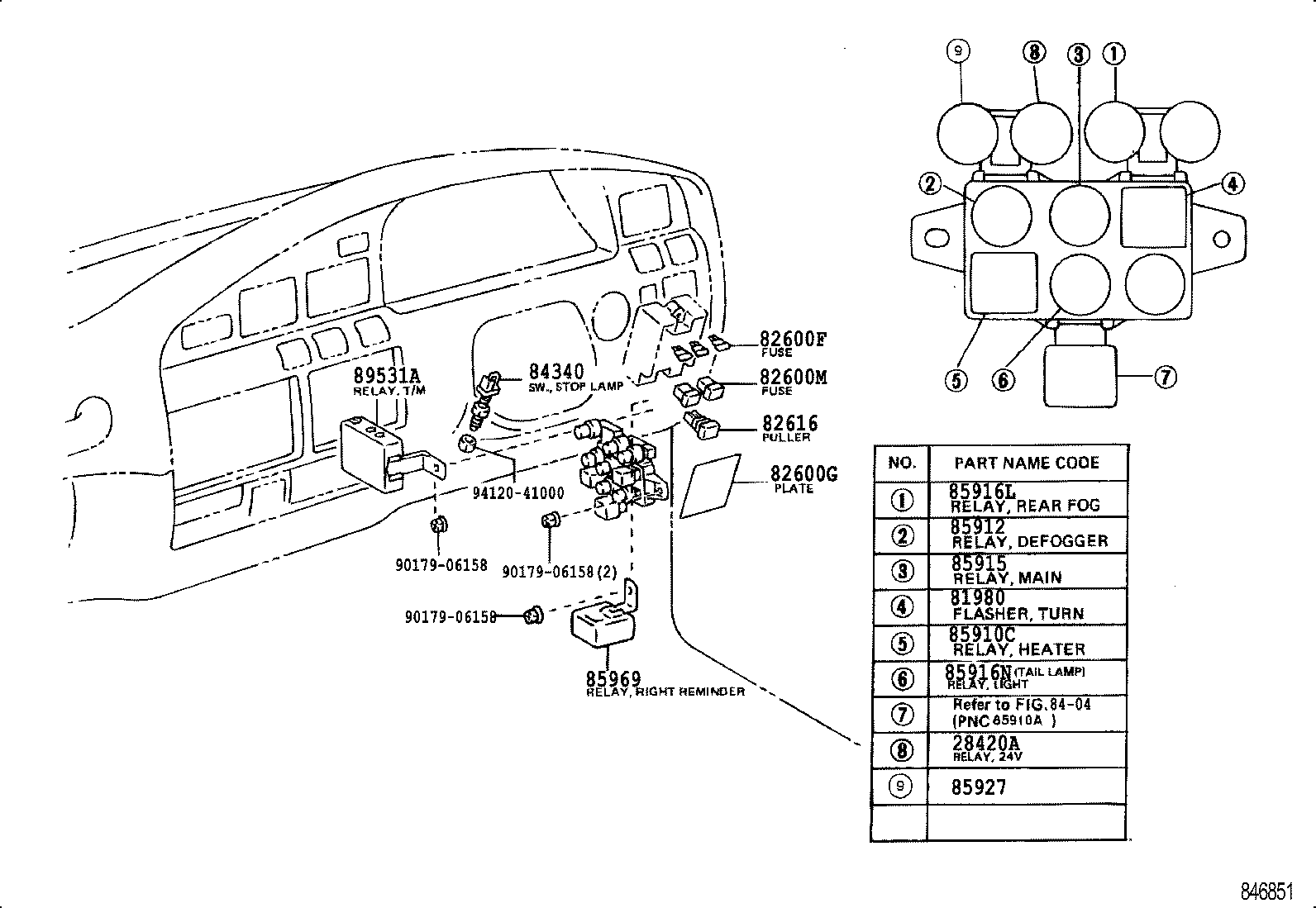

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28420A — Relay, 24V Hold Warning | ||||
| 90987-02004 |
Relay, 24V Hold Warning
1990-01 → 1998-01
ended
|
1HD#,1HZ HDJ80,HZJ80 | — | |
| 81980 — Flasher Assy, Turn Signal | ||||
| 81980-12070 |
Flasher Assy, Turn Signal
1990-01 → 1992-08
ended
|
FJ80,HDJ80,HZJ80 | — | |
| 81980-32010 |
Flasher Assy, Turn Signal
1992-08 → 1998-01
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 82600F — Fuse, Fuse Block | ||||
| 90982-07011 note |
Fuse, Fuse Block
1990-01 → 1995-01
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 90982-07011 note |
Fuse, Fuse Block
1996-05 → 1996-08
ended
|
FZJ80 RHD;HDJ80,HZJ80;FZJ80 GX,STD | — | |
| 90982-07011 note |
Fuse, Fuse Block
1996-08 → 1998-01
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 90982-07011 note |
Fuse, Fuse Block
1995-01 → 1996-05
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 90982-09002 note |
Fuse, Fuse Block
1990-01 → 1991-08
ended
|
FJ80,HDJ80,HZJ80 | — | |
| 90982-09002 note |
Fuse, Fuse Block
1996-05 → 1996-08
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 90982-09002 note |
Fuse, Fuse Block
1990-01 → 1995-01
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 90982-09002 note |
Fuse, Fuse Block
1990-01 → 1998-01
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 90982-09002 note |
Fuse, Fuse Block
1996-08 → 1998-01
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 90982-09002 note |
Fuse, Fuse Block
1991-08 → 1995-01
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 90982-09002 note |
Fuse, Fuse Block
1995-01 → 1996-05
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 90982-09003 note |
Fuse, Fuse Block
1996-05 → 1996-08
ended
|
FZJ80 | — | |
| 90982-09003 note |
Fuse, Fuse Block
1995-01 → 1996-05
ended
|
FZJ80 | — | |
| 90982-09003 note |
Fuse, Fuse Block
1991-08 → 1995-01
ended
|
HDJ80 VX;FJ80,FZJ80 | — | |
| 90982-09003 note |
Fuse, Fuse Block
1991-08 → 1995-01
ended
|
HDJ80,HZJ80 GX,STD | — | |
| 90982-09003 note |
Fuse, Fuse Block
1995-01 → 1998-01
ended
|
HDJ80,HZJ80 | — | |
| 90982-09003 note |
Fuse, Fuse Block
1990-01 → 1995-01
ended
|
FJ80,FZJ80 | — | |
| 90982-09003 note |
Fuse, Fuse Block
1990-01 → 1995-01
ended
|
HDJ80,HZJ80 | — | |
| 90982-09003 note |
Fuse, Fuse Block
1990-01 → 1991-08
ended
|
FJ80,HDJ80,HZJ80 | — | |
| 90982-09004 note |
Fuse, Fuse Block
1990-01 → 1998-01
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 90982-09004 note |
Fuse, Fuse Block
1996-05 → 1996-08
ended
|
FZJ80 RHD;HDJ80,HZJ80;FZJ80 GX,STD | — | |
| 90982-09004 note |
Fuse, Fuse Block
1996-08 → 1998-01
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 90982-09004 note |
Fuse, Fuse Block
1995-01 → 1996-05
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 90982-09004 note |
Fuse, Fuse Block
1991-08 → 1995-01
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 90982-09004 note |
Fuse, Fuse Block
1990-01 → 1991-08
ended
|
FJ80,HDJ80,HZJ80 | — | |
| 90982-09004 note |
Fuse, Fuse Block
1990-01 → 1995-01
ended
|
HDJ80,HZJ80 | — | |
| 90982-09005 note |
Fuse, Fuse Block
1996-05 → 1996-08
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 90982-09005 note |
Fuse, Fuse Block
1995-01 → 1996-05
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 90982-09005 note |
Fuse, Fuse Block
1996-08 → 1998-01
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 90982-09005 note |
Fuse, Fuse Block
1990-01 → 1995-01
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 90982-09005 note |
Fuse, Fuse Block
1990-01 → 1995-01
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 82600G — Plate, Caution(FOR FUSE) | ||||
| 82683-60020 |
Plate, Caution(FOR FUSE)
1990-01 → 1995-01
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 82683-60110 |
Plate, Caution(FOR FUSE)
1995-01 → 1998-01
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 82600M — Fuse, Medium Current | ||||
| 90982-10001 note |
Fuse, Medium Current
1990-01 → 1996-05
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 90982-10001 note |
Fuse, Medium Current
1996-05 → 1996-08
ended
|
FZJ80 RHD;HDJ80,HZJ80;FZJ80 GX,STD | — | |
| 90982-10001 note |
Fuse, Medium Current
1996-08 → 1998-01
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 82616 — Puller, Fuse | ||||
| 82616-12010 |
Puller, Fuse
1990-01 → 1996-05
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 82616-12010 |
Puller, Fuse
1996-05 → 1996-08
ended
|
FZJ80 RHD;HDJ80,HZJ80;FZJ80 GX,STD | — | |
| 82616-12010 |
Puller, Fuse
1996-08 → 1998-01
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 84340 — Switch Assy, Stop Lamp | ||||
| 84340-30030 |
Switch Assy, Stop Lamp
1990-01 → 1991-08
ended
|
FJ80,HDJ80,HZJ80 | — | |
| 84340-32050 |
Switch Assy, Stop Lamp
1991-08 → 1991-12
ended
|
FJ80,HDJ80,HZJ80 | — | |
| 84340-32090 |
Switch Assy, Stop Lamp
1995-01 → 1998-01
ended
|
HDJ80 LHD;FZJ80,HZJ80 GX,STD | — | |
| 84340-32090 |
Switch Assy, Stop Lamp
1992-08 → 1995-01
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 84340-32090 |
Switch Assy, Stop Lamp
1992-01 → 1992-08
ended
|
FJ80,HDJ80,HZJ80 | — | |
| 84340-32110 |
Switch Assy, Stop Lamp
1995-01 → 1998-01
ended
|
FZJ80 VX;HDJ80 RHD | — | |
| 84340-32110 note |
Switch Assy, Stop Lamp
1995-01 → 1998-01
ended
|
HDJ80 LHD VX | — | |
| 85910C — Relay Assy (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
Relay Assy (FOR HEATER BLOWER MOTOR)
1990-01 → 1998-01
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 85912 — Relay, Defogger | ||||
| 90987-02004 |
Relay, Defogger
1990-01 → 1998-01
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 85915 — Relay, Main | ||||
| 90987-02004 |
Relay, Main
1990-01 → 1998-01
ended
|
FJ80,FZJ80,HDJ80,HZJ80 GX,VX | — | |
| 85916L — Relay, Rear Fog Lamp | ||||
| 90987-02004 |
Relay, Rear Fog Lamp
1990-01 → 1996-05
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 85916N — Relay, Taillamp | ||||
| 90987-01003 |
Relay, Taillamp
1990-01 → 1998-01
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 85927 — Relay, Cooling Fan | ||||
| 88630-60040 note |
Relay, Cooling Fan
1990-01 → 1992-08
ended
|
FJ80,HDJ80 LHD VX | — | |
| 88630-60040 note |
Relay, Cooling Fan
1992-08 → 1993-05
ended
|
HDJ80 VX | — | |
| 88630-60040 note |
Relay, Cooling Fan
1993-05 → 1994-07
ended
|
HDJ80 RHD | — | |
| 88630-60040 |
Relay, Cooling Fan
1992-08 → 1998-01
ended
|
FZJ80 VX | — | |
| 88630-60040 note |
Relay, Cooling Fan
1993-05 → 1998-01
ended
|
HDJ80 LHD VX | — | |
| 88630-60040 note |
Relay, Cooling Fan
1993-05 → 1998-01
ended
|
HDJ80 RHD TD4 | — | |
| 90987-02004 |
Relay, Cooling Fan
1990-01 → 1992-08
ended
|
FJ80 | — | |
| 85969 — Relay, Light Reminder | ||||
| 85969-60010 |
Relay, Light Reminder
1990-01 → 1998-01
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 89531A — Relay, Transmission Control | ||||
| 89531-60010 |
Relay, Transmission Control
1990-01 → 1992-08
ended
|
FJ80,HDJ80,HZJ80 | — | |
| 89531-60010 |
Relay, Transmission Control
1992-08 → 1997-11
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 89531-60010 |
Relay, Transmission Control
1997-11 → 1998-01
ended
|
FZJ80,HDJ80,HZJ80 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
