Toyota Land Cruiser
1990-01 → 1998-01 · chassis FJ80,FZJ80,HDJ80,HZJ80 · catalogue 791540 · Europe
Discontinued model
Data version 1998-01

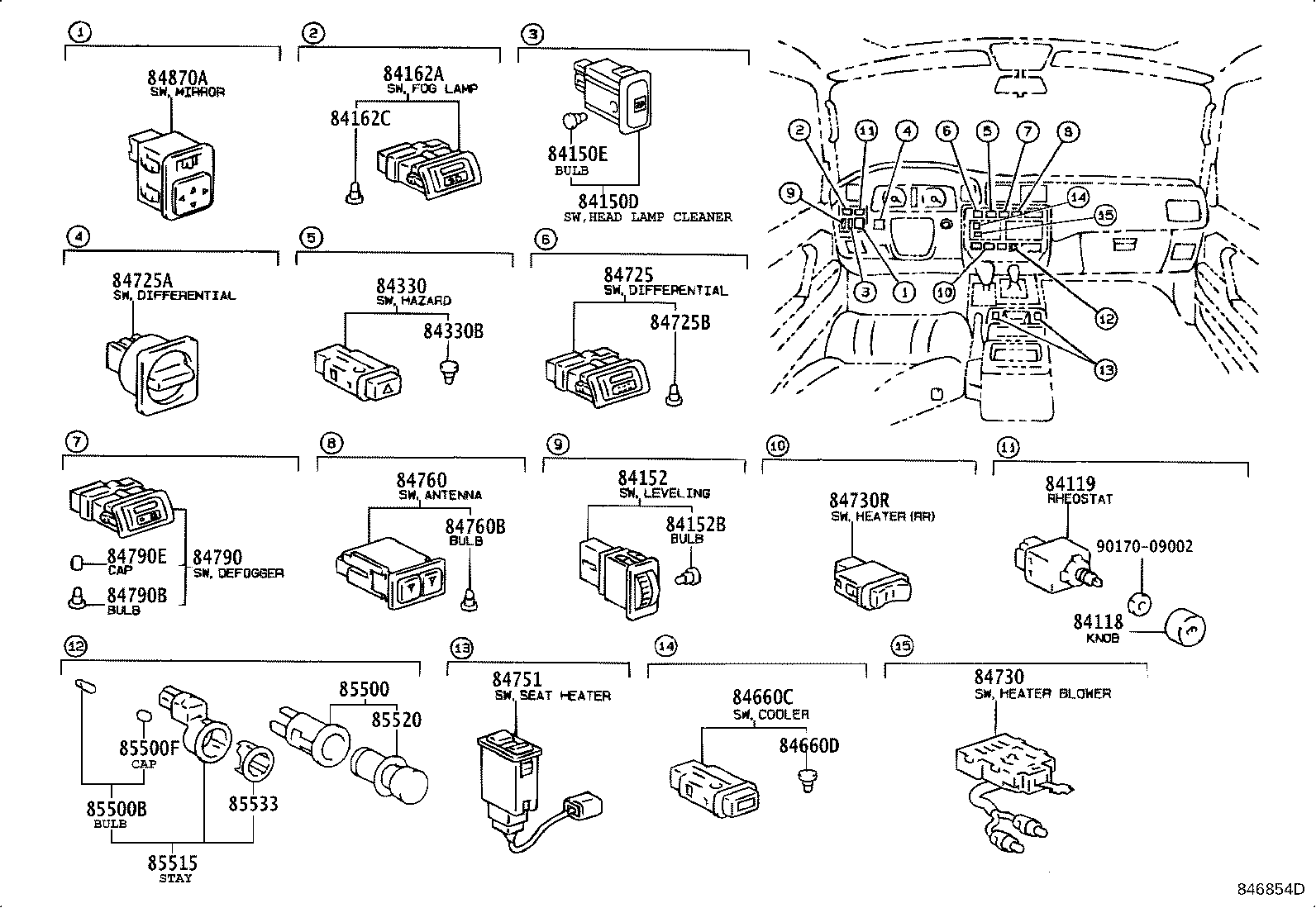

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84118 — Knob, Light Control Rheostat | ||||
| 84118-22030 |
Knob, Light Control Rheostat
1990-01 → 1998-01
ended
|
FJ80,FZJ80,HDJ80 VX | — | |
| 84119 — Rheostat, Light Control | ||||
| 84119-60010 |
Rheostat, Light Control
1990-01 → 1998-01
ended
|
FJ80,FZJ80,HDJ80 VX | — | |
| 84150D — Switch Assy, Headlamp Cleaner | ||||
| 84150-60010 |
Switch Assy, Headlamp Cleaner
1990-01 → 1992-01
ended
|
HDJ80 LHD;HZJ80 STD | — | |
| 84150-60010 |
Switch Assy, Headlamp Cleaner
1990-01 → 1992-08
ended
|
FJ80;HDJ80 RHD | — | |
| 84150-60010 |
Switch Assy, Headlamp Cleaner
1992-01 → 1992-08
ended
|
HDJ80,HZJ80 MTM (GX,STD) | — | |
| 84150-60010 |
Switch Assy, Headlamp Cleaner
1992-01 → 1992-08
ended
|
HDJ80 LHD ATM;HDJ80 LHD +2 | — | |
| 84150-60010 |
Switch Assy, Headlamp Cleaner
1992-08 → 1995-01
ended
|
FZJ80 | — | |
| 84150-60010 |
Switch Assy, Headlamp Cleaner
1992-08 → 1995-01
ended
|
HDJ80,HZJ80 | — | |
| 84150-60010 |
Switch Assy, Headlamp Cleaner
1990-01 → 1992-01
ended
|
HZJ80 GX | — | |
| 84150-60020 |
Switch Assy, Headlamp Cleaner
1995-01 → 1998-01
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 84150E — Bulb, Headlamp Cleaner Switch | ||||
| 84999-10320 note |
Bulb, Headlamp Cleaner Switch
1995-01 → 1998-01
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 84999-10320 note |
Bulb, Headlamp Cleaner Switch
1992-08 → 1995-01
ended
|
HDJ80,HZJ80 | — | |
| 84999-10320 note |
Bulb, Headlamp Cleaner Switch
1992-08 → 1995-01
ended
|
FZJ80 | — | |
| 84999-10320 note |
Bulb, Headlamp Cleaner Switch
1992-01 → 1992-08
ended
|
HDJ80 LHD ATM;HDJ80 LHD +2 | — | |
| 84999-10320 note |
Bulb, Headlamp Cleaner Switch
1990-01 → 1992-08
ended
|
FJ80;HDJ80 RHD | — | |
| 84999-10320 note |
Bulb, Headlamp Cleaner Switch
1990-01 → 1992-01
ended
|
HDJ80 LHD;HZJ80 STD | — | |
| 84999-10320 note |
Bulb, Headlamp Cleaner Switch
1990-01 → 1992-01
ended
|
HZJ80 GX | — | |
| 84999-10320 note |
Bulb, Headlamp Cleaner Switch
1992-01 → 1992-08
ended
|
HDJ80,HZJ80 MTM (GX,STD) | — | |
| 84152 — Switch, Headlamp Leveling | ||||
| 84152-60010 |
Switch, Headlamp Leveling
1992-08 → 1995-01
ended
|
HDJ80 LHD;HZJ80 SOB GX | — | |
| 84152-60010 |
Switch, Headlamp Leveling
1992-08 → 1994-07
ended
|
HDJ80 RHD | — | |
| 84152-60010 |
Switch, Headlamp Leveling
1992-01 → 1992-08
ended
|
HDJ80 LHD;HZJ80 SOB GX | — | |
| 84152-60010 |
Switch, Headlamp Leveling
1990-01 → 1992-08
ended
|
HDJ80 RHD | — | |
| 84152-60010 |
Switch, Headlamp Leveling
1991-08 → 1992-01
ended
|
HDJ80 LHD | — | |
| 84152-60010 |
Switch, Headlamp Leveling
1990-01 → 1991-08
ended
|
HDJ80,HZJ80 LHD | — | |
| 84152-60020 |
Switch, Headlamp Leveling
1995-01 → 1995-08
ended
|
FZJ80 LHD ATM | — | |
| 84152-60020 |
Switch, Headlamp Leveling
1995-01 → 1995-08
ended
|
FZJ80,HDJ80 LHD MTM | — | |
| 84152-60020 |
Switch, Headlamp Leveling
1995-01 → 1996-05
ended
|
FZJ80,HDJ80 RHD | — | |
| 84152-60020 |
Switch, Headlamp Leveling
1995-08 → 1996-05
ended
|
HDJ80 GX;FZJ80 LHD ATM | — | |
| 84152-60020 |
Switch, Headlamp Leveling
1995-08 → 1996-05
ended
|
FZJ80 MTM;HDJ80 LHD (STD,VX) | — | |
| 84152-60020 |
Switch, Headlamp Leveling
1996-05 → 1998-01
ended
|
FZJ80,HDJ80 | — | |
| 84152B — Bulb (FOR HEADLAMP LEVELING SWITCH) | ||||
| 84999-10630 note |
Bulb (FOR HEADLAMP LEVELING SWITCH)
1995-01 → 1995-08
ended
|
FZJ80 LHD ATM | — | |
| 84999-10630 note |
Bulb (FOR HEADLAMP LEVELING SWITCH)
1996-05 → 1998-01
ended
|
FZJ80,HDJ80 | — | |
| 84999-10630 note |
Bulb (FOR HEADLAMP LEVELING SWITCH)
1995-08 → 1996-05
ended
|
FZJ80 MTM;HDJ80 LHD (STD,VX) | — | |
| 84999-10630 note |
Bulb (FOR HEADLAMP LEVELING SWITCH)
1995-01 → 1996-05
ended
|
FZJ80,HDJ80 RHD | — | |
| 84999-10630 note |
Bulb (FOR HEADLAMP LEVELING SWITCH)
1995-01 → 1995-08
ended
|
FZJ80,HDJ80 LHD MTM | — | |
| 84999-10630 note |
Bulb (FOR HEADLAMP LEVELING SWITCH)
1995-08 → 1996-05
ended
|
HDJ80 GX;FZJ80 LHD ATM | — | |
| 84162A — Switch, Rear Fog Lamp | ||||
| 84160-60040 |
Switch, Rear Fog Lamp
1990-01 → 1995-01
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 84165-16020 |
Switch, Rear Fog Lamp
1996-05 → 1998-01
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 84165-60010 |
Switch, Rear Fog Lamp
1995-01 → 1996-05
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 84162C — Bulb (FOR REAR FOG LAMP SWITCH) | ||||
| 84999-10320 note |
Bulb (FOR REAR FOG LAMP SWITCH)
1990-01 → 1995-01
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 84999-10320 note |
Bulb (FOR REAR FOG LAMP SWITCH)
1995-01 → 1996-05
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 84999-20120 note |
Bulb (FOR REAR FOG LAMP SWITCH)
1996-05 → 1998-01
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 84330 — Switch Assy, Hazard Warning Signal | ||||
| 84332-20260 |
Switch Assy, Hazard Warning Signal
1991-08 → 1994-08
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 84332-42010 |
Switch Assy, Hazard Warning Signal
1994-08 → 1998-01
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 84332-60190 |
Switch Assy, Hazard Warning Signal
1990-01 → 1991-08
ended
|
FJ80,HDJ80,HZJ80 | — | |
| 84330B — Bulb, Hazard Warning Signal Switch | ||||
| 84999-10320 note |
Bulb, Hazard Warning Signal Switch
1992-08 → 1998-01
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 84999-10320 note |
Bulb, Hazard Warning Signal Switch
1990-01 → 1992-08
ended
|
FJ80,HDJ80,HZJ80 | — | |
| 84660C — Switch, Cooler | ||||
| 84660-60030 |
Switch, Cooler
1990-01 → 1992-01
ended
|
FJ80,HDJ80,HZJ80 GX,STD | — | |
| 84660-60030 |
Switch, Cooler
1992-01 → 1995-01
ended
|
HDJ80,HZJ80 GX,STD | — | |
| 84660-60030 |
Switch, Cooler
1992-01 → 1995-03
ended
|
FJ80,FZJ80 GX,STD | — | |
| 84660-60030 |
Switch, Cooler
1995-01 → 1998-01
ended
|
HDJ80 GX,STD | — | |
| 84660-60030 |
Switch, Cooler
1995-03 → 1998-01
ended
|
FZJ80,HZJ80 GX,STD | — | |
| 84660D — Bulb(FOR COOLER SWITCH) | ||||
| 88607-16010 note |
Bulb(FOR COOLER SWITCH)
1990-01 → 1992-01
ended
|
FJ80,HDJ80,HZJ80 GX,STD | — | |
| 88607-16010 note |
Bulb(FOR COOLER SWITCH)
1992-01 → 1995-01
ended
|
HDJ80,HZJ80 GX,STD | — | |
| 88607-16010 note |
Bulb(FOR COOLER SWITCH)
1992-01 → 1995-03
ended
|
FJ80,FZJ80 GX,STD | — | |
| 88607-16010 note |
Bulb(FOR COOLER SWITCH)
1995-01 → 1998-01
ended
|
HDJ80 GX,STD | — | |
| 88607-16010 note |
Bulb(FOR COOLER SWITCH)
1995-03 → 1998-01
ended
|
FZJ80,HZJ80 GX,STD | — | |
| 84725 — Switch, Center Differential Lock | ||||
| 84725-60010 |
Switch, Center Differential Lock
1990-01 → 1995-01
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 84725-60040 |
Switch, Center Differential Lock
1995-01 → 1998-01
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 84725A — Switch, Differential Lock | ||||
| 84725-60020 |
Switch, Differential Lock
1992-08 → 1995-01
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 84725-60020 |
Switch, Differential Lock
1990-01 → 1992-08
ended
|
FJ80,HDJ80,HZJ80 | — | |
| 84725-60020 |
Switch, Differential Lock
1995-01 → 1998-01
ended
|
HZJ80 GX;FZJ80,HDJ80 | — | |
| 84725B — Blub, Differential Lock Switch | ||||
| 84999-10320 note |
Blub, Differential Lock Switch
1992-08 → 1998-01
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 84730 — Switch Assy, Heater Blower | ||||
| 84732-60020 |
Switch Assy, Heater Blower
1990-01 → 1998-01
ended
|
FJ80,FZJ80,HDJ80,HZJ80 GX,STD | — | |
| 84730R — Switch Assy, Heater Blower | ||||
| 84730-60030 |
Switch Assy, Heater Blower
1990-01 → 1991-08
ended
|
FJ80,HDJ80,HZJ80 | — | |
| 84730-60030 |
Switch Assy, Heater Blower
1991-08 → 1992-01
ended
|
FJ80,HDJ80 VX | — | |
| 84730-60030 |
Switch Assy, Heater Blower
1991-08 → 1992-01
ended
|
FJ80 GX | — | |
| 84730-60030 |
Switch Assy, Heater Blower
1991-08 → 1992-08
ended
|
HDJ80,HZJ80 GX,STD | — | |
| 84730-60030 |
Switch Assy, Heater Blower
1992-01 → 1992-08
ended
|
HDJ80 VX | — | |
| 84730-60030 |
Switch Assy, Heater Blower
1992-01 → 1995-01
ended
|
FJ80,FZJ80 | — | |
| 84730-60030 |
Switch Assy, Heater Blower
1992-08 → 1995-01
ended
|
HDJ80,HZJ80 | — | |
| 84730-60030 |
Switch Assy, Heater Blower
1995-01 → 1998-01
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 84751 — Switch, Seat Heater | ||||
| 84751-60010 note |
Switch, Seat Heater
1990-01 → 1995-01
ended
|
FJ80,FZJ80,HDJ80,HZJ80 GX,VX | — | |
| 84751-60010 note |
Switch, Seat Heater
1995-01 → 1998-01
ended
|
FZJ80,HDJ80 GX,VX | — | |
| 84751-60020 note |
Switch, Seat Heater
1995-01 → 1998-01
ended
|
FZJ80,HDJ80 GX,VX | — | |
| 84751-60020 note |
Switch, Seat Heater
1990-01 → 1995-01
ended
|
FJ80,FZJ80,HDJ80,HZJ80 GX,VX | — | |
| 84760 — Switch Assy, Antenna | ||||
| 84760-60010 |
Switch Assy, Antenna
1990-01 → 1992-01
ended
|
FJ80,HDJ80,HZJ80 GX,VX | — | |
| 84760-60010 |
Switch Assy, Antenna
1992-01 → 1992-08
ended
|
FJ80,HDJ80,HZJ80 | — | |
| 84760-60010 |
Switch Assy, Antenna
1992-08 → 1995-01
ended
|
FZJ80,HDJ80,HZJ80 GX,VX | — | |
| 84760-60030 |
Switch Assy, Antenna
1995-01 → 1998-01
ended
|
FZJ80,HDJ80,HZJ80 GX,VX | — | |
| 84760B — Bulb, Antenna Switch | ||||
| 84999-10410 |
Bulb, Antenna Switch
1990-01 → 1992-01
ended
|
FJ80,HDJ80,HZJ80 GX,VX | — | |
| 84999-10410 |
Bulb, Antenna Switch
1992-01 → 1992-08
ended
|
FJ80,HDJ80,HZJ80 | — | |
| 84999-10410 |
Bulb, Antenna Switch
1992-08 → 1995-01
ended
|
FZJ80,HDJ80,HZJ80 GX,VX | — | |
| 84999-10420 |
Bulb, Antenna Switch
1995-01 → 1998-01
ended
|
FZJ80,HDJ80,HZJ80 GX,VX | — | |
| 84790 — Switch Assy, Rear Window Defogger | ||||
| 84790-16120 note |
Switch Assy, Rear Window Defogger
1995-01 → 1998-01
ended
|
FZJ80 LUB | — | |
| 84790-16120 note |
Switch Assy, Rear Window Defogger
1995-01 → 1998-01
ended
|
FZJ80 SOB | — | |
| 84790-60010 |
Switch Assy, Rear Window Defogger
1990-01 → 1992-01
ended
|
FJ80,HDJ80,HZJ80 | — | |
| 84790-60010 |
Switch Assy, Rear Window Defogger
1992-01 → 1995-01
ended
|
HDJ80,HZJ80 | — | |
| 84790-60020 |
Switch Assy, Rear Window Defogger
1992-01 → 1995-01
ended
|
FJ80,FZJ80 | — | |
| 84790-60020 note |
Switch Assy, Rear Window Defogger
1990-01 → 1992-01
ended
|
FJ80 LUB | — | |
| 84790-60020 note |
Switch Assy, Rear Window Defogger
1990-01 → 1992-01
ended
|
FJ80 SOB | — | |
| 84790-60030 |
Switch Assy, Rear Window Defogger
1995-01 → 1998-01
ended
|
HDJ80,HZJ80;FZJ80 GX,VX | — | |
| 84790-60030 |
Switch Assy, Rear Window Defogger
1995-01 → 1998-01
ended
|
FZJ80 STD | — | |
| 84790B — Bulb(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10320 note |
Bulb(FOR REAR WINDOW DEFOGGER SWITCH)
1990-01 → 1995-01
ended
|
FJ80,FZJ80 | — | |
| 84999-10320 note |
Bulb(FOR REAR WINDOW DEFOGGER SWITCH)
1992-08 → 1995-01
ended
|
HDJ80,HZJ80 | — | |
| 84999-10320 note |
Bulb(FOR REAR WINDOW DEFOGGER SWITCH)
1995-01 → 1998-01
ended
|
HDJ80,HZJ80;FZJ80 GX,VX | — | |
| 84999-10320 note |
Bulb(FOR REAR WINDOW DEFOGGER SWITCH)
1995-01 → 1998-01
ended
|
FZJ80 STD | — | |
| 84999-10780 note |
Bulb(FOR REAR WINDOW DEFOGGER SWITCH)
1995-01 → 1998-01
ended
|
FZJ80 SOB | — | |
| 84999-10780 note |
Bulb(FOR REAR WINDOW DEFOGGER SWITCH)
1995-01 → 1998-01
ended
|
FZJ80 LUB | — | |
| 84790E — Cap, Bulb(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84998-10290 |
Cap, Bulb(FOR REAR WINDOW DEFOGGER SWITCH)
1990-01 → 1992-08
ended
|
FJ80 | — | |
| 84998-10290 |
Cap, Bulb(FOR REAR WINDOW DEFOGGER SWITCH)
1992-08 → 1995-01
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 84998-10630 |
Cap, Bulb(FOR REAR WINDOW DEFOGGER SWITCH)
1995-01 → 1998-01
ended
|
HDJ80,HZJ80;FZJ80 GX,VX | — | |
| 84998-10630 |
Cap, Bulb(FOR REAR WINDOW DEFOGGER SWITCH)
1995-01 → 1998-01
ended
|
FZJ80 STD | — | |
| 84998-10640 note |
Cap, Bulb(FOR REAR WINDOW DEFOGGER SWITCH)
1995-01 → 1998-01
ended
|
FZJ80 SOB | — | |
| 84998-10640 note |
Cap, Bulb(FOR REAR WINDOW DEFOGGER SWITCH)
1995-01 → 1998-01
ended
|
FZJ80 LUB | — | |
| 84870A — Switch Assy, Outer Mirror | ||||
| 84870-20050 |
Switch Assy, Outer Mirror
1990-01 → 1995-01
ended
|
FJ80,FZJ80,HDJ80,HZJ80 GX,VX | — | |
| 84870-20050 |
Switch Assy, Outer Mirror
1995-01 → 1998-01
ended
|
FZJ80,HDJ80 GX,VX | — | |
| 85500 — Lighter Assy, Cigarette | ||||
| 85500-17040 |
Lighter Assy, Cigarette
1993-02 → 1995-01
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 85500-17060 |
Lighter Assy, Cigarette
1995-01 → 1998-01
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 85500-30440 |
Lighter Assy, Cigarette
1990-01 → 1993-02
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 85500B — Bulb, Cigarette Lighter | ||||
| 84999-10250 note |
Bulb, Cigarette Lighter
1990-01 → 1998-01
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 85500F — Cap, Cigarette Lighter Bulb | ||||
| 84998-10550 |
Cap, Cigarette Lighter Bulb
1990-01 → 1998-01
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 84998-10550 |
Cap, Cigarette Lighter Bulb
1992-08 → 1995-01
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 85515 — Stay, Cigarette Lighter Bezel | ||||
| 85515-22010 |
Stay, Cigarette Lighter Bezel
1990-01 → 1998-01
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 85520 — Knob And Element Assy, Cigarette Lighter | ||||
| 85520-20080 |
Knob And Element Assy, Cigarette Lighter
1993-02 → 1994-07
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 85520-30190 |
Knob And Element Assy, Cigarette Lighter
1990-01 → 1993-02
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 85533 — Lens, Cigarette Lighter Indicator | ||||
| 85533-30020 |
Lens, Cigarette Lighter Indicator
1995-01 → 1998-01
ended
|
FZJ80,HDJ80,HZJ80 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
