Toyota Land Cruiser
1990-01 → 1998-01 · chassis FJ80,FZJ80,HDJ80,HZJ80 · catalogue 791540 · Europe
Discontinued model
Data version 1998-01

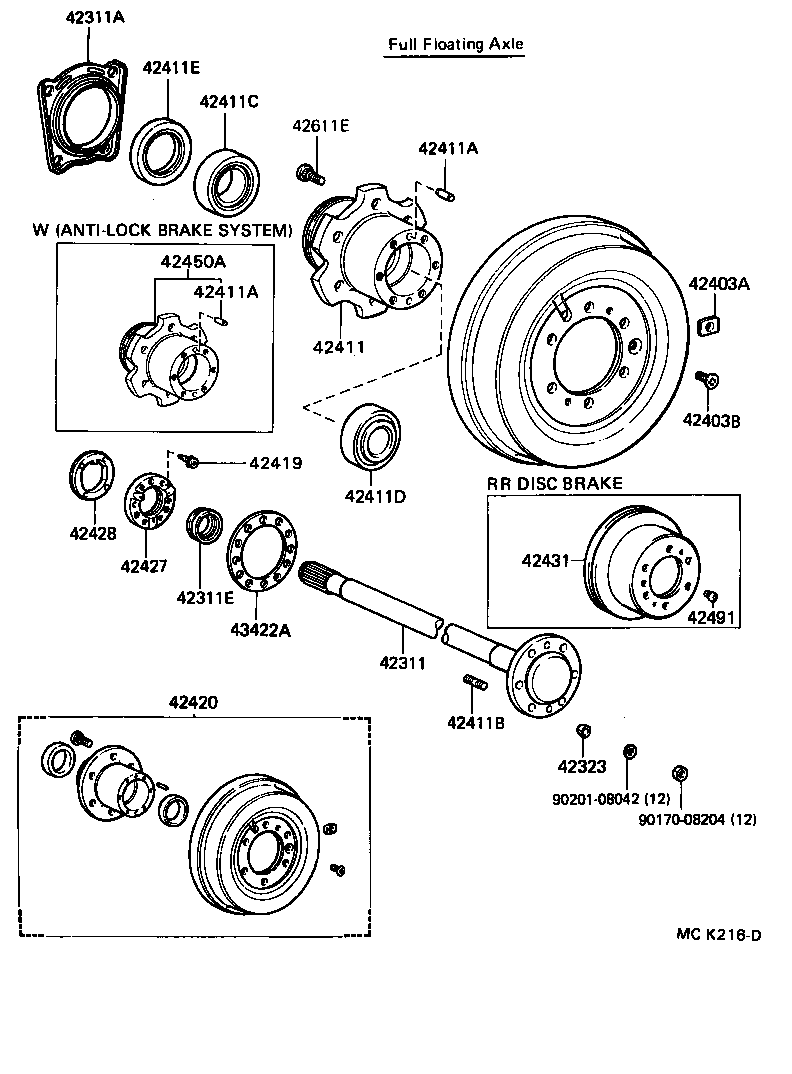

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 42311 — Shaft, Rear Axle | ||||
| 42311-60090 note |
Shaft, Rear Axle
1990-01 → 1992-08
ended
|
FJ80,HDJ80,HZJ80 | — | |
| 42311-60090 note |
Shaft, Rear Axle
1992-08 → 1998-01
ended
|
HZJ80 | — | |
| 42311-60100 note |
Shaft, Rear Axle
1990-01 → 1992-08
ended
|
FJ80,HDJ80,HZJ80 | — | |
| 42311-60100 note |
Shaft, Rear Axle
1992-08 → 1995-01
ended
|
HZJ80 | — | |
| 42311-60100 note |
Shaft, Rear Axle
1992-08 → 1998-01
ended
|
FZJ80,HDJ80 | — | |
| 42311-60110 note |
Shaft, Rear Axle
1992-08 → 1995-01
ended
|
HDJ80 MTM | — | |
| 42311-60110 note |
Shaft, Rear Axle
1992-03 → 1992-08
ended
|
HDJ80 MTM | — | |
| 42311-60110 note |
Shaft, Rear Axle
1992-03 → 1992-08
ended
|
HZJ80 GX;FJ80,HDJ80 ATM | — | |
| 42311-60110 note |
Shaft, Rear Axle
1992-08 → 1995-01
ended
|
HZJ80 STD | — | |
| 42311-60110 note |
Shaft, Rear Axle
1992-08 → 1995-01
ended
|
FZJ80,HDJ80 ATM | — | |
| 42311-60110 note |
Shaft, Rear Axle
1992-08 → 1995-01
ended
|
HZJ80 GX | — | |
| 42311-60110 note |
Shaft, Rear Axle
1990-01 → 1990-12
ended
|
HDJ80 MTM | — | |
| 42311-60110 note |
Shaft, Rear Axle
1995-01 → 1996-05
ended
|
FZJ80,HDJ80 MTM | — | |
| 42311-60110 note |
Shaft, Rear Axle
1995-01 → 1998-01
ended
|
FZJ80 ATM | — | |
| 42311-60110 note |
Shaft, Rear Axle
1995-03 → 1998-01
ended
|
HZJ80 GX | — | |
| 42311-60110 note |
Shaft, Rear Axle
1996-05 → 1998-01
ended
|
FZJ80,HDJ80 MTM LUB | — | |
| 42311-60110 note |
Shaft, Rear Axle
1996-05 → 1998-01
ended
|
FZJ80,HDJ80 STD | — | |
| 42311-60110 note |
Shaft, Rear Axle
1990-01 → 1990-12
ended
|
HZJ80 STD | — | |
| 42311-60110 note |
Shaft, Rear Axle
1990-01 → 1990-12
ended
|
HDJ80 LHD ATM;FJ80,HZJ80 GX,VX | — | |
| 42311-60110 note |
Shaft, Rear Axle
1990-12 → 1992-03
ended
|
HDJ80 LHD ATM;FJ80,HZJ80 GX,VX | — | |
| 42311-60110 note |
Shaft, Rear Axle
1990-12 → 1992-03
ended
|
HDJ80 MTM | — | |
| 42311-60110 note |
Shaft, Rear Axle
1992-03 → 1992-08
ended
|
HZJ80 STD | — | |
| 42311-60110 note |
Shaft, Rear Axle
1990-12 → 1992-03
ended
|
HZJ80 STD | — | |
| 42311-60110 note |
Shaft, Rear Axle
1990-01 → 1992-03
ended
|
HDJ80 RHD ATM | — | |
| 42312-60080 note |
Shaft, Rear Axle
1990-01 → 1992-08
ended
|
FJ80,HDJ80,HZJ80 | — | |
| 42312-60080 note |
Shaft, Rear Axle
1992-08 → 1998-01
ended
|
HZJ80 | — | |
| 42312-60090 note |
Shaft, Rear Axle
1992-08 → 1995-01
ended
|
HZJ80 GX | — | |
| 42312-60090 note |
Shaft, Rear Axle
1990-01 → 1990-12
ended
|
HZJ80 STD | — | |
| 42312-60090 note |
Shaft, Rear Axle
1995-03 → 1998-01
ended
|
HZJ80 GX | — | |
| 42312-60090 note |
Shaft, Rear Axle
1990-01 → 1990-12
ended
|
HDJ80 MTM | — | |
| 42312-60090 note |
Shaft, Rear Axle
1990-01 → 1990-12
ended
|
HDJ80 LHD ATM;FJ80,HZJ80 GX,VX | — | |
| 42312-60090 note |
Shaft, Rear Axle
1992-08 → 1998-01
ended
|
FZJ80,HDJ80 | — | |
| 42312-60090 note |
Shaft, Rear Axle
1990-01 → 1992-03
ended
|
HDJ80 RHD ATM | — | |
| 42312-60090 note |
Shaft, Rear Axle
1992-08 → 1995-01
ended
|
HZJ80 STD | — | |
| 42312-60090 note |
Shaft, Rear Axle
1990-12 → 1992-03
ended
|
HZJ80 STD | — | |
| 42312-60090 note |
Shaft, Rear Axle
1990-12 → 1992-03
ended
|
HDJ80 MTM | — | |
| 42312-60090 note |
Shaft, Rear Axle
1990-12 → 1992-03
ended
|
HDJ80 LHD ATM;FJ80,HZJ80 GX,VX | — | |
| 42312-60090 note |
Shaft, Rear Axle
1992-03 → 1992-08
ended
|
HZJ80 GX;FJ80,HDJ80 ATM | — | |
| 42312-60090 note |
Shaft, Rear Axle
1992-03 → 1992-08
ended
|
HDJ80 MTM | — | |
| 42312-60090 note |
Shaft, Rear Axle
1992-03 → 1992-08
ended
|
HZJ80 STD | — | |
| 42311A — Seal, Oil(FOR REAR AXLE SHAFT) | ||||
| 90313-93001 |
Seal, Oil(FOR REAR AXLE SHAFT)
1995-03 → 1998-01
ended
|
HZJ80 GX | — | |
| 90313-93001 |
Seal, Oil(FOR REAR AXLE SHAFT)
1992-08 → 1995-01
ended
|
HZJ80 | — | |
| 90313-93001 |
Seal, Oil(FOR REAR AXLE SHAFT)
1990-01 → 1992-08
ended
|
FJ80,HDJ80,HZJ80 | — | |
| 42311E — Seal, Oil(FOR REAR AXLE SHAFT OUTER) | ||||
| 90310-35001 note |
Seal, Oil(FOR REAR AXLE SHAFT OUTER)
1992-03 → 1992-08
ended
|
HDJ80 MTM | — | |
| 90310-35001 note |
Seal, Oil(FOR REAR AXLE SHAFT OUTER)
1995-03 → 1998-01
ended
|
HZJ80 GX | — | |
| 90310-35001 |
Seal, Oil(FOR REAR AXLE SHAFT OUTER)
1992-08 → 1998-01
ended
|
FZJ80,HDJ80 | — | |
| 90310-35001 note |
Seal, Oil(FOR REAR AXLE SHAFT OUTER)
1992-08 → 1995-01
ended
|
HZJ80 GX | — | |
| 90310-35001 note |
Seal, Oil(FOR REAR AXLE SHAFT OUTER)
1992-08 → 1995-01
ended
|
HZJ80 STD | — | |
| 90310-35001 note |
Seal, Oil(FOR REAR AXLE SHAFT OUTER)
1992-03 → 1992-08
ended
|
HZJ80 GX;FJ80,HDJ80 ATM | — | |
| 90310-35001 note |
Seal, Oil(FOR REAR AXLE SHAFT OUTER)
1992-03 → 1992-08
ended
|
HZJ80 STD | — | |
| 90310-35001 note |
Seal, Oil(FOR REAR AXLE SHAFT OUTER)
1990-12 → 1992-03
ended
|
HDJ80 LHD ATM;FJ80,HZJ80 GX,VX | — | |
| 90310-35001 note |
Seal, Oil(FOR REAR AXLE SHAFT OUTER)
1990-12 → 1992-03
ended
|
HDJ80 MTM | — | |
| 90310-35001 note |
Seal, Oil(FOR REAR AXLE SHAFT OUTER)
1990-12 → 1992-03
ended
|
HZJ80 STD | — | |
| 90310-35001 note |
Seal, Oil(FOR REAR AXLE SHAFT OUTER)
1990-01 → 1992-03
ended
|
HDJ80 RHD ATM | — | |
| 90310-35001 note |
Seal, Oil(FOR REAR AXLE SHAFT OUTER)
1990-01 → 1990-12
ended
|
HDJ80 LHD ATM;FJ80,HZJ80 GX,VX | — | |
| 90310-35001 note |
Seal, Oil(FOR REAR AXLE SHAFT OUTER)
1990-01 → 1990-12
ended
|
HDJ80 MTM | — | |
| 90310-35001 note |
Seal, Oil(FOR REAR AXLE SHAFT OUTER)
1990-01 → 1990-12
ended
|
HZJ80 STD | — | |
| 90311-47001 |
Seal, Oil(FOR REAR AXLE SHAFT OUTER)
1990-01 → 1992-08
ended
|
FJ80,HDJ80,HZJ80 | — | |
| 90311-47001 |
Seal, Oil(FOR REAR AXLE SHAFT OUTER)
1992-08 → 1998-01
ended
|
HZJ80 | — | |
| 42323 — Washer, Cone (FOR REAR AXLE SHAFT) | ||||
| 42323-60010 |
Washer, Cone (FOR REAR AXLE SHAFT)
1990-01 → 1995-01
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 42323-60010 |
Washer, Cone (FOR REAR AXLE SHAFT)
1995-01 → 1995-03
ended
|
FZJ80,HDJ80 | — | |
| 42323-60010 |
Washer, Cone (FOR REAR AXLE SHAFT)
1995-03 → 1998-01
ended
|
HZJ80 GX;FZJ80,HDJ80 | — | |
| 42403A — Piece, Balance (FOR REAR BRAKE DRUM) | ||||
| 90937-01117 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1992-03 → 1992-08
ended
|
HZJ80 GX;FJ80,HDJ80 ATM | — | |
| 90937-01117 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1992-08 → 1998-01
ended
|
HZJ80 | — | |
| 90937-01117 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1990-01 → 1992-03
ended
|
HDJ80 MTM | — | |
| 90937-01117 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1992-03 → 1992-08
ended
|
HDJ80 MTM | — | |
| 90937-01117 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1992-03 → 1992-08
ended
|
HZJ80 STD | — | |
| 90937-01117 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1990-01 → 1992-08
ended
|
FJ80,HDJ80,HZJ80 | — | |
| 90937-01117 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1990-01 → 1992-03
ended
|
HZJ80 STD | — | |
| 90937-01117 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1990-01 → 1992-03
ended
|
HDJ80 RHD ATM | — | |
| 90937-01117 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1990-01 → 1992-03
ended
|
HDJ80 LHD ATM;FJ80,HZJ80 GX,VX | — | |
| 90937-01118 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1990-01 → 1992-03
ended
|
HDJ80 LHD ATM;FJ80,HZJ80 GX,VX | — | |
| 90937-01118 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1990-01 → 1992-08
ended
|
FJ80,HDJ80,HZJ80 | — | |
| 90937-01118 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1992-03 → 1992-08
ended
|
HZJ80 STD | — | |
| 90937-01118 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1992-03 → 1992-08
ended
|
HDJ80 MTM | — | |
| 90937-01118 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1992-03 → 1992-08
ended
|
HZJ80 GX;FJ80,HDJ80 ATM | — | |
| 90937-01118 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1990-01 → 1992-03
ended
|
HZJ80 STD | — | |
| 90937-01118 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1990-01 → 1992-03
ended
|
HDJ80 MTM | — | |
| 90937-01118 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1992-08 → 1998-01
ended
|
HZJ80 | — | |
| 90937-01118 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1990-01 → 1992-03
ended
|
HDJ80 RHD ATM | — | |
| 90937-01119 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1992-03 → 1992-08
ended
|
HZJ80 STD | — | |
| 90937-01119 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1992-03 → 1992-08
ended
|
HZJ80 GX;FJ80,HDJ80 ATM | — | |
| 90937-01119 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1992-08 → 1998-01
ended
|
HZJ80 | — | |
| 90937-01119 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1990-01 → 1992-08
ended
|
FJ80,HDJ80,HZJ80 | — | |
| 90937-01119 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1992-03 → 1992-08
ended
|
HDJ80 MTM | — | |
| 90937-01119 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1990-01 → 1992-03
ended
|
HDJ80 LHD ATM;FJ80,HZJ80 GX,VX | — | |
| 90937-01119 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1990-01 → 1992-03
ended
|
HZJ80 STD | — | |
| 90937-01119 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1990-01 → 1992-03
ended
|
HDJ80 MTM | — | |
| 90937-01119 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1990-01 → 1992-03
ended
|
HDJ80 RHD ATM | — | |
| 90937-01195 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1990-01 → 1992-03
ended
|
HDJ80 LHD ATM;FJ80,HZJ80 GX,VX | — | |
| 90937-01195 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1990-01 → 1992-03
ended
|
HDJ80 RHD ATM | — | |
| 90937-01195 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1990-01 → 1992-03
ended
|
HDJ80 MTM | — | |
| 90937-01195 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1990-01 → 1992-03
ended
|
HZJ80 STD | — | |
| 90937-01195 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1992-03 → 1992-08
ended
|
HZJ80 STD | — | |
| 90937-01195 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1992-03 → 1992-08
ended
|
HDJ80 MTM | — | |
| 90937-01195 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1992-08 → 1998-01
ended
|
HZJ80 | — | |
| 90937-01195 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1992-03 → 1992-08
ended
|
HZJ80 GX;FJ80,HDJ80 ATM | — | |
| 90937-01195 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1990-01 → 1992-08
ended
|
FJ80,HDJ80,HZJ80 | — | |
| 90937-01196 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1992-03 → 1992-08
ended
|
HZJ80 STD | — | |
| 90937-01196 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1992-03 → 1992-08
ended
|
HDJ80 MTM | — | |
| 90937-01196 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1992-03 → 1992-08
ended
|
HZJ80 GX;FJ80,HDJ80 ATM | — | |
| 90937-01196 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1990-01 → 1992-03
ended
|
HDJ80 RHD ATM | — | |
| 90937-01196 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1990-01 → 1992-03
ended
|
HZJ80 STD | — | |
| 90937-01196 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1990-01 → 1992-03
ended
|
HDJ80 MTM | — | |
| 90937-01196 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1990-01 → 1992-03
ended
|
HDJ80 LHD ATM;FJ80,HZJ80 GX,VX | — | |
| 90937-01196 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1990-01 → 1992-08
ended
|
FJ80,HDJ80,HZJ80 | — | |
| 90937-01196 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1992-08 → 1998-01
ended
|
HZJ80 | — | |
| 90937-01197 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1990-01 → 1992-03
ended
|
HDJ80 RHD ATM | — | |
| 90937-01197 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1992-03 → 1992-08
ended
|
HZJ80 STD | — | |
| 90937-01197 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1992-03 → 1992-08
ended
|
HDJ80 MTM | — | |
| 90937-01197 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1992-03 → 1992-08
ended
|
HZJ80 GX;FJ80,HDJ80 ATM | — | |
| 90937-01197 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1992-08 → 1998-01
ended
|
HZJ80 | — | |
| 90937-01197 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1990-01 → 1992-03
ended
|
HDJ80 LHD ATM;FJ80,HZJ80 GX,VX | — | |
| 90937-01197 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1990-01 → 1992-03
ended
|
HZJ80 STD | — | |
| 90937-01197 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1990-01 → 1992-08
ended
|
FJ80,HDJ80,HZJ80 | — | |
| 90937-01197 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1990-01 → 1992-03
ended
|
HDJ80 MTM | — | |
| 90937-01408 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1992-08 → 1995-01
ended
|
HZJ80 | — | |
| 90937-01408 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1995-03 → 1998-01
ended
|
HZJ80 GX | — | |
| 90937-01409 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1992-08 → 1995-01
ended
|
HZJ80 | — | |
| 90937-01409 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1995-03 → 1998-01
ended
|
HZJ80 GX | — | |
| 90937-01410 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1992-08 → 1995-01
ended
|
HZJ80 | — | |
| 90937-01410 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1995-03 → 1998-01
ended
|
HZJ80 GX | — | |
| 90937-01411 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1995-03 → 1998-01
ended
|
HZJ80 GX | — | |
| 90937-01411 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1992-08 → 1995-01
ended
|
HZJ80 | — | |
| 90937-01412 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1992-08 → 1995-01
ended
|
HZJ80 | — | |
| 90937-01412 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1995-03 → 1998-01
ended
|
HZJ80 GX | — | |
| 90937-01413 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1992-08 → 1995-01
ended
|
HZJ80 | — | |
| 90937-01413 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1990-01 → 1992-08
ended
|
FJ80,HDJ80,HZJ80 | — | |
| 90937-01413 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1995-03 → 1998-01
ended
|
HZJ80 GX | — | |
| 90937-01414 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1992-08 → 1995-01
ended
|
HZJ80 | — | |
| 90937-01414 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1995-03 → 1998-01
ended
|
HZJ80 GX | — | |
| 90937-01414 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1990-01 → 1992-08
ended
|
FJ80,HDJ80,HZJ80 | — | |
| 90937-01415 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1995-03 → 1998-01
ended
|
HZJ80 GX | — | |
| 90937-01415 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1990-01 → 1992-08
ended
|
FJ80,HDJ80,HZJ80 | — | |
| 90937-01415 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1992-08 → 1995-01
ended
|
HZJ80 | — | |
| 90937-01416 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1995-03 → 1998-01
ended
|
HZJ80 GX | — | |
| 90937-01416 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1992-08 → 1995-01
ended
|
HZJ80 | — | |
| 90937-01416 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1990-01 → 1992-08
ended
|
FJ80,HDJ80,HZJ80 | — | |
| 90937-01417 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1990-01 → 1992-08
ended
|
FJ80,HDJ80,HZJ80 | — | |
| 90937-01417 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1995-03 → 1998-01
ended
|
HZJ80 GX | — | |
| 90937-01417 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1992-08 → 1995-01
ended
|
HZJ80 | — | |
| 90937-01418 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1992-08 → 1995-01
ended
|
HZJ80 | — | |
| 90937-01418 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1990-01 → 1992-08
ended
|
FJ80,HDJ80,HZJ80 | — | |
| 90937-01418 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1995-03 → 1998-01
ended
|
HZJ80 GX | — | |
| 90937-01419 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1992-08 → 1995-01
ended
|
HZJ80 | — | |
| 90937-01419 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1995-03 → 1998-01
ended
|
HZJ80 GX | — | |
| 42403B — Bolt, Set (FOR REAR BRAKE DRUM SETTING) | ||||
| 90113-10003 |
Bolt, Set (FOR REAR BRAKE DRUM SETTING)
1995-03 → 1998-01
ended
|
HZJ80 GX | — | |
| 90113-10003 |
Bolt, Set (FOR REAR BRAKE DRUM SETTING)
1992-08 → 1995-01
ended
|
HZJ80 | — | |
| 90113-10003 |
Bolt, Set (FOR REAR BRAKE DRUM SETTING)
1990-01 → 1992-08
ended
|
FJ80,HDJ80,HZJ80 | — | |
| 42411 — Hub, Rear Axle | ||||
| 42410-69015 |
Hub, Rear Axle
1994-08 → 1995-01
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 42410-69015 |
Hub, Rear Axle
1995-01 → 1995-03
ended
|
FZJ80,HDJ80 | — | |
| 42410-69015 |
Hub, Rear Axle
1995-03 → 1998-01
ended
|
HZJ80 GX;FZJ80,HDJ80 | — | |
| 42411-60030 note |
Hub, Rear Axle
1992-08 → 1993-05
ended
|
FZJ80,HDJ80 | — | |
| 42411-60030 |
Hub, Rear Axle
1990-01 → 1994-08
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 42411A — Pin, Straight (FOR REAR AXLE HUB) | ||||
| 90250-07057 |
Pin, Straight (FOR REAR AXLE HUB)
1990-01 → 1995-01
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 90250-07057 |
Pin, Straight (FOR REAR AXLE HUB)
1995-01 → 1995-03
ended
|
FZJ80,HDJ80 | — | |
| 90250-07057 |
Pin, Straight (FOR REAR AXLE HUB)
1995-03 → 1998-01
ended
|
HZJ80 GX;FZJ80,HDJ80 | — | |
| 42411B — Bolt, Stud (FOR REAR AXLE HUB) | ||||
| 90116-08325 |
Bolt, Stud (FOR REAR AXLE HUB)
1990-01 → 1995-01
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 90116-08325 |
Bolt, Stud (FOR REAR AXLE HUB)
1995-01 → 1995-03
ended
|
FZJ80,HDJ80 | — | |
| 90116-08325 |
Bolt, Stud (FOR REAR AXLE HUB)
1995-03 → 1998-01
ended
|
HZJ80 GX;FZJ80,HDJ80 | — | |
| 42411C — Bearing, Tapered Roller (FOR REAR AXLE INNER BEARING) | ||||
| 90080-36064 |
Bearing, Tapered Roller (FOR REAR AXLE INNER BEARING)
1994-08 → 1995-01
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 90080-36064 |
Bearing, Tapered Roller (FOR REAR AXLE INNER BEARING)
1995-03 → 1998-01
ended
|
HZJ80 GX;FZJ80,HDJ80 | — | |
| 90080-36064 |
Bearing, Tapered Roller (FOR REAR AXLE INNER BEARING)
1995-01 → 1995-03
ended
|
FZJ80,HDJ80 | — | |
| 90368-49084 |
Bearing, Tapered Roller (FOR REAR AXLE INNER BEARING)
1990-01 → 1994-08
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 42411D — Bearing, Tapered Roller (FOR REAR AXLE OUTER BEARING) | ||||
| 90080-36067 |
Bearing, Tapered Roller (FOR REAR AXLE OUTER BEARING)
1994-08 → 1995-01
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 90080-36067 |
Bearing, Tapered Roller (FOR REAR AXLE OUTER BEARING)
1995-01 → 1995-03
ended
|
FZJ80,HDJ80 | — | |
| 90080-36067 |
Bearing, Tapered Roller (FOR REAR AXLE OUTER BEARING)
1995-03 → 1998-01
ended
|
HZJ80 GX;FZJ80,HDJ80 | — | |
| 90368-45087 |
Bearing, Tapered Roller (FOR REAR AXLE OUTER BEARING)
1990-01 → 1994-08
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 42411E — Seal, Oil (FOR REAR AXLE HUB) | ||||
| 90311-62001 note |
Seal, Oil (FOR REAR AXLE HUB)
1992-03 → 1992-08
ended
|
HZJ80;FJ80,HDJ80 ATM | — | |
| 90311-62001 |
Seal, Oil (FOR REAR AXLE HUB)
1995-03 → 1998-01
ended
|
HZJ80 GX | — | |
| 90311-62001 note |
Seal, Oil (FOR REAR AXLE HUB)
1992-08 → 1995-01
ended
|
HZJ80 | — | |
| 90311-62001 note |
Seal, Oil (FOR REAR AXLE HUB)
1992-03 → 1992-08
ended
|
HDJ80 MTM | — | |
| 90311-62001 note |
Seal, Oil (FOR REAR AXLE HUB)
1990-12 → 1992-03
ended
|
FJ80,HZJ80;HDJ80 LHD ATM | — | |
| 90311-62001 note |
Seal, Oil (FOR REAR AXLE HUB)
1990-12 → 1992-03
ended
|
HDJ80 RHD ATM | — | |
| 90311-62001 note |
Seal, Oil (FOR REAR AXLE HUB)
1990-01 → 1992-03
ended
|
HDJ80 MTM | — | |
| 90311-62002 note |
Seal, Oil (FOR REAR AXLE HUB)
1990-01 → 1990-12
ended
|
HDJ80 LHD ATM;FJ80,HZJ80 GX,VX | — | |
| 90311-62002 note |
Seal, Oil (FOR REAR AXLE HUB)
1990-12 → 1992-08
ended
|
HZJ80 STD | — | |
| 90311-62002 note |
Seal, Oil (FOR REAR AXLE HUB)
1990-12 → 1992-08
ended
|
HDJ80 MTM | — | |
| 90311-62002 note |
Seal, Oil (FOR REAR AXLE HUB)
1990-01 → 1990-12
ended
|
HDJ80 RHD ATM | — | |
| 90311-62002 note |
Seal, Oil (FOR REAR AXLE HUB)
1990-01 → 1990-12
ended
|
HDJ80 LHD MTM | — | |
| 90311-62002 note |
Seal, Oil (FOR REAR AXLE HUB)
1990-01 → 1990-12
ended
|
HZJ80 STD | — | |
| 90311-62002 |
Seal, Oil (FOR REAR AXLE HUB)
1992-08 → 1998-01
ended
|
FZJ80,HDJ80 | — | |
| 90311-62002 note |
Seal, Oil (FOR REAR AXLE HUB)
1990-01 → 1990-12
ended
|
HDJ80 RHD MTM | — | |
| 42419 — Screw, Rear Axle Bearing Lock Nut | ||||
| 42419-60011 |
Screw, Rear Axle Bearing Lock Nut
1995-01 → 1995-03
ended
|
FZJ80,HDJ80 | — | |
| 42419-60011 |
Screw, Rear Axle Bearing Lock Nut
1995-03 → 1998-01
ended
|
HZJ80 GX;FZJ80,HDJ80 | — | |
| 42419-60011 |
Screw, Rear Axle Bearing Lock Nut
1990-01 → 1995-01
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 42420 — Hub (OR SHAFT) & Brake Drum Rear Axle, RH | ||||
| 42420-60130 |
Hub (OR SHAFT) & Brake Drum Rear Axle, RH
1990-01 → 1992-08
ended
|
FJ80,HDJ80,HZJ80 | — | |
| 42420-60130 |
Hub (OR SHAFT) & Brake Drum Rear Axle, RH
1992-08 → 1995-01
ended
|
HZJ80 | — | |
| 42420-60130 |
Hub (OR SHAFT) & Brake Drum Rear Axle, RH
1995-03 → 1998-01
ended
|
HZJ80 GX | — | |
| 42427 — Nut, Rear Axle Bearing Lock | ||||
| 42427-60021 |
Nut, Rear Axle Bearing Lock
1990-01 → 1995-01
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 42427-60021 |
Nut, Rear Axle Bearing Lock
1995-01 → 1995-03
ended
|
FZJ80,HDJ80 | — | |
| 42427-60021 |
Nut, Rear Axle Bearing Lock
1995-03 → 1998-01
ended
|
HZJ80 GX;FZJ80,HDJ80 | — | |
| 42428 — Plate, Rear Axle Lock Nut | ||||
| 42428-60011 |
Plate, Rear Axle Lock Nut
1990-01 → 1995-01
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 42428-60011 |
Plate, Rear Axle Lock Nut
1995-03 → 1998-01
ended
|
HZJ80 GX;FZJ80,HDJ80 | — | |
| 42428-60011 |
Plate, Rear Axle Lock Nut
1995-01 → 1995-03
ended
|
FZJ80,HDJ80 | — | |
| 42431 — Disc, Rear | ||||
| 42431-60080 |
Disc, Rear
1990-01 → 1992-08
ended
|
FJ80,HDJ80,HZJ80 GX,VX | — | |
| 42431-60170 |
Disc, Rear
1995-01 → 1998-01
ended
|
FZJ80,HDJ80 | — | |
| 42431-60170 |
Disc, Rear
1992-08 → 1995-01
ended
|
HZJ80 SOB | — | |
| 42431-60170 |
Disc, Rear
1992-08 → 1998-01
ended
|
HZJ80 LUB;FZJ80,HDJ80 | — | |
| 42450A — Hub & Bearing Assy, Rear Axle, RH | ||||
| 42450-60010 |
Hub & Bearing Assy, Rear Axle, RH
1992-08 → 1994-08
ended
|
FZJ80,HDJ80,HZJ80 GX,VX | — | |
| 42450-69015 |
Hub & Bearing Assy, Rear Axle, RH
1994-08 → 1995-01
ended
|
FZJ80,HDJ80,HZJ80 GX,VX | — | |
| 42450-69015 |
Hub & Bearing Assy, Rear Axle, RH
1995-01 → 1998-01
ended
|
FZJ80,HDJ80 GX,VX | — | |
| 42491 — Plug, Shoe Adjusting Hole (FOR PARKING BRAKE) | ||||
| 47491-22020 |
Plug, Shoe Adjusting Hole (FOR PARKING BRAKE)
1990-01 → 1992-08
ended
|
FJ80,HDJ80,HZJ80 GX,VX | — | |
| 47491-22020 |
Plug, Shoe Adjusting Hole (FOR PARKING BRAKE)
1992-08 → 1995-01
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 47491-22020 |
Plug, Shoe Adjusting Hole (FOR PARKING BRAKE)
1995-01 → 1998-01
ended
|
FZJ80,HDJ80 | — | |
| 42611E — Bolt, Hub (FOR REAR AXLE) | ||||
| 90942-02052 |
Bolt, Hub (FOR REAR AXLE)
1990-01 → 1998-01
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 43422A — Gasket, Rear Axle Outer Shaft Flange | ||||
| 43422-60040 |
Gasket, Rear Axle Outer Shaft Flange
1990-04 → 1995-01
ended
|
FJ80,FZJ80,HDJ80,HZJ80 | — | |
| 43422-60040 |
Gasket, Rear Axle Outer Shaft Flange
1995-01 → 1995-03
ended
|
FZJ80,HDJ80 | — | |
| 43422-60040 |
Gasket, Rear Axle Outer Shaft Flange
1995-03 → 1998-01
ended
|
HZJ80 GX;FZJ80,HDJ80 | — | |
| 43422-60050 |
Gasket, Rear Axle Outer Shaft Flange
1990-01 → 1990-04
ended
|
FJ80,HDJ80,HZJ80 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
