Toyota Land Cruiser
1990-01 → 1998-01 · chassis FJ80,FZJ80,HDJ80,HZJ80 · catalogue 791540 · Europe
Discontinued model
Data version 1998-01

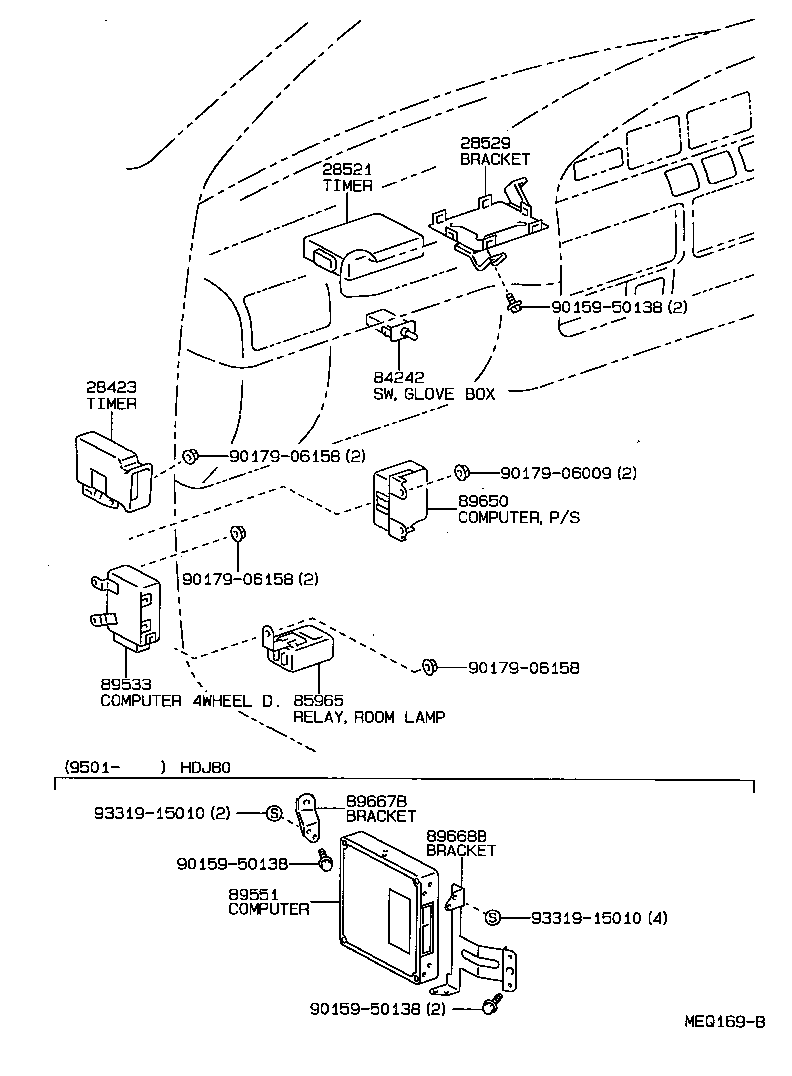

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28423 — Timer, Voltage Converter | ||||
| 28423-17010 |
Timer, Voltage Converter
1990-01 → 1995-01
ended
|
1H# HDJ80,HZJ80 LHD | — | |
| 28423-17020 |
Timer, Voltage Converter
1990-01 → 1994-07
ended
|
1HDT HDJ80 RHD | — | |
| 28423-17030 |
Timer, Voltage Converter
1995-01 → 1998-01
ended
|
1H# HDJ80,HZJ80 LHD | — | |
| 28423-17040 |
Timer, Voltage Converter
1995-01 → 1998-01
ended
|
1HDFT HDJ80 RHD | — | |
| 28521 — Timer, Preheating | ||||
| 28521-17010 |
Timer, Preheating
1990-01 → 1991-08
ended
|
1HZ HZJ80 | — | |
| 28521-17080 |
Timer, Preheating
1990-01 → 1991-08
ended
|
1HDT HDJ80 | — | |
| 28521-17120 |
Timer, Preheating
1991-08 → 1998-01
ended
|
1HZ HZJ80 | — | |
| 28521-17150 |
Timer, Preheating
1991-08 → 1995-01
ended
|
1HDT HDJ80 | — | |
| 28529 — Bracket, Preheating Timer, NO.1 | ||||
| 28529-17010 |
Bracket, Preheating Timer, NO.1
1990-01 → 1994-07
ended
|
1HDT HDJ80 RHD | — | |
| 28529-17030 |
Bracket, Preheating Timer, NO.1
1990-01 → 1995-01
ended
|
1H# HDJ80,HZJ80 LHD | — | |
| 28529-17060 |
Bracket, Preheating Timer, NO.1
1995-01 → 1998-01
ended
|
1HZ HZJ80 | — | |
| 84242 — Switch, Glove Box Lamp | ||||
| 84242-20030 |
Switch, Glove Box Lamp
1990-01 → 1998-01
ended
|
FJ80,FZJ80,HDJ80,HZJ80 GX,VX | — | |
| 85965 — Relay, Room Lamp Control | ||||
| 85965-60010 |
Relay, Room Lamp Control
1995-05 → 1996-05
ended
|
HDJ80 VX | — | |
| 85965-60010 |
Relay, Room Lamp Control
1990-01 → 1995-05
ended
|
FJ80,FZJ80,HDJ80 VX | — | |
| 89533 — Computer, 4 Wheel Drive Control | ||||
| 89533-60020 |
Computer, 4 Wheel Drive Control
1990-01 → 1998-01
ended
|
FZJ80,HDJ80 RHD | — | |
| 89533-60030 |
Computer, 4 Wheel Drive Control
1990-01 → 1992-08
ended
|
FJ80,HDJ80,HZJ80 LHD | — | |
| 89533-60030 |
Computer, 4 Wheel Drive Control
1992-08 → 1995-01
ended
|
FZJ80,HDJ80,HZJ80 LHD | — | |
| 89533-60030 |
Computer, 4 Wheel Drive Control
1995-01 → 1995-03
ended
|
FZJ80,HDJ80 LHD | — | |
| 89533-60030 |
Computer, 4 Wheel Drive Control
1995-03 → 1998-01
ended
|
HZJ80 GX;FZJ80,HDJ80 LHD | — | |
| 89551 — Computer, Emission Control | ||||
| 89551-60050 |
Computer, Emission Control
1995-01 → 1998-01
ended
|
HDJ80 | — | |
| 89650 — Computer Assy, Power Steering | ||||
| 89650-60010 |
Computer Assy, Power Steering
1990-01 → 1998-01
ended
|
HDJ80 RHD | — | |
| 89650-60020 |
Computer Assy, Power Steering
1990-01 → 1998-01
ended
|
HDJ80 LHD VX | — | |
| 89667B — Bracket, Engine Control Computer, NO.1 | ||||
| 89667-60100 |
Bracket, Engine Control Computer, NO.1
1995-01 → 1998-01
ended
|
HDJ80 RHD | — | |
| 89667-60110 |
Bracket, Engine Control Computer, NO.1
1995-01 → 1998-01
ended
|
HDJ80 LHD | — | |
| 89668B — Bracket, Engine Control Computer, NO.2 | ||||
| 89668-60090 |
Bracket, Engine Control Computer, NO.2
1995-01 → 1998-01
ended
|
HDJ80 RHD | — | |
| 89668-60100 |
Bracket, Engine Control Computer, NO.2
1995-01 → 1998-01
ended
|
HDJ80 LHD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
