Toyota Land Cruiser
1990-01 → 1998-01 · chassis FJ80,FZJ80,HDJ80,HZJ80 · catalogue 791540 · Europe
Discontinued model
Data version 1998-01

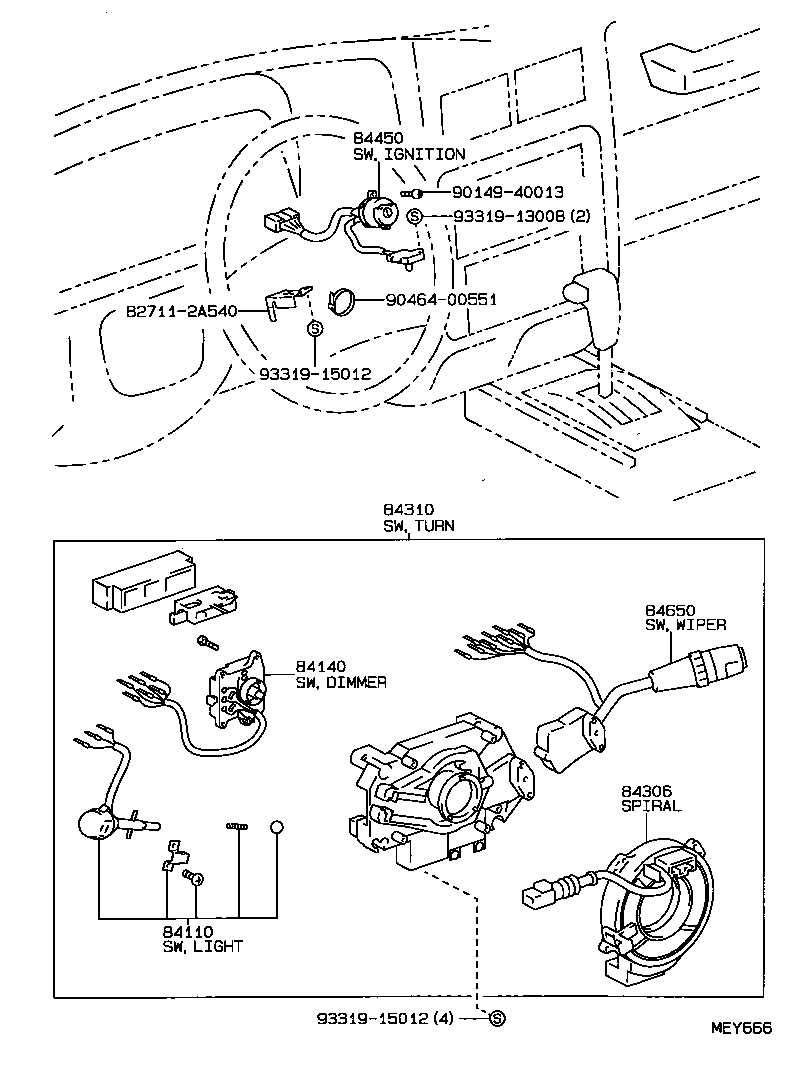

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84110 — Switch Assy, Light Control, NO.1 | ||||
| 84112-69385 |
Switch Assy, Light Control, NO.1
1992-08 → 1992-09
ended
|
HDJ80 RHD | — | |
| 84112-69385 |
Switch Assy, Light Control, NO.1
1990-01 → 1991-08
ended
|
HDJ80 RHD | — | |
| 84112-69395 |
Switch Assy, Light Control, NO.1
1990-01 → 1992-08
ended
|
FJ80,HDJ80,HZJ80 LHD | — | |
| 84112-69395 |
Switch Assy, Light Control, NO.1
1992-08 → 1992-09
ended
|
FZJ80,HDJ80,HZJ80 LHD | — | |
| 84112-69425 |
Switch Assy, Light Control, NO.1
1995-01 → 1998-01
ended
|
FZJ80,HDJ80 RHD | — | |
| 84112-69445 |
Switch Assy, Light Control, NO.1
1995-01 → 1996-05
ended
|
FZJ80,HDJ80 LHD (GX,VX) | — | |
| 84112-69445 |
Switch Assy, Light Control, NO.1
1996-05 → 1998-01
ended
|
FZJ80,HDJ80 LHD | — | |
| 84112-69455 |
Switch Assy, Light Control, NO.1
1992-09 → 1994-07
ended
|
HDJ80 RHD | — | |
| 84112-69465 |
Switch Assy, Light Control, NO.1
1996-05 → 1998-01
ended
|
HZJ80 | — | |
| 84112-69465 note |
Switch Assy, Light Control, NO.1
1996-05 → 1998-01
ended
|
FZJ80,HDJ80 GX,STD | — | |
| 84112-69465 |
Switch Assy, Light Control, NO.1
1995-01 → 1996-05
ended
|
FZJ80,HDJ80,HZJ80 MTM SOB | — | |
| 84112-69465 |
Switch Assy, Light Control, NO.1
1992-09 → 1995-01
ended
|
FZJ80,HDJ80,HZJ80 LHD | — | |
| 84140 — Switch Assy, Headlamp Dimmer | ||||
| 84140-12260 |
Switch Assy, Headlamp Dimmer
1995-01 → 1996-05
ended
|
FZJ80,HDJ80 LHD (GX,VX) | — | |
| 84140-12260 |
Switch Assy, Headlamp Dimmer
1996-05 → 1998-01
ended
|
FZJ80,HDJ80 LHD | — | |
| 84140-60120 |
Switch Assy, Headlamp Dimmer
1990-01 → 1998-01
ended
|
FZJ80,HDJ80 RHD | — | |
| 84140-60160 |
Switch Assy, Headlamp Dimmer
1990-01 → 1995-01
ended
|
FJ80,FZJ80,HDJ80,HZJ80 LHD | — | |
| 84140-60160 |
Switch Assy, Headlamp Dimmer
1995-01 → 1996-05
ended
|
FZJ80,HDJ80,HZJ80 MTM SOB | — | |
| 84140-60160 |
Switch Assy, Headlamp Dimmer
1996-05 → 1998-01
ended
|
HZJ80 | — | |
| 84140-60160 note |
Switch Assy, Headlamp Dimmer
1996-05 → 1998-01
ended
|
FZJ80,HDJ80 GX,STD | — | |
| 84306 — Cable Sub-assy, Spiral | ||||
| 84306-28020 |
Cable Sub-assy, Spiral
1995-01 → 1998-01
ended
|
FZJ80 VX;HDJ80 RHD | — | |
| 84306-28020 note |
Cable Sub-assy, Spiral
1995-01 → 1998-01
ended
|
HDJ80 LHD VX | — | |
| 84306-60040 |
Cable Sub-assy, Spiral
1996-05 → 1998-01
ended
|
HDJ80 LHD;FZJ80 GX,STD | — | |
| 84306-60040 |
Cable Sub-assy, Spiral
1995-01 → 1996-05
ended
|
FZJ80 GX;HDJ80 LHD LUB | — | |
| 84310 — Switch Assy, Turn Signal | ||||
| 84310-60790 |
Switch Assy, Turn Signal
1990-01 → 1991-08
ended
|
HDJ80 RHD | — | |
| 84310-60870 |
Switch Assy, Turn Signal
1991-08 → 1994-07
ended
|
HDJ80 RHD | — | |
| 84310-6A030 |
Switch Assy, Turn Signal
1990-01 → 1991-08
ended
|
FJ80,HDJ80,HZJ80 LHD (GX,VX) | — | |
| 84310-6A030 note |
Switch Assy, Turn Signal
1990-01 → 1991-08
ended
|
HZJ80 STD | — | |
| 84310-6A050 |
Switch Assy, Turn Signal
1990-01 → 1991-08
ended
|
HZJ80 STD | — | |
| 84310-6A090 |
Switch Assy, Turn Signal
1991-08 → 1995-01
ended
|
HZJ80 STD | — | |
| 84310-6A090 |
Switch Assy, Turn Signal
1995-01 → 1996-05
ended
|
FZJ80,HDJ80 STD | — | |
| 84310-6A100 note |
Switch Assy, Turn Signal
1996-05 → 1998-01
ended
|
FZJ80,HDJ80 GX,STD | — | |
| 84310-6A100 |
Switch Assy, Turn Signal
1995-01 → 1998-01
ended
|
HZJ80 | — | |
| 84310-6A100 note |
Switch Assy, Turn Signal
1995-01 → 1996-05
ended
|
FZJ80 STD | — | |
| 84310-6A100 note |
Switch Assy, Turn Signal
1995-01 → 1996-05
ended
|
HDJ80 STD | — | |
| 84310-6A100 note |
Switch Assy, Turn Signal
1991-08 → 1995-01
ended
|
HZJ80 STD | — | |
| 84310-6A100 |
Switch Assy, Turn Signal
1991-08 → 1995-01
ended
|
FJ80,FZJ80,HDJ80,HZJ80 LHD (GX,VX) | — | |
| 84310-6A210 |
Switch Assy, Turn Signal
1995-01 → 1998-01
ended
|
FZJ80,HDJ80 RHD | — | |
| 84310-6A250 |
Switch Assy, Turn Signal
1996-05 → 1998-01
ended
|
HDJ80 LHD;FZJ80 GX,STD | — | |
| 84310-6A250 |
Switch Assy, Turn Signal
1995-01 → 1996-05
ended
|
FZJ80 GX;HDJ80 LHD LUB | — | |
| 84310-6A260 note |
Switch Assy, Turn Signal
1995-01 → 1996-01
ended
|
HDJ80 LHD VX | — | |
| 84310-6A260 |
Switch Assy, Turn Signal
1995-01 → 1996-01
ended
|
FZJ80 LHD VX | — | |
| 84310-6A261 |
Switch Assy, Turn Signal
1996-01 → 1998-01
ended
|
FZJ80 LHD VX | — | |
| 84310-6A261 note |
Switch Assy, Turn Signal
1996-01 → 1998-01
ended
|
HDJ80 LHD VX | — | |
| 84450 — Switch Assy, Ignition OR Starter | ||||
| 84450-60170 |
Switch Assy, Ignition OR Starter
1990-01 → 1992-08
ended
|
FJ80,HDJ80,HZJ80 GX,STD | — | |
| 84450-60180 note |
Switch Assy, Ignition OR Starter
1990-01 → 1992-08
ended
|
FJ80,HDJ80,HZJ80 GX | — | |
| 84450-60180 |
Switch Assy, Ignition OR Starter
1990-01 → 1995-01
ended
|
FJ80,FZJ80,HDJ80 VX | — | |
| 84450-60170 |
Switch Assy, Ignition OR Starter
1992-08 → 1995-01
ended
|
FZJ80,HDJ80,HZJ80 GX,STD | — | |
| 84450-60180 note |
Switch Assy, Ignition OR Starter
1992-08 → 1995-01
ended
|
FZJ80,HDJ80,HZJ80 GX,VX | — | |
| 84450-60230 |
Switch Assy, Ignition OR Starter
1995-01 → 1998-01
ended
|
FZJ80,HDJ80,HZJ80 | — | |
| 84650 — Switch Assy, Windshield Wiper | ||||
| 84652-60620 |
Switch Assy, Windshield Wiper
1990-01 → 1991-08
ended
|
HDJ80 RHD | — | |
| 84652-60650 |
Switch Assy, Windshield Wiper
1991-08 → 1994-07
ended
|
HDJ80 RHD | — | |
| 84652-60700 |
Switch Assy, Windshield Wiper
1990-01 → 1991-08
ended
|
FJ80,HDJ80,HZJ80 LHD (GX,VX) | — | |
| 84652-60700 note |
Switch Assy, Windshield Wiper
1990-01 → 1991-08
ended
|
HZJ80 STD | — | |
| 84652-60710 |
Switch Assy, Windshield Wiper
1990-01 → 1991-08
ended
|
HZJ80 STD | — | |
| 84652-60720 |
Switch Assy, Windshield Wiper
1991-08 → 1995-01
ended
|
HZJ80 STD | — | |
| 84652-60720 |
Switch Assy, Windshield Wiper
1995-01 → 1996-05
ended
|
FZJ80,HDJ80 STD | — | |
| 84652-60730 |
Switch Assy, Windshield Wiper
1991-08 → 1995-01
ended
|
FJ80,FZJ80,HDJ80,HZJ80 LHD (GX,VX) | — | |
| 84652-60730 note |
Switch Assy, Windshield Wiper
1991-08 → 1995-01
ended
|
HZJ80 STD | — | |
| 84652-60730 note |
Switch Assy, Windshield Wiper
1995-01 → 1996-05
ended
|
HDJ80 STD | — | |
| 84652-60730 note |
Switch Assy, Windshield Wiper
1995-01 → 1996-05
ended
|
FZJ80 STD | — | |
| 84652-60730 |
Switch Assy, Windshield Wiper
1995-01 → 1998-01
ended
|
HZJ80 | — | |
| 84652-60730 note |
Switch Assy, Windshield Wiper
1996-05 → 1998-01
ended
|
FZJ80,HDJ80 GX,STD | — | |
| 84652-60760 |
Switch Assy, Windshield Wiper
1995-01 → 1998-01
ended
|
FZJ80,HDJ80 RHD | — | |
| 84652-60770 |
Switch Assy, Windshield Wiper
1995-01 → 1996-05
ended
|
FZJ80,HDJ80 LHD (GX,VX) | — | |
| 84652-60770 |
Switch Assy, Windshield Wiper
1996-05 → 1998-01
ended
|
FZJ80,HDJ80 LHD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
