Toyota Land Cruiser

1990-01 → 1998-01 · chassis FJ80,FZJ80,HDJ80,HZJ80 · catalogue 791540 · Europe

Discontinued model Data version 1998-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Crankshaft & Piston

31 part groups · 3 illustrations

Illustrations

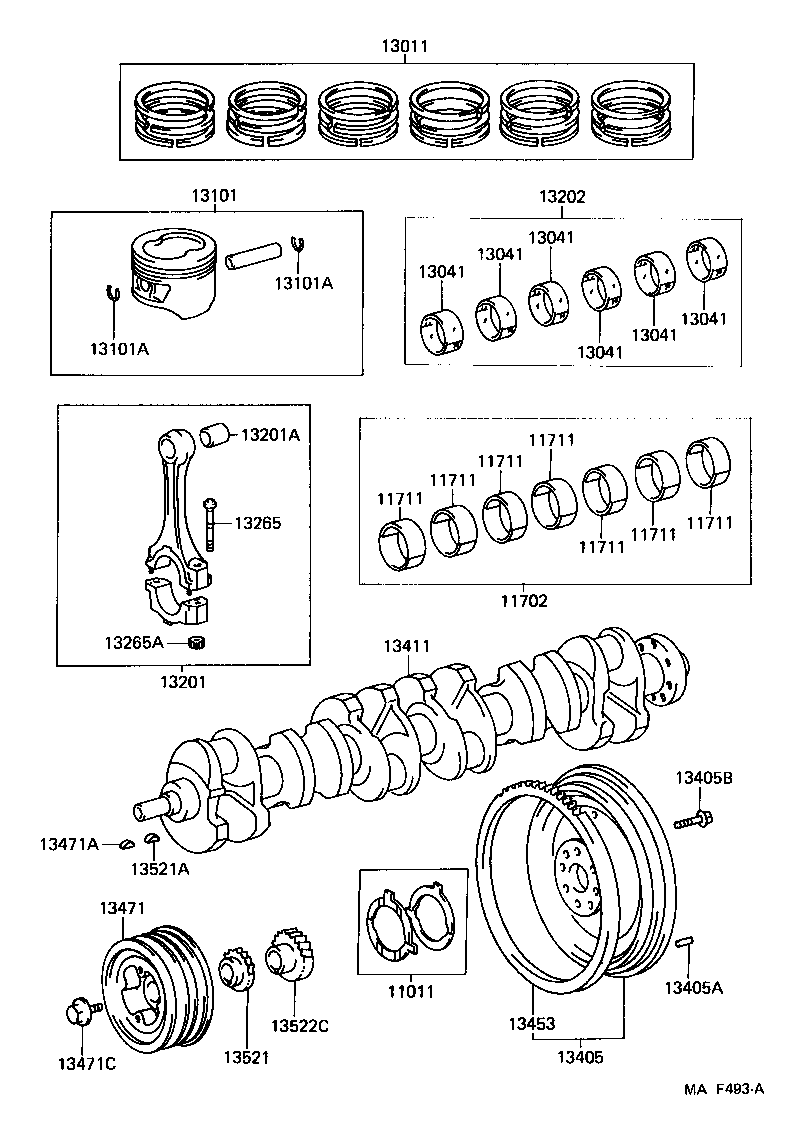

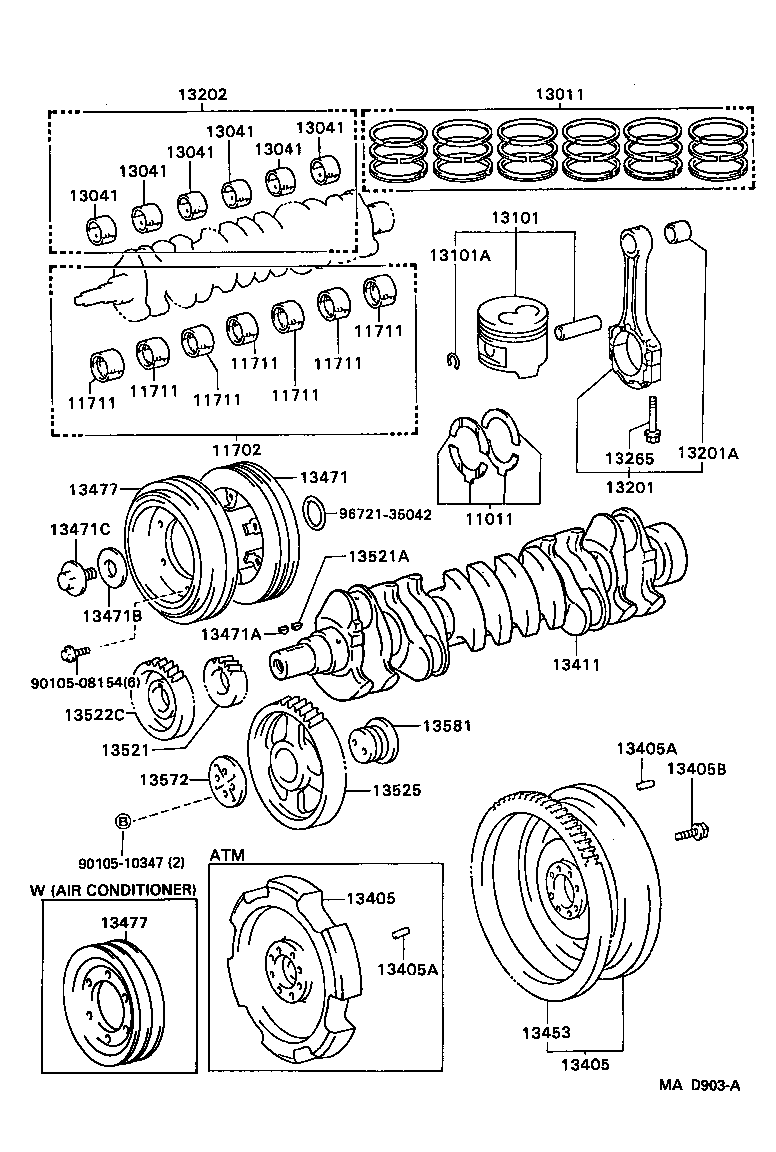

Figure MAD434 MAD434 1990-01 → 1992-08 Figure MAF493A MAF493A 1992-08 → — Figure MAD903A MAD903A 1990-01 → —

Part groups

PNCDescription
11011 Washer Set, Crankshaft Thrust
11702 Bearing Set, Crankshaft
11711 Bearing, Crankshaft
13011 Ring Set, Piston
13041 Bearing, Connecting Rod
13101 Piston Sub-assy, W/Pin
13101A Ring, Hole Snap(FOR PISTON PIN)
13201 Rod Sub-assy, Connecting
13201A Bush(FOR CONNECTING ROD SMALL END)
13202 Bearing Set, Connecting Rod
13265 Bolt, Connecting Rod
13265A Nut, Hexagon(FOR CONNECTING ROD BOLT)
13405 Flywheel Sub-assy
13405A Pin, Straight(FOR FLYWHEEL)
13405B Bolt, Flywheel Setting
13411 Crankshaft
13411C Pin, Straight(FOR CRANKSHAFT)
13411D Seal, Oil(FOR CRANKSHAFT)
13453 Gear, Flywheel Ring
13471 Pulley, Crankshaft
13471A Key, Crankshaft(FOR CRANKSHAFT PULLEY SET)
13471B Washer, Plate(FOR CRANKSHAFT PULLEY SET)
13471C Bolt(FOR CRANKSHAFT PULLEY SET)
13471E Nut(FOR CRANKSHAFT PULLEY)
13477 Pulley, Crankshaft, NO.2
13521 Gear OR Sprocket, Crankshaft Timing
13521A Key(FOR CRANKSHAFT TIMING GEAR)
13522C Gear, Pump Drive Shaft
13525 Gear, Idle, NO.1
13572 Plate, Idle Gear Thrust
13581 Shaft, Idle Gear, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
