Toyota Land Cruiser
1990-01 → 1998-01 · chassis FJ80,FZJ80,HDJ80,HZJ80 · catalogue 791540 · Europe
Discontinued model
Data version 1998-01

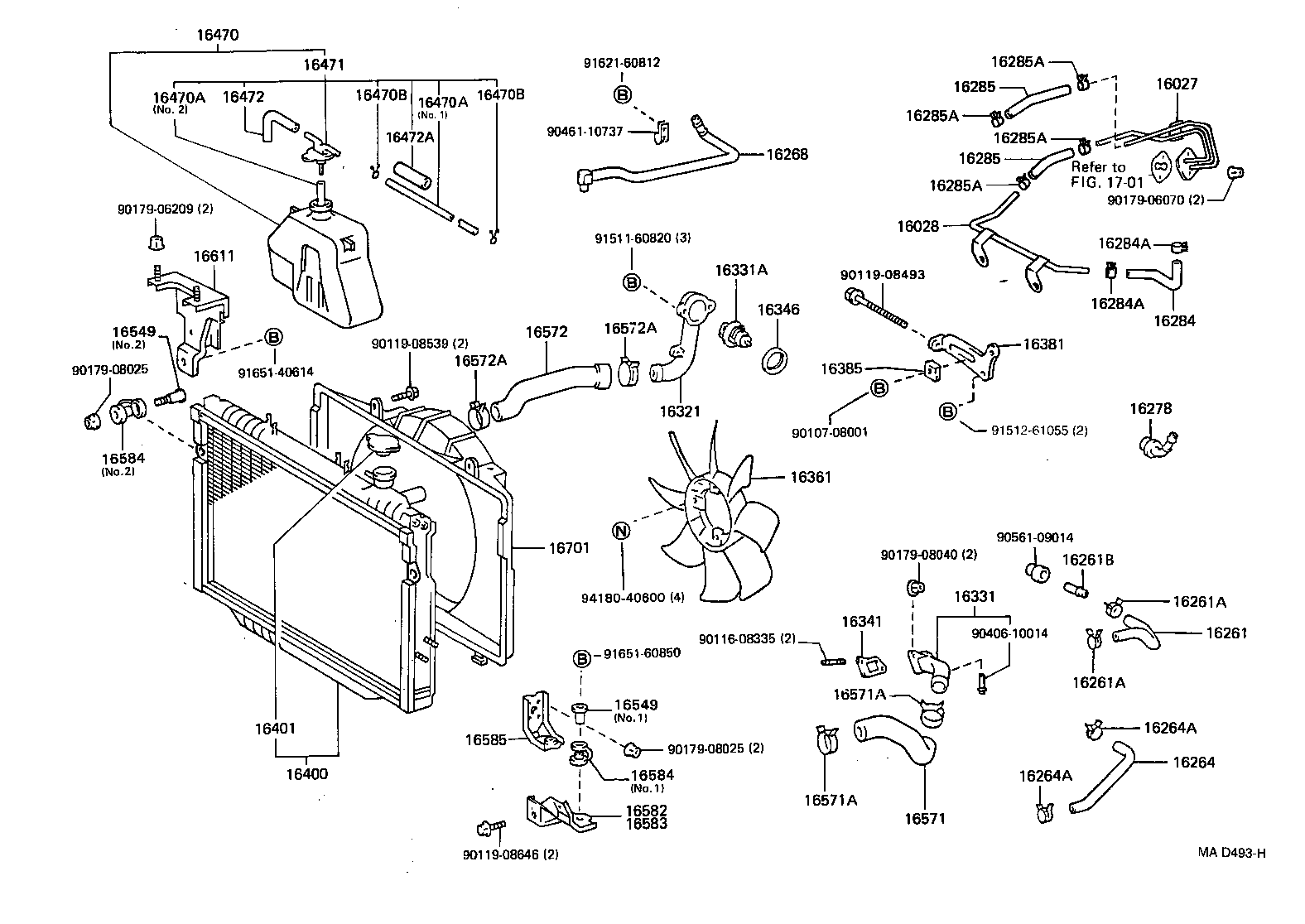

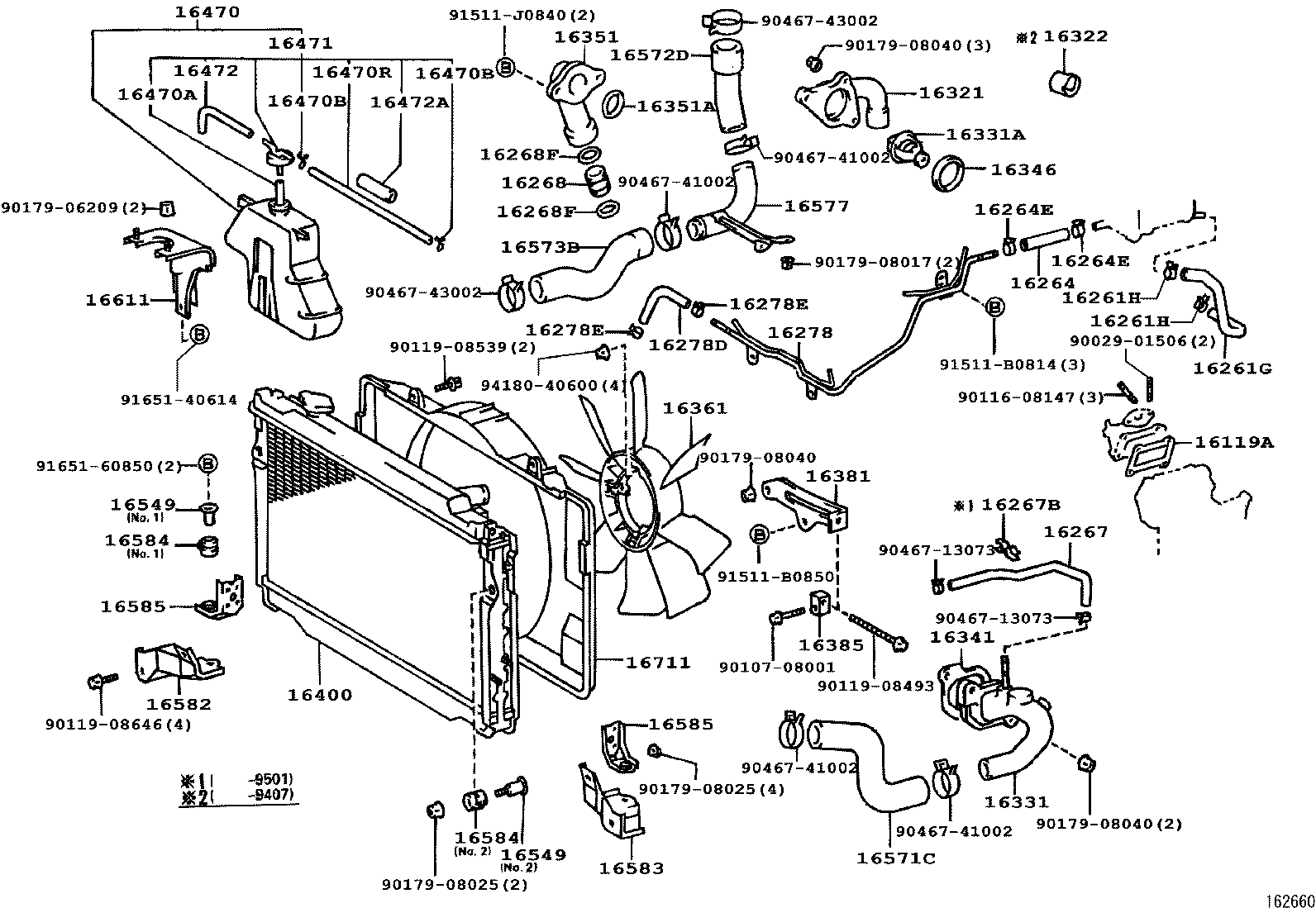

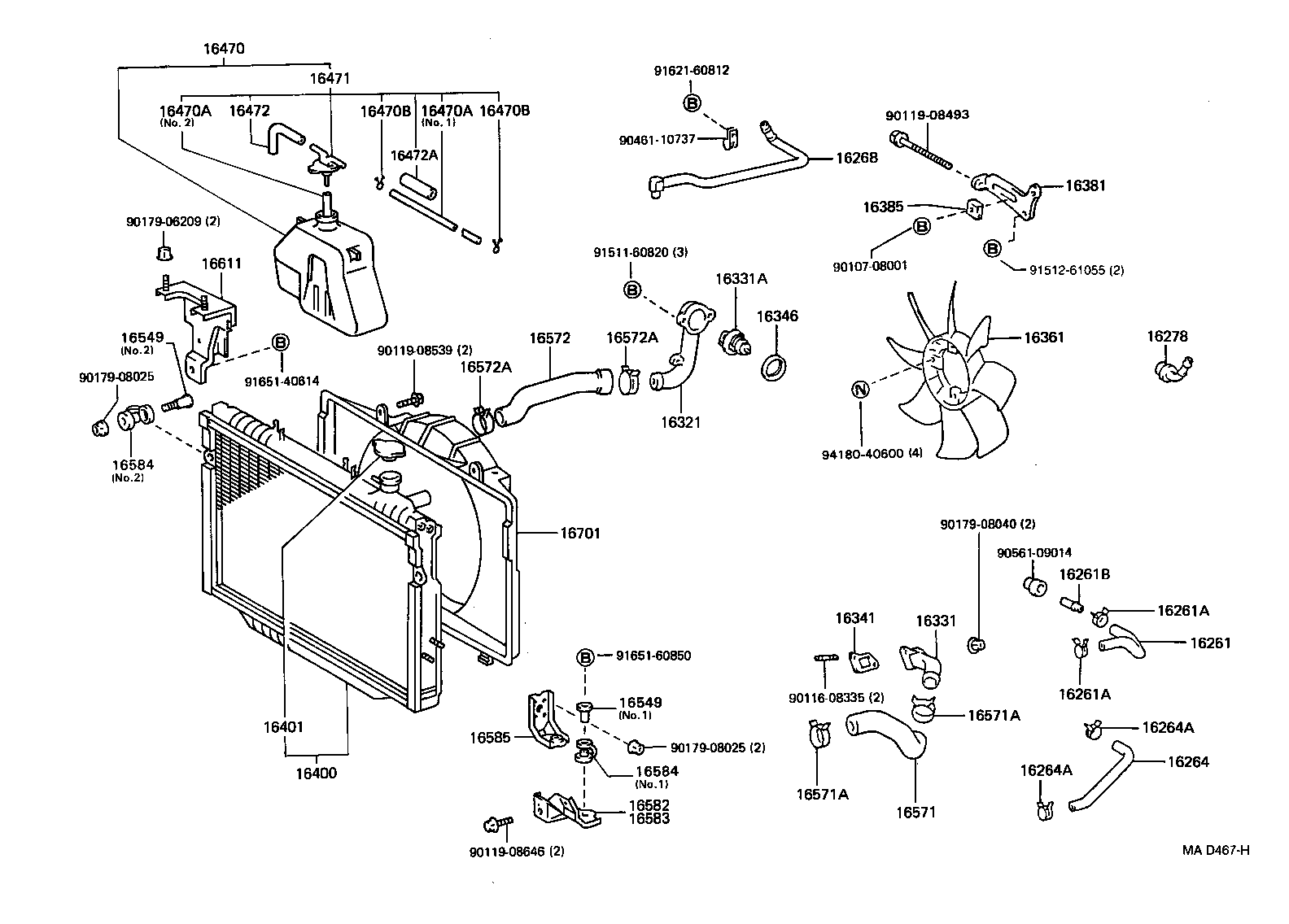

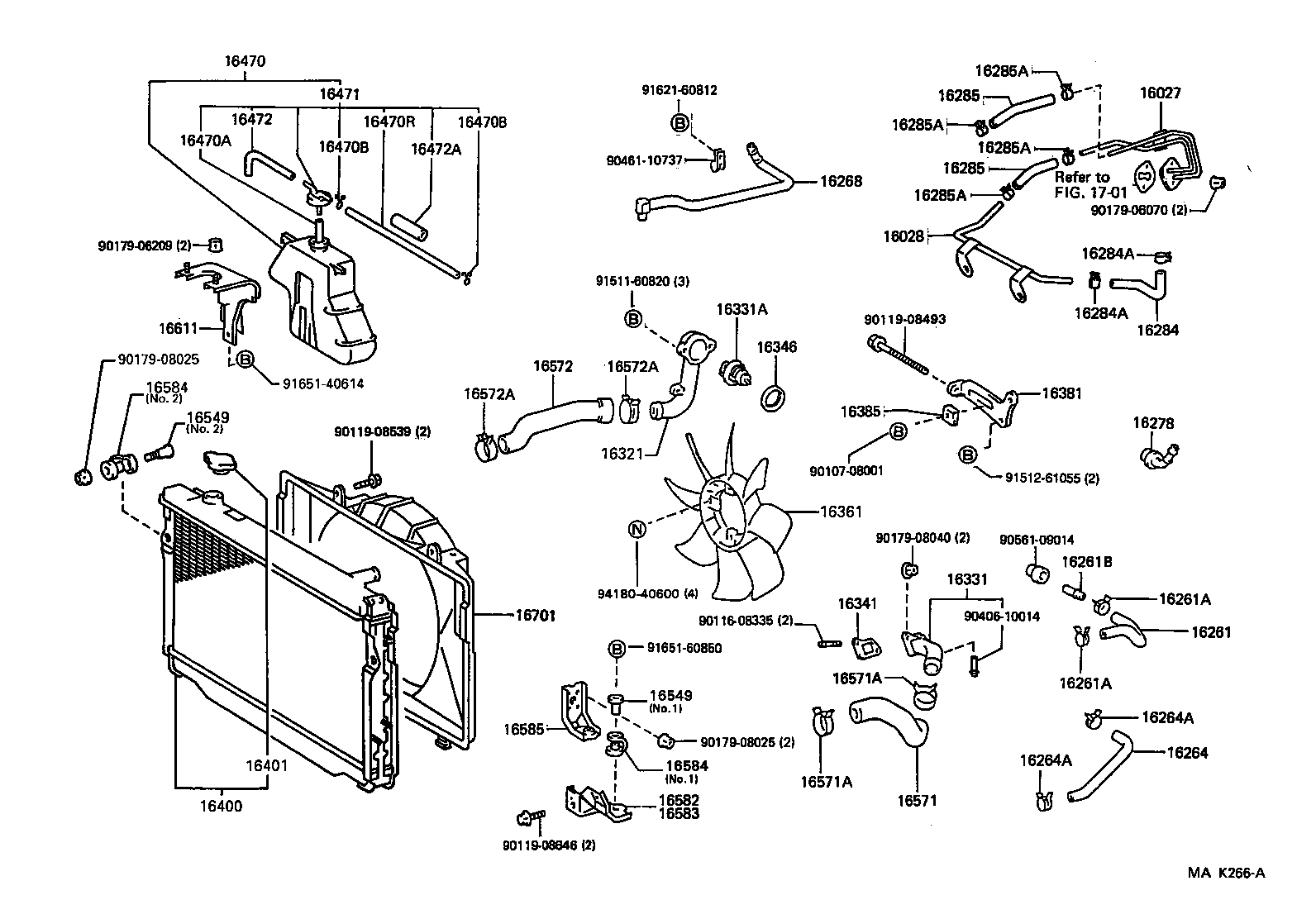

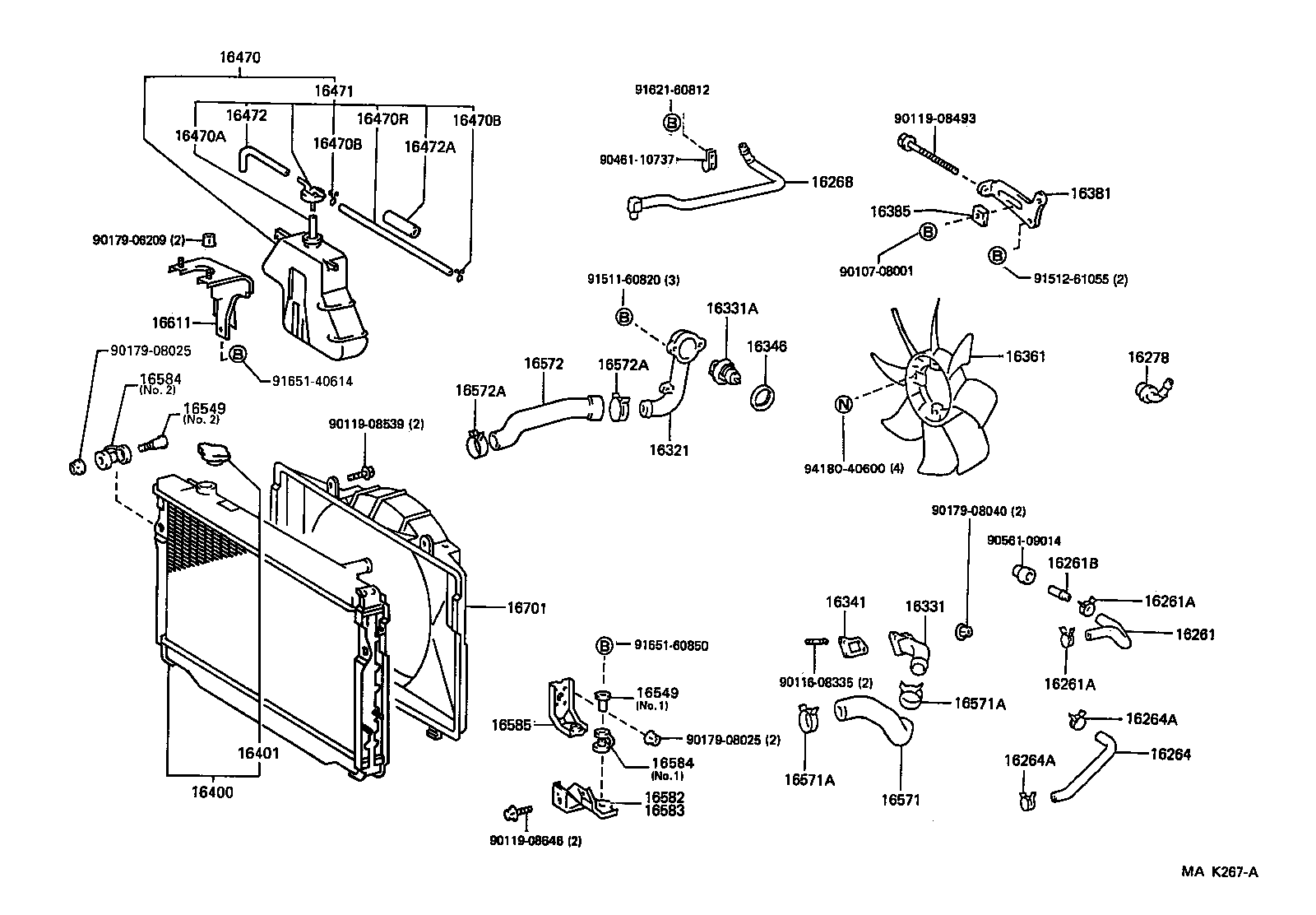

Radiator & Water Outlet
86 part groups · 10 illustrations
Part groups
| PNC | Description |
|---|---|
| 16027 | Pipe Sub-assy, Turbo Water, NO.1 |
| 16028 | Pipe Sub-assy, Turbo Water, NO.2 |
| 16119A | Gasket, Thermostat Guide |
| 16261 | Hose, Water By-pass |
| 16261A | Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) |
| 16261B | Union(FOR WATER BY-PASS HOSE) |
| 16261G | Hose, Water By-pass, NO.1 |
| 16261H | Clip(FOR WATER BY-PASS HOSE NO.1) |
| 16264 | Hose, Water By-pass, NO.2 |
| 16264A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16264E | Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16267 | Hose, Water By-pass, NO.3 |
| 16267B | Clip(FOR WATER BY-PASS HOSE) |
| 16268 | Pipe, Water By-pass, NO.1 |
| 16268A | Hose(FOR WATER BY-PASS PIPE) |
| 16268B | Clamp OR Clip, Hose(FOR WATER BY-PASS PIPE) |
| 16268F | Ring, O(FOR WATER BY-PASS PIPE) |
| 16278 | Pipe, Water By-pass, NO.2 |
| 16278D | Hose, Water By-pass |
| 16278E | Clip(FOR WATER BY-PASS HOSE) |
| 16284 | Hose, Turbo Water, NO.1 |
| 16284A | Clip(FOR TURBO WATER HOSE NO.1) |
| 16285 | Hose, Turbo Water, NO.2 |
| 16285A | Clip(FOR TURBO WATER HOSE NO.2) |
| 16321 | Inlet, Water |
| 16322 | Pipe, Water Inlet |
| 16331 | Outlet, Water |
| 16331A | Thermostat |
| 16333 | Housing, Water Outlet |
| 16341 | Gasket, Water Outlet |
| 16343 | Gasket, Water Outlet Housing |
| 16346 | Gasket, Thermostat |
| 16351 | Outlet, Water By-pass |
| 16351A | Ring, O(FOR WATER BY-PASS OUTLET) |
| 16360 | Blower Assy, W/Shroud |
| 16361 | Fan |
| 16363 | Motor, Cooling Fan |
| 16381 | Bar, Fan Belt Adjusting |
| 16381C | Bar, Fan Belt Adjusting, NO.2 |
| 16384 | Bracket, Fan Belt Adjusting Bar |
| 16385 | Slider, Fan Belt Adjusting |

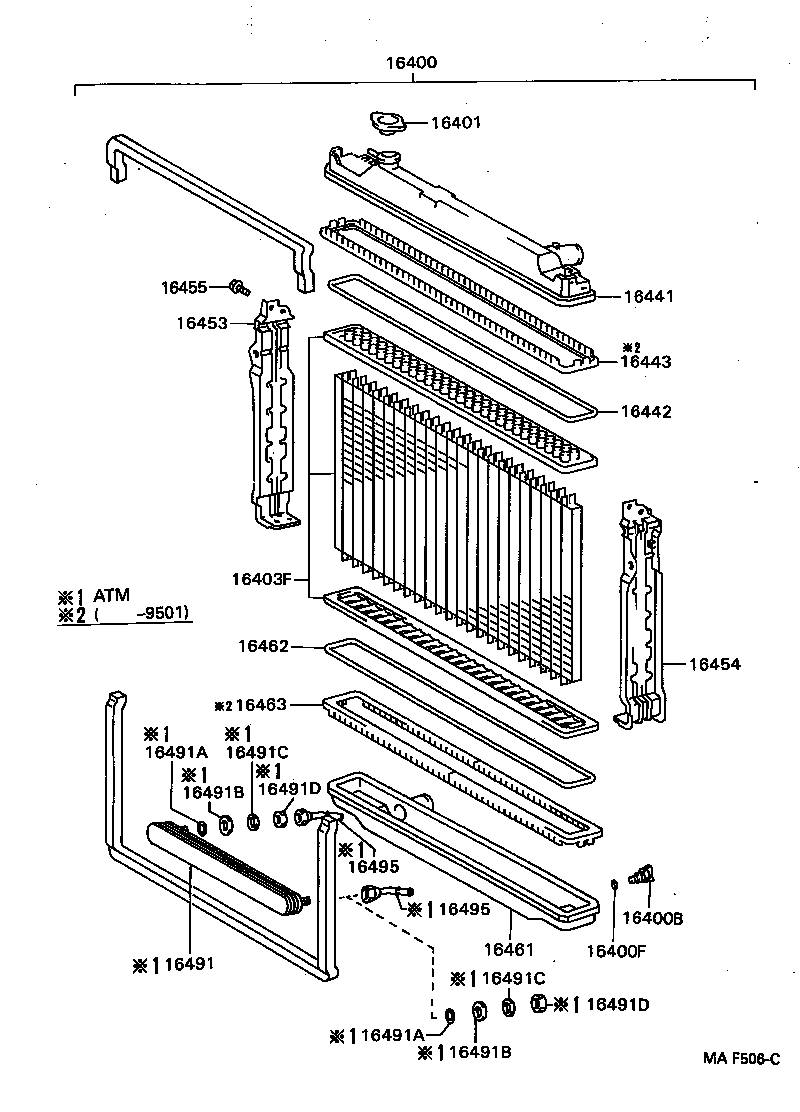

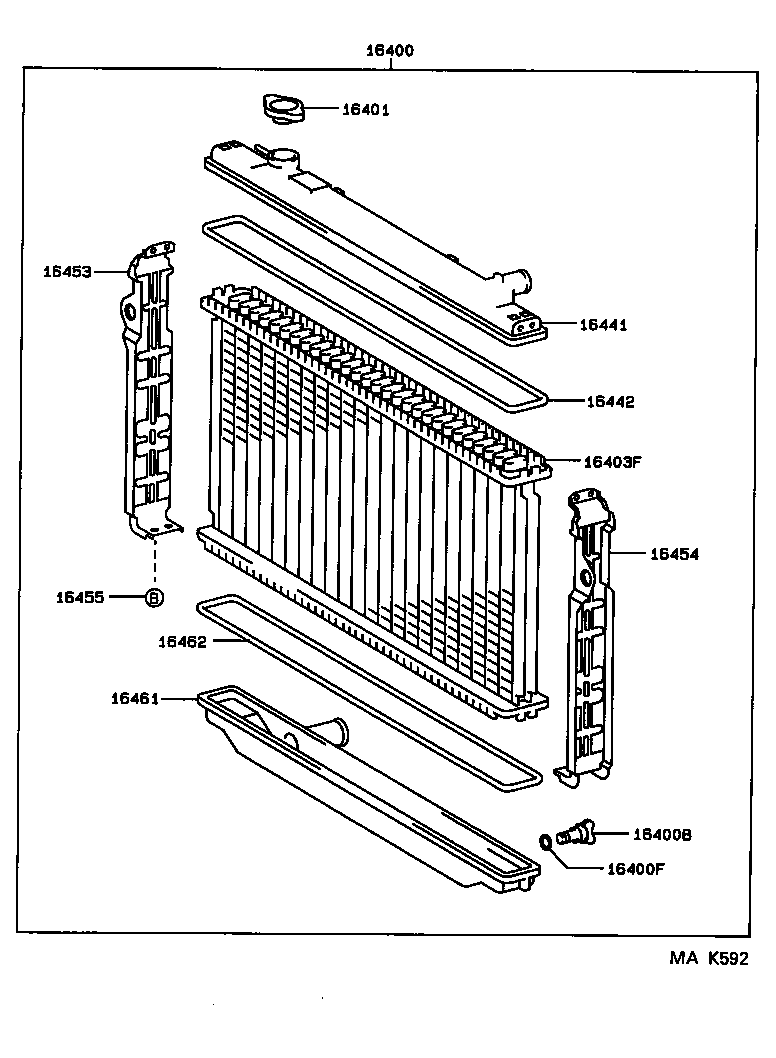

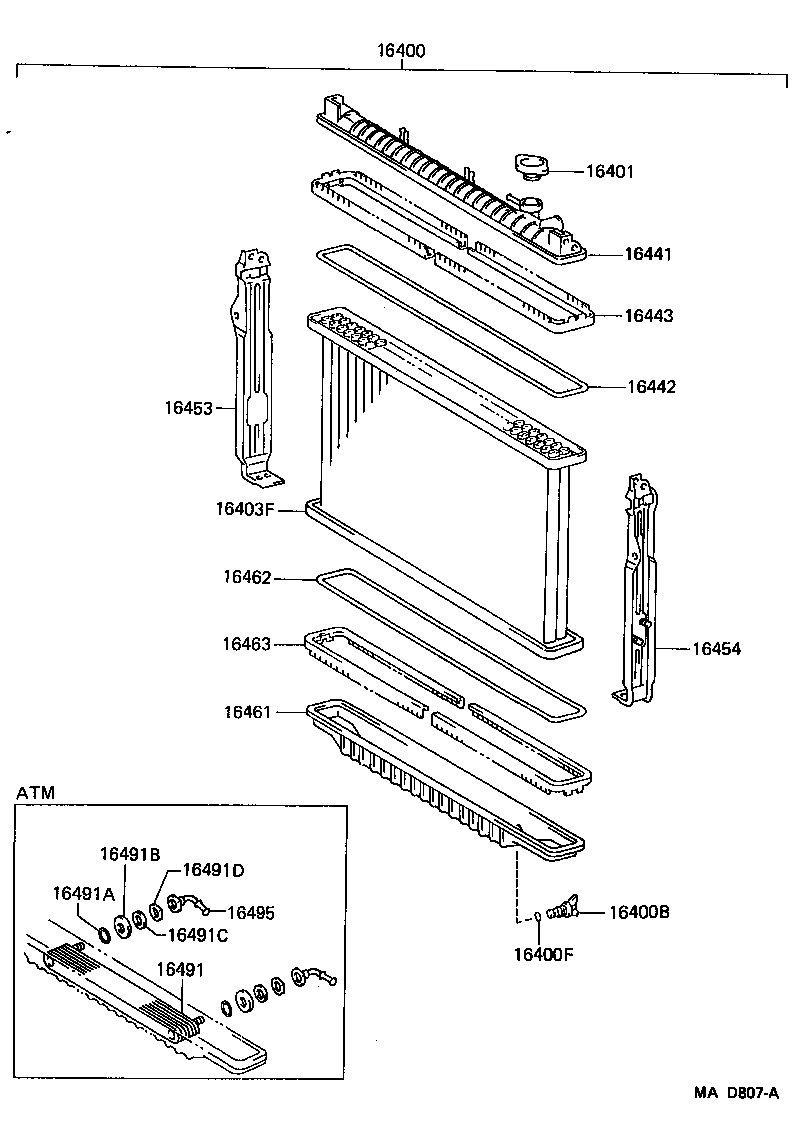

| 16400 | Radiator Assy |
| 16400B | Plug, Radiator Drain Cock |
| 16400F | Packing(FOR RADIATOR DRAIN COCK) |
| 16401 | Cap Sub-assy, Radiator |
| 16403F | Core Sub-assy, Radiator |
| 16441 | Tank, Radiator, Upper |
| 16442 | Ring, O(FOR RADIATOR UPPER TANK) |
| 16443 | Plate, Radiator Tank, Lock, Upper |
| 16453 | Plate, Radiator Side |
| 16454 | Plate, Radiator Side |
| 16455 | Bolt, Radiator Side Support Plate |
| 16461 | Tank, Radiator, Lower |
| 16462 | Ring, O(FOR RADIATOR LOWER TANK) |
| 16463 | Plate, Radiator Tank, Lock, Lower |
| 16470 | Tank Assy, Radiator Reserve |
| 16470A | Hose OR Pipe(FOR RADIATOR RESERVE TANK) |
| 16470B | Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE) |
| 16470R | Hose, NO.2(FOR RADIATOR RESERVE TANK) |
| 16471 | Cap Sub-assy, Reserve Tank |
| 16472 | Hose, Breather |
| 16472A | Protector, Hose |
| 16491 | Cooler, Oil(FOR ATM) |
| 16491A | Ring, O(FOR ATM OIL COOLER) |
| 16491B | Washer, Plate(FOR ATM OIL COOLER) |
| 16491C | Washer, Spring(FOR ATM OIL COOLER) |
| 16491D | Nut(FOR ATM OIL COOLER) |
| 16495 | Nut, Flare(FOR ATM OIL COOLER) |
| 16549 | Collar, Radiator Support, NO.2 |
| 16571 | Hose, Radiator, Inlet |
| 16571A | Clamp OR Clip, Hose(FOR RADIATOR INLET) |
| 16571C | Hose, Radiator, NO.1 |
| 16572 | Hose, Radiator, Outlet |
| 16572A | Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1) |
| 16572C | Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.2) |
| 16572D | Hose, Radiator, NO.2 |
| 16573B | Hose, Radiator, NO.3 |
| 16577 | Pipe, Radiator, NO.7 |
| 16582 | Bracket, Radiator, NO.1 |
| 16583 | Bracket, Radiator, NO.2 |
| 16584 | Insulator, Radiator Mounting |
| 16585 | Bracket, Radiator, NO.3 |
| 16611 | Bracket, Radiator Reserve Tank |
| 16701 | Shroud Sub-assy, Fan |
| 16711 | Shroud, Fan |
| 53809B | Duct Sub-assy, Cooling Fan Air |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
