Toyota Land Cruiser

1990-01 → 1998-01 · chassis FJ80,FZJ80,HDJ80,HZJ80 · catalogue 791540 · Europe

Discontinued model Data version 1998-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

60 part groups · 7 illustrations

Illustrations

MA9880B 1990-01 → 1992-08

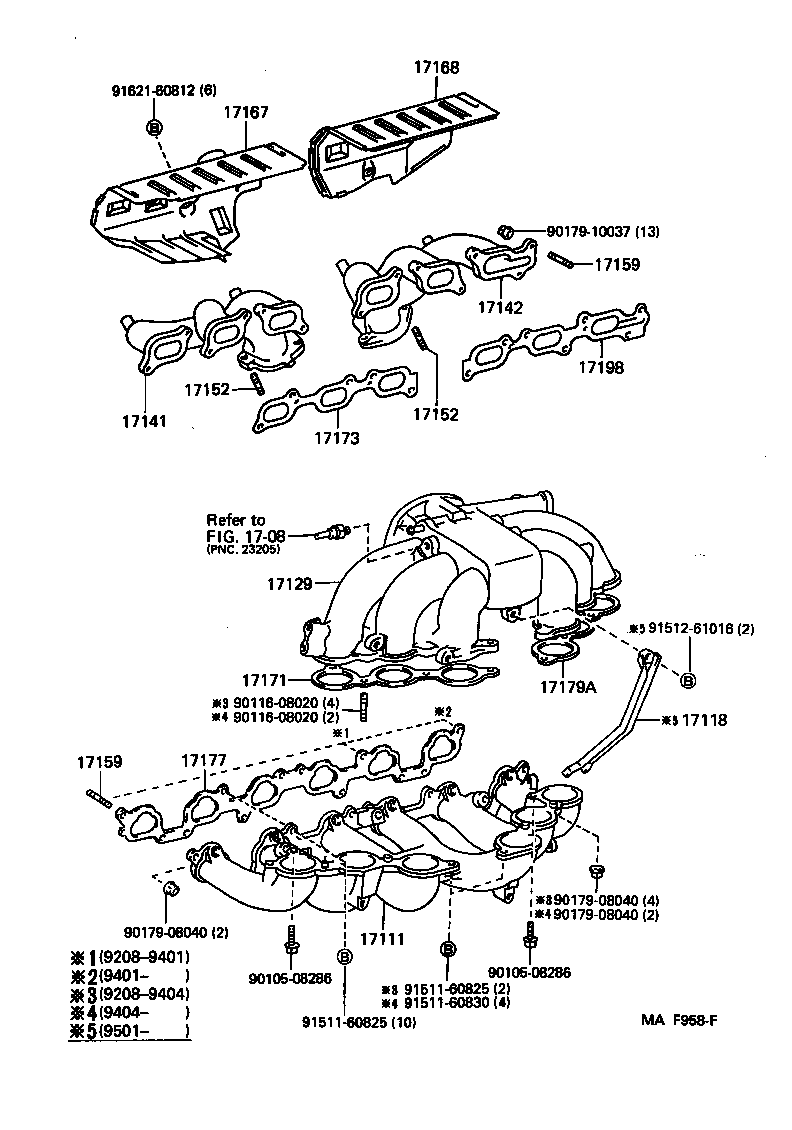

MAF958F 1992-08 → —

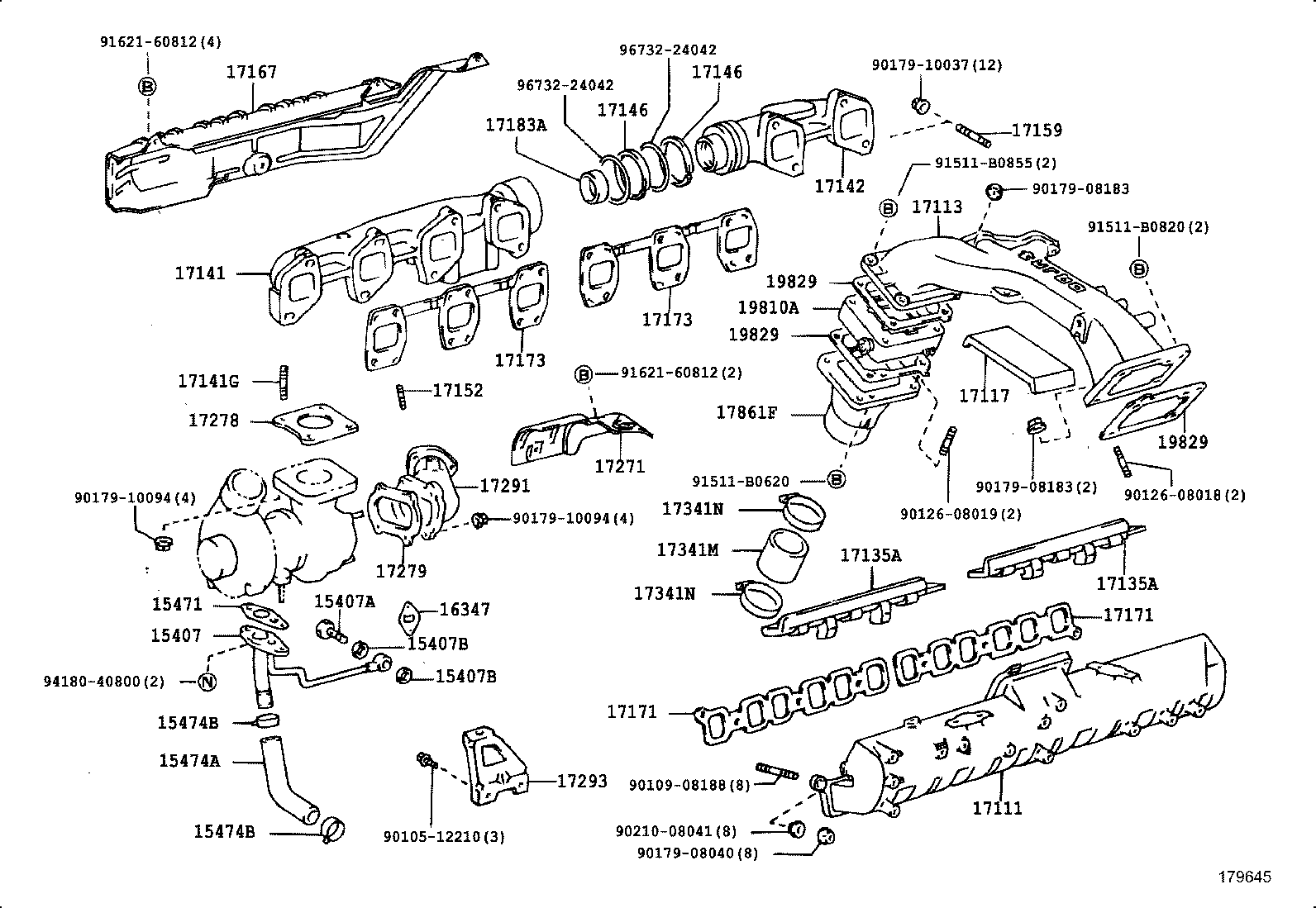

179645 1995-01 → —

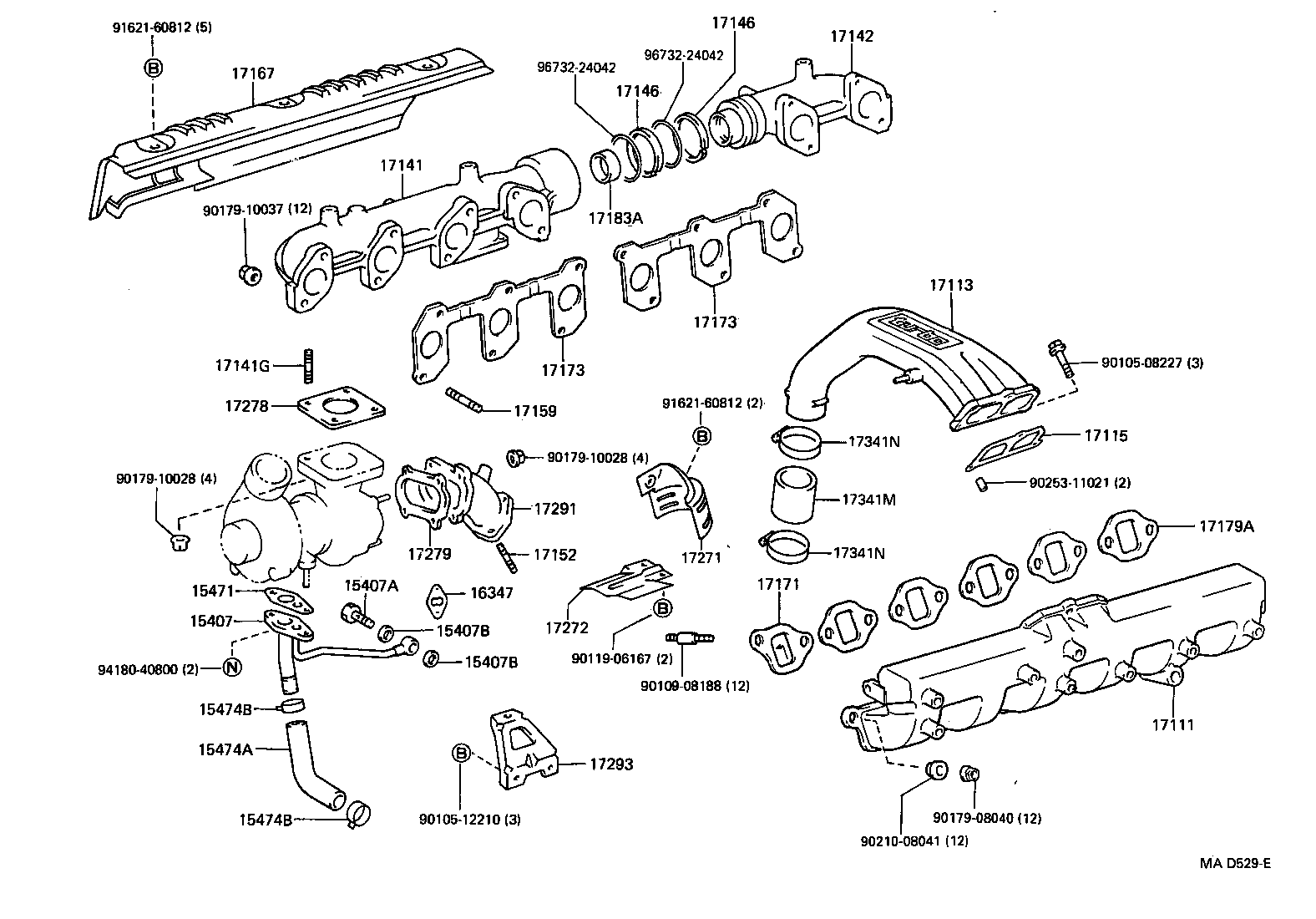

MAD529E 1990-01 → 1995-01

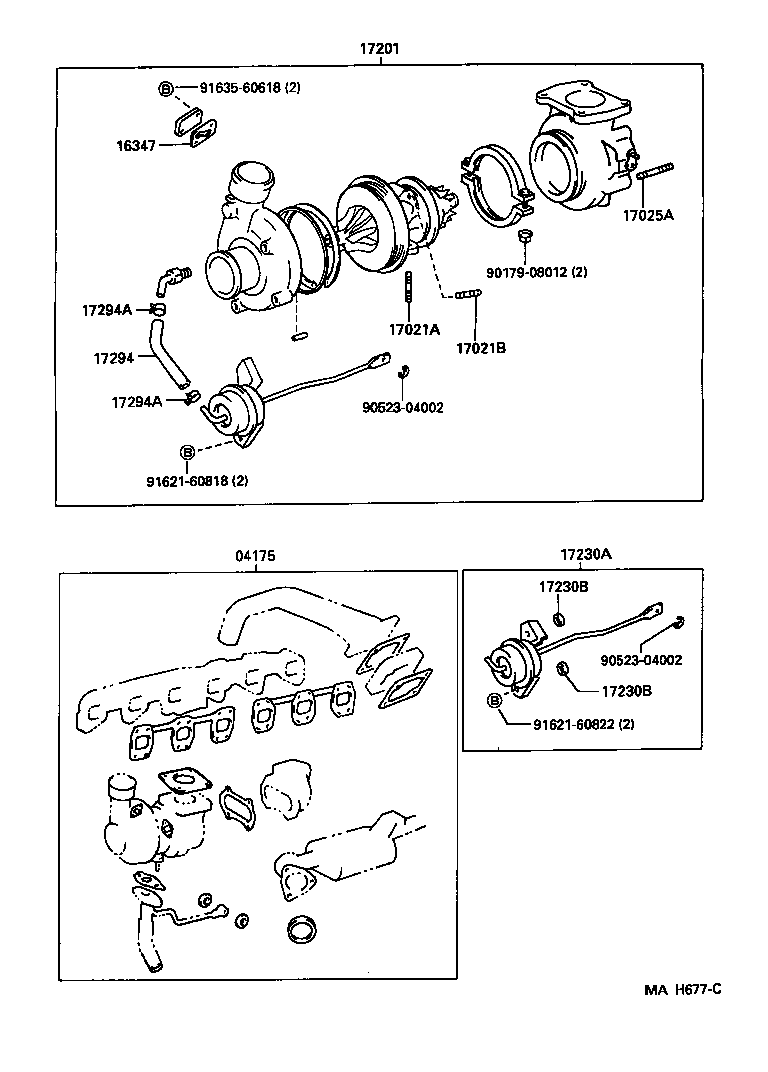

MAH677C 1995-01 → —

MAD808C 1990-01 → —

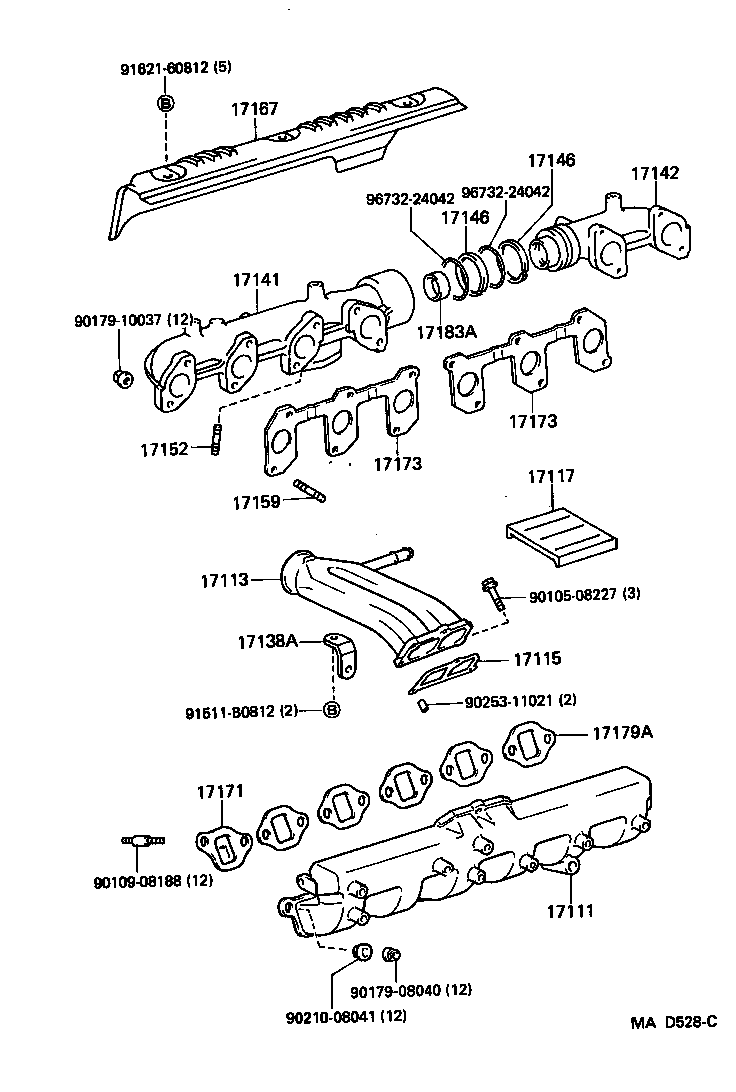

MAD528C 1990-01 → —

Part groups

PNC	Description
04175	Gasket Kit, Turbocharger
15407	Pipe Sub-assy, Turbo Oil Inlet
15407A	Bolt, Union(FOR TURBO OIL INLET PIPE)
15407B	Gasket(FOR TURBO OIL INLET PIPE)
15471	Gasket, Turbo Oil Inlet
15474A	Hose, Turbo Oil Outlet
15474B	Clamp OR Clip(FOR TURBO OIL OUTLET HOSE)
16347	Gasket, Water By-pass
17021A	Bolt, Stud(FOR BEARING HOUSING)
17021B	Bolt, Stud
17025A	Bolt, Stud(FOR TURBINE HOUSING)
17111	Manifold, Intake
17111B	Plug, NO.2
17113	Pipe, Intake
17115	Gasket, Intake Manifold Hole Cover
17117	Insulator, Intake Pipe
17118	Stay, Manifold
17119	Stay, Manifold, NO.2
17123	Cover, Surge Tank
17125	Stay, Surge Tank, NO.1
17129	Tank, Intake Air Surge
17129B	Plug
17135A	Insulator, Intake Manifold, NO.1
17138A	Stay, Intake Pipe
17141	Manifold, Exhaust
17141G	Bolt, Stud(FOR TURBOCHARGER)
17142	Case, Exhaust Manifold, NO.2
17146	Ring, Exhaust Manifold
17152	Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159	Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167	Insulator, Exhaust Manifold Heat, NO.1
17168	Insulator, Exhaust Manifold Heat, NO.2
17169	Insulator, Exhaust Manifold Heat, NO.3
17171	Gasket, Intake TO Exhaust Manifold
17172	Gasket, Manifold TO Cylinder Head
17173	Gasket, Exhaust Manifold TO Head
17176	Gasket, Air Surge Tank TO Intake Manifold
17177	Gasket, Intake Manifold TO Head, NO.1
17179A	Gasket, Intake Manifold, NO.2
17183A	Collar, Manifold
17198	Gasket, Exhaust Manifold, NO.2
17201	Turbocharger Sub-assy
17224B	Plug, Taper Screw
17230A	Repair Actuaor Assy, W/Bracket
17230B	Washer, Plate(FOR REPAIR ACTUATOR SET)
17271	Insulator, Turbo, NO.1
17272	Insulator, Turbo, NO.2
17278	Gasket, Turbo TO Exhaust Manifold
17279	Gasket, Turbine Outlet Elbow
17291	Elbow, Turbine Outlet
17293	Stay, Turbocharger
17294	Hose, Actuator
17294A	Clip(FOR ACTUATOR HOSE)
17303Q	Hose(FOR PIPE TO UNION)
17341M	Hose, Air, NO.1
17341N	Clamp OR Clip(FOR AIR HOSE, NO.1)
17344B	Union(FOR AIR HOSE)
17861F	Connector, Intake Air
19810A	Heater Assy, Intake
19829	Gasket, Intake Heater

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
