Toyota Land Cruiser

1990-01 → 1998-01 · chassis FJ80,FZJ80,HDJ80,HZJ80 · catalogue 791540 · Europe

Discontinued model Data version 1998-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

23 part groups · 5 illustrations

Illustrations

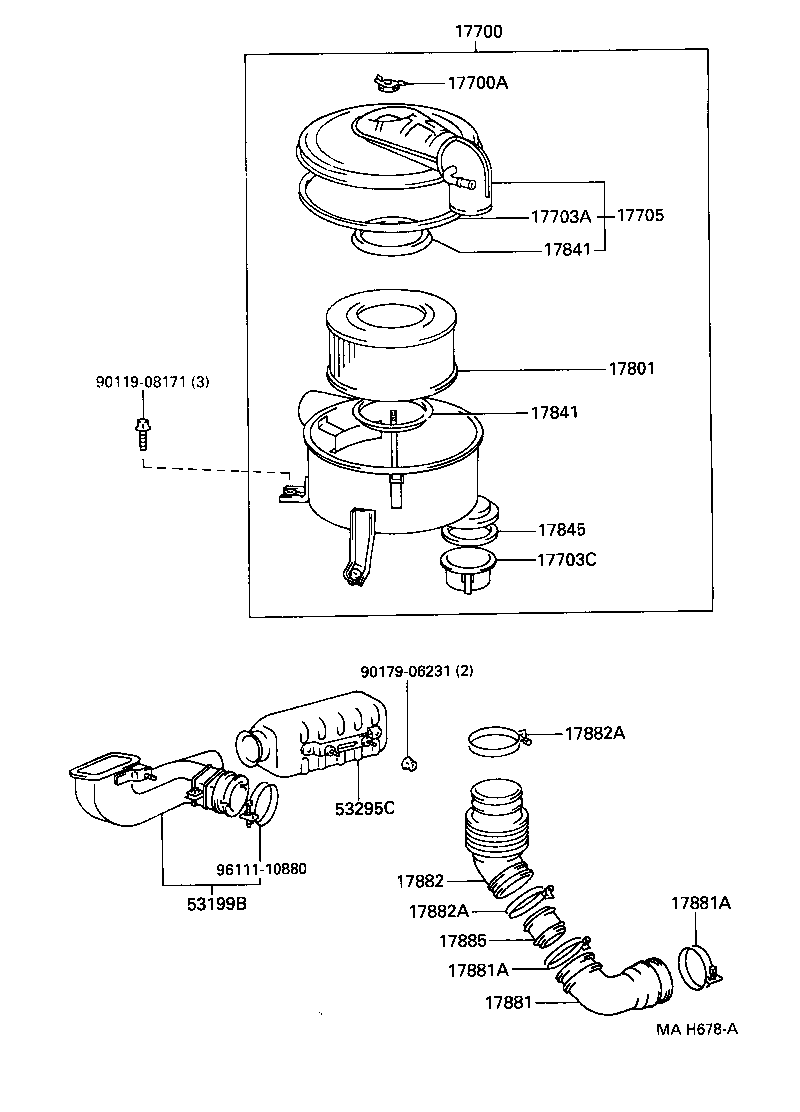

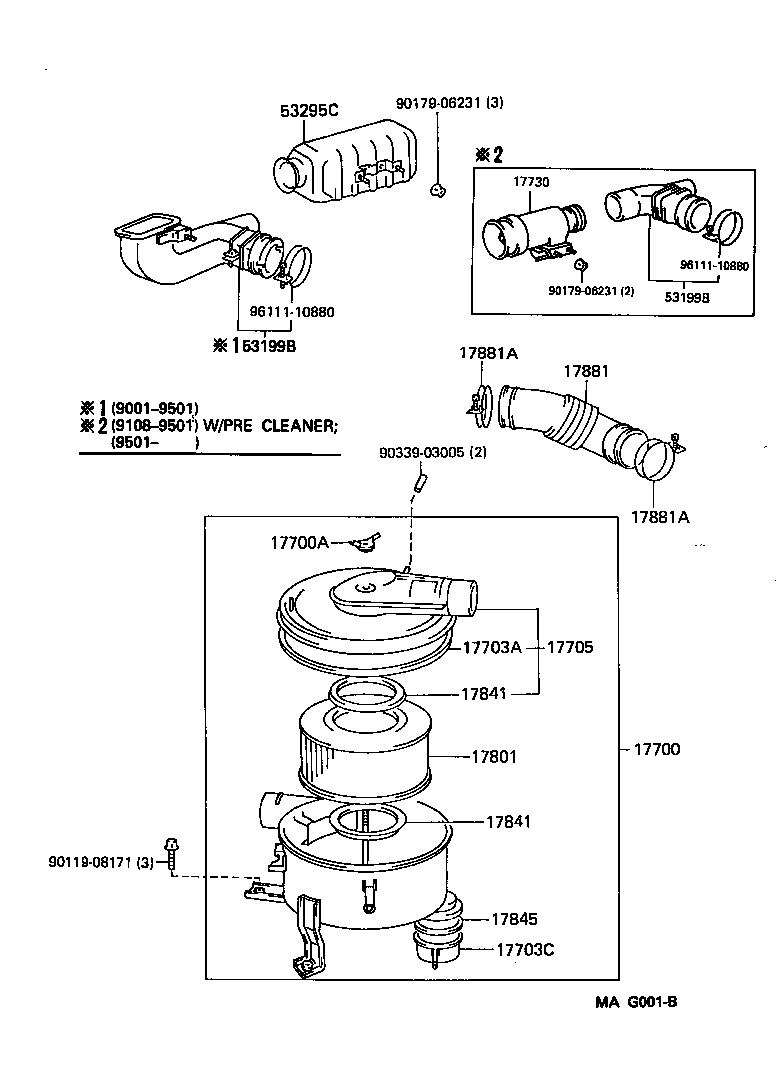

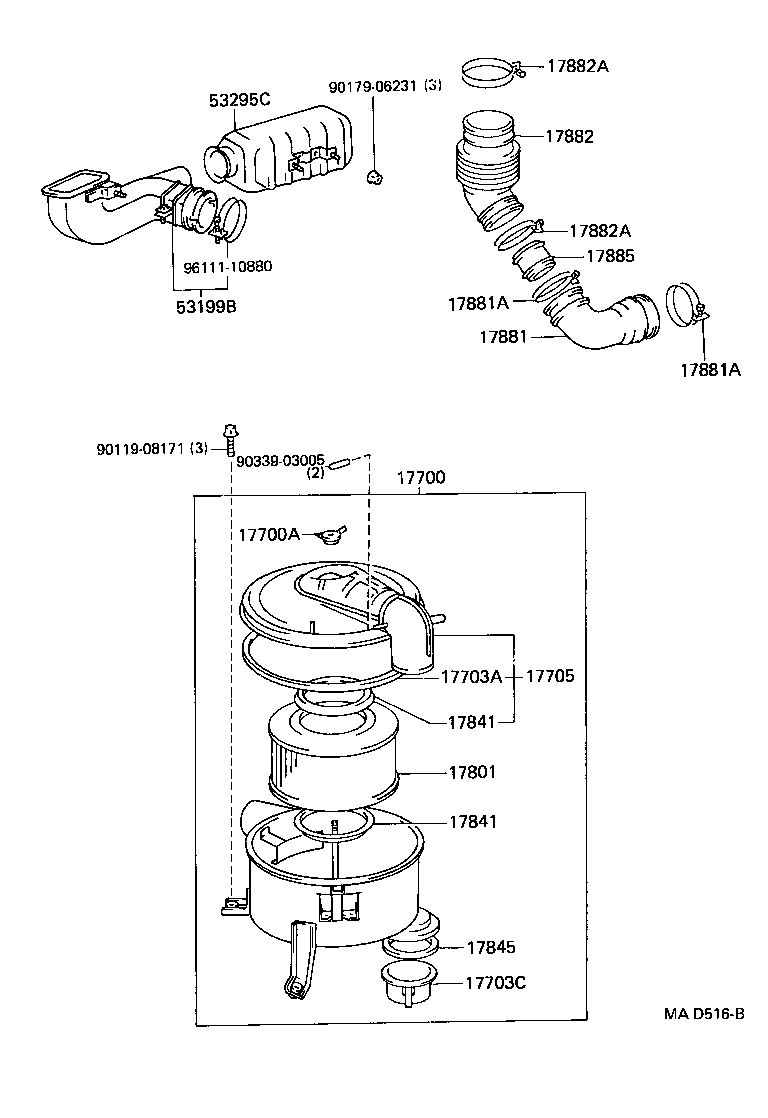

Figure MAD445A MAD445A 1990-01 → 1992-08 Figure MAF960C MAF960C 1992-08 → — Figure MAH678A MAH678A 1995-01 → — Figure MAD516B MAD516B 1990-01 → 1995-01 Figure MAG001B MAG001B 1990-01 → —

Part groups

PNCDescription
17301 Silencer Sub-assy, Air Suction
17341F Hose, Air, NO.1
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700W Spacer(FOR AIR CLEANER)
17703A Gasket(FOR BOTTOM AIR CLEANER FILTER CASE)
17703C Cap Sub-assy, Dust
17705 Cap Sub-assy, Air Cleaner
17730 Precleaner Assy, Air W/Hose
17801 Element Sub-assy, Air Cleaner Filter
17841 Gasket, Filter Element
17845 Gasket, Air Cleaner Cap
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17885 Pipe, Air Cleaner
22250 Meter Assy, Intake Air Flow
22255 Bracket, Air Flow Meter
22275 Gasket, Air Flow Meter
53199B Duct Sub-assy, Cool Air Intake
53295C Silencer, Cool Air Intake
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
