Toyota Land Cruiser

1990-01 → 1998-01 · chassis FJ80,FZJ80,HDJ80,HZJ80 · catalogue 791540 · Europe

Discontinued model Data version 1998-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

26 part groups · 7 illustrations

Illustrations

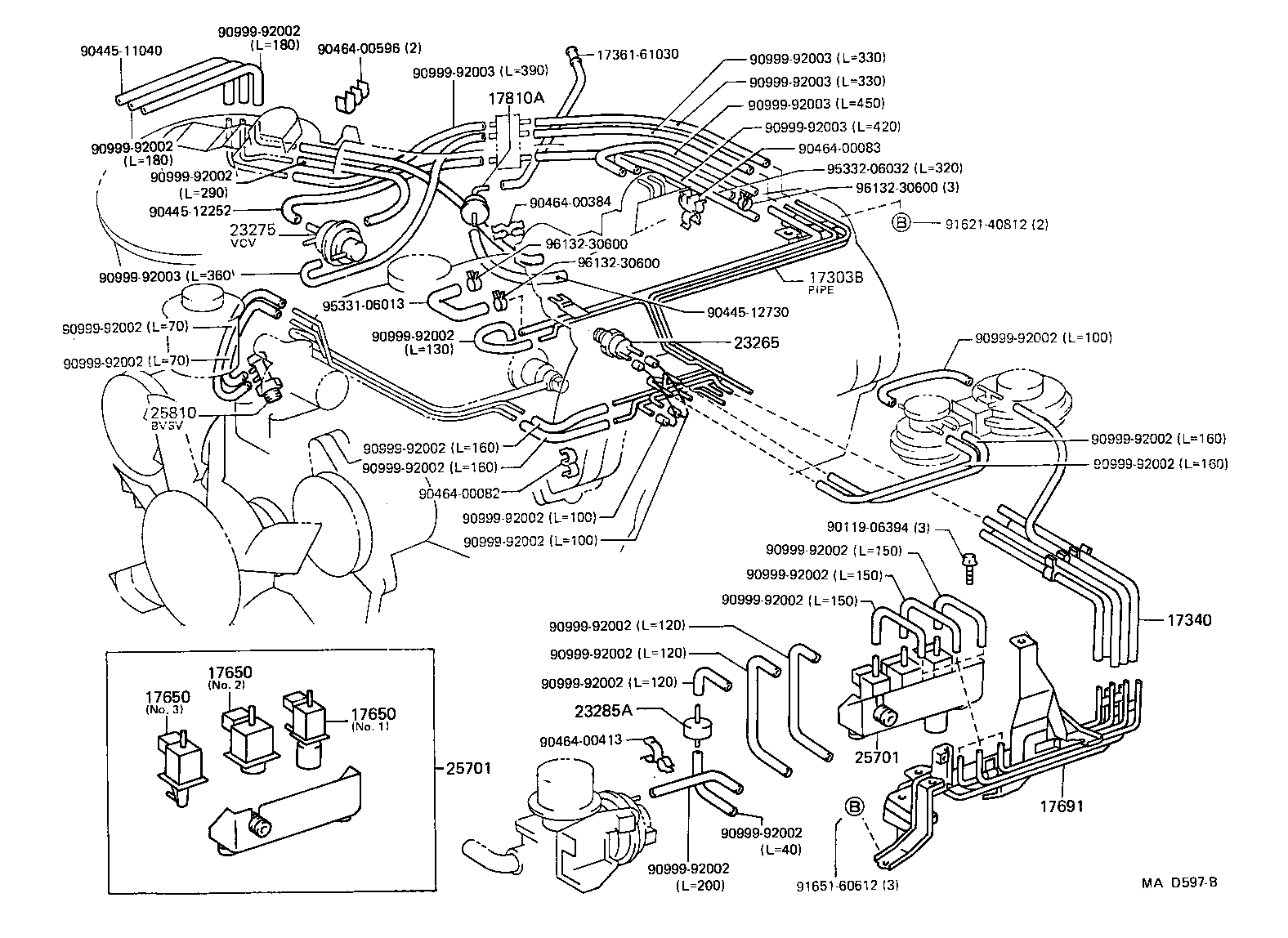

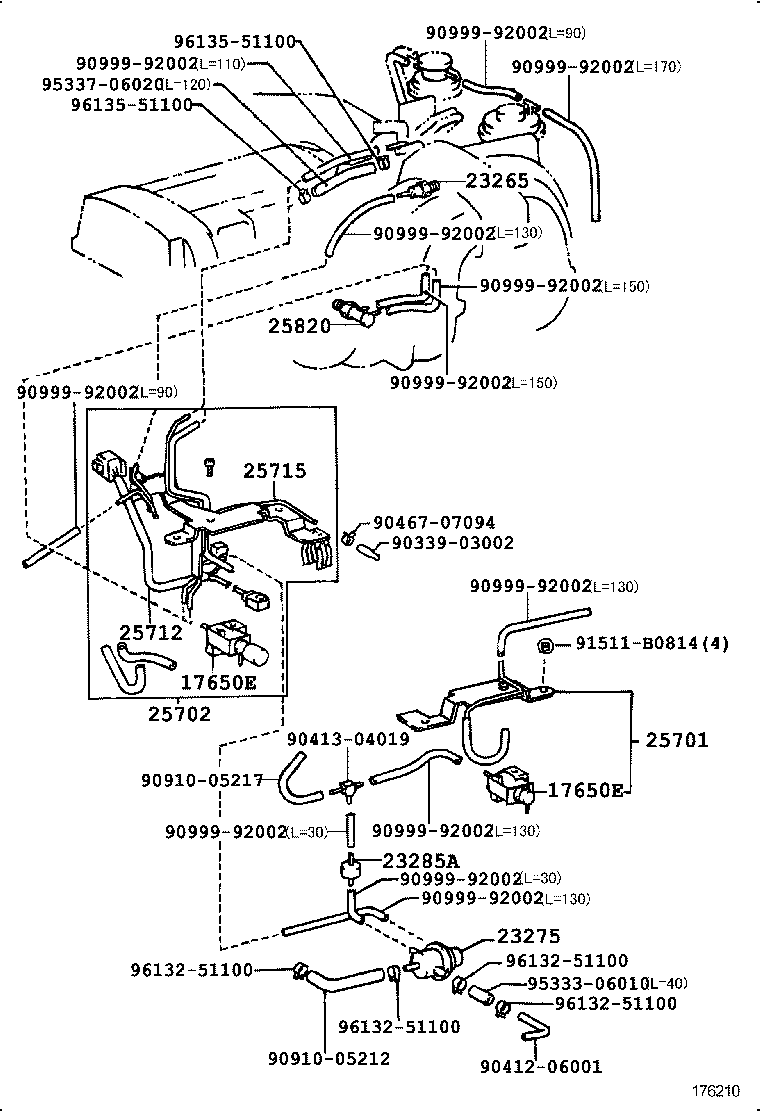

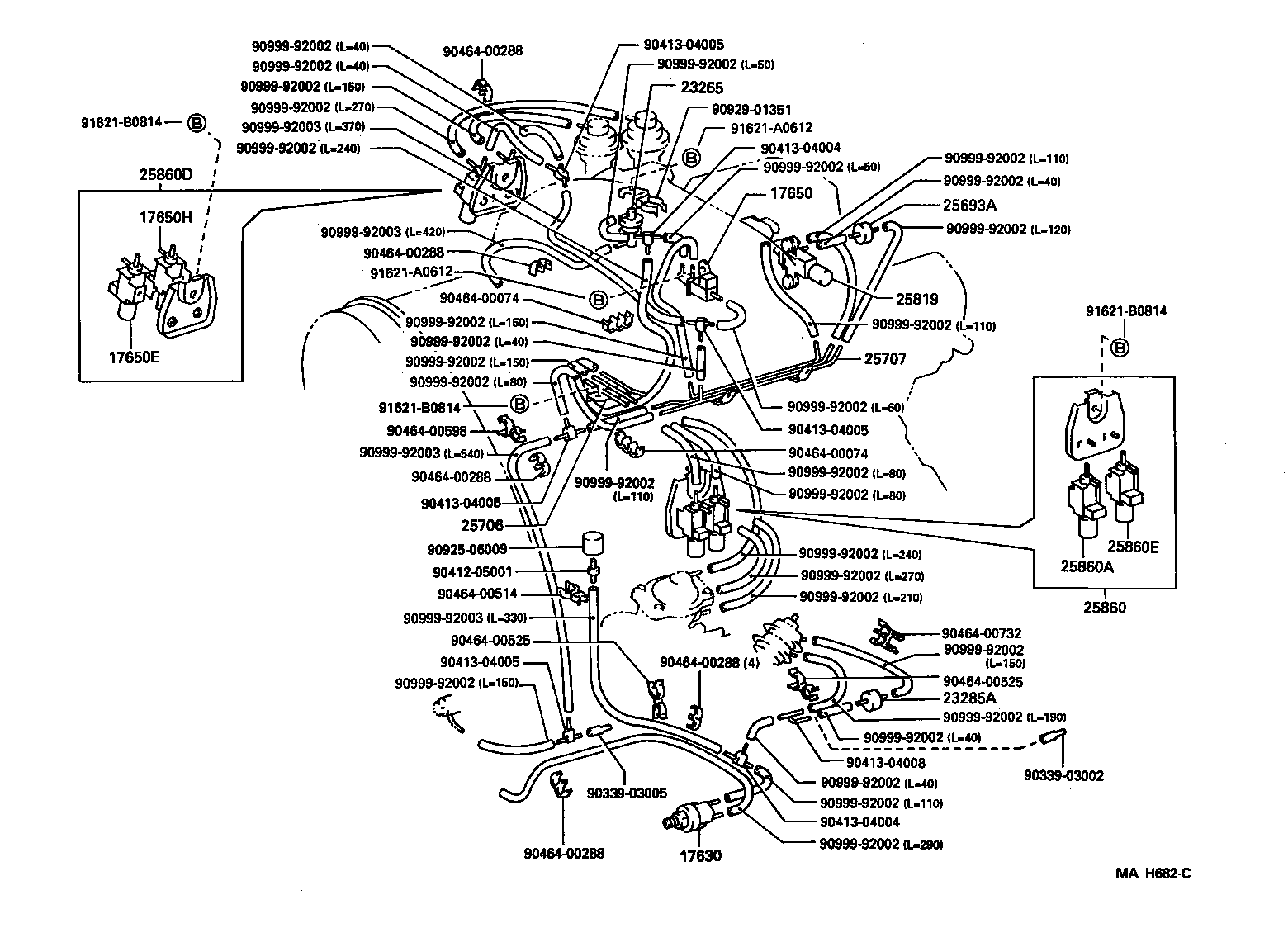

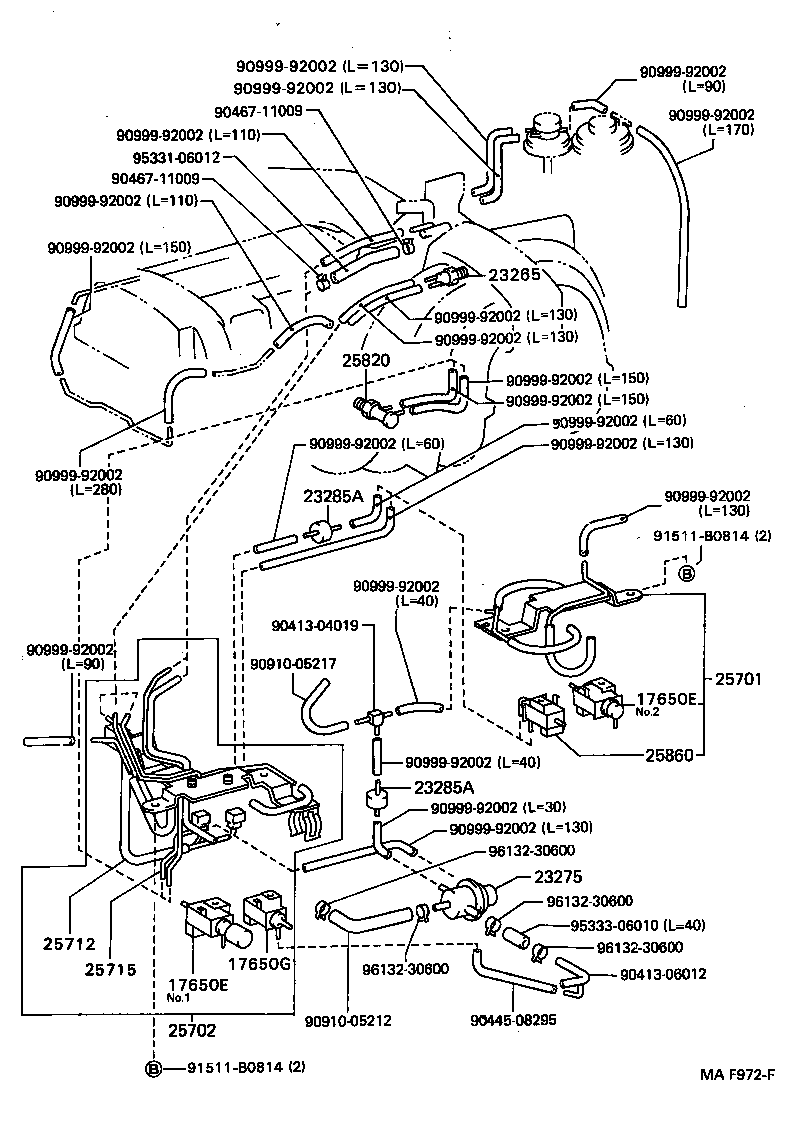

Figure MA9504B MA9504B 1990-01 → — Figure MAD597B MAD597B 1990-01 → 1992-08 Figure MAF972F MAF972F 1992-08 → 1995-01 Figure 176210 176210 1995-01 → — Figure MA9504B MA9504B 1990-01 → — Figure MAH682C MAH682C 1995-01 → — Figure MAJ216 MAJ216 1990-01 → 1995-01

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17340 Hose Assy, Vacuum Switching Valve
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17650E Valve, Vacuum Switching
17650G Valve, Duty Vacuum Switching
17650H Valve, Vacuum Switching
17691 Bracket, Vacuum Control Valve, NO.1
17810A Filter Assy, Air
23265 Filter, Gas, NO.1
23275 Valve, Vacuum Control, NO.1
23285A Valve, Check, NO.1
25693A Damper, Egr Vacuum Modulator
25701 Valve Set, Emission Control
25702 Valve Set, Emission Control, NO.2
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25712 Wire, Emission Control Valve
25715 Bracket, Emission Control Valve
25810 Valve Assy, Bimetal
25819 Valve Assy, Vacuum Regulating
25820 Valve Assy, Bimetal, NO.2
25860 Valve Assy, Vacuum Switching, NO.1
25860A Valve, Vacuum Switching, NO.1
25860D Valve Assy, Vacuum Switching, NO.2
25860E Valve, Vacuum Switching, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
