Toyota Land Cruiser

1990-01 → 1998-01 · chassis FJ80,FZJ80,HDJ80,HZJ80 · catalogue 791540 · Europe

Discontinued model Data version 1998-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Injection Pump Assembly

14 part groups · 5 illustrations

Illustrations

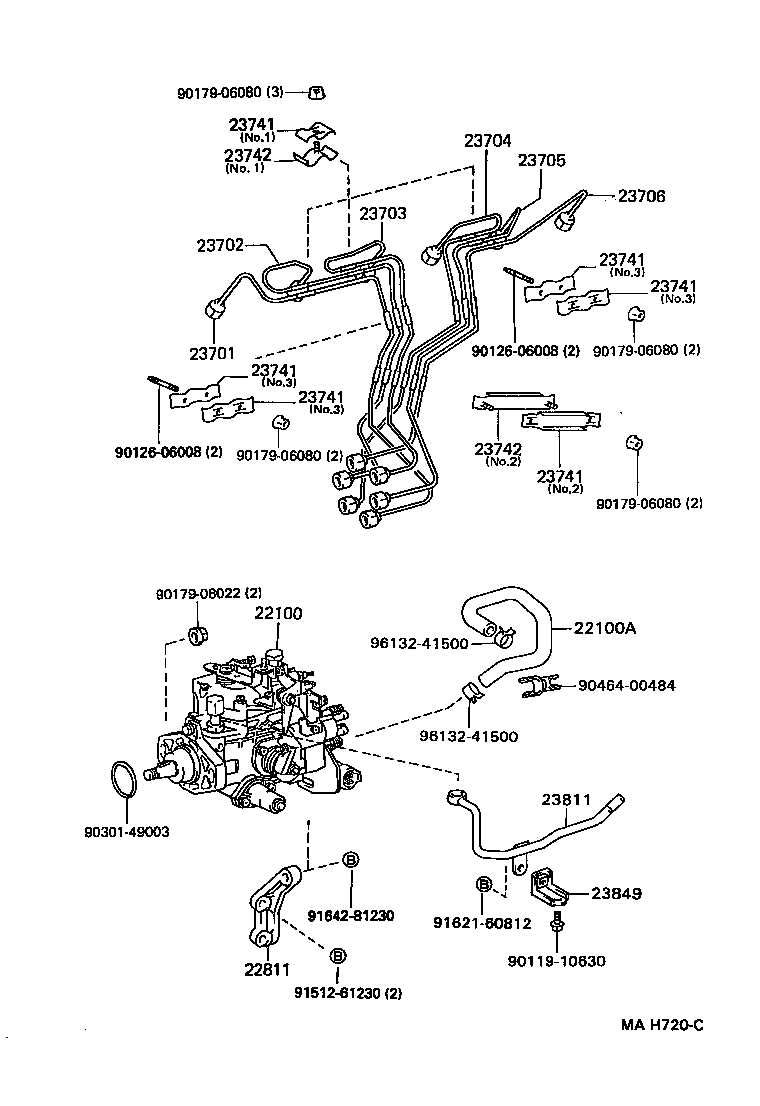

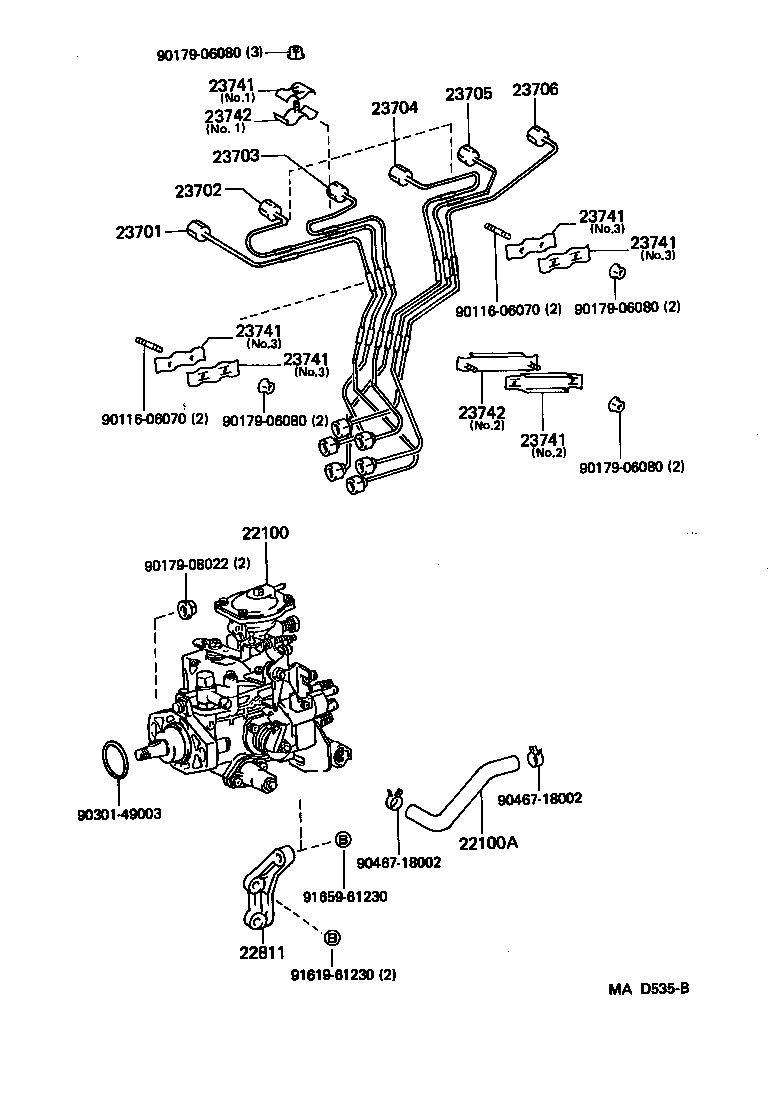

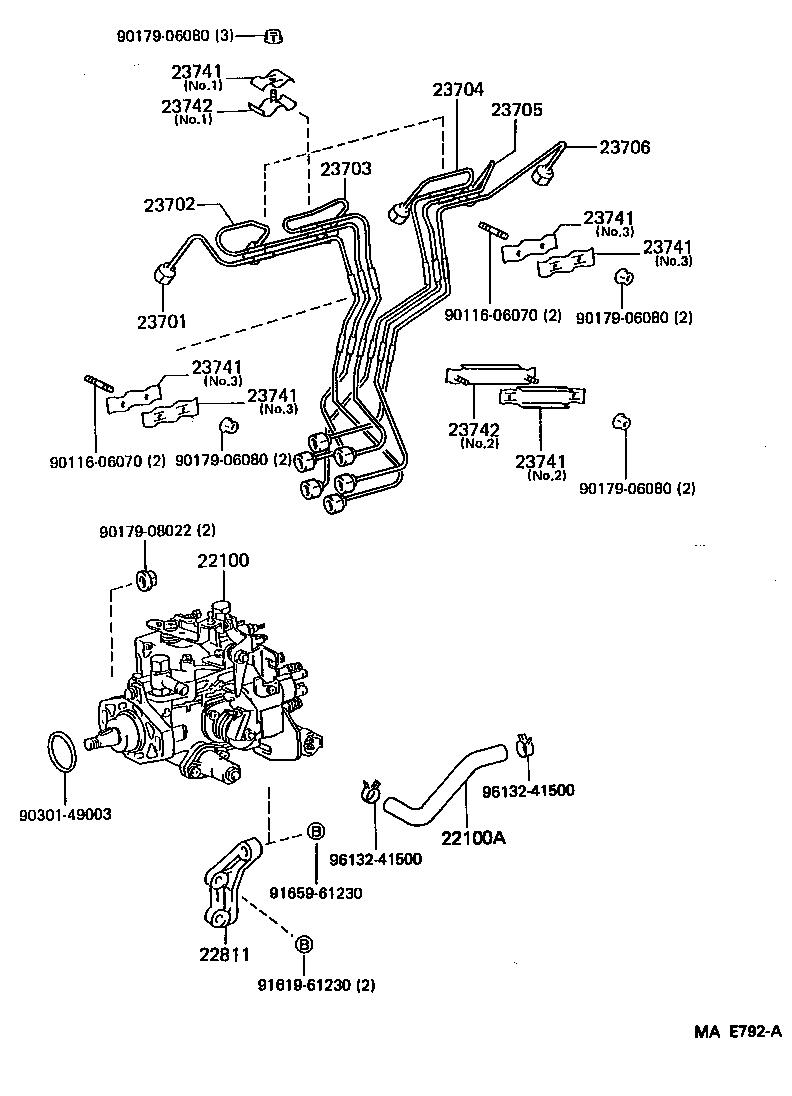

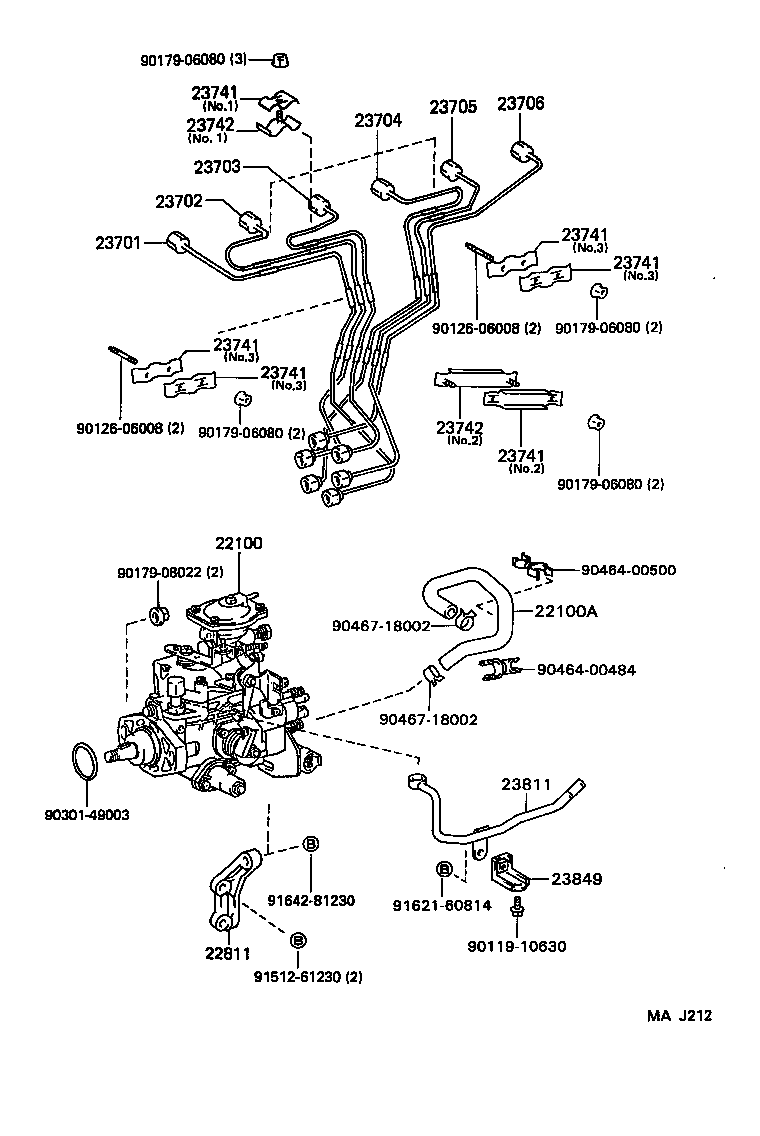

Figure MAH693C MAH693C 1995-01 → — Figure MAD535B MAD535B 1990-01 → 1992-08 Figure MAJ212 MAJ212 1992-08 → 1995-01 Figure MAE792A MAE792A 1990-01 → 1992-08 Figure MAH720C MAH720C 1992-08 → —

Part groups

PNCDescription
22100 Pump Assy, Injection OR Supply
22100A Hose OR Pipe, Fuel(FOR INJECTION PUMP TO FUEL FILTER)
22811 Stay, Injection Pump, NO.1
22815A Insulator, Injection Pump
23701 Pipe Sub-assy, Injection, NO.1
23702 Pipe Sub-assy, Injection, NO.2
23703 Pipe Sub-assy, Injection, NO.3
23704 Pipe Sub-assy, Injection, NO.4
23705 Pipe Sub-assy, Injection, NO.5
23706 Pipe Sub-assy, Injection, NO.6
23741 Clamp, Injection Pipe, NO.1
23742 Clamp, Injection Pipe, NO.2
23811 Pipe, Fuel(FOR FUEL FILTER TO INJECTION PUMP)
23849 Support, Fuel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
