Toyota Land Cruiser

1990-01 → 1998-01 · chassis FJ80,FZJ80,HDJ80,HZJ80 · catalogue 791540 · Europe

Discontinued model Data version 1998-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Master Cylinder

17 part groups · 4 illustrations

Illustrations

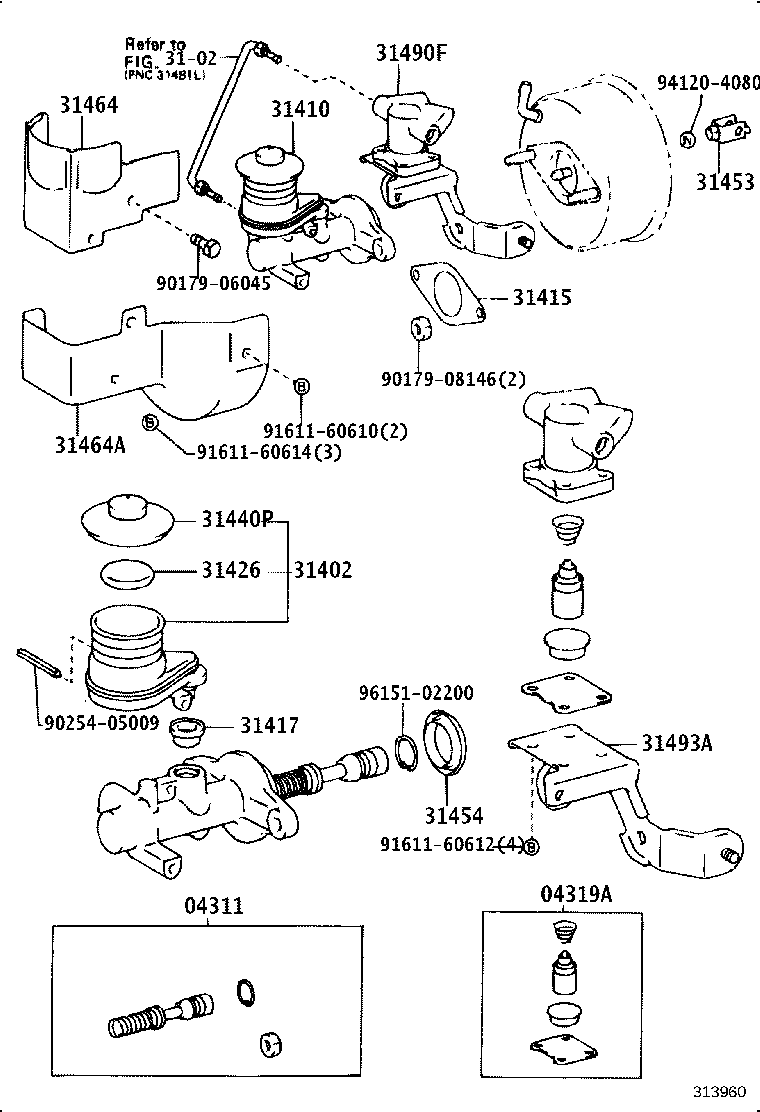

Figure MCK178B MCK178B 1990-01 → 1994-05 Figure 313960 313960 1990-01 → 1995-01 Figure MCS556 MCS556 1994-05 → — Figure MCS557 MCS557 1995-01 → —

Part groups

PNCDescription
04311 Cylinder Kit, Clutch Master
04319A Cylinder Kit, Clutch Accumulator
31402 Reservoir Sub-assy, Clutch Master Cylinder
31410 Cylinder Assy, Clutch Master
31415 Gasket, Clutch Master Cylinder
31417 Grommet, Clutch Reservoir
31426 Float, Clutch Master Cylinder Reservoir
31440P Cap Assy, Clutch Master Cylinder Reservoir Filler
31451 Rod, Clutch Master Cylinder Push
31453 Clevis, Clutch Master Cylinder Push Rod
31454 Boot, Clutch Master Cylinder
31464 Insulator, Clutch Master Cylinder Heat
31464A Insulator, Clutch Master Cylinder Heat, NO.2
31490F Accumulator Assy, Master Cylinder
31490G Gasket(FOR CLUTCH MASTER CYLINDER ACCUMULATOR)
31493A Bracket, Clutch Accumulator
31496A Cushion, Clutch Accumulator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
