Toyota Land Cruiser

1990-01 → 1998-01 · chassis FJ80,FZJ80,HDJ80,HZJ80 · catalogue 791540 · Europe

Discontinued model Data version 1998-01

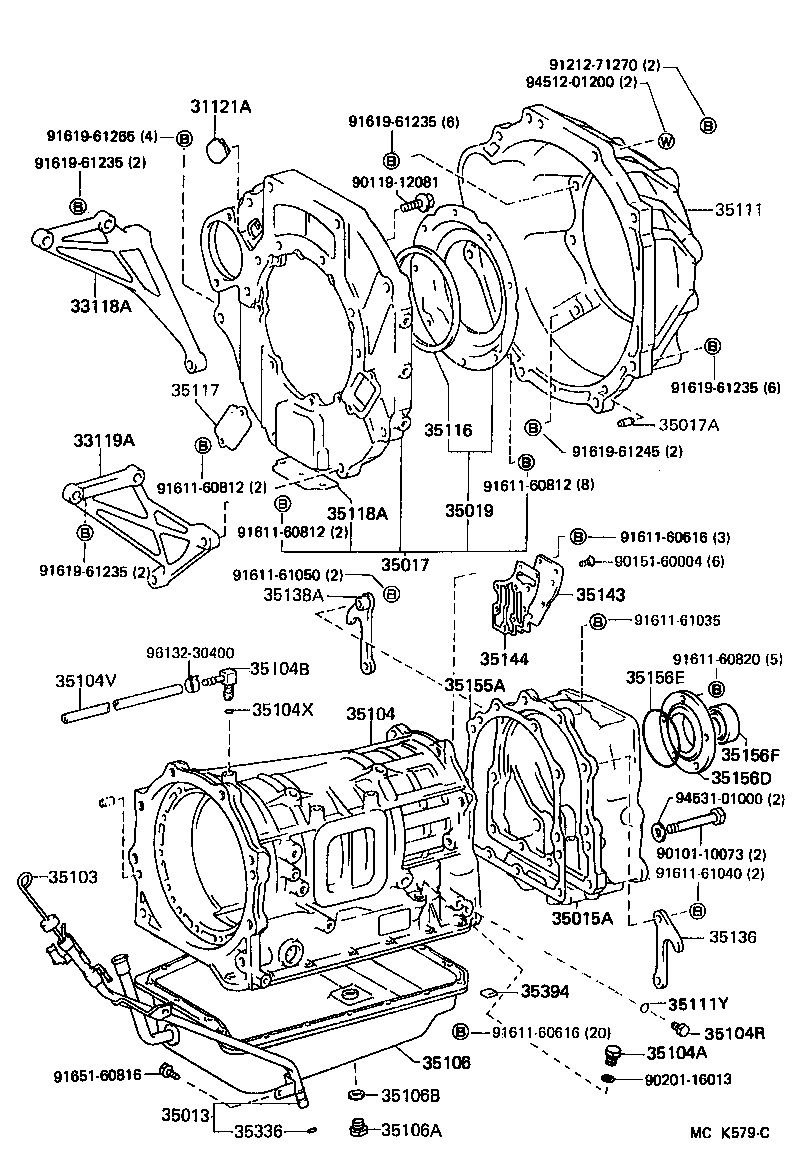

Transmission Case & Oil Pan (ATM)

36 part groups · 2 illustrations

PNC	Description
31121A	Cover, Transmission Housing Adapter
33118A	Plate, Stiffener, RH(ATM)
33119A	Plate, Stiffener, LH(ATM)
35013	Tube Sub-assy, Transmission Oil Filler
35015A	Adapter Sub-assy, Transmission Case, Rear
35017	Adapter Sub-assy, Transmission Housing, Front
35017A	Pin, Straight(FOR TRANSMISSION HOUSING ADAPTER, FRONT)
35019	Cover Sub-assy, Transmission Case Dust
35103	Gage Sub-assy, Transmission Oil Level
35104	Case Sub-assy, Automatic Transmission
35104A	Plug, Automatic Transmission Case
35104B	Plug, Breather, NO.1 (ATM)
35104R	Plug, NO.2 (FOR TRANSAXLE CASE)
35104V	Hose (FOR BREATHER PLUG)
35104X	Ring, O (FOR BREATHER PLUG)
35104Y	Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
35106	Pan Sub-assy, Automatic Transmission Oil
35106A	Plug Sub-assy, Drain (ATM)
35106B	Gasket, Drain Plug (ATM)
35111	Housing, Automatic Transmission
35111Y	Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
35116	Seal, Transmission Case Dust
35117	Cover, Adapter, NO.1
35118A	Cover, Adapter, NO.2
35119A	Cover, Transmission Housing
35136	Hanger, Transmission,NO.1
35138A	Hanger, Transmission, NO.2
35143	Cover, Transmission Case, Rear
35144	Gasket, Transmission Case Rear Cover
35155A	Gasket, Transmission Case Adapter
35156D	Cover, Transmission Case Rear Adapter
35156E	Ring, O(FOR TRANSMISSION CASE REAR ADAPTER COVER)
35156F	Seal, Oil(FOR TRANSMISSION CASE REAR ADAPTER COVER)
35167	Protector, Transmission Oil Pal
35336	Ring, O (FOR TRANSMISSION OIL FILLER TUBE)
35394	Magnet, Oil Cleaner (FOR TRANSMISSION)

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
